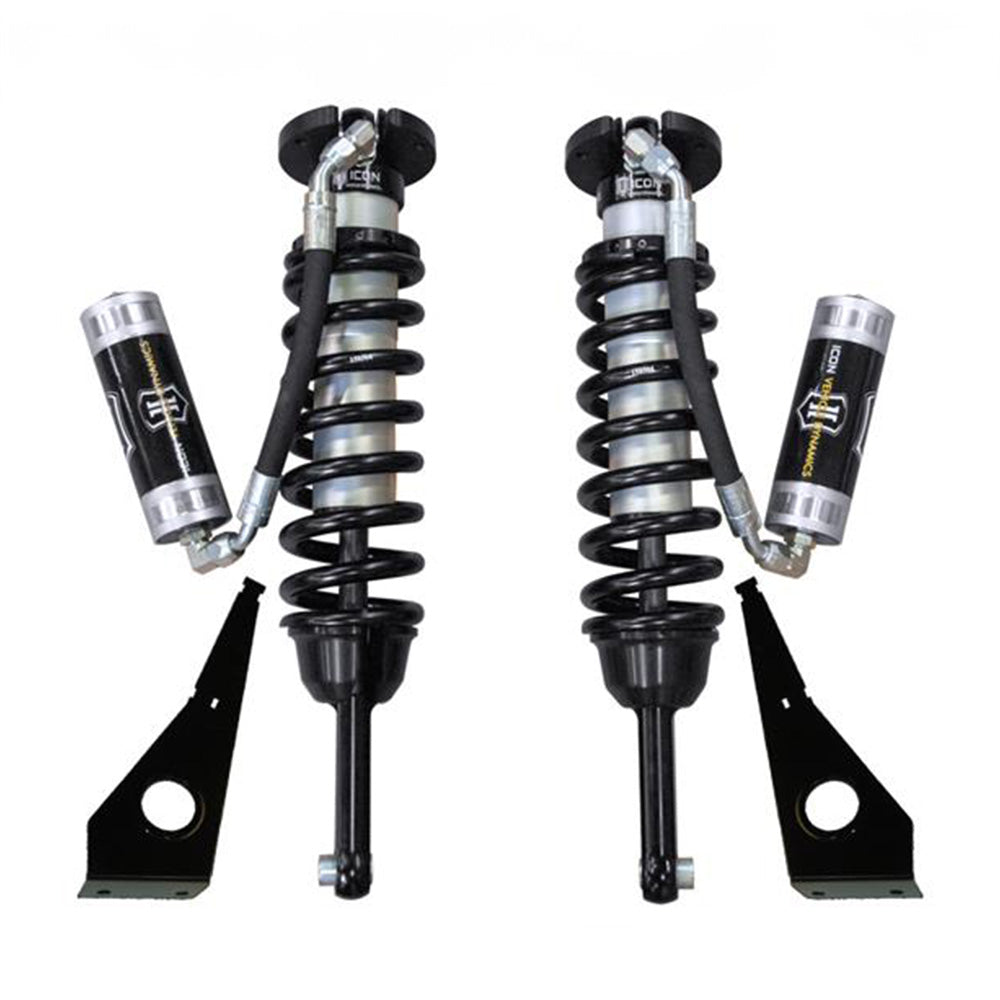

0-3.5" Lift 2.5 Series Coilover Kit 4Runner (2010-2024)

Product Description

These adjustable coilovers allow up to 0-3.5” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible, while still being compatible with the vehicle’s stock front upper control arms, along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.

Included

• Driver side coilover
• Passenger side coilover
• Driver side resi mount
• Passenger side resi mount
• Coilover hardware kit
• Swaybar relocation kit
• Hose clamp kit
• 4 - Self tap bolts

Product Features

• Increased wheel travel and improved ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• Adjustable ride height for 0-3.5" of front lift height over stock
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• Fully rebuildable and re-tunable
• 100% bolt-on no drilling, cutting or welding necessary for installation

Fitment Notes

• Standard travel length coilovers are compatible with stock front upper control arms
• Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle
• Factory wheel and tire fitment
• Recommended after market tires: 33" x 11:50" (larger tires may fit but fender trimming and modifications will be required)
