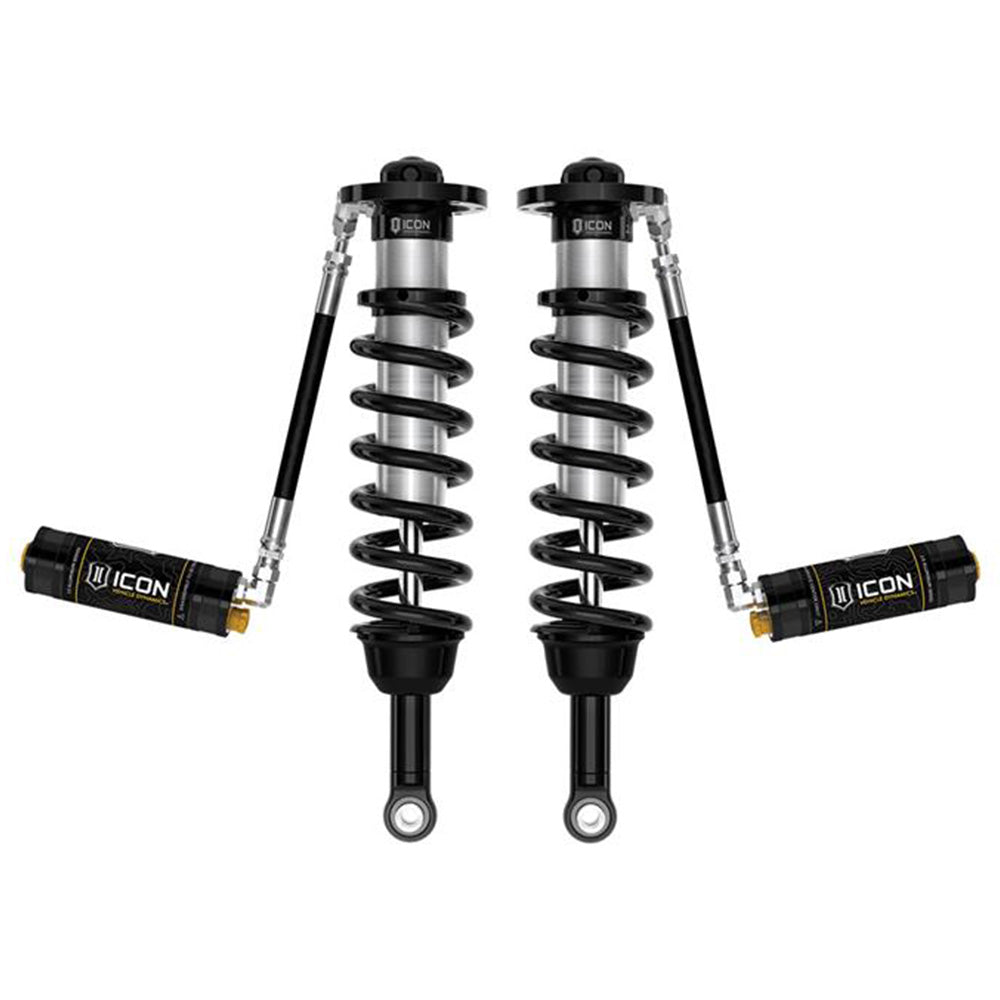

1.25-3" Front Lift 2.5 Series Coilover Kit W/ CDCV Land Cruiser (2024+)

Product Description

These adjustable coilovers allow up 1.25-3" of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON?s Vehicle-specific shock length and valving, their large 2.5" shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle

Included

• 1 - Front driver side coilover
• 1  - Front passenger side coilover
• Installation hardware
• 1 - Front driver side resi mount
• 1 - Front Passenger side resi mount
• 1 - Hose clamp kit

Product Features

• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
• Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel
• Height-adjustable coilovers offer 1.25-3" of lift height adjustment over stock
• 2.5" diameter shock bodies with remote reservoirs
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable

Fitment Notes

• Delta Joint Pro front upper control arms are recommended to maintain proper wheel alignment above 2" of lift
• 4WD models require front differential drop part # 55160
• Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range
• Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle
• Fits with OEM wheels and tires
• Recommended aftermarket tires: 33" x 11.50" (larger tires may fit but fender trimming and modification will be required)

ICON Vehicle Dynamics warrants to the original retail purchaser who owns the vehicle on which the product was originally installed.
ICON Vehicle Dynamics does not warrant the product for finish, alterations, modifications and/or installation contrary to ICON
Vehicle Dynamics instructions. ICON Vehicle Dynamics products are not designed, nor are they intended to be installed on vehicles
used in race applications, for racing purposes or for similar activities. (A “race” is defined as any contest between two or more
vehicles, or a contest of one or more vehicles against the clock, whether or not such contest is for a prize). This warranty does not
include coverage for police or taxi vehicles, race vehicles, or vehicles used for government or commercial purposes. Also excluded
from this warranty are sales outside of the United States of America and Canada.
ICON Vehicle Dynamics’ obligation under this warranty is limited to the repair or replacement, at ICON Vehicle Dynamics’ discretion,
of the defective product. Any and all costs of removal, installation or re-installation, freight charges and incidental or consequential
damages are expressly excluded from this warranty. Items that are subject to wear are not considered defective when worn and are
not covered.
ICON Vehicle Dynamics components must be installed as a complete kit as shown in our current application guide. Any substitutions
or exemptions of required components will immediately void the warranty. Some finish damage may happen to parts during shipping
and is not covered under warranty.
This warranty is expressly in lieu of all other warranties expressed or implied. This warranty shall not apply to any product that has
been improperly installed, modified or customized subject to accident, negligence, abuse or misuse.
