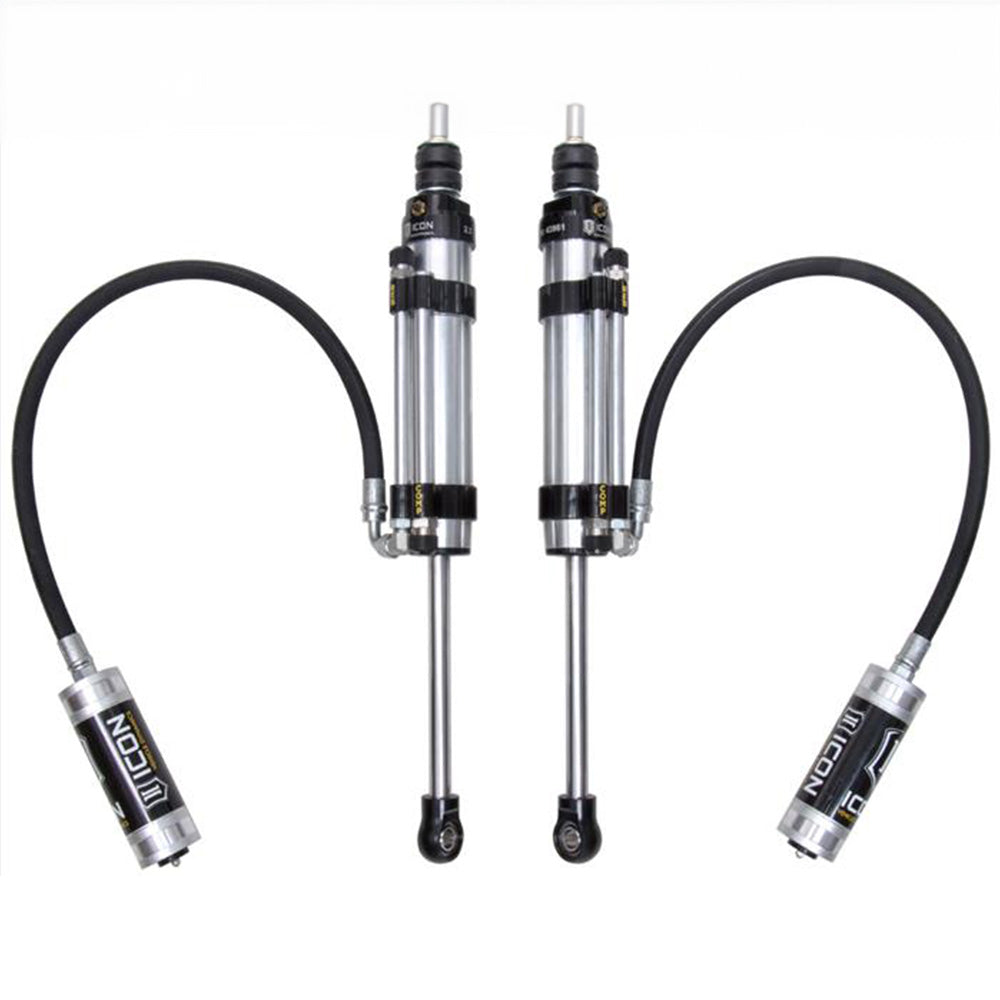

ICON 2.5 Omega bypass rear shocks for 2010-2024 Toyota 4Runner

ICON

1-3" lift Rear 2.5 Omega Bypass Shocks 4Runner (2010-2024)

Sale price$1,936.34 USD
SKU: ICO59910P
In Stock and Ready to Ship!
Free shipping on this item
Backed by the ICON manufacturer warranty.

ICON warranty

ICON Vehicle Dynamics offers a limited lifetime warranty on its components, springs and weldments for the original retail purchaser who owns the vehicle they were installed on. Shocks carry a 1 year manufacturer defect warranty, and the Delta Joint carries 5 years.

It does not cover finish, wear items, alterations, modifications, or installation contrary to instructions. It also does not apply to race, police, taxi, government or commercial vehicles, or to sales outside the US and Canada.

Components must be installed as a complete kit. The remedy is repair or replacement only, and removal, installation and freight are excluded.

Does this fit my vehicle?

Install guide Open guide

Product Description

Designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in length but allow the user to customize the ride characteristics to their liking through adjustment of the bypass valves. ICON’s use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used, creates a significant increase in damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON Bypass Valve is an externally adjustable valve that restricts oil flow through the bypass tube and provides 28 settings of compression and rebound adjustment with no tools required.

Included

  • Driver side shock
  • Passenger side shock
  • 2 - Resi mount plate
  • 2 - Split lock washer
  • 2 - Self tap bolt
  • 2 - Adel Clamp
  • 1 - HD stem bushing kit
  • 1 - Hose clamp kit

Product Features

  • Allows adjustment of compression and rebound damping with high resolution across the entire adjustment range
  • Hand adjustable bypass valves with 28 detented settings at quarter turn increments for precise suspension tuning
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • unsurpassed performance and ride quality on and off-road
  • Excellent corrosion resistance and consistent finish

Fitment Notes

  • Compatible with 1-3" of rear lift over stock
  • Will not fit models with factory rear air suspension.
  • Does not work with vehicles equipped with Kinetic Dynamic Suspension System (KDSS)
