Dobinsons Spring & Suspension
1.5-3" MRR 3 Way Adjustable Rear Spacer Lift Kit Toyota Tacoma (2016-2023)
Rear Shock - Lift Height
Front Spring - Lift Height - Added Weight
Rear Spacer Lift Height
Product description

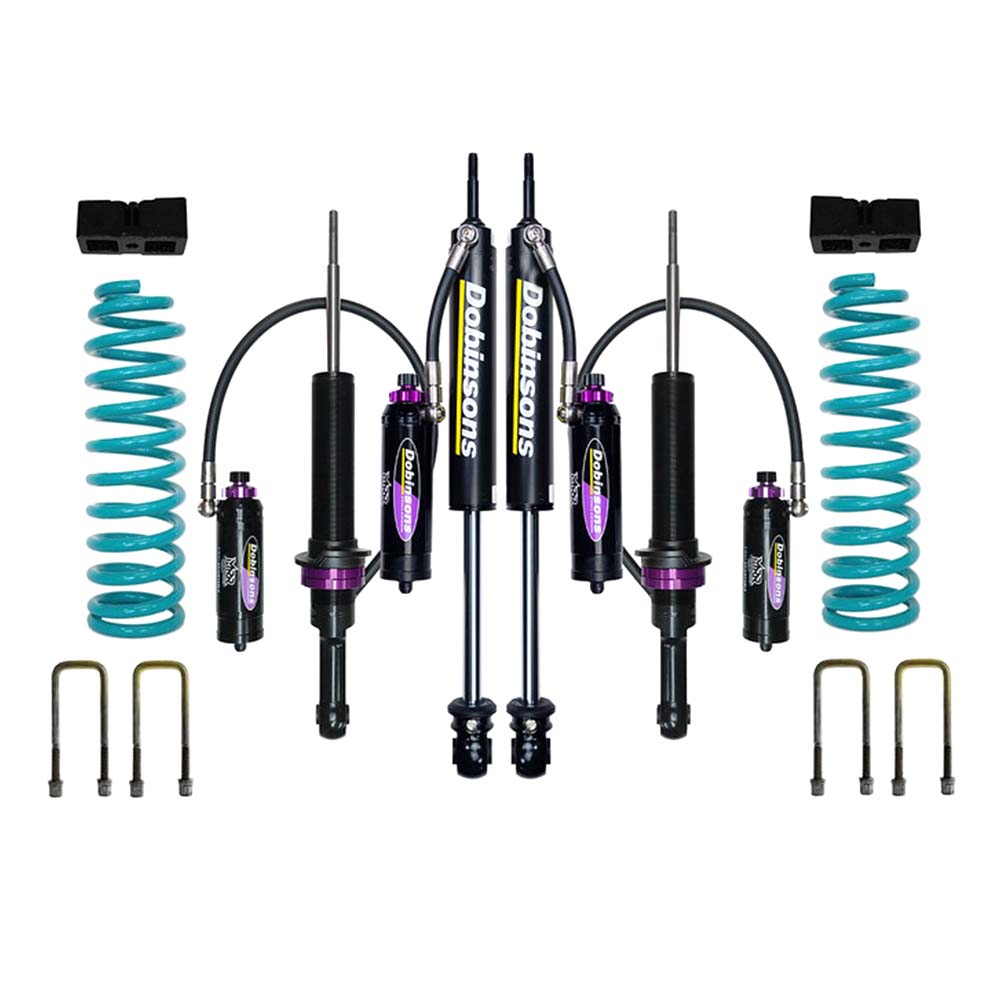

The Dobinsons 1.5" to 4" MRR 3-Way Adjustable Lift Kit, specifically designed for Toyota Tacoma models, excluding those equipped with KDSS. This comprehensive kit is meticulously engineered to provide a lift ranging from 1.5 to 4 inches, allowing for increased ground clearance and improved off-road capability without compromising on-road handling. Crafted with precision engineering and high-quality materials, Dobinsons' MRR Lift Kit includes advanced components such as adjustable struts, coils, and various other essential parts to ensure optimal performance and reliability in all driving conditions. Whether you're tackling rough trails or cruising on the highway, this lift kit delivers enhanced stability, control, and comfort.
Product Features
- All rear heights are measured on a vehicle with 3rd row seating
- 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
- 10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
- 20 Stage Low Speed Compression - For creepy crawling and cornering
- 15 Stage Rebound - Control your coils, prevent bucking
- 50mm CNC Machined High Flow Billet Aluminium Race Piston
- 3mm Thick Heavy Duty DOM Seamless 56mm O.D. shock Body Precision Honed to +/- 0.04mm
- Upgraded 3 Stage FKM-HNBR Sealing System
- TSUGAMITM CNC machined components for precise tolerances
- ParkerTM Braided High Pressure Hoses
- 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
- T6 6061 Height Adjustable Spring Seat
- Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low-wear performance
- 60mm Full 6063 aluminum remote reservoir
- Lightweight CNC Machined Low Friction floating piston
- High Quality O.E.M. Grade Natural Rubber Bushings
- Single Piece Lower Leg
- EDP Surface Protection
- Direct Bolt-On Design
- CNC TIG Precision Welded Body End Mounts
- Fully Rebuildable Design
Fitment Notes
- Long Travel shocks require 24" brake lines and 3" bump stop extensions or a bump stop that is at least 3" longer than OEM
