2.5 Internal Reservoir Coilover Kit Tacoma (2016-2023)

Product Description

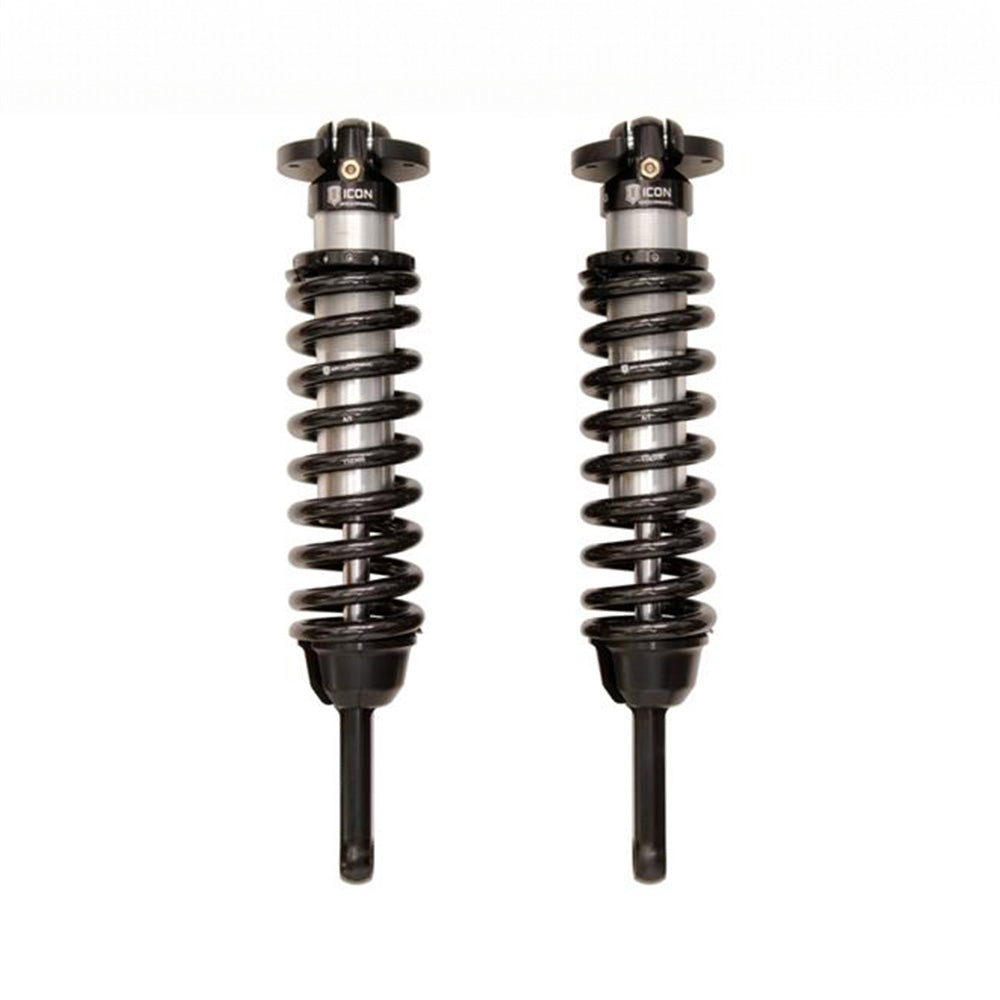

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.

Included

• 1 - Driver side coilover
• 1 - Passenger side coilover
• 1 - Skid spacer washer kit
• 1 - Coilover hardware kit
• 1 - Sway bar relocation kit

Product Features

• Increased wheel travel and improved ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable

Fitment Notes

• 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock
• 2016-2023 Tacoma Lift Range Is 0-2.75”
• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Fits with OEM tires and wheels
• Recommended aftermarket tires: 33" x 11.50" (larger tires may fit but fender trimming and modifications will be required)
• Trimming required for recommended tire size

ICON Vehicle Dynamics warrants to the original retail purchaser who owns the vehicle on which the product was originally installed.
ICON Vehicle Dynamics does not warrant the product for finish, alterations, modifications and/or installation contrary to ICON
Vehicle Dynamics instructions. ICON Vehicle Dynamics products are not designed, nor are they intended to be installed on vehicles
used in race applications, for racing purposes or for similar activities. (A “race” is defined as any contest between two or more
vehicles, or a contest of one or more vehicles against the clock, whether or not such contest is for a prize). This warranty does not
include coverage for police or taxi vehicles, race vehicles, or vehicles used for government or commercial purposes. Also excluded
from this warranty are sales outside of the United States of America and Canada.
ICON Vehicle Dynamics’ obligation under this warranty is limited to the repair or replacement, at ICON Vehicle Dynamics’ discretion,
of the defective product. Any and all costs of removal, installation or re-installation, freight charges and incidental or consequential
damages are expressly excluded from this warranty. Items that are subject to wear are not considered defective when worn and are
not covered.
ICON Vehicle Dynamics components must be installed as a complete kit as shown in our current application guide. Any substitutions
or exemptions of required components will immediately void the warranty. Some finish damage may happen to parts during shipping
and is not covered under warranty.
This warranty is expressly in lieu of all other warranties expressed or implied. This warranty shall not apply to any product that has
been improperly installed, modified or customized subject to accident, negligence, abuse or misuse.
