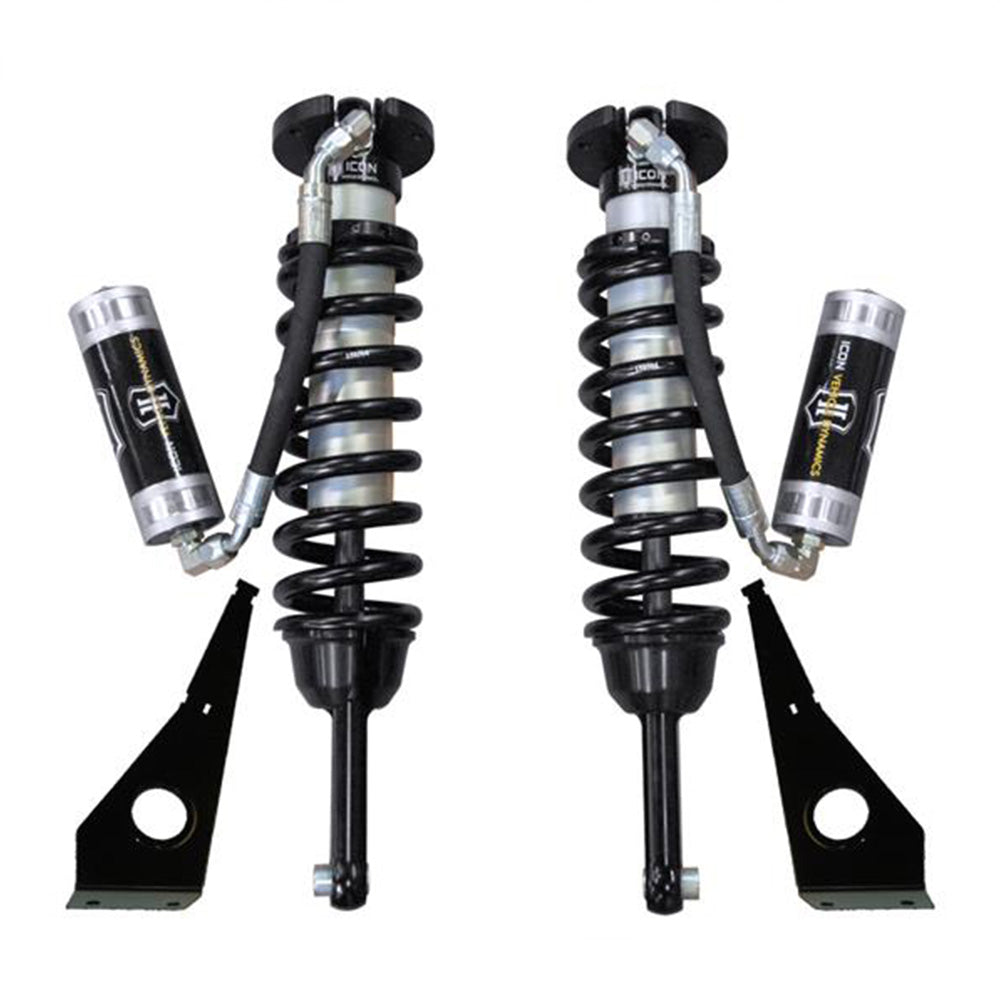

2.5 Remote Reservoir Coilover Kit Tacoma (2016-2023)

Product Description

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.

Included

• 2 - Coilover shocks
• 2 - Resi mounts
• 1 - Coilover hardware kit
• 1 - swaybar relocation kit
• 1 - Hose clamp kit
• 1 - Skid spacer kit

Product Features

• Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
• Vehicle specific tuned for superior shock damping and control
• Kit Includes Sway bar relocation brackets
• Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
• CAD-plated threaded body
• Billet aluminum upper mount
• 5/8" PTFE-lined spherical bearing
• Completely re-buildable
• Hose Length Optimized for Increased Fluid Transfer
• External Reservoirs Ensures Maximum Cooling
• ICON engineered coil springs

Fitment Notes

• 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock
• 2016-2023 Tacoma Lift Range Is 0-2.75”
• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Trimming required for recommended tire size
• Aftermarket recommended tires: 33" x 11.50" (larger tires may fit but fender trimming and modifications will be required)
