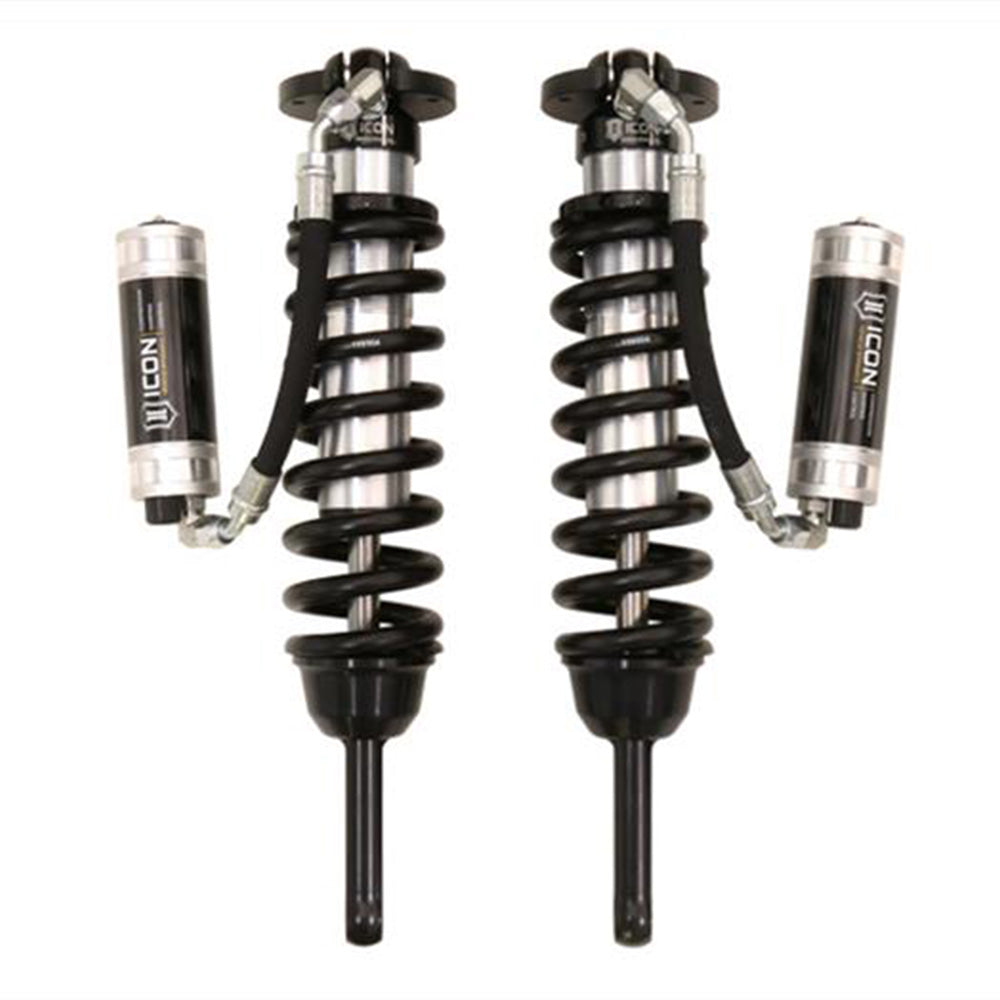

2.5 Remote Reservoir Coilover Kit Tacoma (2016-2023)

Product Description

These adjustable coilovers allow up 0-2.75” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle.

Included

• 2 - Coilovers
• 2 - Resi mounts
• 1 - Mounting hardware
• 1 - Swaybar relocation kit
• 1 - Hose clamp kit
• 1 - Skid spacer kit

Product Features

• Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
• Vehicle specific tuned for superior shock damping and control
• Kit Includes Sway bar relocation brackets
• Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
• CAD-plated threaded body
• Billet aluminum upper mount
• 5/8" PTFE-lined spherical bearings
• Completely re-buildable
• Hose Length Optimized for Increased Fluid Transfer
• External Reservoirs Ensures Maximum Cooling
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• ICON engineered coil springs

Fitment Notes

• 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• 2016-2023 Tacoma Lift Range Is 0-2.75”
• Bump Stop Spacer Kit 51045 Can Be Installed To Increase Preload .25” Beyond Maximum
• 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock
• Fits OEM wheels and tires
• Recommended aftermarket tires: 33" x 11.50" (trimming is required)
