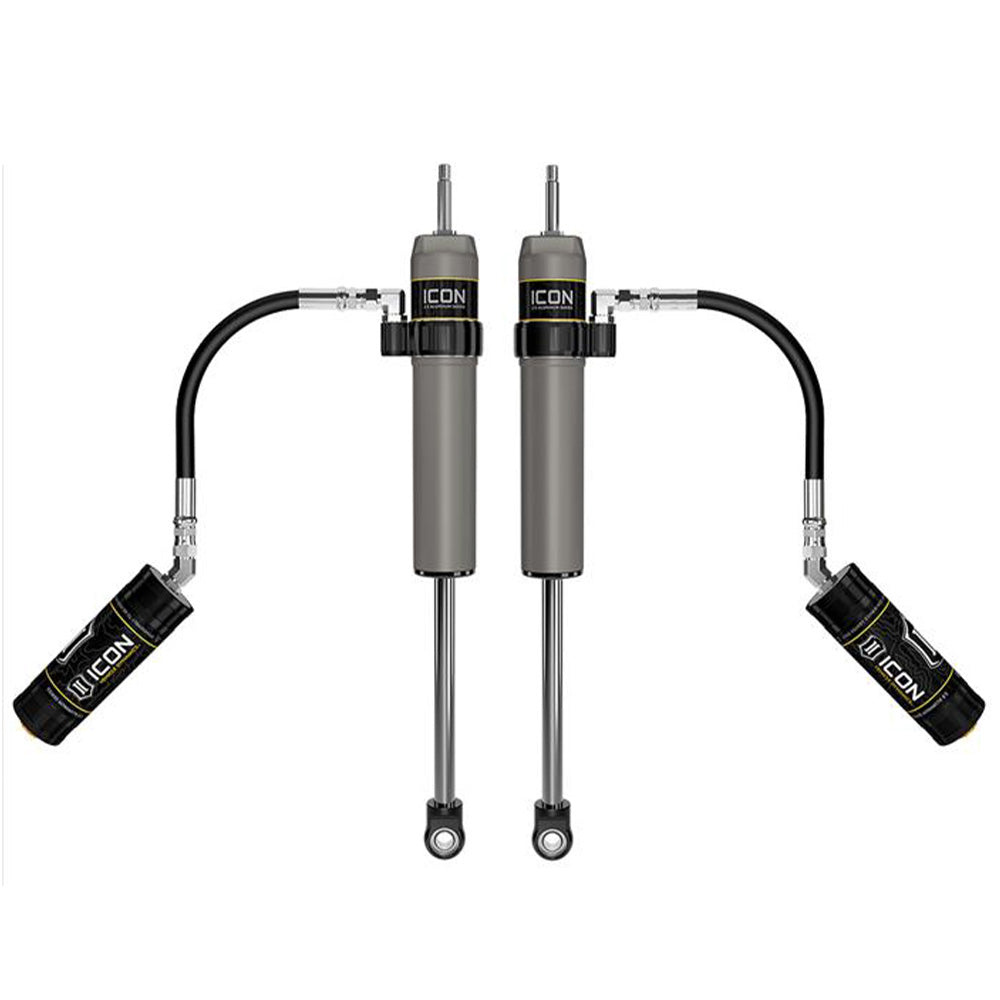

2.5 Series Rear Aluminum Shocks V.S. RR 0-1" Pair Tacoma (2024+)

Product Description

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.

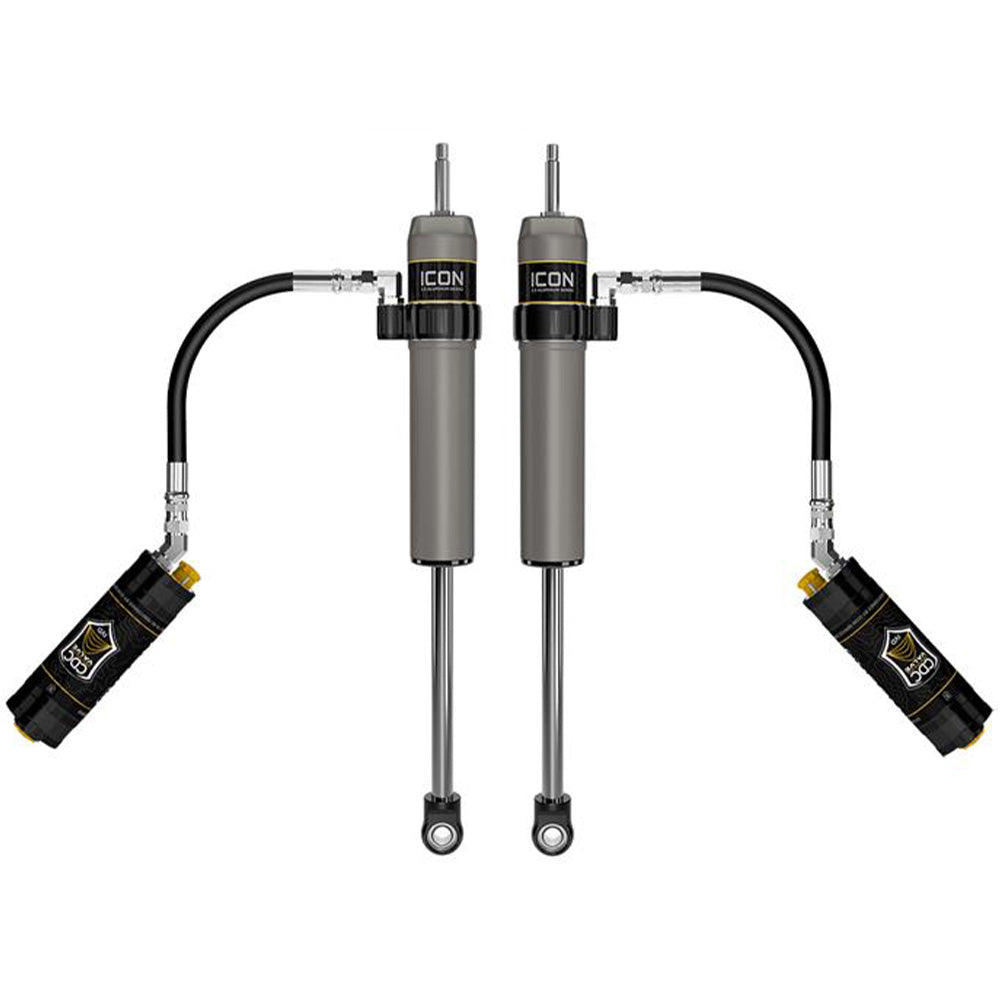

ICON's exclusive Compression Damping Control Valves upgrade is available for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle.

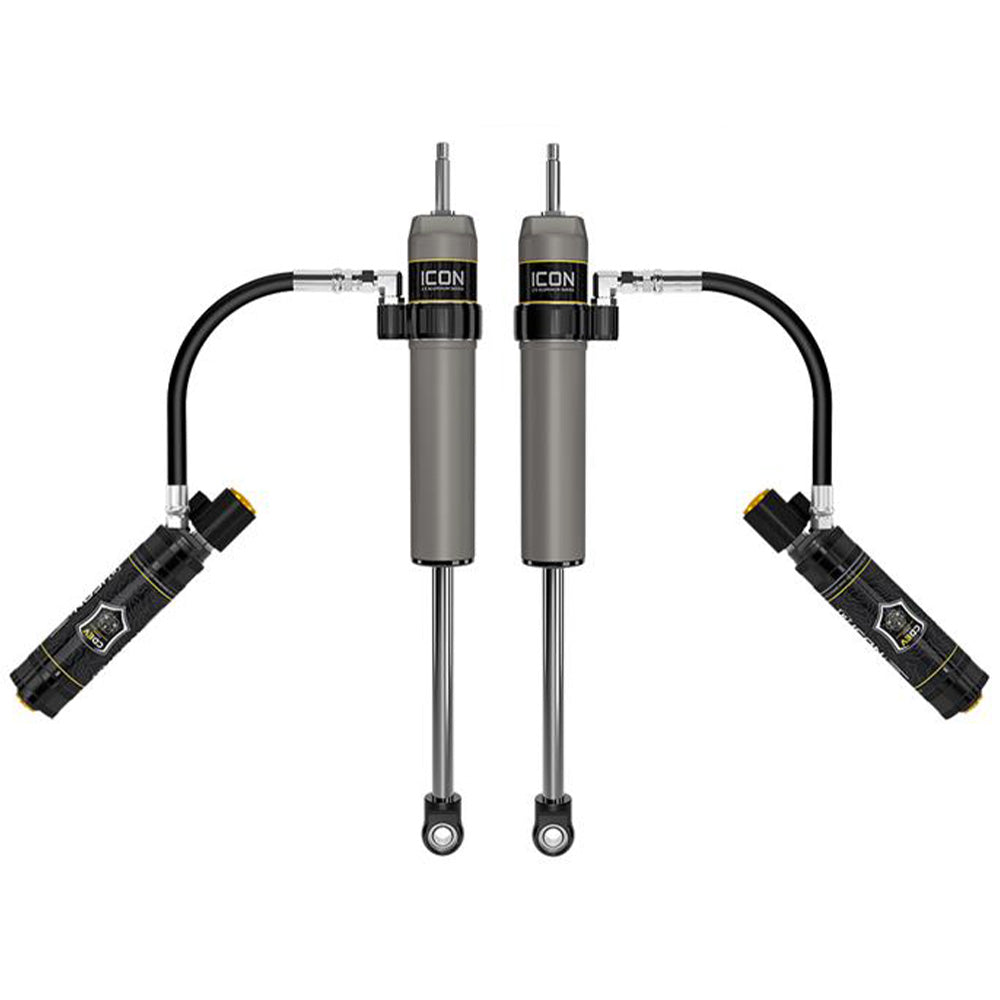

The ICON CDE Valve upgrade is available for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

Included

• ICON 2024 Toyota Tacoma 0-1" Lift Rear V.S. 2.5 Aluminum Series Remote Reservoir Shocks w/ CDCV Pair
• Installation Hardware

Product Features

• Rubber dust boot included for added shaft protection.
• PTFE lined spherical bearings and application specific mounting hardware.
• 6061 aircraft grade aluminum CNC machined components.
• Fully rebuildable and re-tunable.
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression.
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use.
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish.
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range.
• Nitrogen charged monotube design with remote reservoir.

• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road.
• 7/8” diameter induction hardened, chrome plated shock shaft.

Fitment Notes

• Will not fit 2024 Toyota Tacoma TRD PreRunner

ICON Vehicle Dynamics warrants to the original retail purchaser who owns the vehicle on which the product was originally installed.
ICON Vehicle Dynamics does not warrant the product for finish, alterations, modifications and/or installation contrary to ICON
Vehicle Dynamics instructions. ICON Vehicle Dynamics products are not designed, nor are they intended to be installed on vehicles
used in race applications, for racing purposes or for similar activities. (A “race” is defined as any contest between two or more
vehicles, or a contest of one or more vehicles against the clock, whether or not such contest is for a prize). This warranty does not
include coverage for police or taxi vehicles, race vehicles, or vehicles used for government or commercial purposes. Also excluded
from this warranty are sales outside of the United States of America and Canada.
ICON Vehicle Dynamics’ obligation under this warranty is limited to the repair or replacement, at ICON Vehicle Dynamics’ discretion,
of the defective product. Any and all costs of removal, installation or re-installation, freight charges and incidental or consequential
damages are expressly excluded from this warranty. Items that are subject to wear are not considered defective when worn and are
not covered.
ICON Vehicle Dynamics components must be installed as a complete kit as shown in our current application guide. Any substitutions
or exemptions of required components will immediately void the warranty. Some finish damage may happen to parts during shipping
and is not covered under warranty.
This warranty is expressly in lieu of all other warranties expressed or implied. This warranty shall not apply to any product that has
been improperly installed, modified or customized subject to accident, negligence, abuse or misuse.
