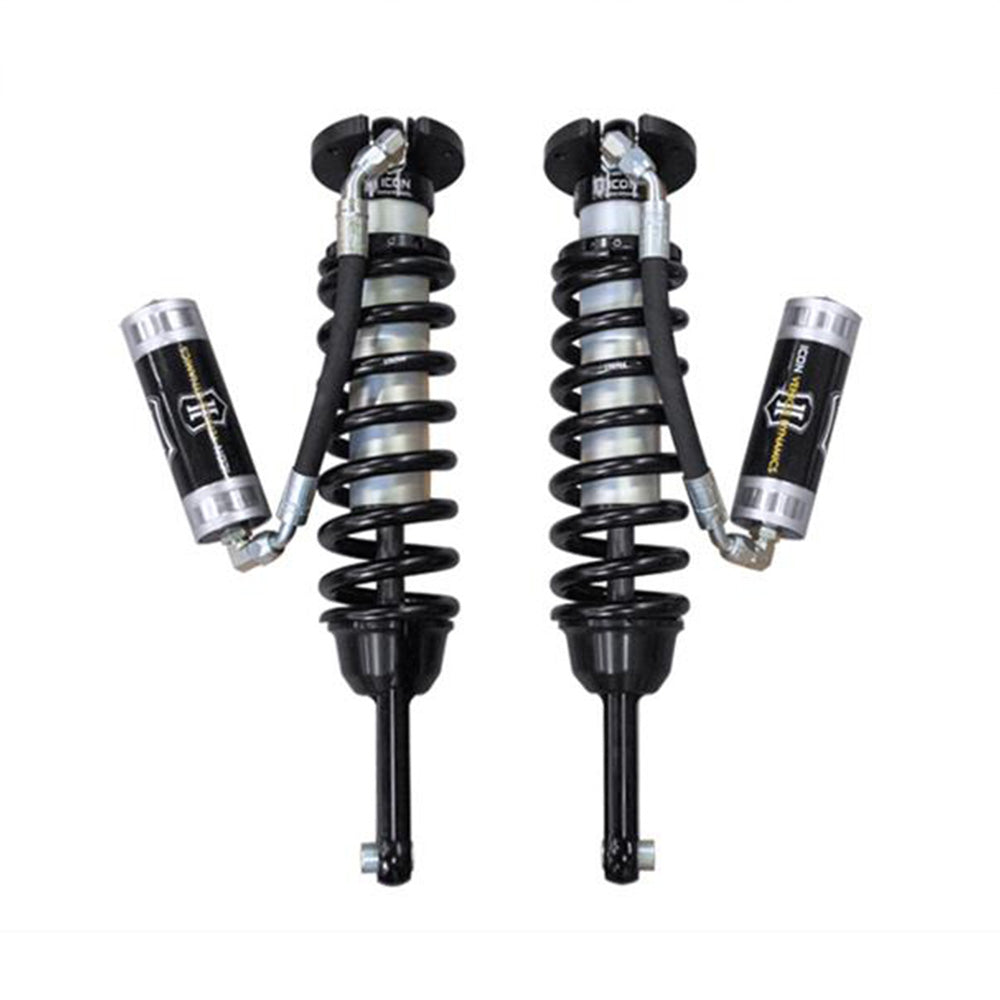

2.5 VS Extended Travel Coilover Kit Tacoma (2016-2023)

Product Description

These adjustable coilovers allow up to 0-2.75” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight.

Included

• 2 - Coilover shocks
• Installation hardware

Product Features

• Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
• Vehicle specific tuned for superior shock damping and control
• Extended Travel length requires installation of aftermarket front upper control arms
• Kit Includes Sway bar relocation brackets
• Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
• CAD-plated threaded body
• Billet aluminum upper mount
• 5/8" PTFE-lined spherical bearings
• Completely re-buildable
• Hose Length Optimized for Increased Fluid Transfer
• External Reservoirs Ensures Maximum Cooling
• ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends

Fitment Notes

•  700lb/in spring rate only recommended for trucks with additional weight added to front end
• 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock
• These systems are to be used with aftermarket upper control arms only
•  Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Recommended aftermarket tires: 33" x 11.50" (trimming required for recommended tire size)
