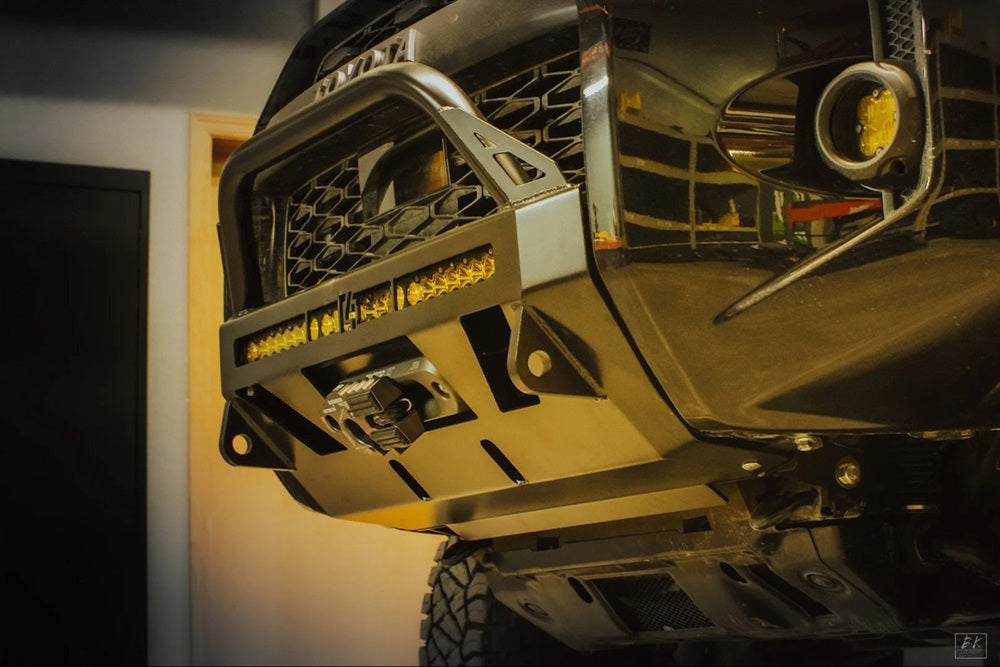

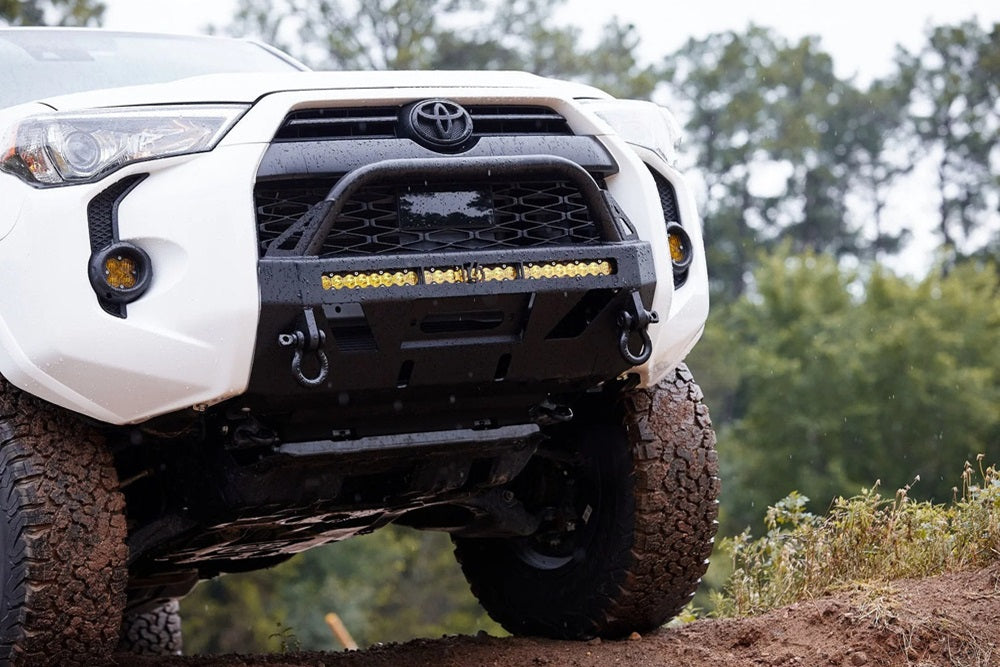

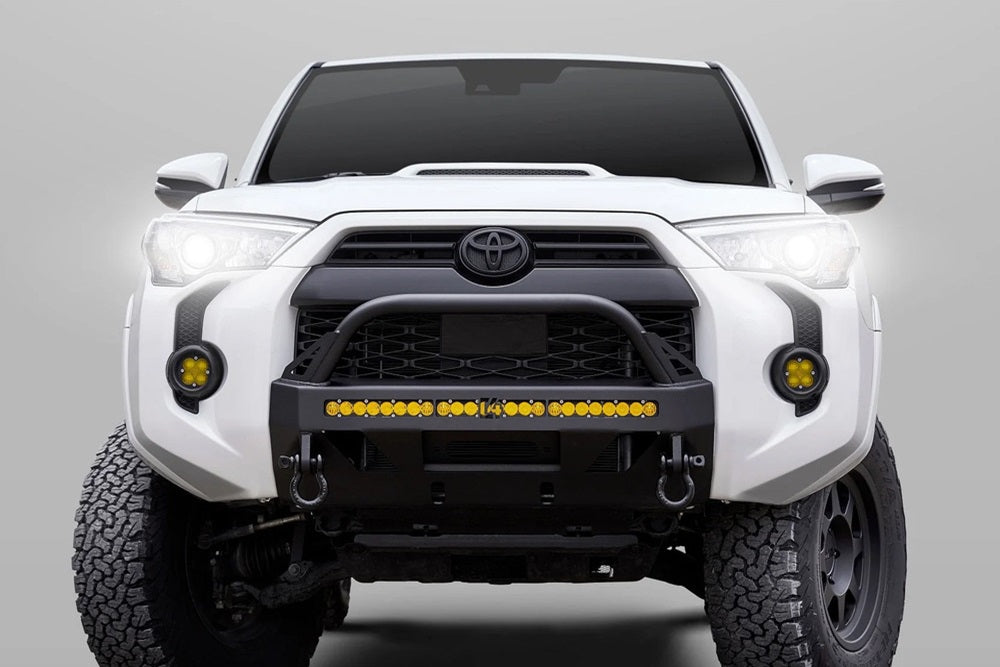

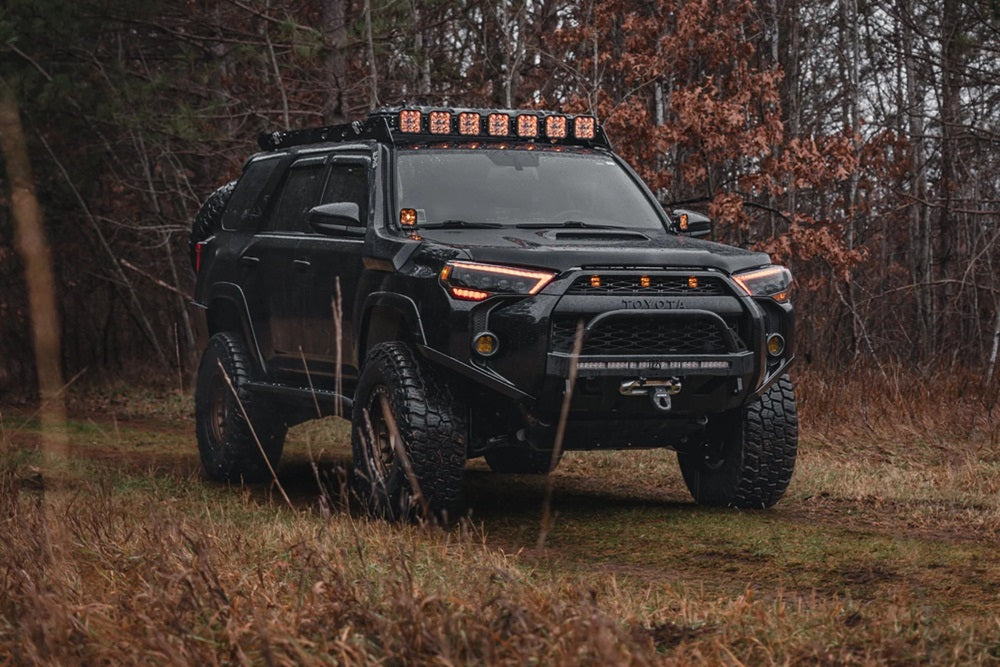

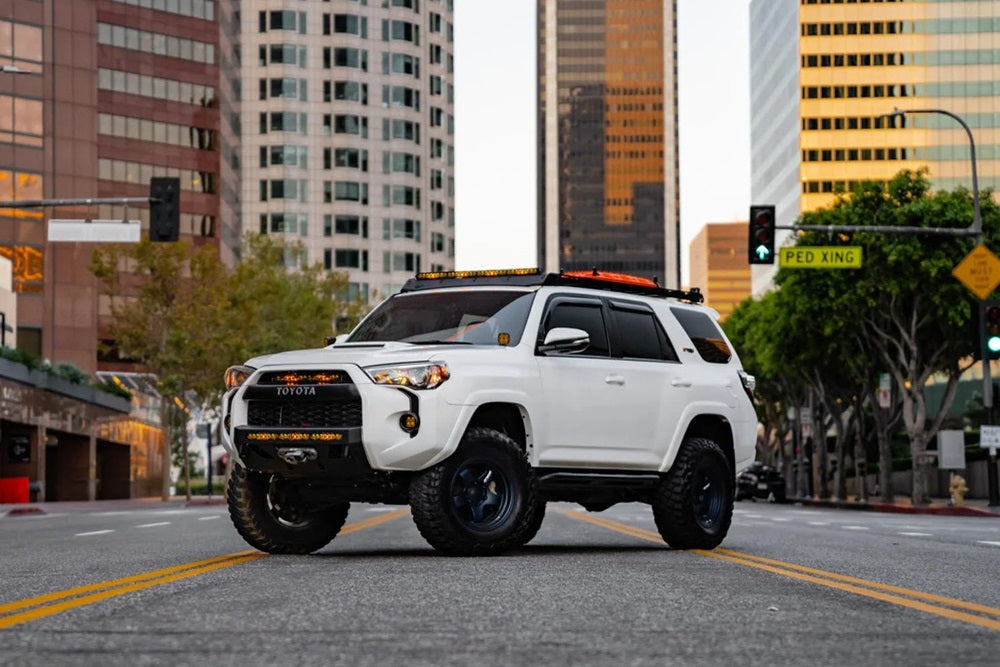

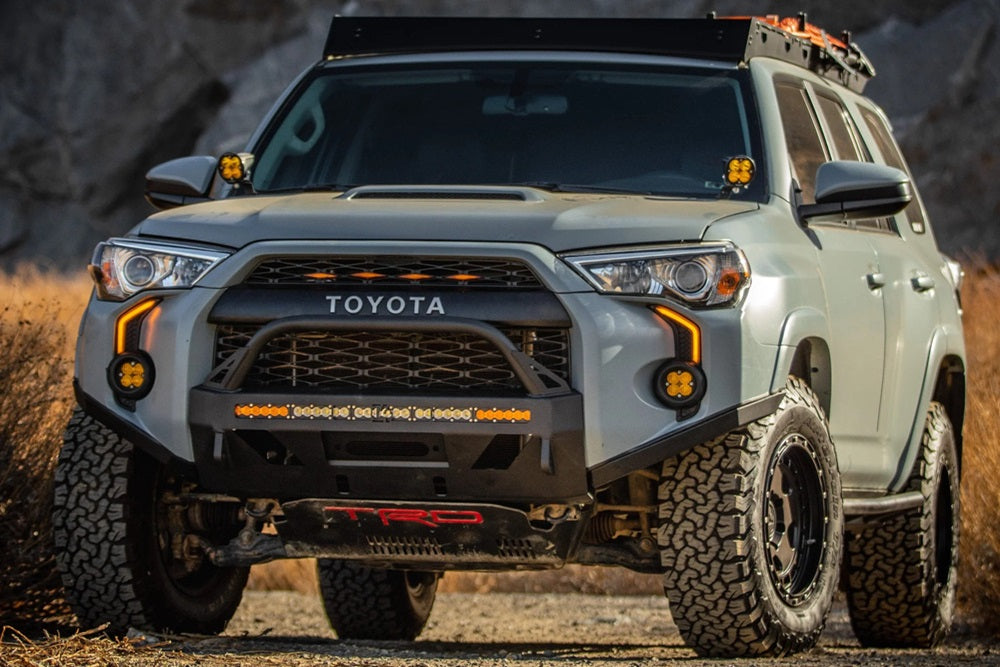

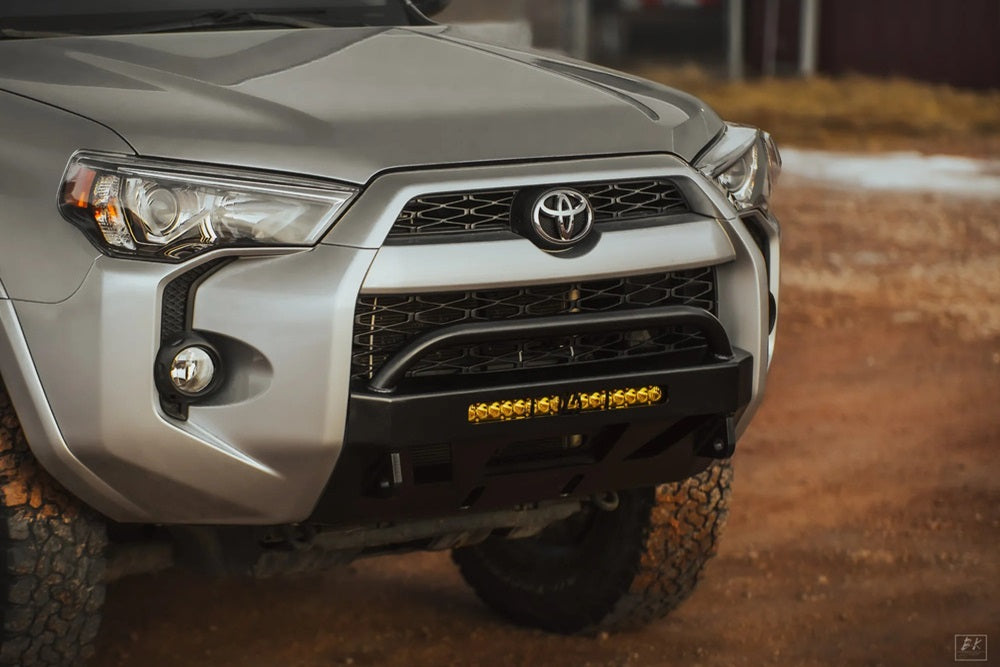

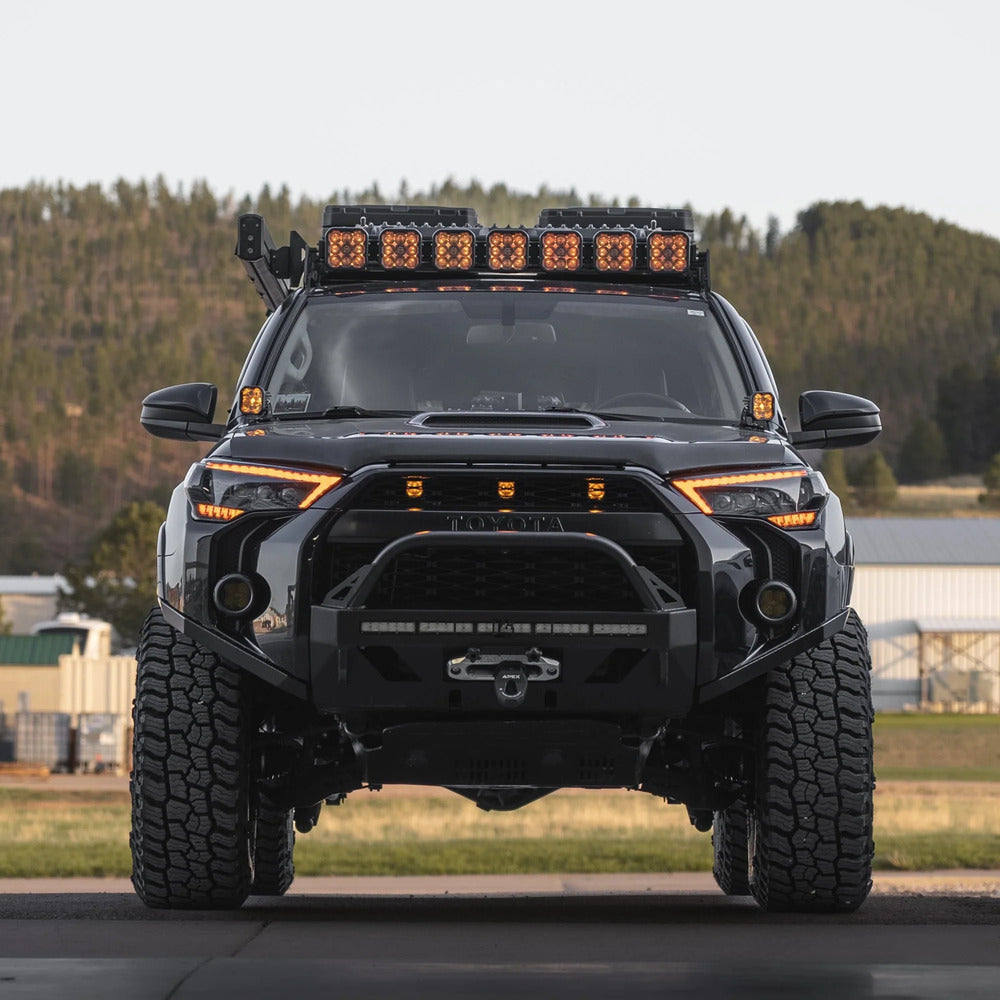

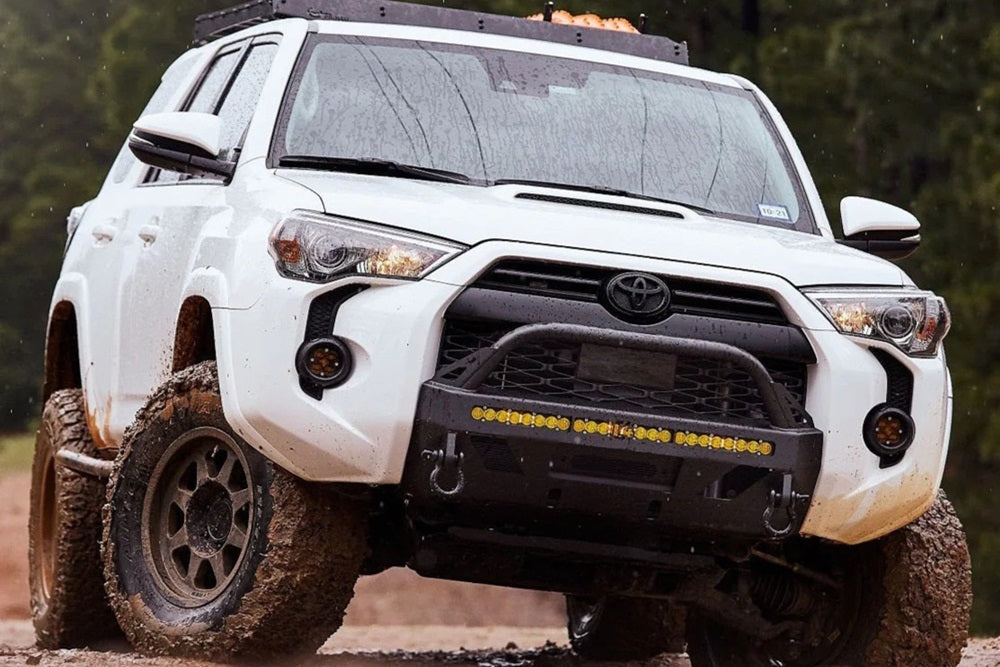

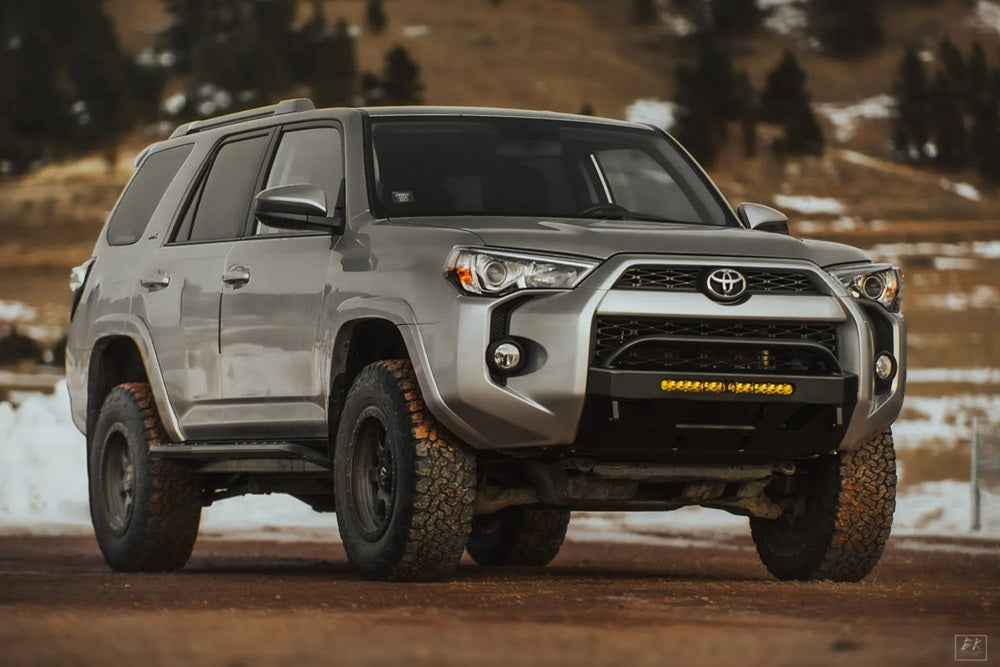

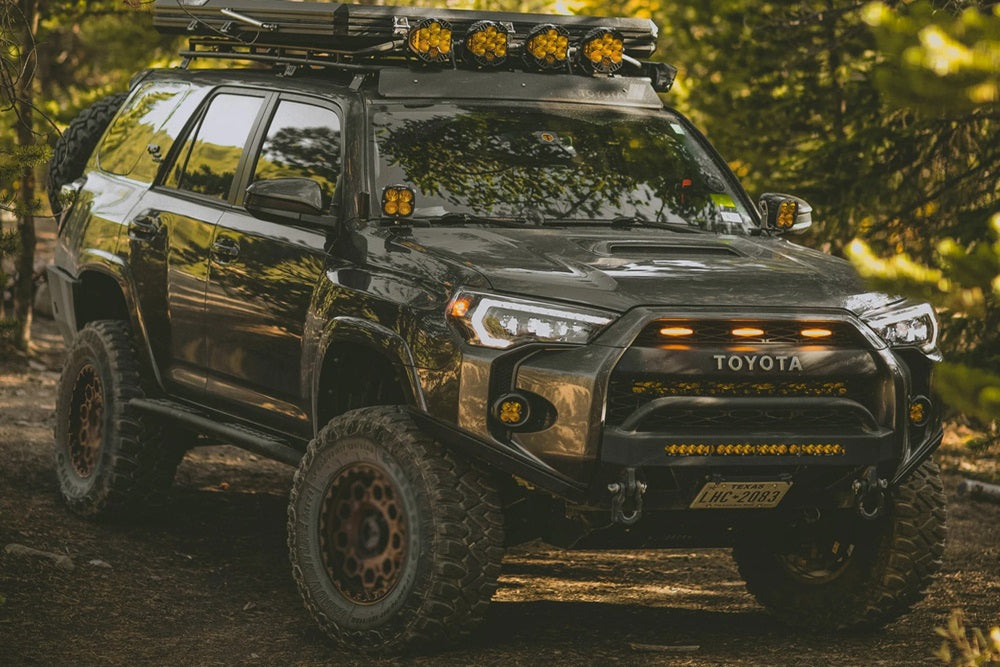

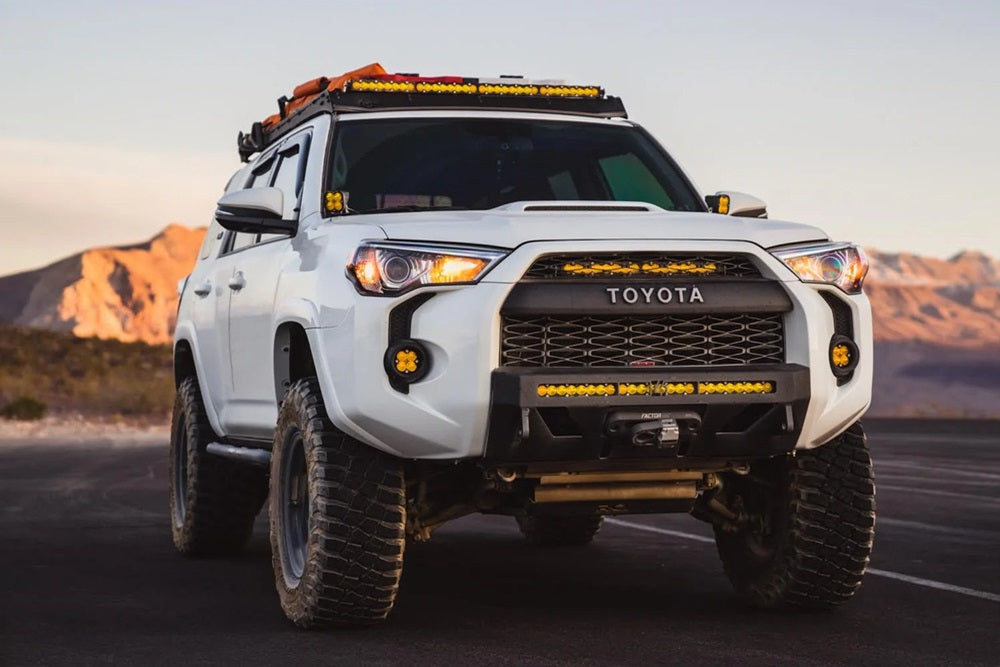

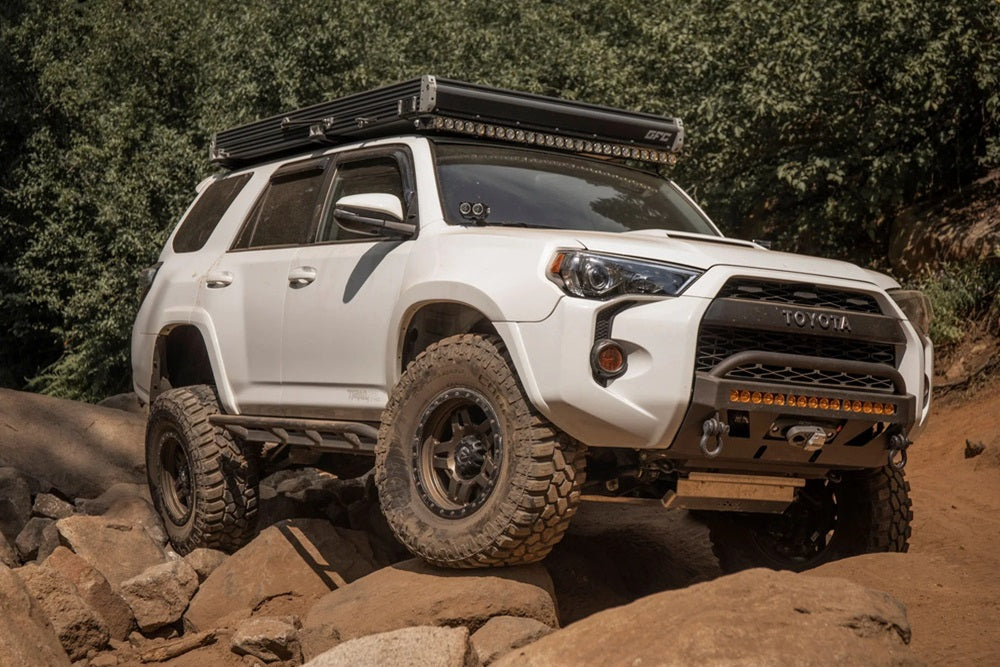

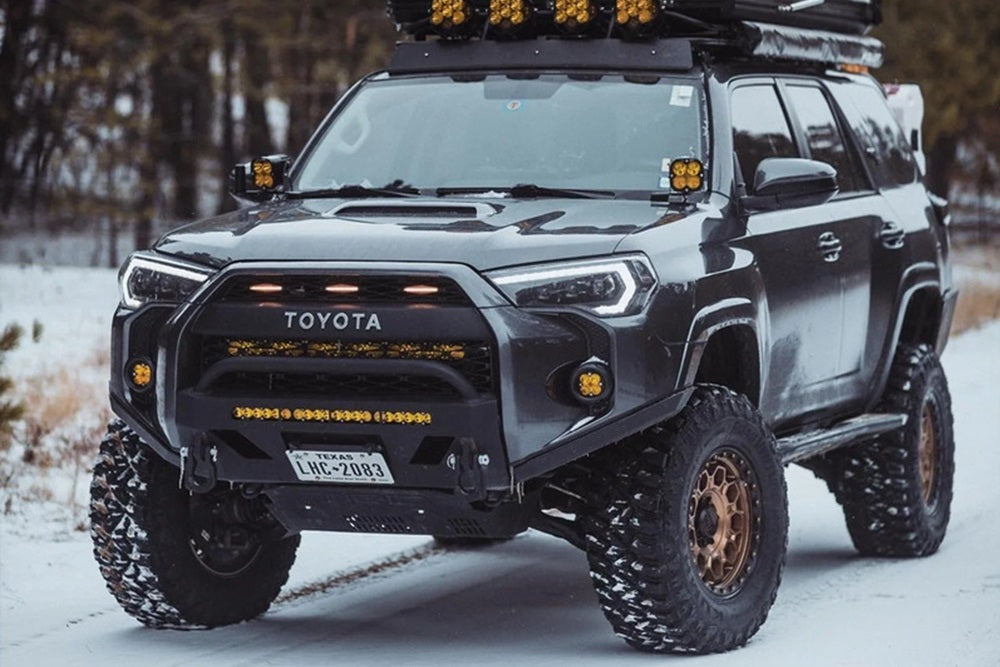

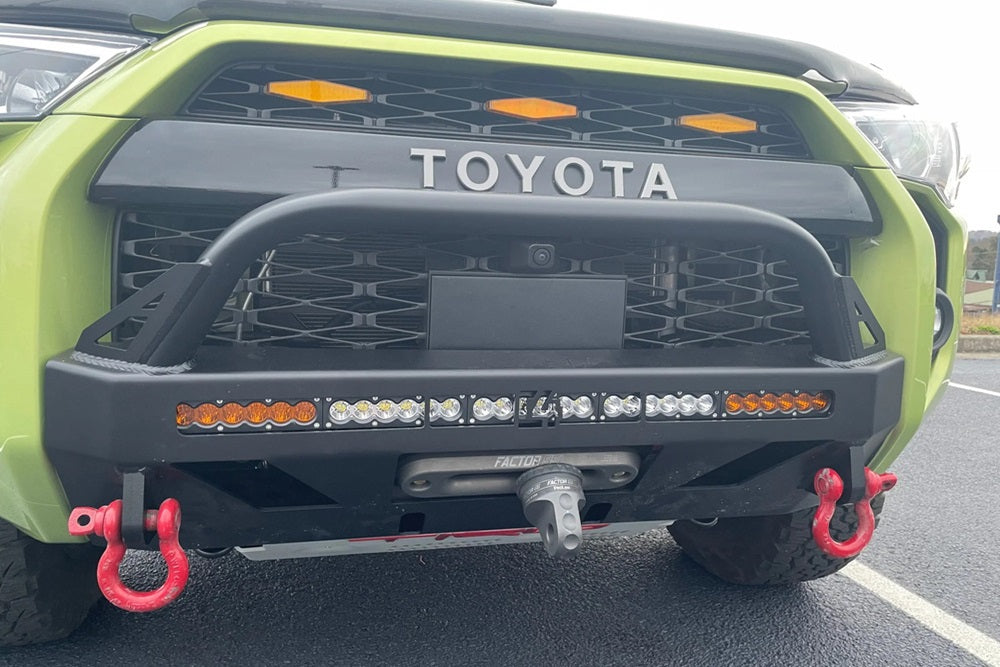

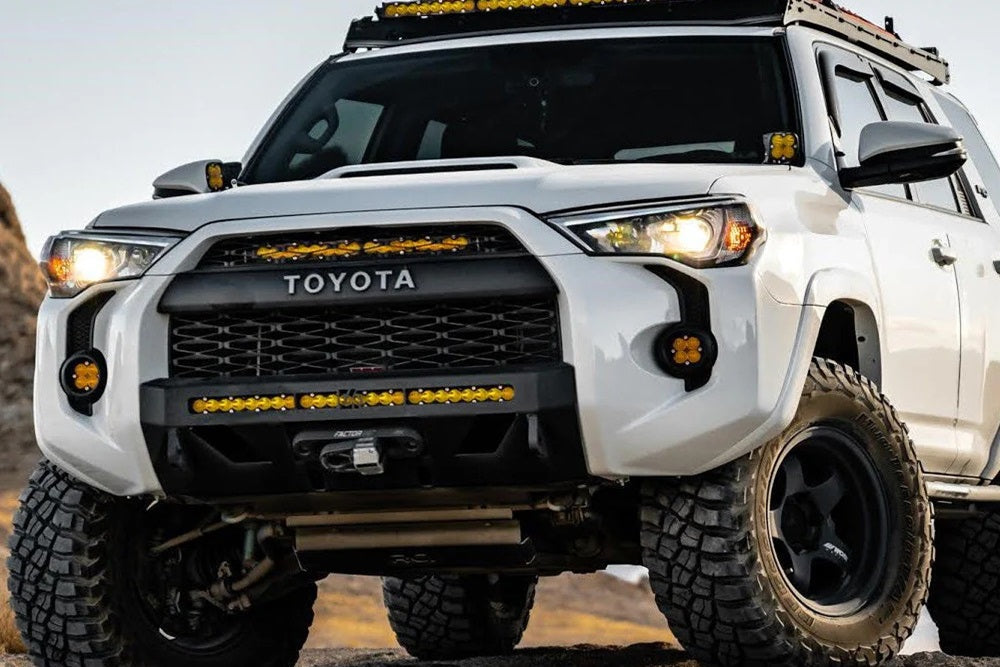

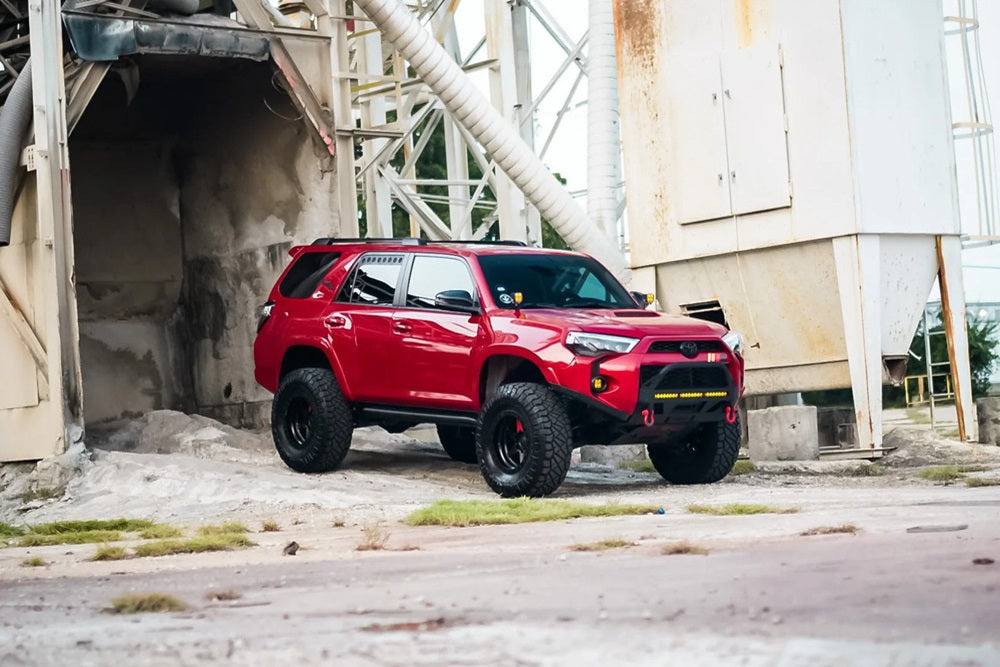

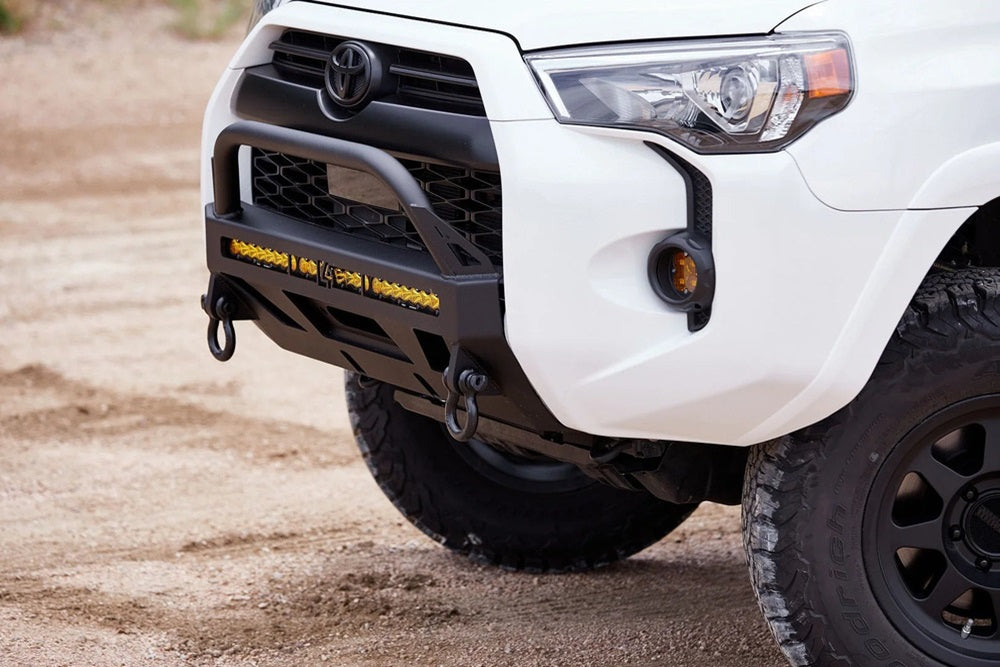

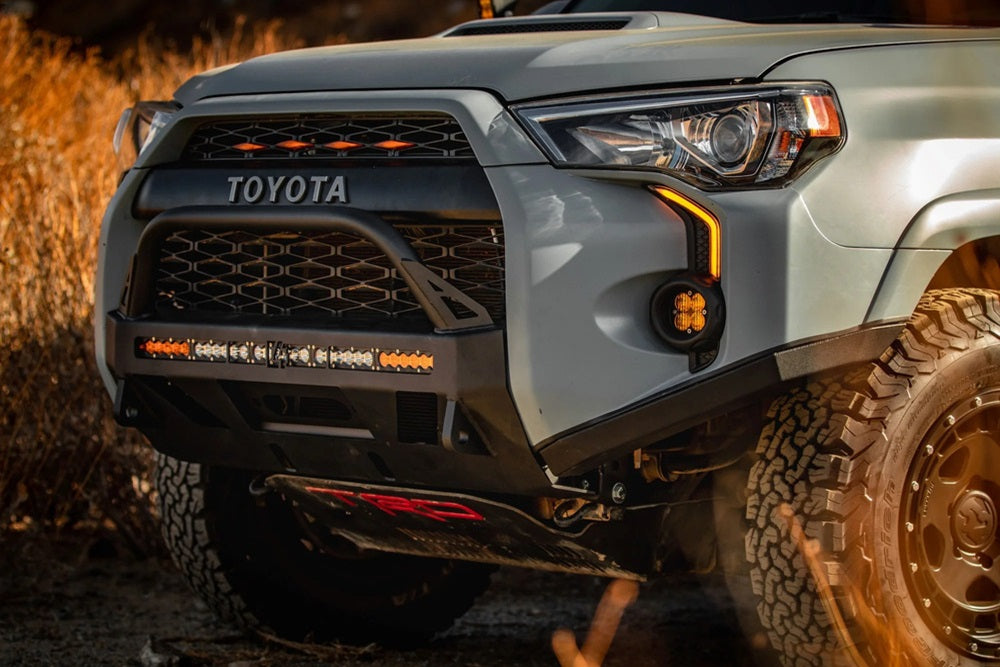

Lo Pro Winch Front Bumper 4Runner (2010-2023)

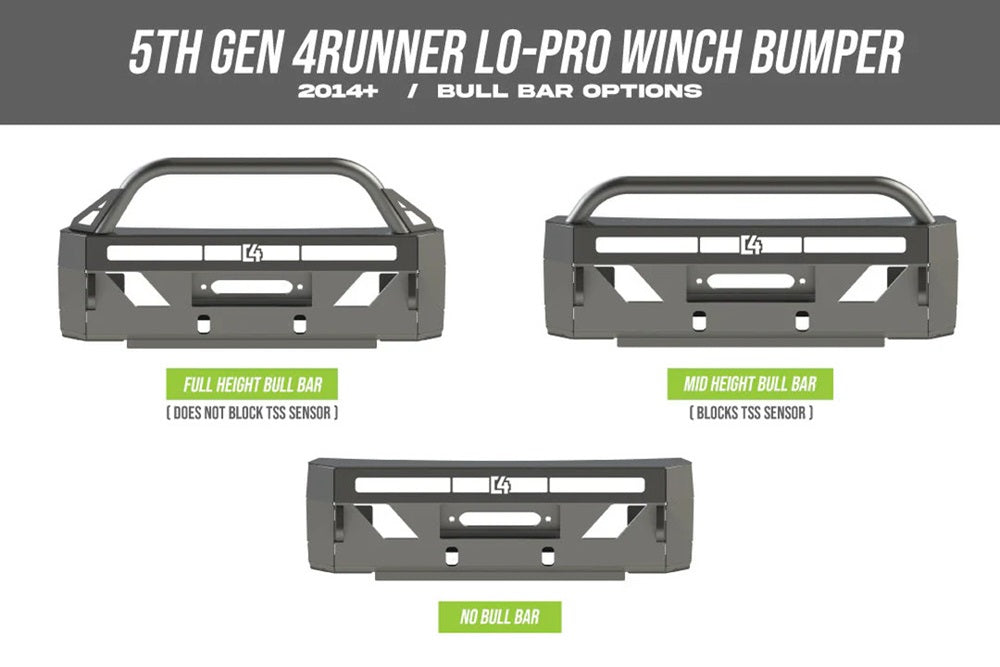

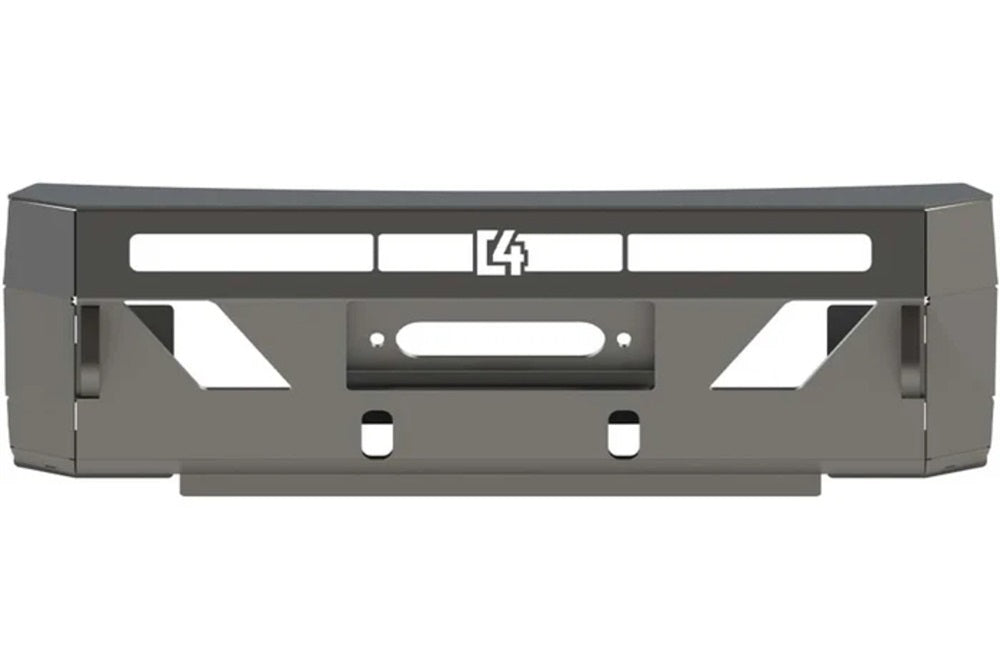

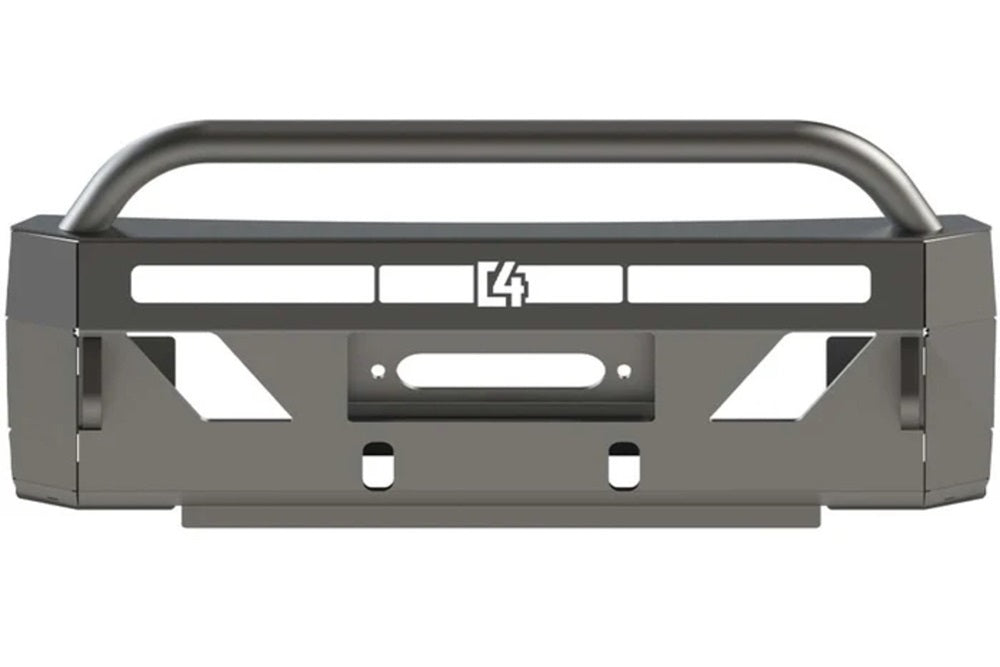

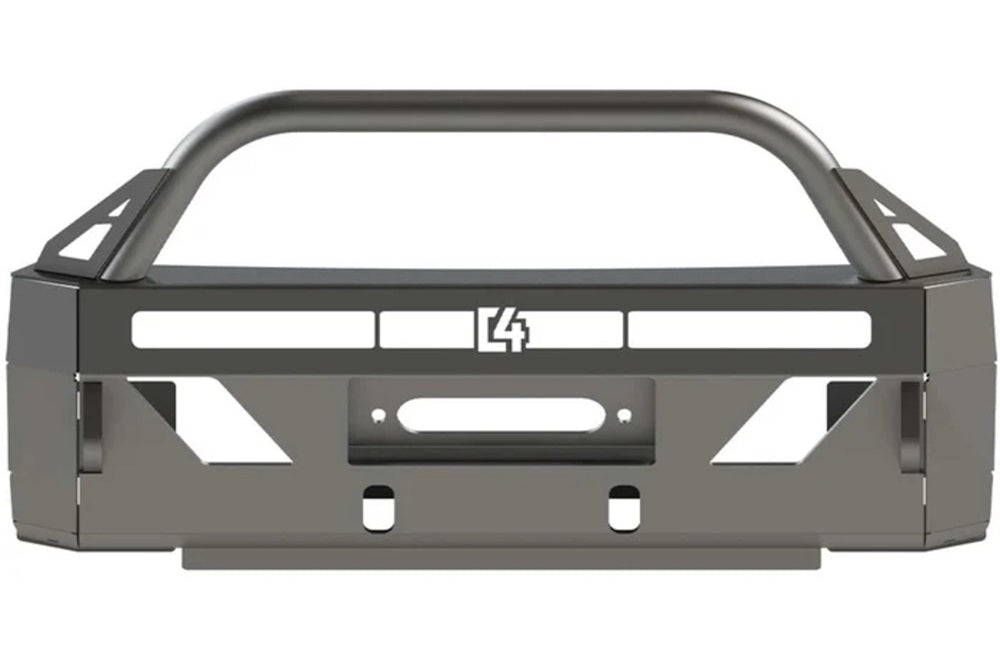

Bull Bar Options:
Bull Bar Options
Quantity:

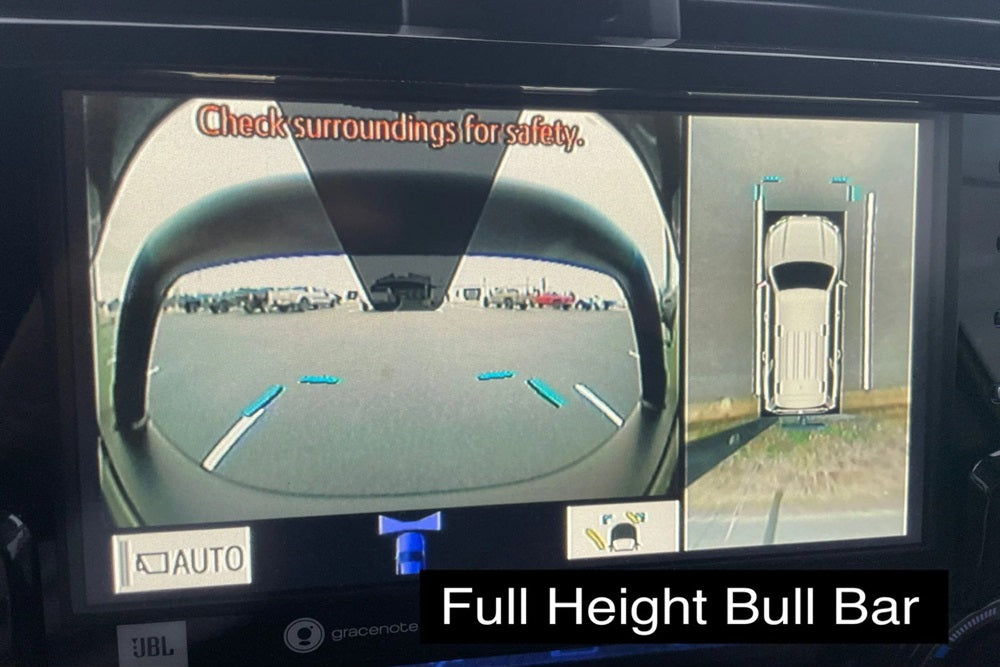

For vehicles with TSS, the Mid-Height bull bar is not compatible. You will also need a C4 Fabrication TSS relocator for installation with no bull bar and Full-Height bull bar.
- The bumper is designed to fit 30″ single-row light bars
- Baja Designs S8 light bar
- Extreme LED 30″ 5D light bar
- RIGID 30″ SR series
- Other brands of lights are not guaranteed to fit perfectly.
- CNC cut and press brake bent from 3/16″ P&O steel.
- Comes with all mounting brackets and hardware needed for installation.
- The product will be shipped through FedEx ground home delivery or to a commercial address if one is provided.

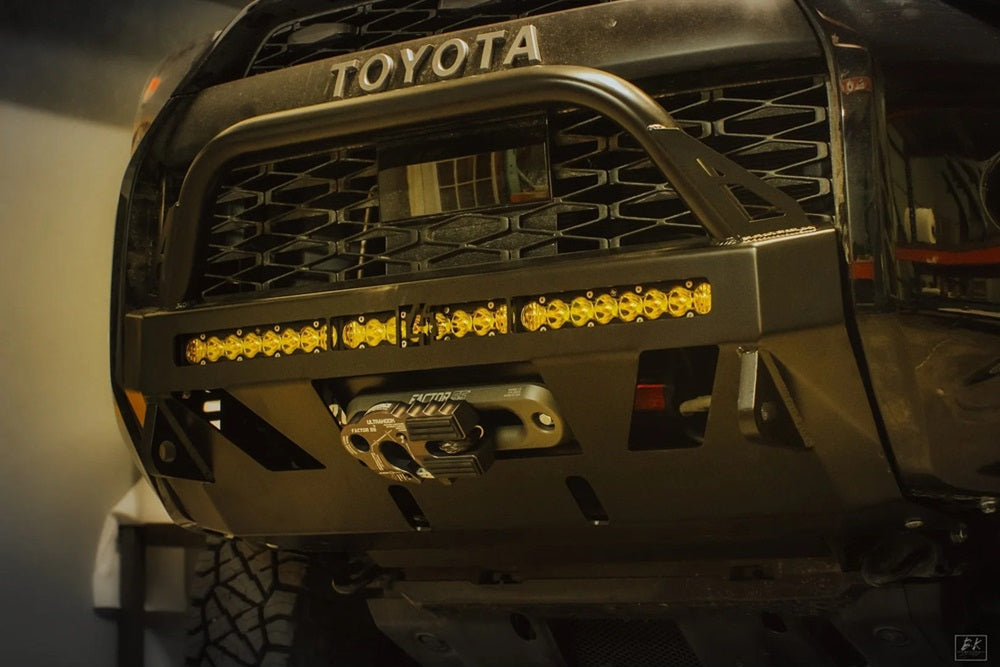

- Fits most winches 8k-12k in size. Winches with the ability to relocate the electrical control box are recommended. Integrated control box winches may require some trimming of the grille support brackets to fit.
- ComeUp
- Smittybilt X20
- Warn Zeon
- VR series
- We recommend using winches with synthetic rope and a hawse style fairlead for the best fitment and functionality. Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper.
- Cutting off the center plastic portion of the factory bumper cover is required to install the bumper.
- Weighs 75lbs
- Works with TRD Pro Skid Plate
- SHIPS BARE STEEL, C4 does not offer powder coating services. The bumper will need to be painted or powder coated before installation to prevent rust.
