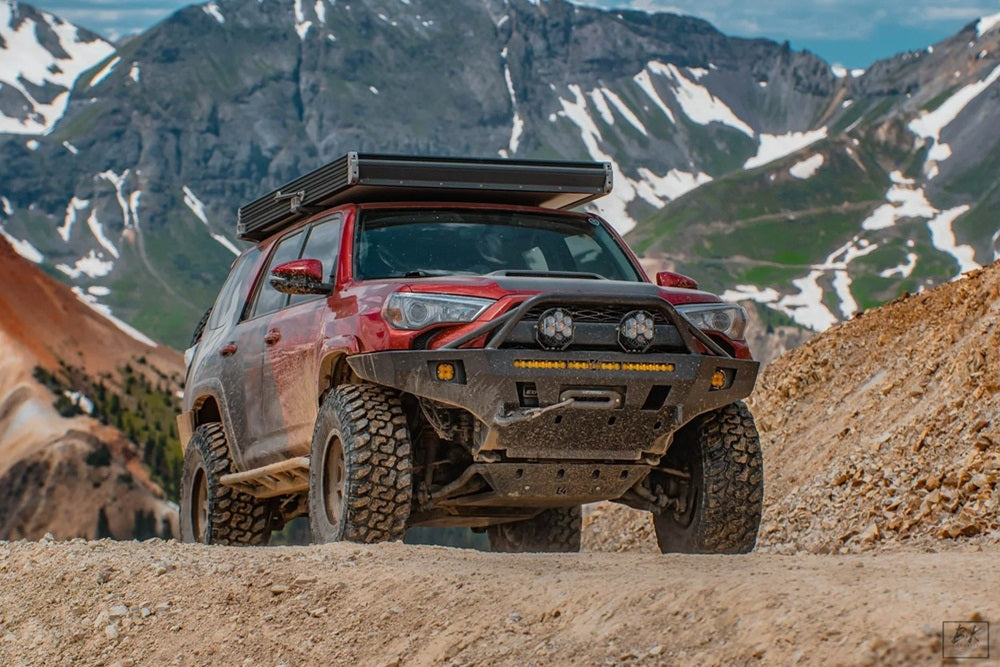

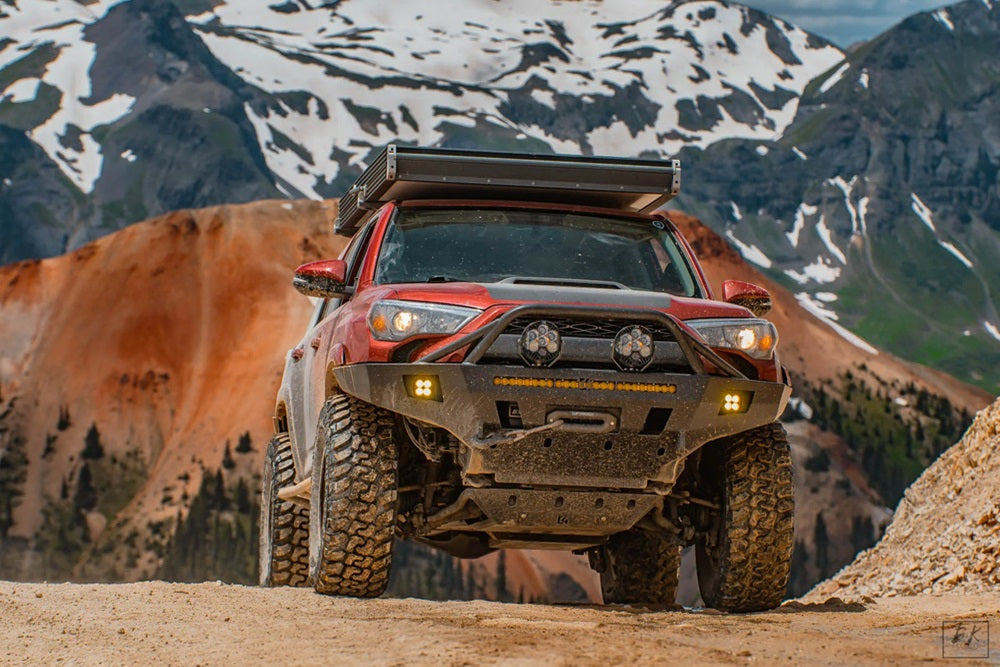

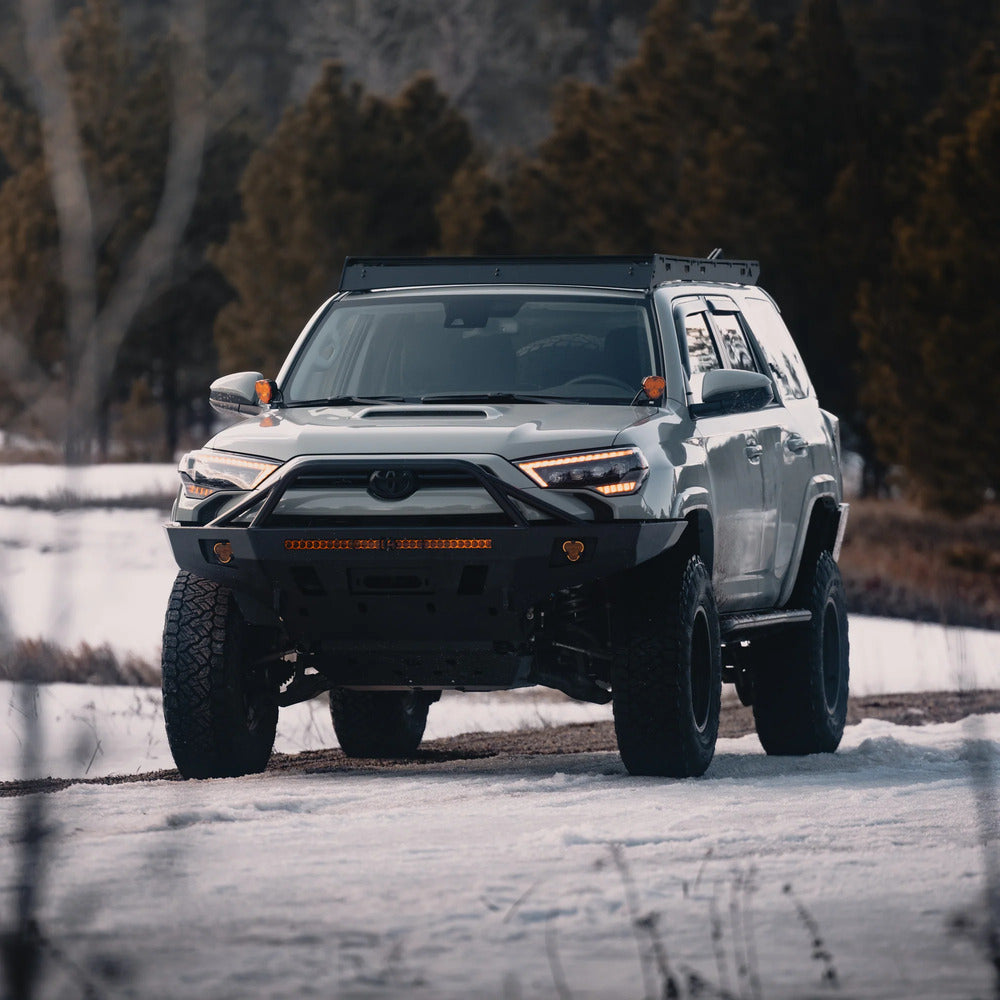

Overland Series Front Bumper 4Runner (2010-2023)

C4 Fabrication

Overland Series Front Bumper 4Runner (2010-2023)

Name: Overland Series Front Bumper 4Runner (2010-2023)
Brand: C4 Fabrication
SKU: 1100-3114-30-NB
Price: 1798.0 USD
Availability: InStock

$1,798.00 USD

SKU: 1100-3114-30-NB

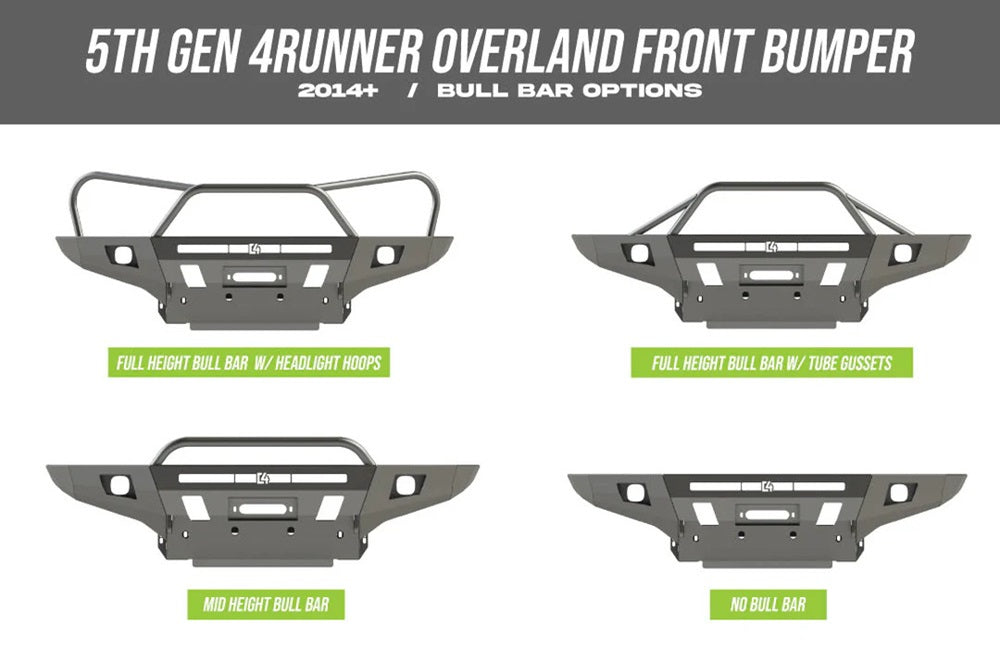

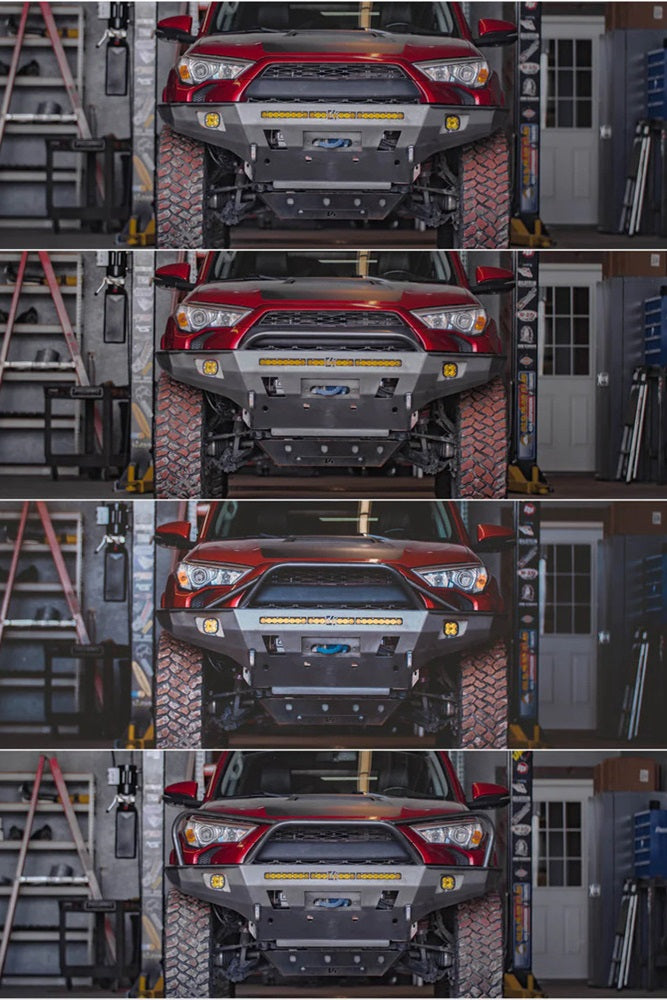

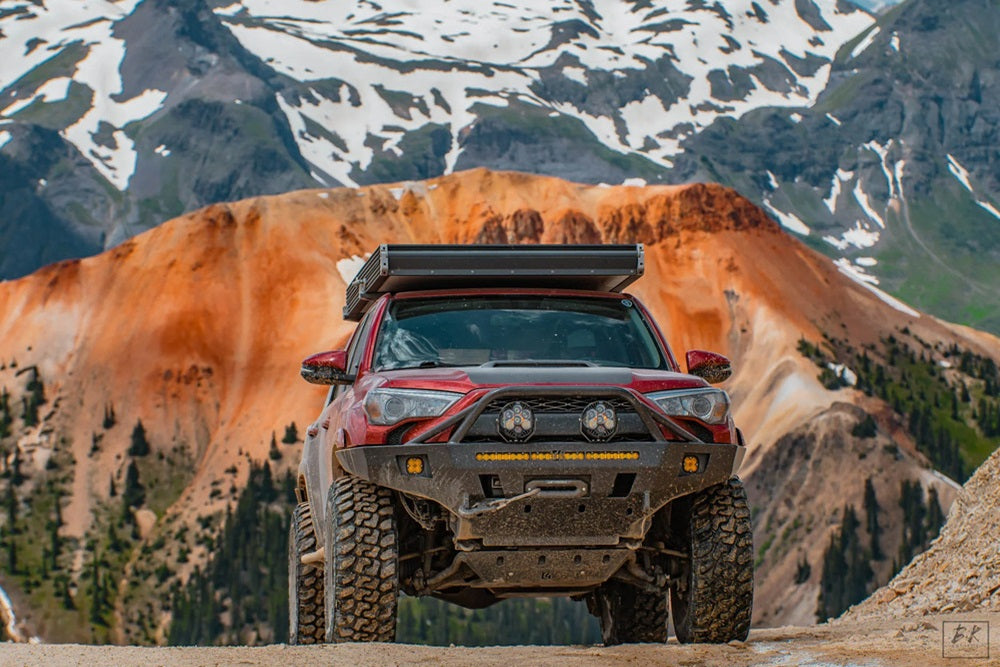

Bull Bar Options:

Variant

Quantity:

Made to Order - Please allow 10 weeks for your order to ship. Made to Order - Please allow 10 weeks for your order to ship. Made to Order - Please allow 10 weeks for your order to ship. Made to Order - Please allow 10 weeks for your order to ship.

For vehicles with TSS, the Mid-Height bull bar is not compatible. You will also need a C4 Fabrication TSS relocator for installation with no bull bar and Full-Height bull bar.

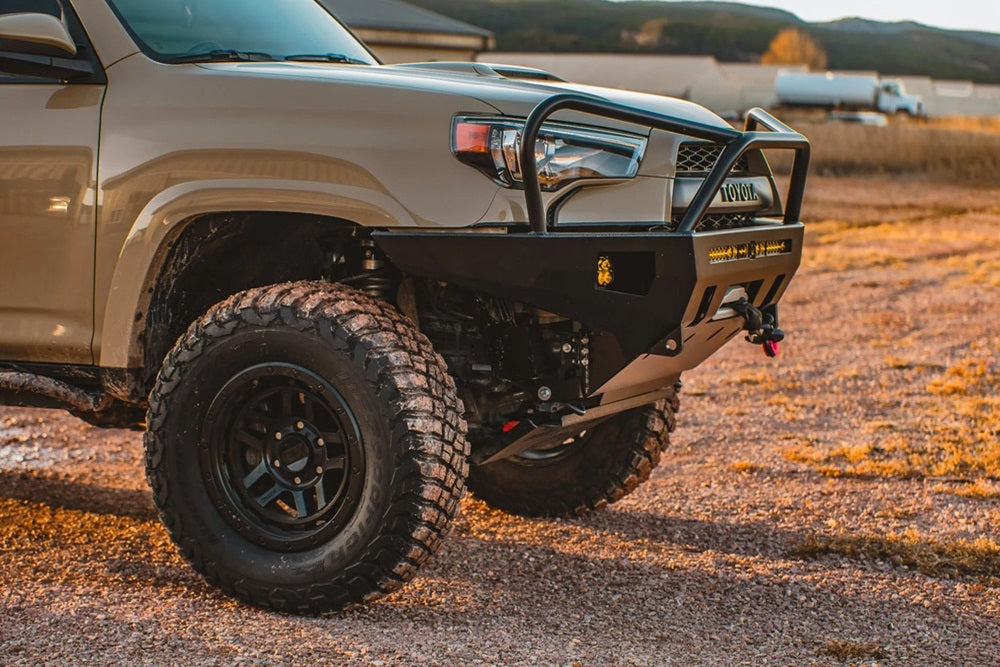

The bumper offers more clearance for better approach angles and makes it easier to fit larger tires.

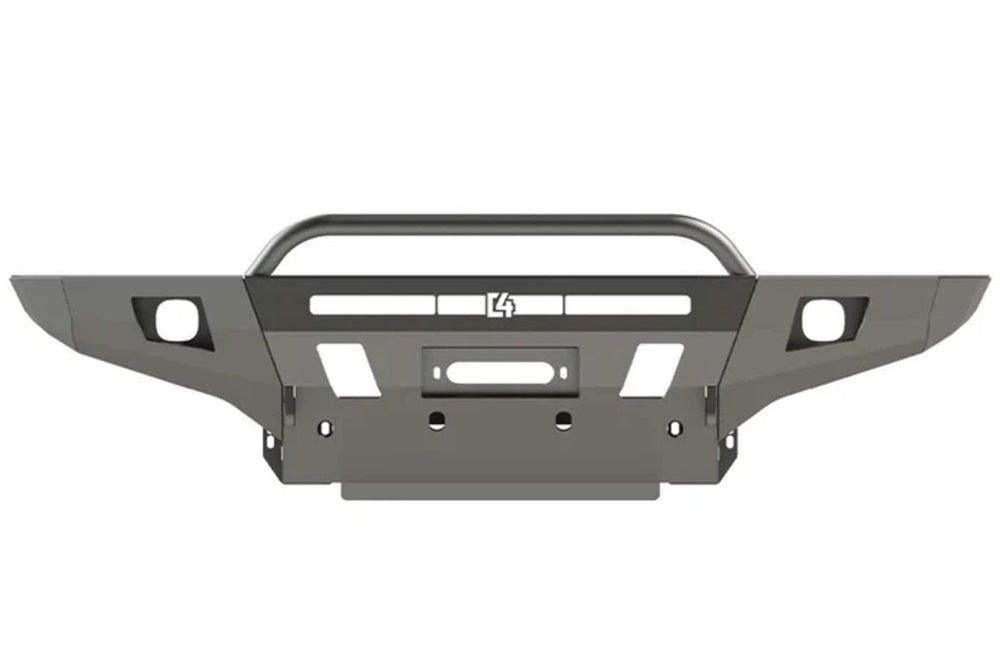

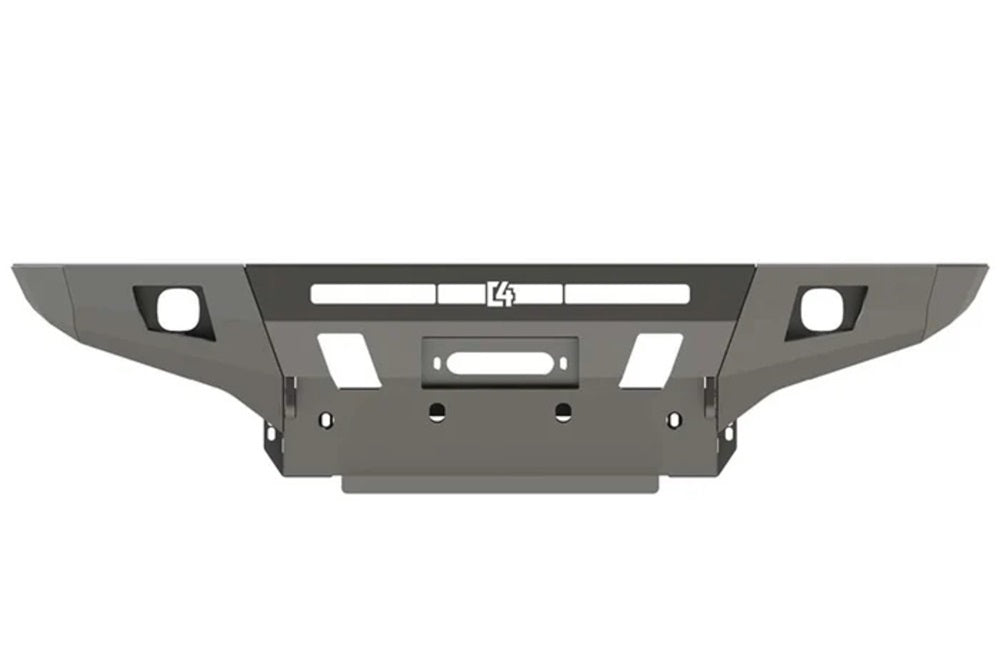

The bumper is made from 3/16″ laser-cut P&O steel with 1/4″ thick mounting plates.
3/4″ thick D-Ring tabs are standard on every bumper and come fully welded front and back.

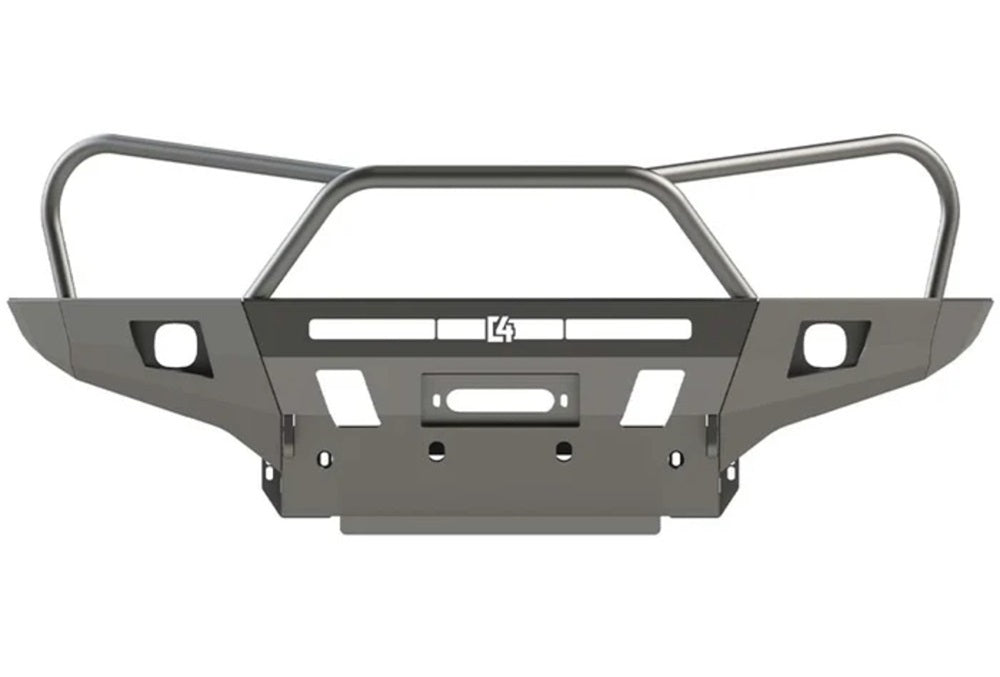

Bull bar tubing is .120 wall 1 3/4″ diameter HREW tubing.
Fits most winches 8k-12k in size. Winches with the ability to relocate the electrical control box are recommended. Integrated control box winches may require some trimming of the grille support brackets to fit. (ComeUp, Smittybilt X20, Warn Zeon, and VR series are all common winches that fit).

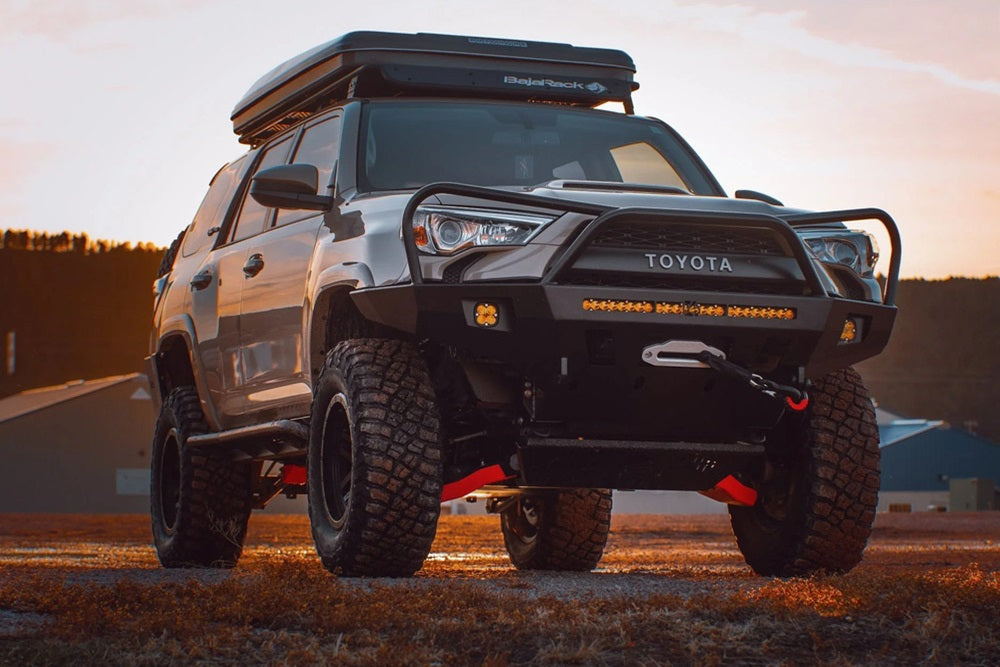

We recommend using winches with synthetic rope and a hawse style fairlead for the best fitment and functionality. Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper.
135lbs without a bull bar, 140lbs with mid height bull bar, 150lbs with full height bull bar, 155lbs with full height bull bar, and headlight hoops.

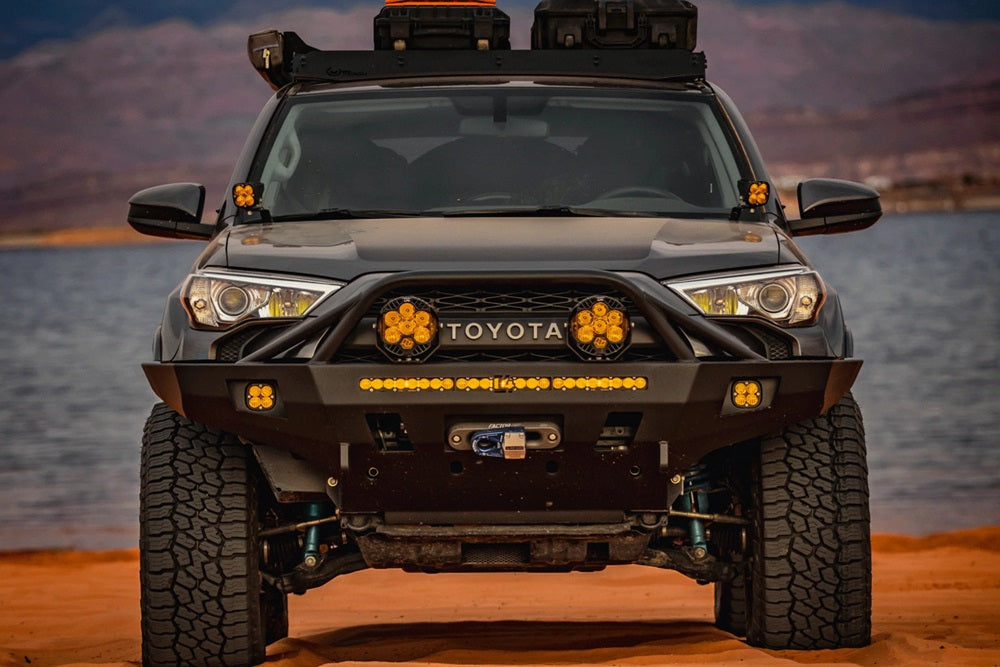

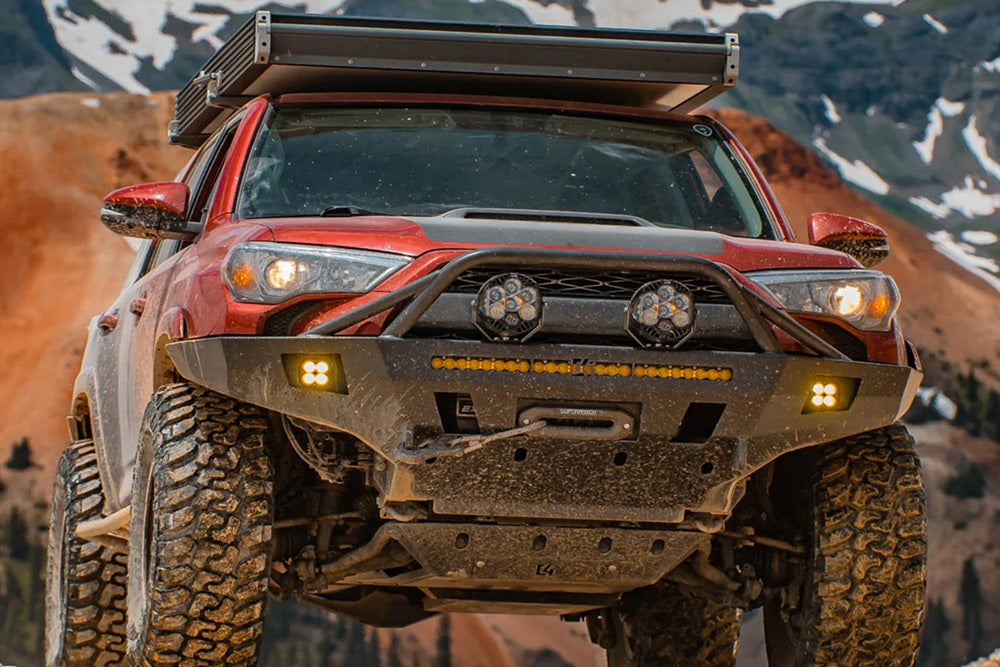

The bumper is designed to fit 30″ single-row light bars (specifically designed for Baja Designs S8 light bar). Extreme LED 30″ 5D light bar and RIGID 30″ SR series, will also fit.
This bumper requires cutting the original plastic bumper cover to install.
Installing this bumper also requires removing the original steel power steering cooler lines and replacing them with the power steering cooler kit we provide with the bumper. Installation of the cooler kit is straightforward and does not require draining the power steering system. Replacing the power steering lines provides more room for the winch and also removes the low-hanging “U-shaped” portion of the lines near where the bumper bolts to the frame so that the lines are not exposed to obstacles and debris.
SHIPS BARE STEEL, powder coat finish not available. The product will need to be painted or powder coated to prevent rusting.

Ships to the freight hub nearest the customers residential address unless a commercial address is provided in which case product can be sent directly to the commercial address. Please specify business name if needed.

Free shipping does not apply to AK and HI, Puerto Rico, Point Roberts, WA, or countries outside the USA, please email for a shipping quote for orders outside the U.S. and to AK and HI, Puerto Rico, or Point Roberts

C4 FAB LLC will warranty all products produced and distributed by C4 FAB LLC for ONE YEAR after the shipping date of the product. This warranty will include any issues caused by manufacture defects including failing or broken welds and/or failing or broken hardware and mechanical parts that are shipped with the product. C4 FAB LLC DOES NOT WARRANTY POWDER COAT FINISH ON ANY PRODUCTS THAT ARE SHIPPED POWDER COATED OR CAN BE ORDERED WITH THE OPTION TO BE POWDER COATED. Products will only be warrantied if installed in accordance with C4 FAB LLC installation guidelines. Any modification to the original product design, functionality, or use, by said customer voids all warranty eligibility. It is the sole discretion of C4 FAB LLC to determine warranty eligibility. Our One Year Warranty is effective for as long as the original retail purchaser owns the product. This warranty terminates when the original retail purchaser sells or otherwise transfers the product to any other person.

C4 FAB LLC reserves the right to remedy defects in workmanship or materials in one of three ways.

C4 FAB LLC will issue replacements components to the customer that deems defective or inconsistent with the quality of its brand.
C4 FAB LLC will elect to issue the customer a full or partial refund for the defects or damages of the product.
C4 FAB LLC will pay the cost of having a shop near the customer perform repairs on the product if it is deemed that this option is more affordable and will satisfy the customers warranty request.
This warranty does not cover defects caused by normal wear and tear, rust, scratches, accidents, or products used for racing/competition. This warranty does not cover damage to the finish of powder coated products. C4 FAB LLC is not responsible for defects that are not in control of C4 FAB LLC such as, trail damage, highway damage or car accidents, overloading, incorrect assembly, poor maintenance practices or damaging acts of god such as extreme weather e.g.: hail, flooding, lightning, extreme wind.

REPLACEMENT OF A DEFECTIVE PRODUCT OR THE ISSUANCE OF A REFUND (AS DETERMINED BY C4 FAB LLC) IS A PURCHASER’S EXCLUSIVE REMEDY UNDER THIS WARRANTY. ANY AND ALL DAMAGE TO A PURCHASER’S VEHICLE, CARGO AND/OR TO ANY OTHER PERSON OR PROPERTY IS EXCLUDED.
