BantamX HD Switch Panel Tacoma (2024+)

Product Description

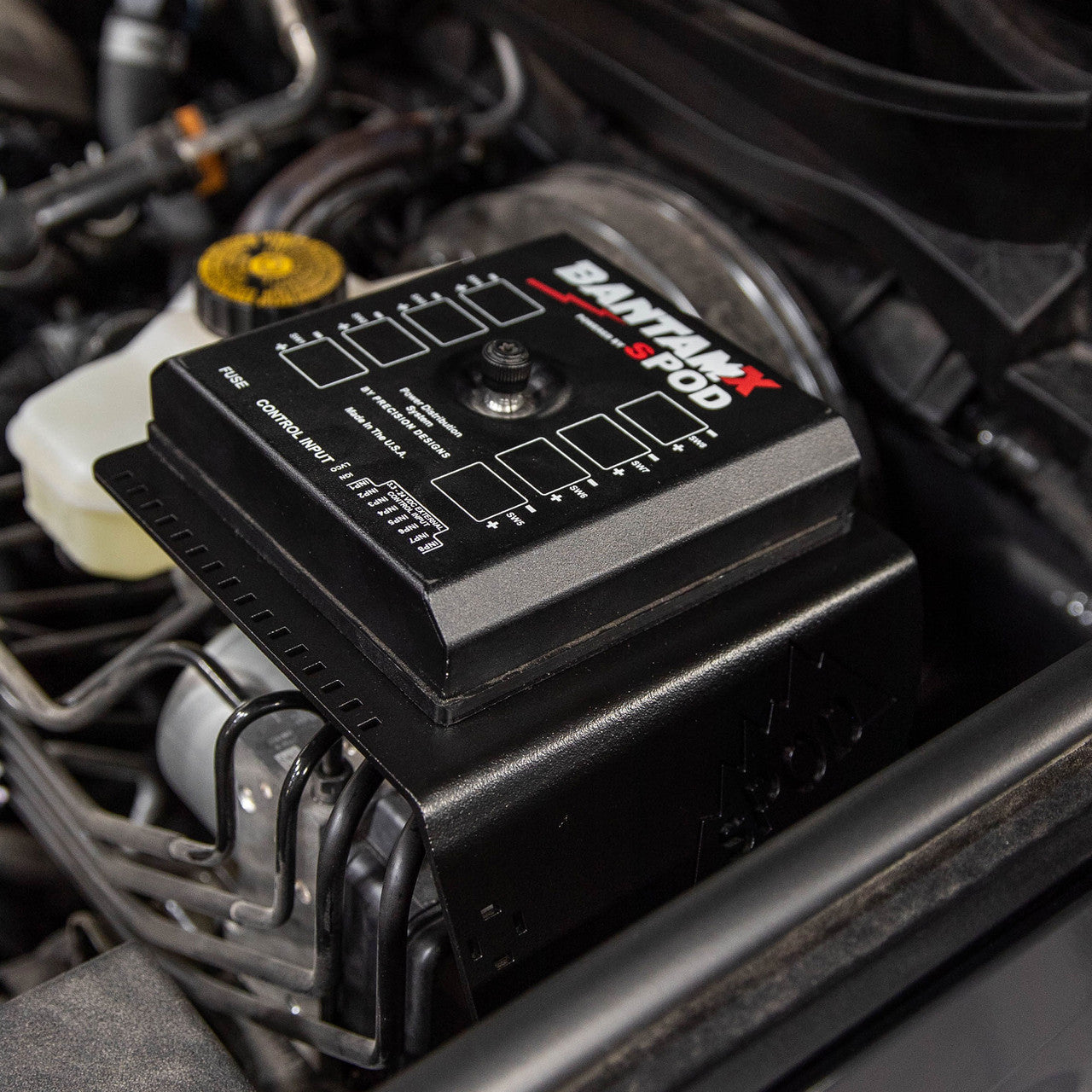

The sPOD BantamX HD vehicle-specific kit is designed to seamlessly integrate the sPOD HD control panel into the 2024-on Toyota Tacoma, giving you easy access to all your controls right from the cabin. With 8 circuits of power, each rated at 30A (100A total), this system provides reliable power management for all your vehicle’s accessories. The BantamX offers system scalability, with the ability to expand up to 32 channels, all controlled by a single controller.

Equipped with built-in Bluetooth technology, the sPOD BantamX allows you to program and control your accessories remotely from any iOS or Android device via the sPOD app. A wide range of programming options is available, including dimming, strobing, flashing, memory settings, switch linking, and more, giving you full customization over your electrical system.

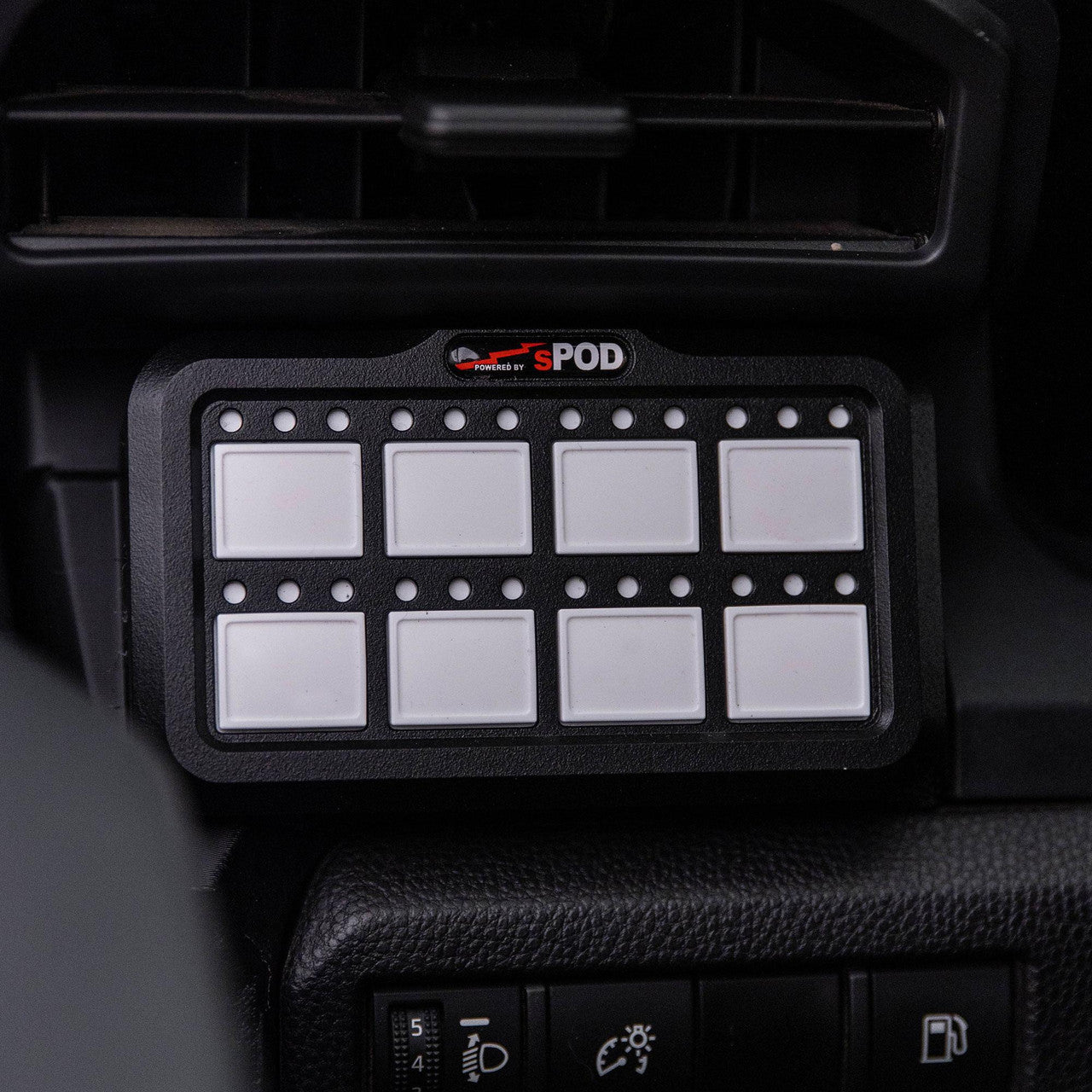

For added convenience, the sPOD HD smart panel brings control right to your fingertips, with an adjustable RGB backlight to match your cabin’s aesthetic. Installation is a breeze, requiring only a single ethernet cable to connect the BantamX unit to the touchscreen in your cab—no relays, wiring looms, or circuit fuses needed.

Product Features

• Seamless Integration: Installs effortlessly into the 2024 Toyota Tacoma, providing easy access to all accessory controls.
• Powerful Circuit Management: Features 8 circuits (30A per circuit, 100A total) for powering your accessories.
• Bluetooth Connectivity: Built-in Bluetooth for remote programming and control via the sPOD app on iOS or Android.
• Extensive Programming Options: Includes features like dimming, strobing, flashing, memory, switch linking, and more.
• Easy Installation: A single ethernet cable connects the BantamX to the touchscreen—no relays, looms, or circuit fuses required.
• Battery Protection: Integrated low-voltage cutoff (LVCO) ensures safe operation of your vehicle's electrical system.
• Scalable System: Expandable up to 32 channels controlled by one controller, offering future flexibility.
• Adjustable RGB Backlighting: Customize the backlit colors of the HD smart panel for a personalized touch.
• Multi-Controller Compatibility: Supports up to two controllers for added versatility.

Included

• (1x) BantamX System
• (1x) 84” Battery Cable Set
• (1x) HD Switch Panel
• (1x) Ethernet Cable
• (1x) Mounting Bracket
• All Necessary Hardware

Specs

• 8 circuits rated at 30A each, 100A total
• 16-position terminal block
• Low-voltage cutoff battery protection with optional override
• 100A in-line fuse
• Operates on 12V or 24V DC
• Built-in Bluetooth for app control
• Supports system expansion up to 32 channels
• Two controller ports for multi-controller compatibility
• Power-saving deep sleep mode
