Coilover Top Plate Reinforcement Kit Tacoma (2024+)

Product Description

As much as we love the new 4th Gen Toyota Tacoma, our initial durability testing did reveal one weakness in the OE suspension. We discovered that the front upper shock mount and shock stem bushing may fail under hard use. So, we developed this Top Plate Reinforcement Kit to remedy this issue and prevent such damage. This kit supports and reinforces the factory upper shock mount. It will also capture and retain the shock stem bushing if a failure does occur. ICON recommends this upgrade on any 2024 Tacoma that gets driven vigorously off-road using the OE front coilover shocks.

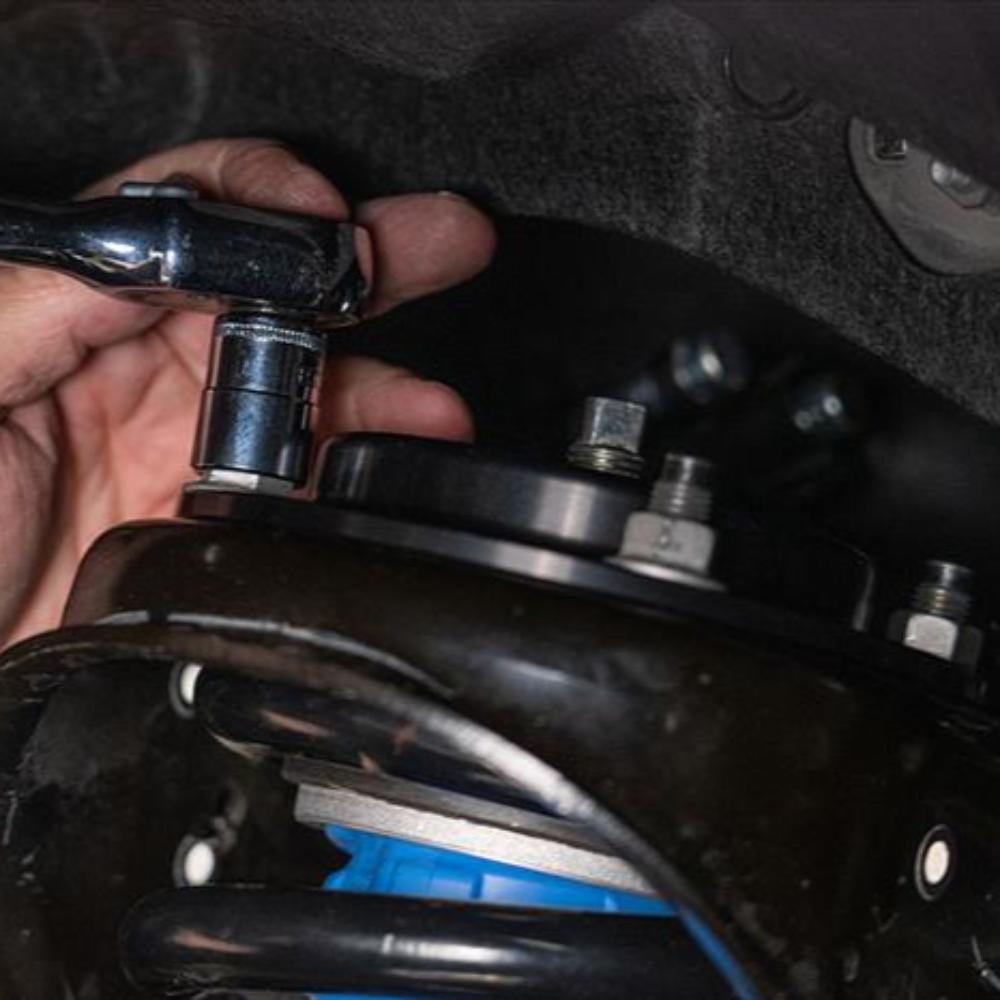

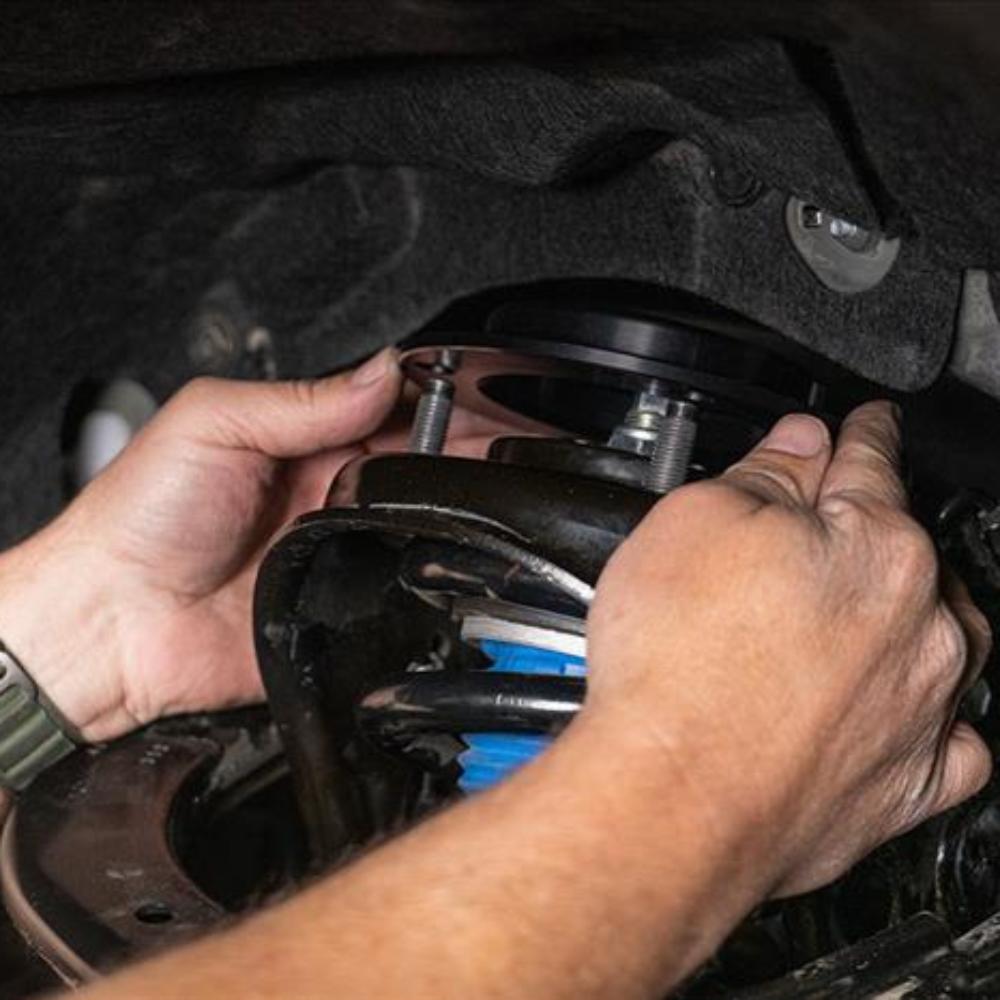

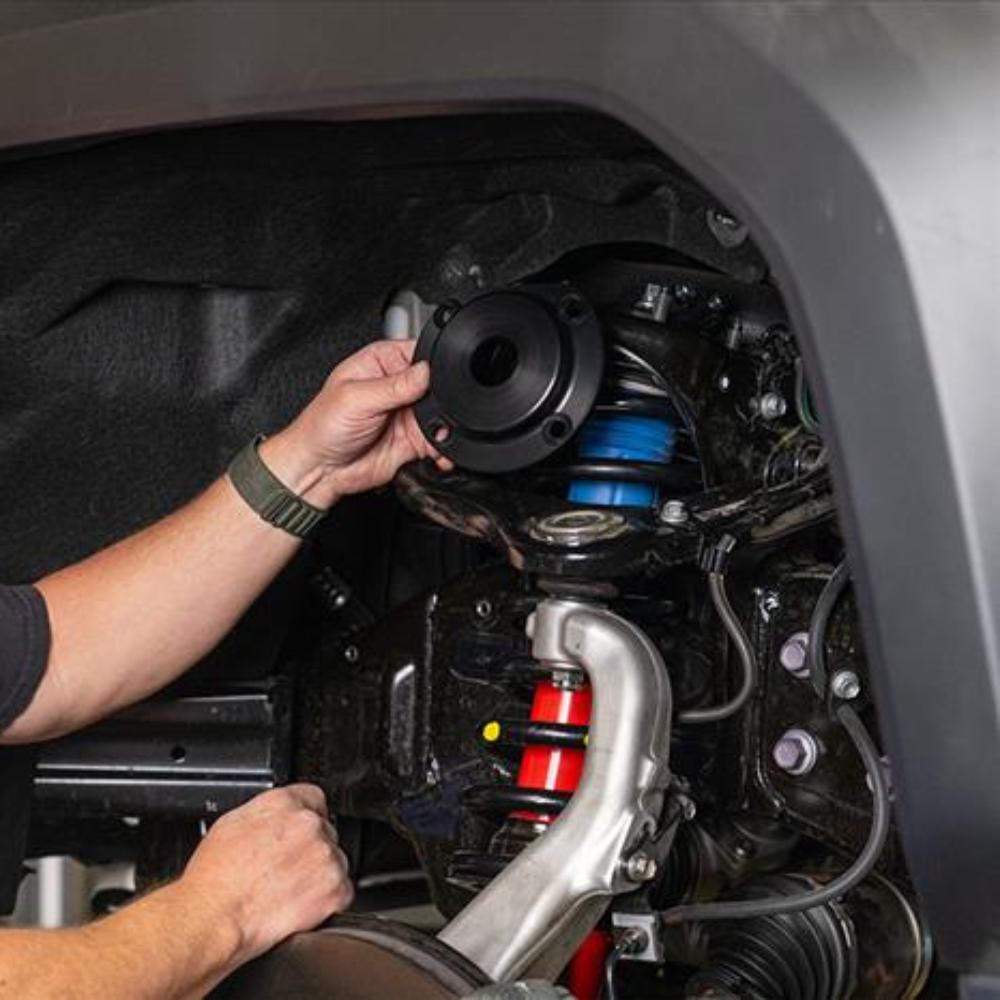

The Top Plate Reinforcement is quick and easy to install, as there is no need to jack up the vehicle or even remove the tire (though we removed the tire for these photos to provide a clear view). Simply remove the three coilover top mount nuts, install the Top Plate Reinforcement, and re-torque the nuts. The reinforcement plate is CNC machined from 6061-T6 billet aluminum. It does not affect or limit the factory suspension performance in any way.

Included

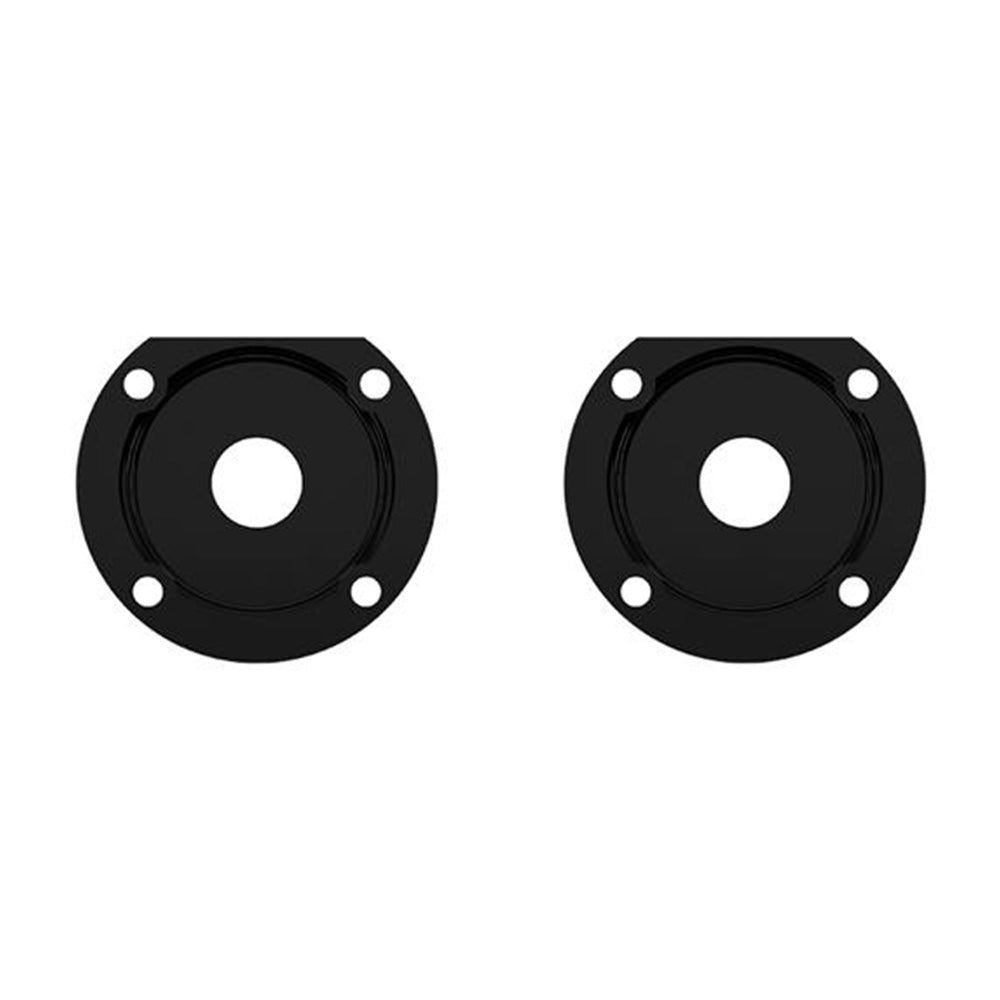

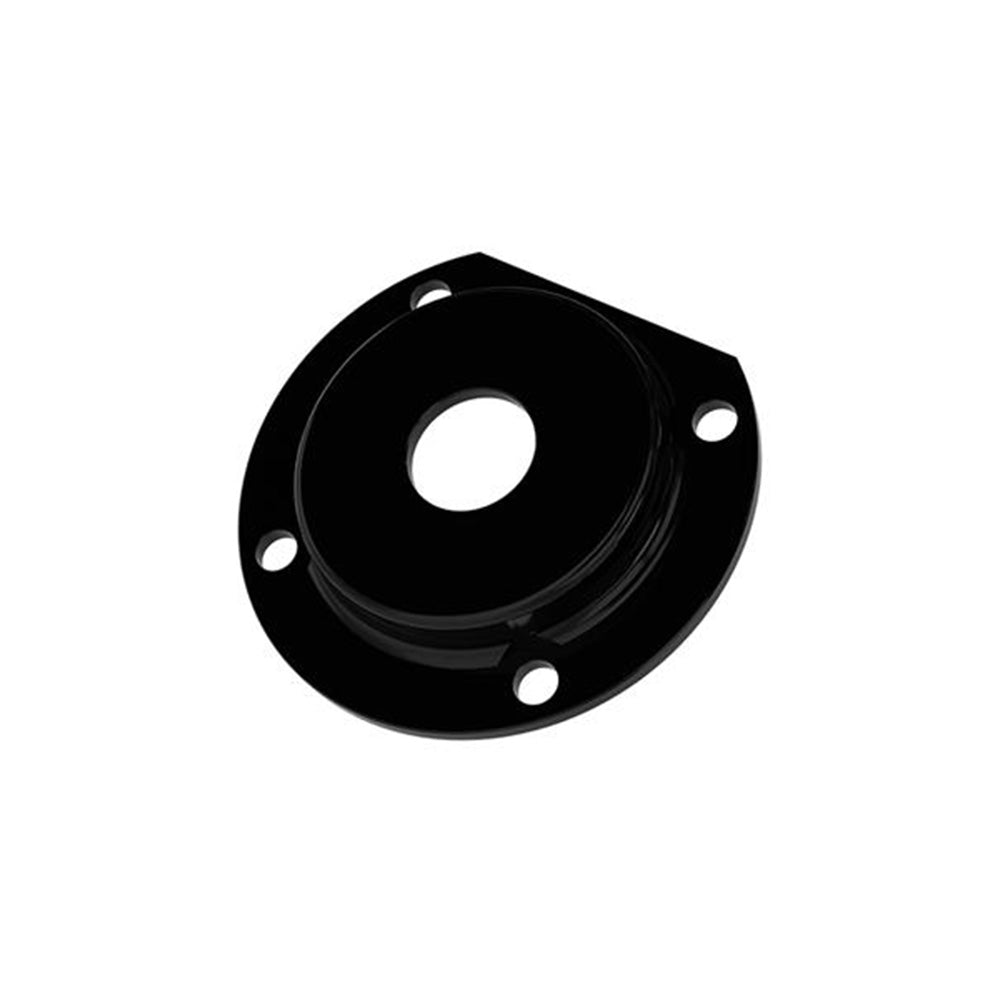

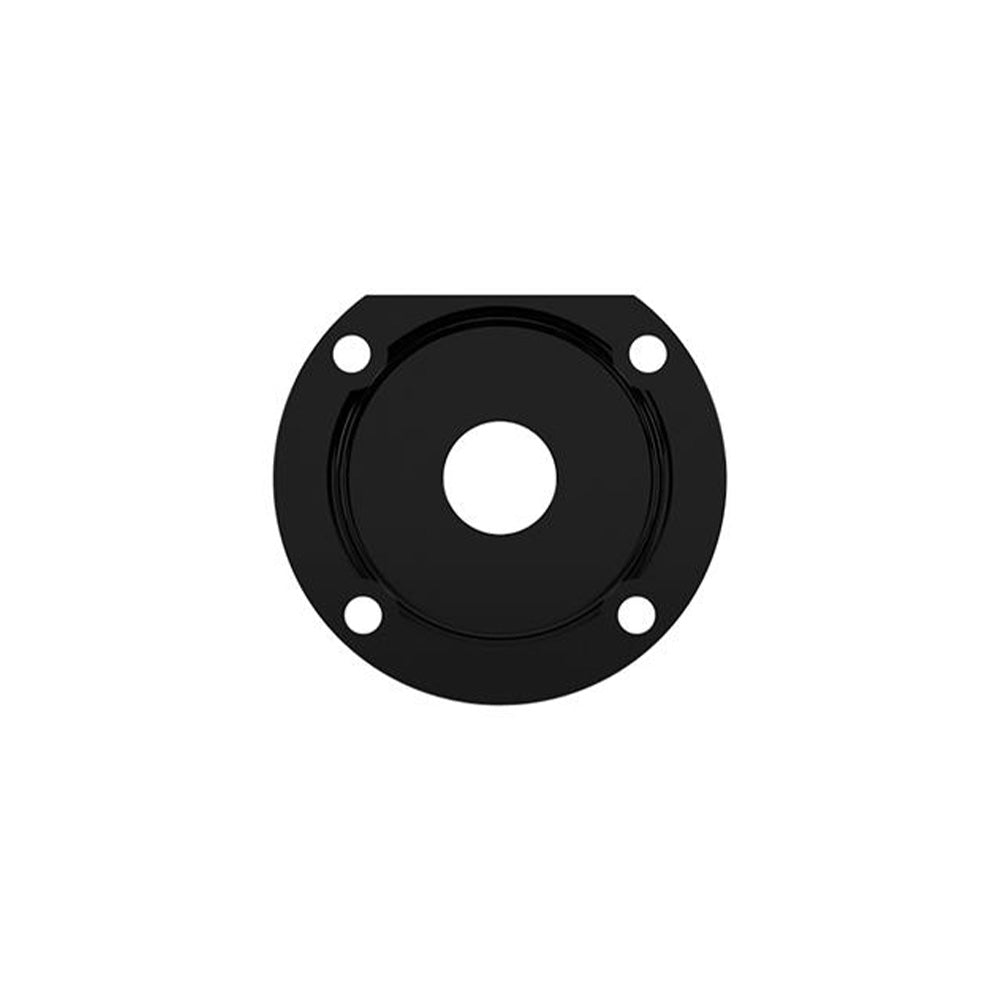

• 2024 Toyota Tacoma Top Plate Reinforcement Plates

Product Features

• Supports and reinforces factory upper shock mount.
• Captures and retains shock stem bushing if OEM failure does occur.
• Easy installation in minutes without jacking up the vehicle.
• Does not affect or limit factory suspension operation or performance.
• Billet 6061-T6 aluminum construction.
• Black anodized finish for corrosion resistance.

Fitment Notes

• Will not fit Tacoma TRD Pro or Tacoma Trail Hunter.

ICON Vehicle Dynamics warrants to the original retail purchaser who owns the vehicle on which the product was originally installed.
ICON Vehicle Dynamics does not warrant the product for finish, alterations, modifications and/or installation contrary to ICON
Vehicle Dynamics instructions. ICON Vehicle Dynamics products are not designed, nor are they intended to be installed on vehicles
used in race applications, for racing purposes or for similar activities. (A “race” is defined as any contest between two or more
vehicles, or a contest of one or more vehicles against the clock, whether or not such contest is for a prize). This warranty does not
include coverage for police or taxi vehicles, race vehicles, or vehicles used for government or commercial purposes. Also excluded
from this warranty are sales outside of the United States of America and Canada.
ICON Vehicle Dynamics’ obligation under this warranty is limited to the repair or replacement, at ICON Vehicle Dynamics’ discretion,
of the defective product. Any and all costs of removal, installation or re-installation, freight charges and incidental or consequential
damages are expressly excluded from this warranty. Items that are subject to wear are not considered defective when worn and are
not covered.
ICON Vehicle Dynamics components must be installed as a complete kit as shown in our current application guide. Any substitutions
or exemptions of required components will immediately void the warranty. Some finish damage may happen to parts during shipping
and is not covered under warranty.
This warranty is expressly in lieu of all other warranties expressed or implied. This warranty shall not apply to any product that has
been improperly installed, modified or customized subject to accident, negligence, abuse or misuse.
