Diode Dynamics x Kuat DEK Roof Rack Tacoma (2024+)

Product Description

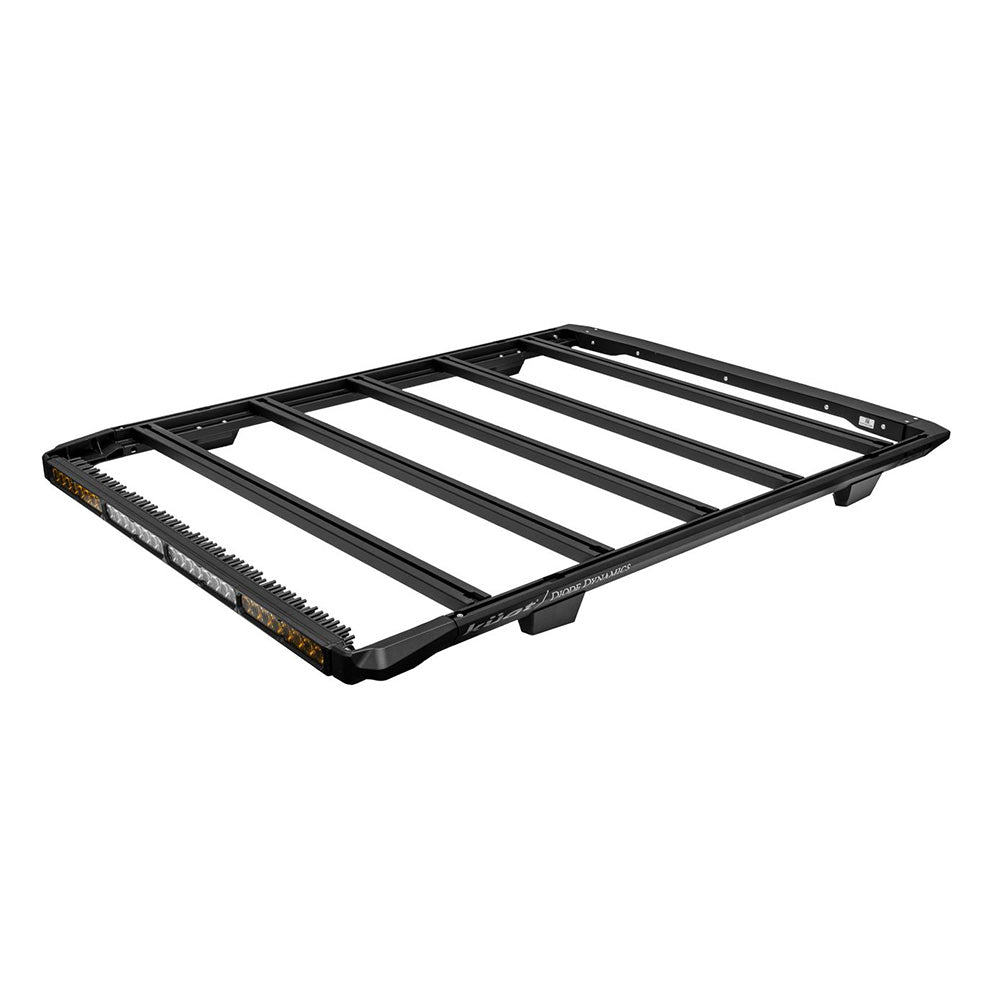

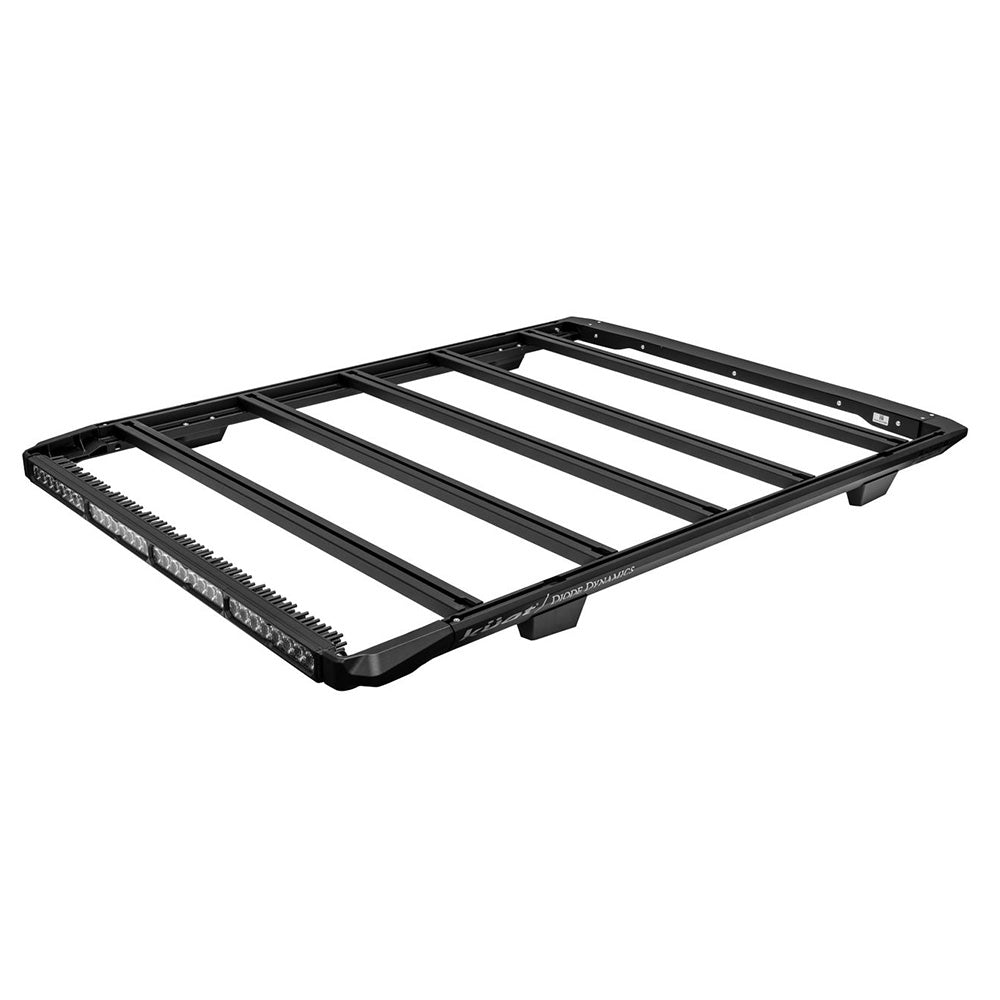

The DEK delivers an ideal balance of style, utility, and performance—day or night. The DEK roof rack is custom-fabricated to seamlessly integrate LED lighting into the rack itself, providing a clean, OEM-style appearance. Built from durable yet lightweight metal, the DEK features adjustable crossbars, generous T-channels for mounting accessories, and a simple, direct-mount installation. No drilling is required.

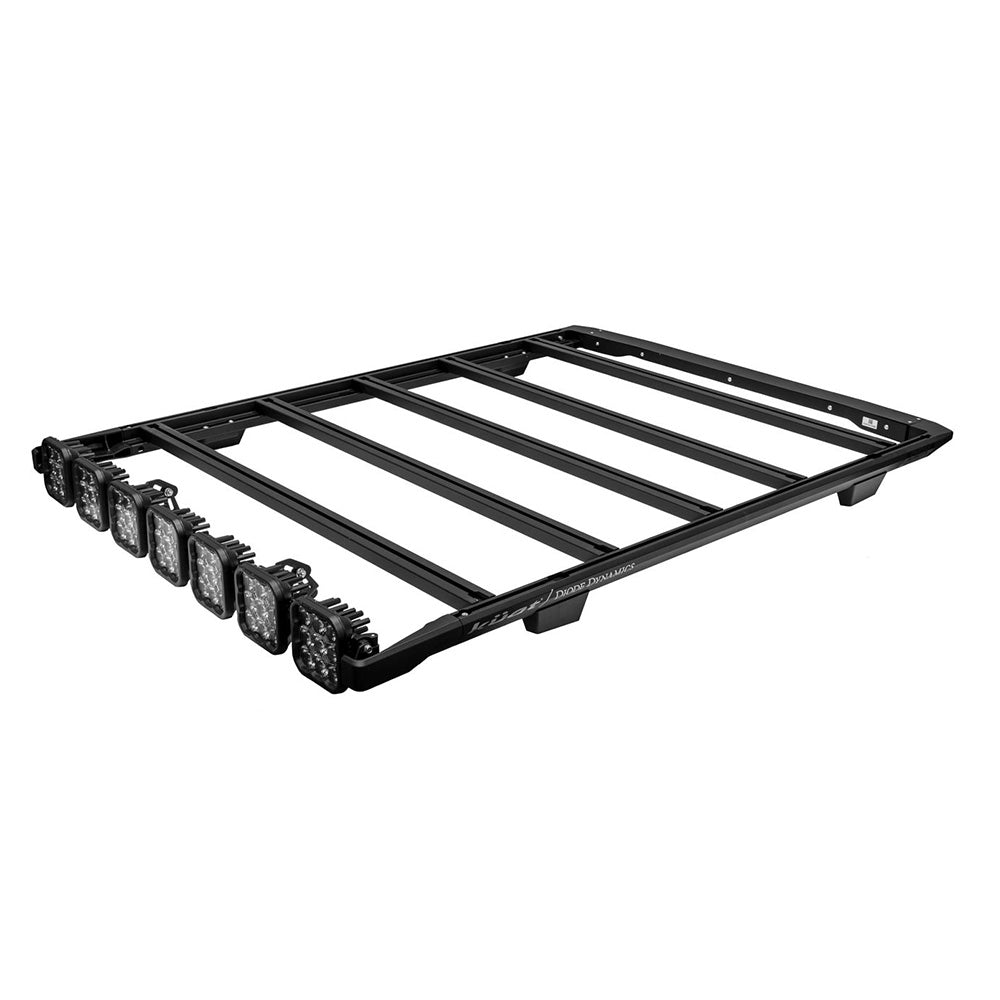

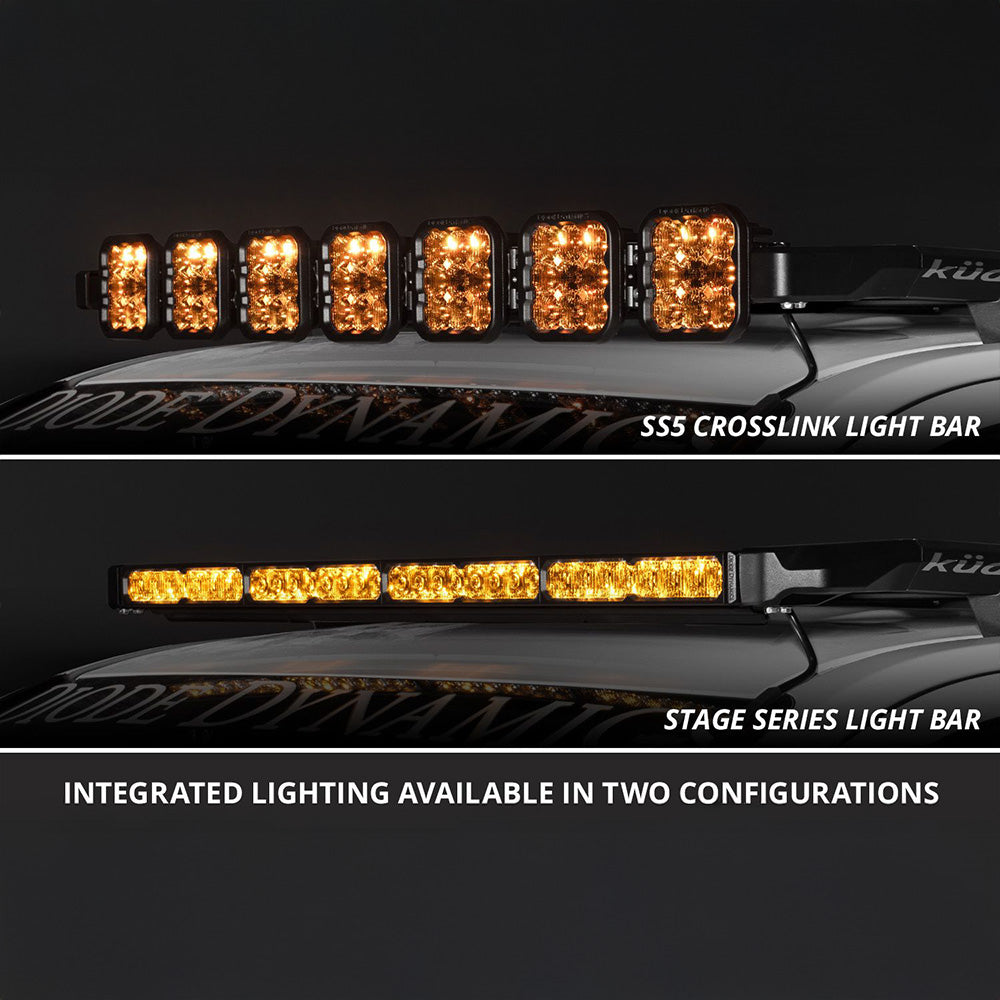

Choose Your Lighting Setup. The DEK Roof Rack is available with two integrated lighting configurations: the SS5 CrossLink LED lightbar or a Stage Series LED lightbar. The SS5 CrossLink option links seven or eight SS5 LED pods into a single aggressive-looking lightbar, while the Stage Series option mounts an SS40 or SS50 Stage Series LED lightbar for a cleaner, low-profile appearance. Diode Dynamics’ TIR optics capture and focus nearly all of the light output, directing it precisely where you need it without glare or wasted light.

Functional Light Output. Featuring our all-new Combo/Driving pattern, designed to blend distance and width into one balanced beam pattern. Our new Combo/Driving optic uses dozens of carefully-designed pillow optics to produce a blended, even output that measures 60x30 degrees, providing throw downrange with ample foreground illumination. The SS5 CrossLink LED lightbars feature our Driving pattern, which provides extra punch and distance ahead, without being a tight spot pattern. The Driving pattern is a slightly broad-spot that balances reach and width with a spread of 30x20 degrees.

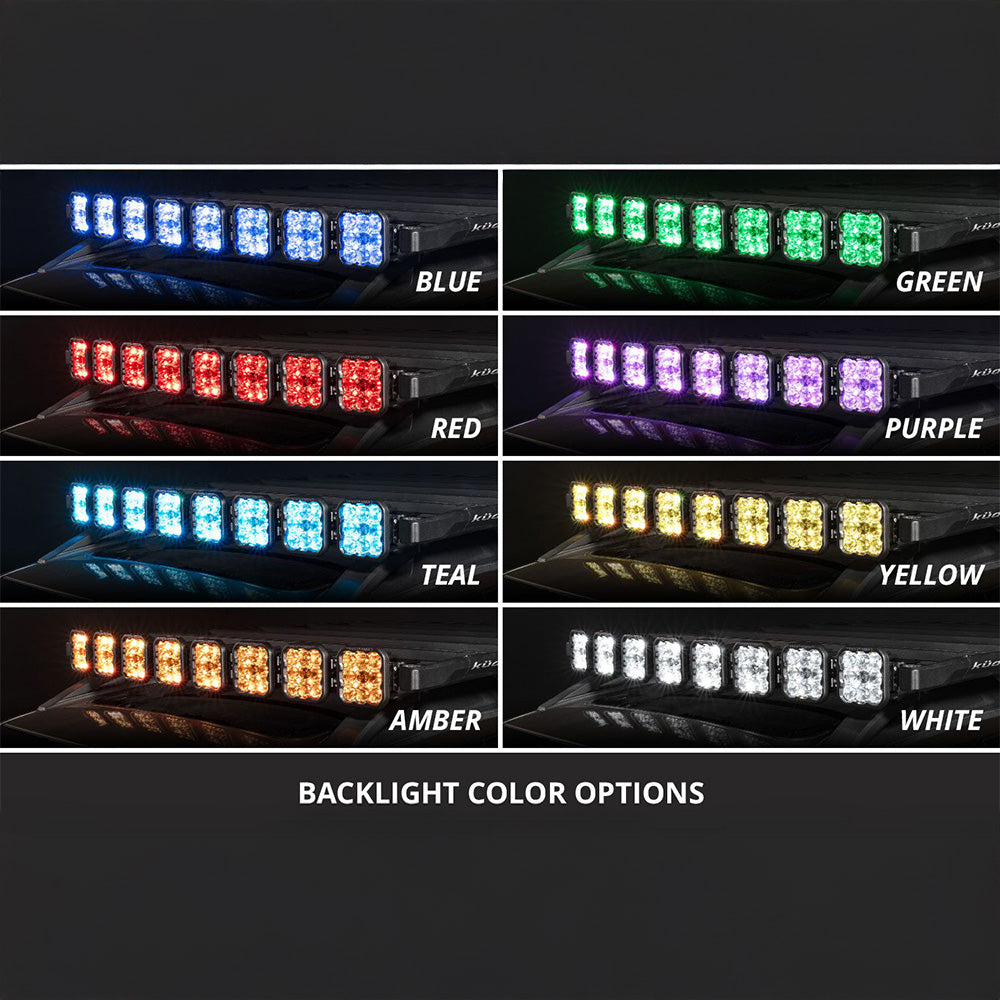

Fully Illuminated Backlight. Both lighting options include a fully illuminated backlight that lights up the TIR optic when the main beam is off, creating a unique accent appearance not found on other LED lightbars. The White Stage Series option includes an amber-only backlight with no startup sequence, offering a distinctive look and improved visibility when stopped on the trail. The Dual-Color Stage Series and SS5 CrossLink options feature a selectable multicolor backlight with eight color choices. The Dual-Color Stage Series lightbar combines amber outer segments with selectable multicolor inner segments and includes a dynamic startup sequence.

Choose Your Color. Stage Series lightbars are available in White or Dual-Color configurations. The white option delivers a true 6000K cool white output that matches most factory LEDs. The Dual-Color option features cool white inner segments and selective yellow outer segments. Thanks to patented SmartSelect technology, the Dual-Color option allows you to run the inner segments only, outer segments only, or the full lightbar—without extra wiring or additional switches. Simply cycle the main beam power to select your desired mode.

Included

• One (1) SS5 CrossLink LED Lightbar or Stage Series LED Lightbar
• One (1) Kuat DEK Roof Rack
• Two (2) Lightbar mounting brackets
• Four (4) Zipties
• One (1) Universal adhesive wire hider
• Necessary Wiring Harnesses
• Necessary Mounting Hardware

Product Features

• Kuat DEK roof rack w/ integrated Stage Series lighting.
• Simple Installation, no drilling required.
• Durable all-metal construction.
• Available in SS5 CrossLink or Stage Series Lightbar configurations.
• Adjustable crossbars to clear antennas and sunroofs.
• 300 LB Weight Capacity.
