Extreme Amber LED Turn Signal / DRL Kit Tacoma (2016-2023)

Product Description

Added Visibility The Amber Extreme DRL is the most advanced LED turn signal system on the market. The unique design allows you to add a bright amber daytime running light or a safe functioning output if your car or truck uses the turn signal as the DRL. The issue with most plug-in style LED bulbs is that the output in DRL mode is not very bright, or they run too hot, overheat, and fail. Error-free bulbs generally use a thermally regulated output circuit, which reduces current to save the bulb from burning up. The problem with the design is that the current is lower, which triggers the flasher to double the flash rate because it thinks the bulb has burnt out.

Solution The Extreme DRL solves all of these issues due to the smart circuitry built into the controller and superior thermal management. No scenario will create a failure from overheating or reduced load, triggering hyperflash. When the parking lights or DRLs are on, the output is reduced to a safe but very bright 700LM. When the turn signal is applied, the output doubles to 1400LM and draws just under 2A of current, which does not trigger hyperflash. The optional dimming wire triggers the output to the equivalent of a standard parking light.

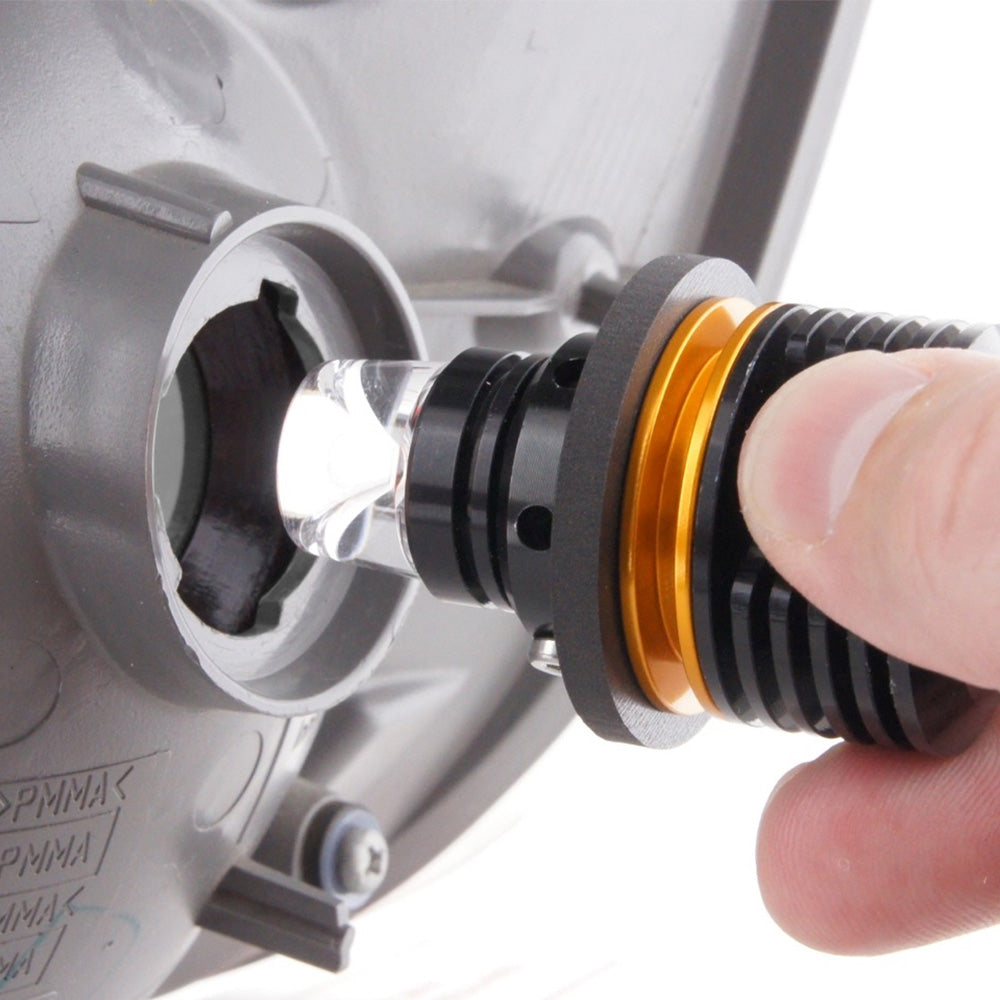

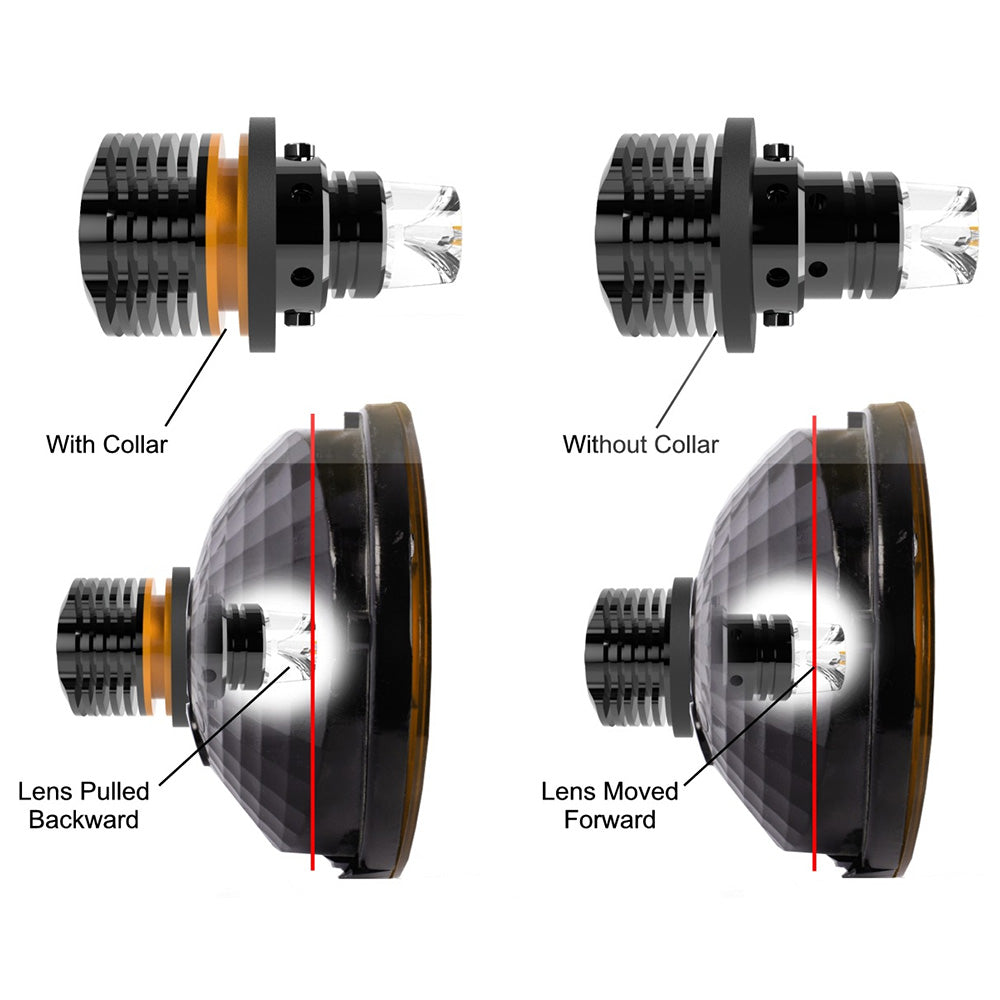

Radial Lens As if the Extreme wasn't extreme enough, we decided to kick it up a notch. The original lens is not terrible by any means; we just saw an opportunity for even more output and ran with it. The ultimate goal when developing an LED replacement is to simulate the characteristics of the filament bulb. Not only does the Extreme have insane lumen levels, but all that power has been harnessed to fire perfectly in the lamp housing reflector. Combined with the two-position adjustable feature, this produces an intensity like no other LED on the market.

The Original For years, we have been innovating and pioneering the industry with products like the V3 and V6 systems. We've been there, done that, and have experience in designing a system that not only has the kinks worked out but performs better than anything else on the market. When quality comes into question, know you can trust VLEDS.

Fitment Notes

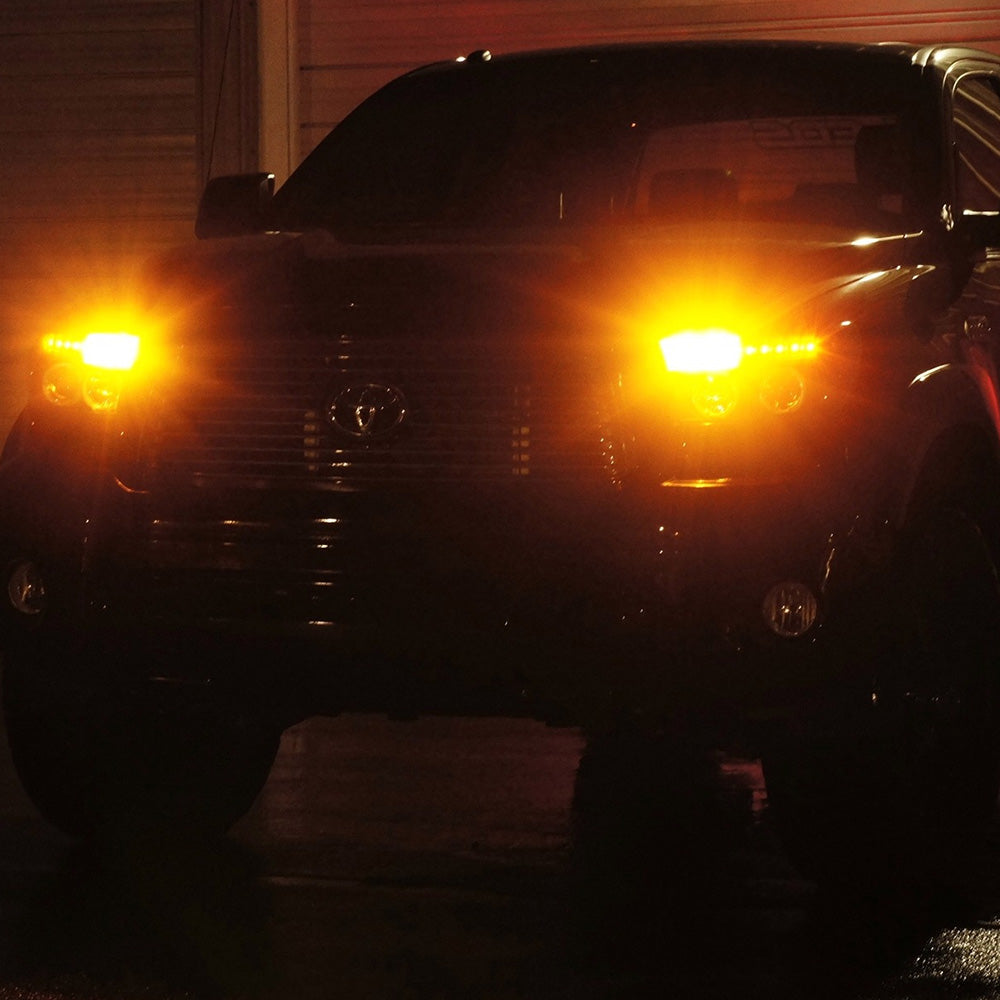

• Fits Toyota Tacoma SR/SR5 (2016-2023)
• Only fits front turn signal location

Included

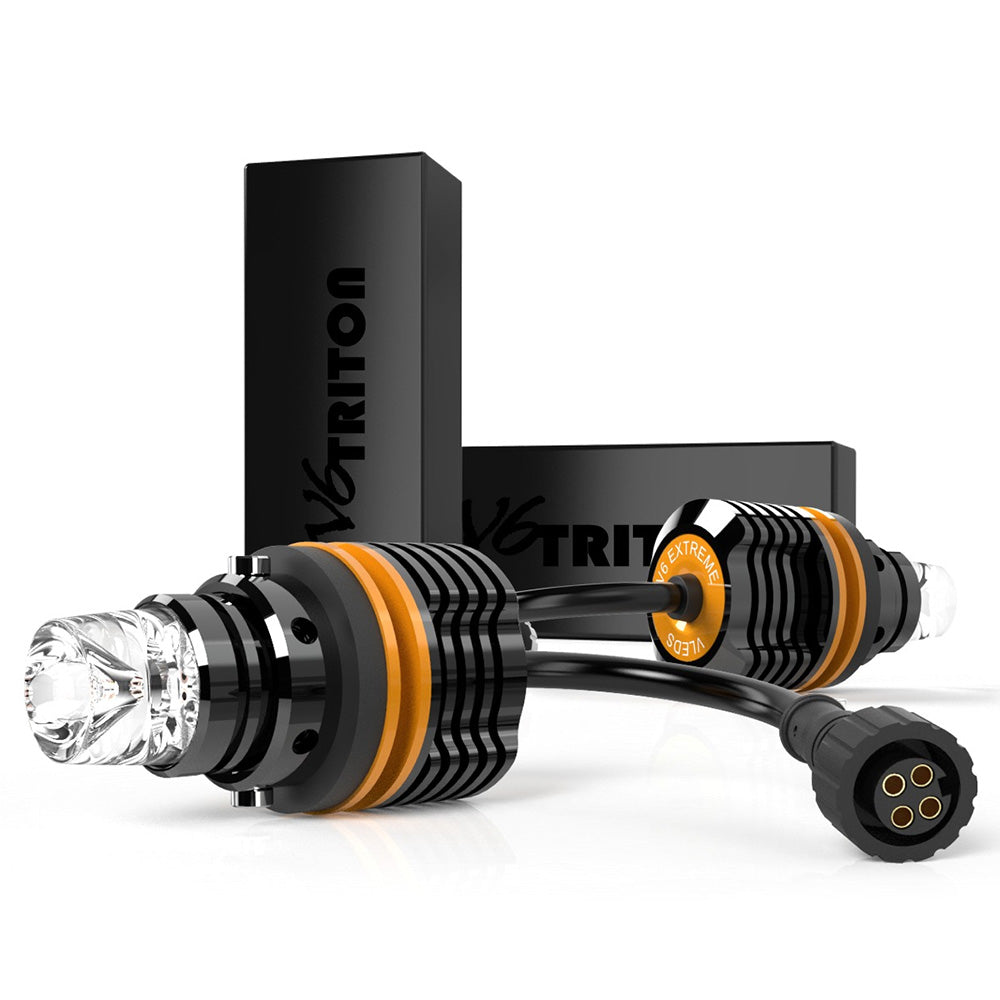

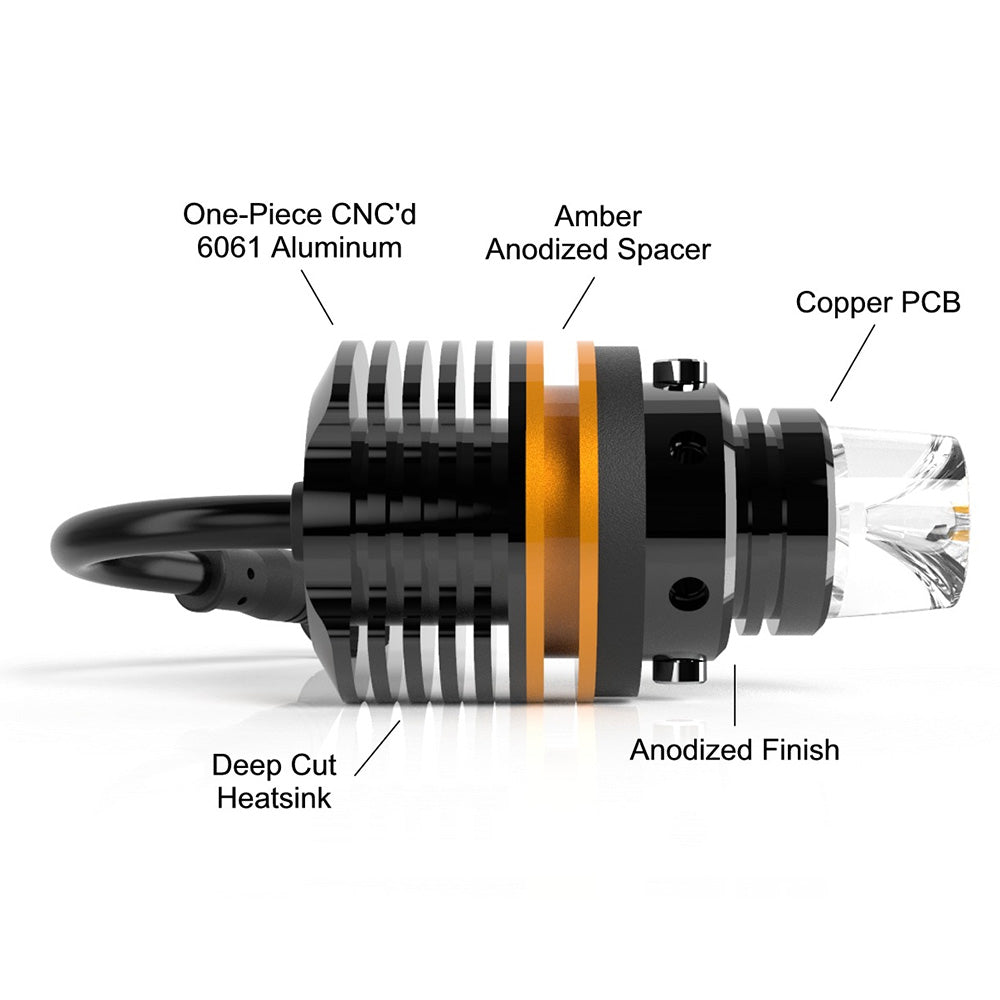

• 2X - V6 Extreme Amber DRL Bulb
• 2X -V6 Extreme DRL Controller
• 2X - Adjustment Spacer

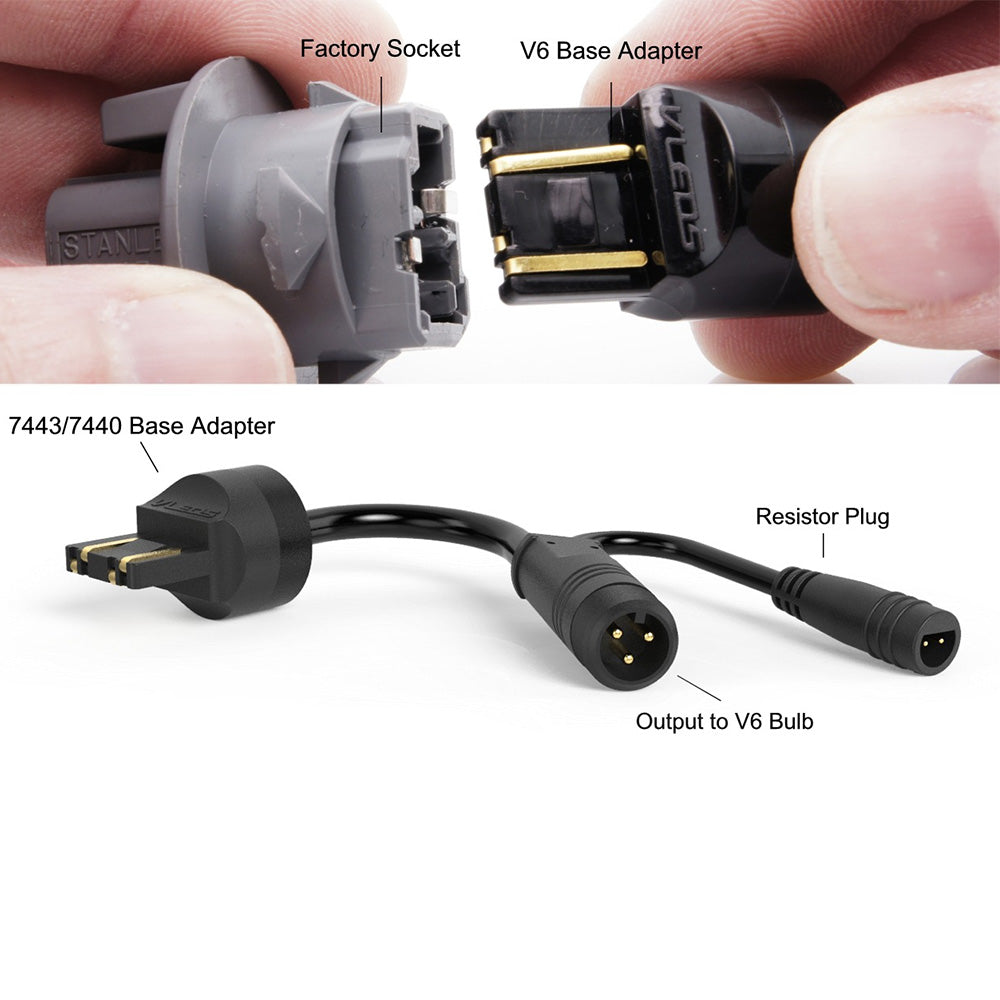

• 2X - V6 Base Adapter

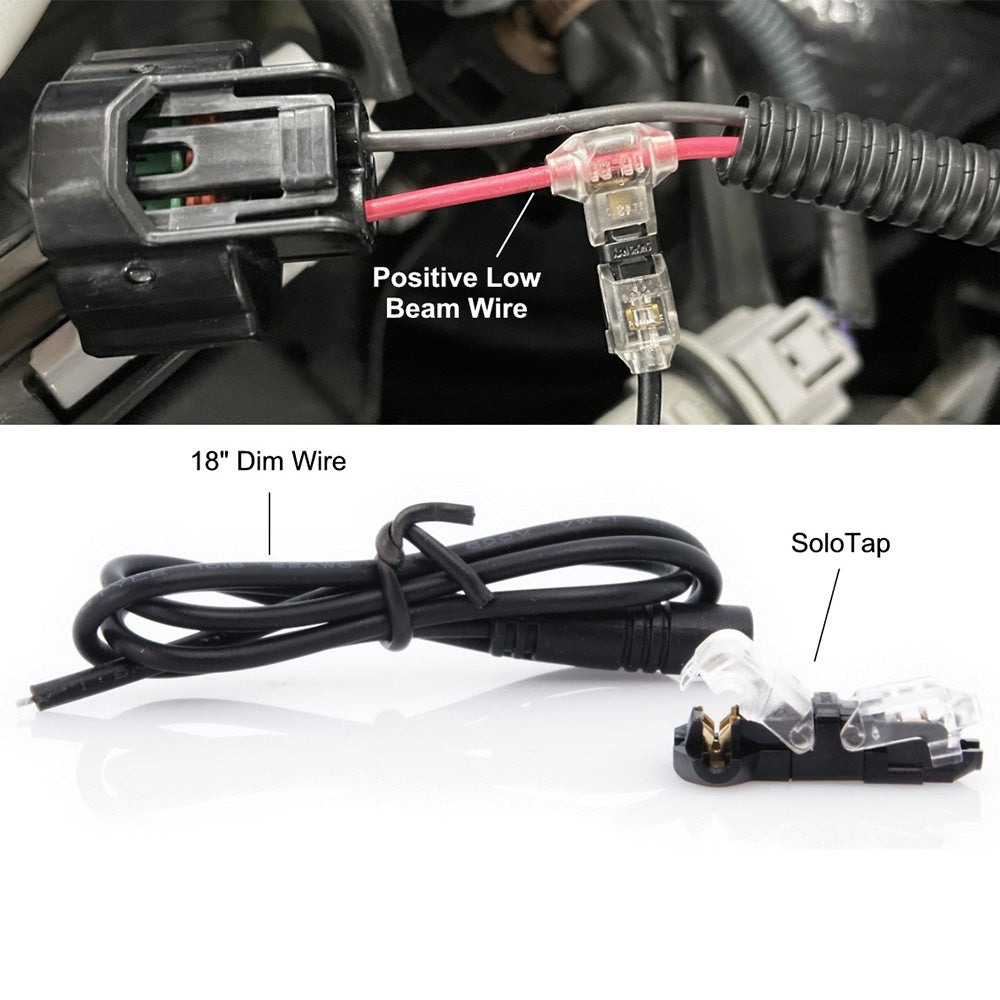

• 2X - Single Pin Wire + Solo Tap (Dim Parking Output)
• 2X - Sealing Gasket
• 2X - Adhesive Lined Heat Shrink
• 2X - Dielectric Grease Pack
• 2X - Collar
• 2X - Allen Key
• 2X - 8 Screw

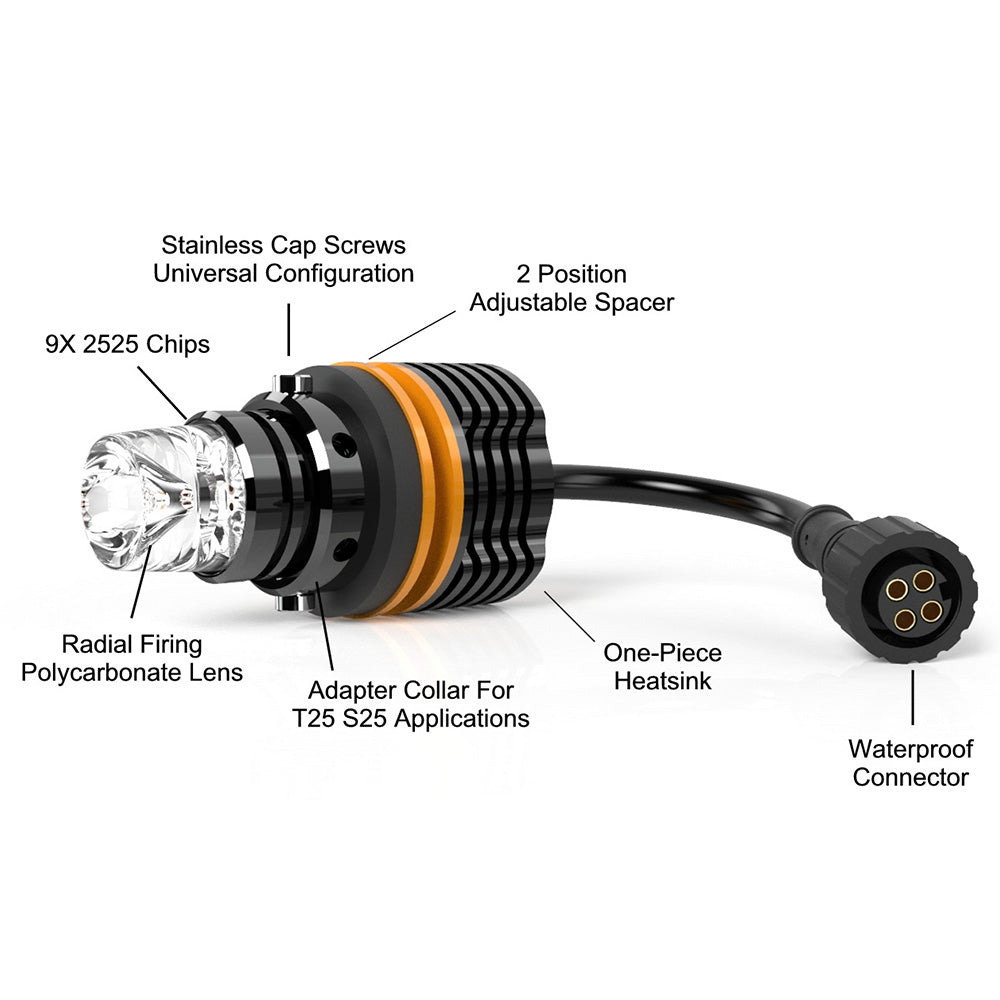

Product Features

• High-output driver with the best components available.
• 12X highest bin rating 2525 chips.

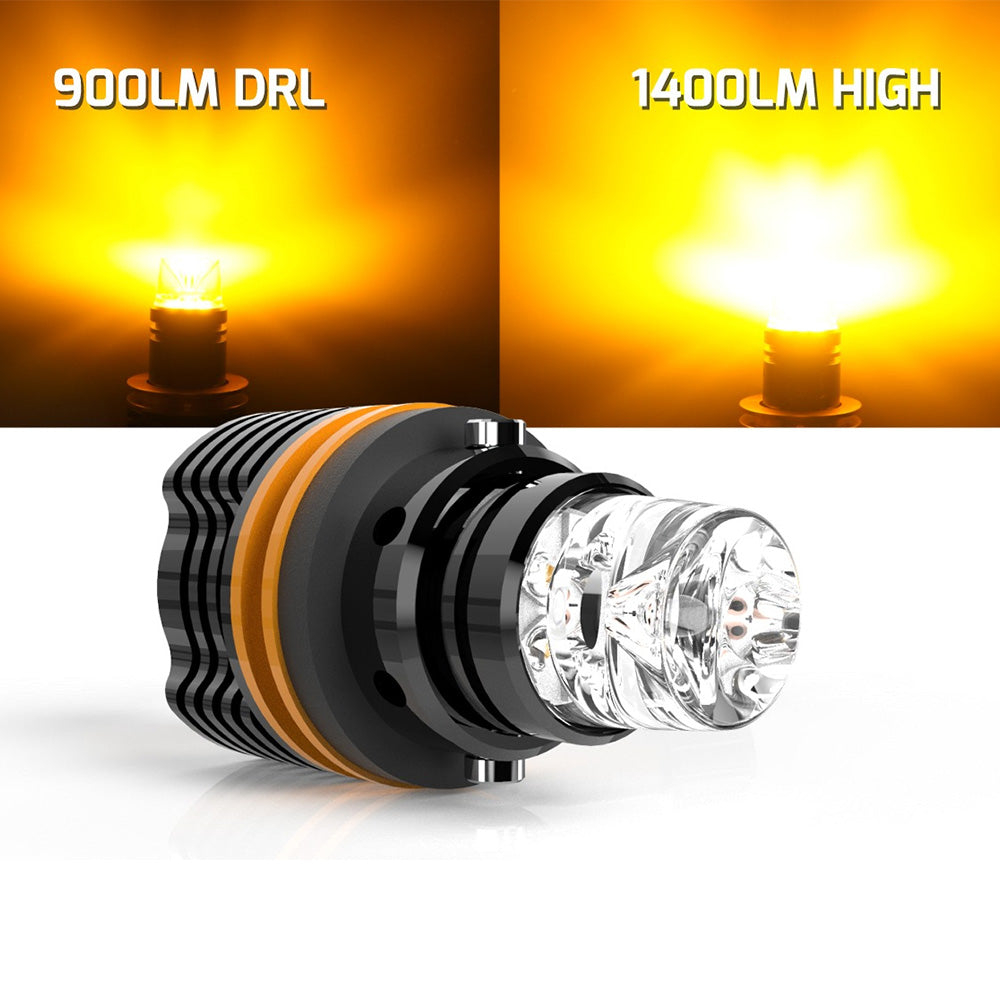

• 70LM Parking 900LM DRL 1400LM Turn - measured output per bulb
• The low parking or DRL circuit shuts off when the turn signal is applied for a more defined notification.

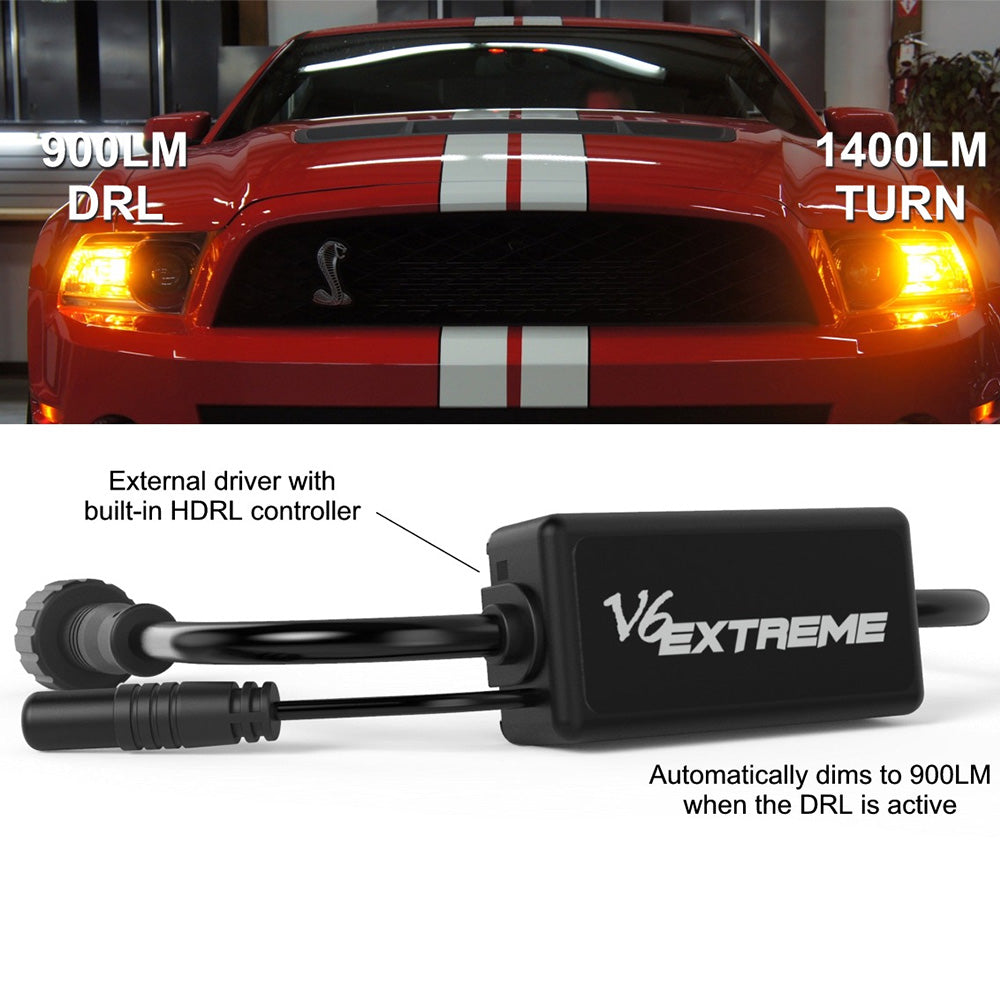

• Integrated HDRL controller senses DRL input and switches the output to 900LM.
• Dim amber option for parking light output with headlights on.
• 5X brighter than stock.
• Current Draw 2A @ 14.4V 27W
• No resistors required
