Heavy Duty Single Output 4-pin Wiring Harness

Product Description

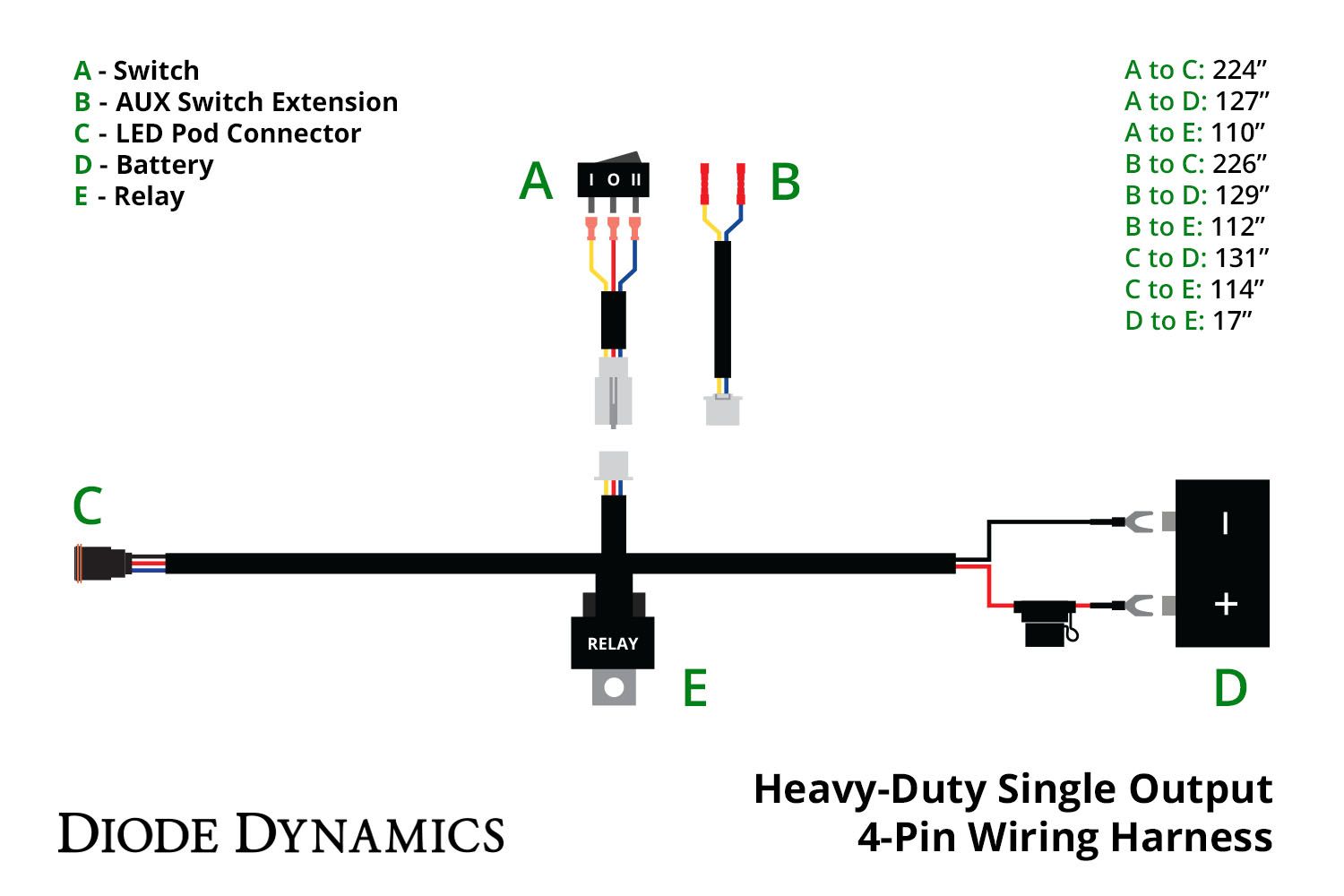

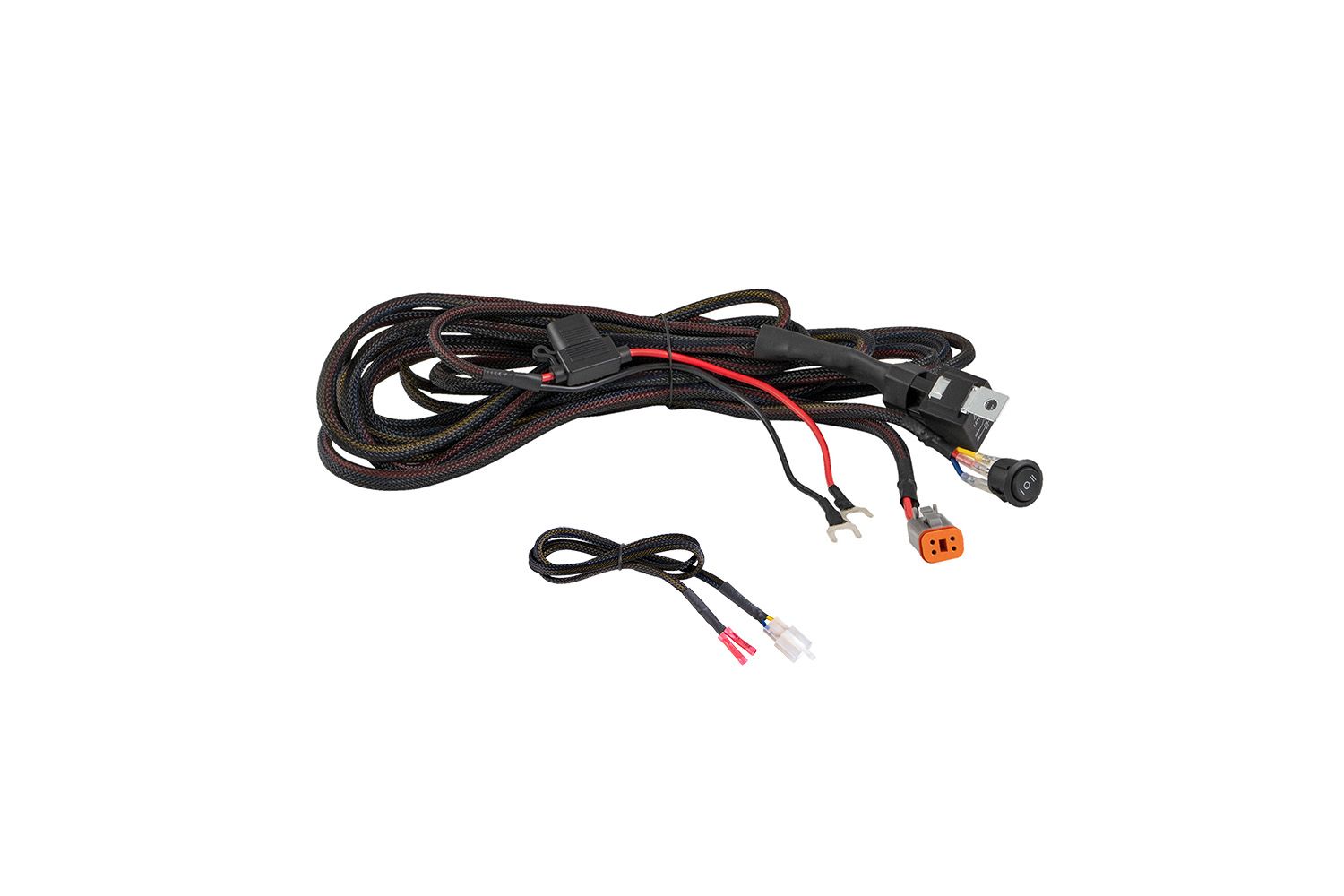

Power your high-output lighting safely with the Diode Dynamics Ultra Heavy Duty Single Output 4-Pin Wiring Harness. This 10AWG harness delivers stable power directly from your battery while protecting your system with a 60A waterproof fuse and 80A relay. Plug-and-play installation with a Deutsch DT-P connector ensures reliability and simplicity for any off-road lighting setup.

Fitment Notes

• This harness safely powers up to 25A of auxiliary lamps
• Compatible with following light bars
  • SS10
  • SS20

• Compatible with following light pods
  • C1 Sport: 1.2A
  • C1 Pro: 1.7A
  • SSC2 Sport: 0.6A
  • SSC2 Pro: 1.75A
  • SS3 Sport Main Beam: 1.1A, Backlight: 0.03A
  • SS3 Pro Main beam: 2.7A, Backlight: 0.03A


Product Features

• Powers Diode Dynamics LED pods with backlight functionality.
• Connects directly to the battery to power your LED lights.
• High capacity 14AWG wiring.

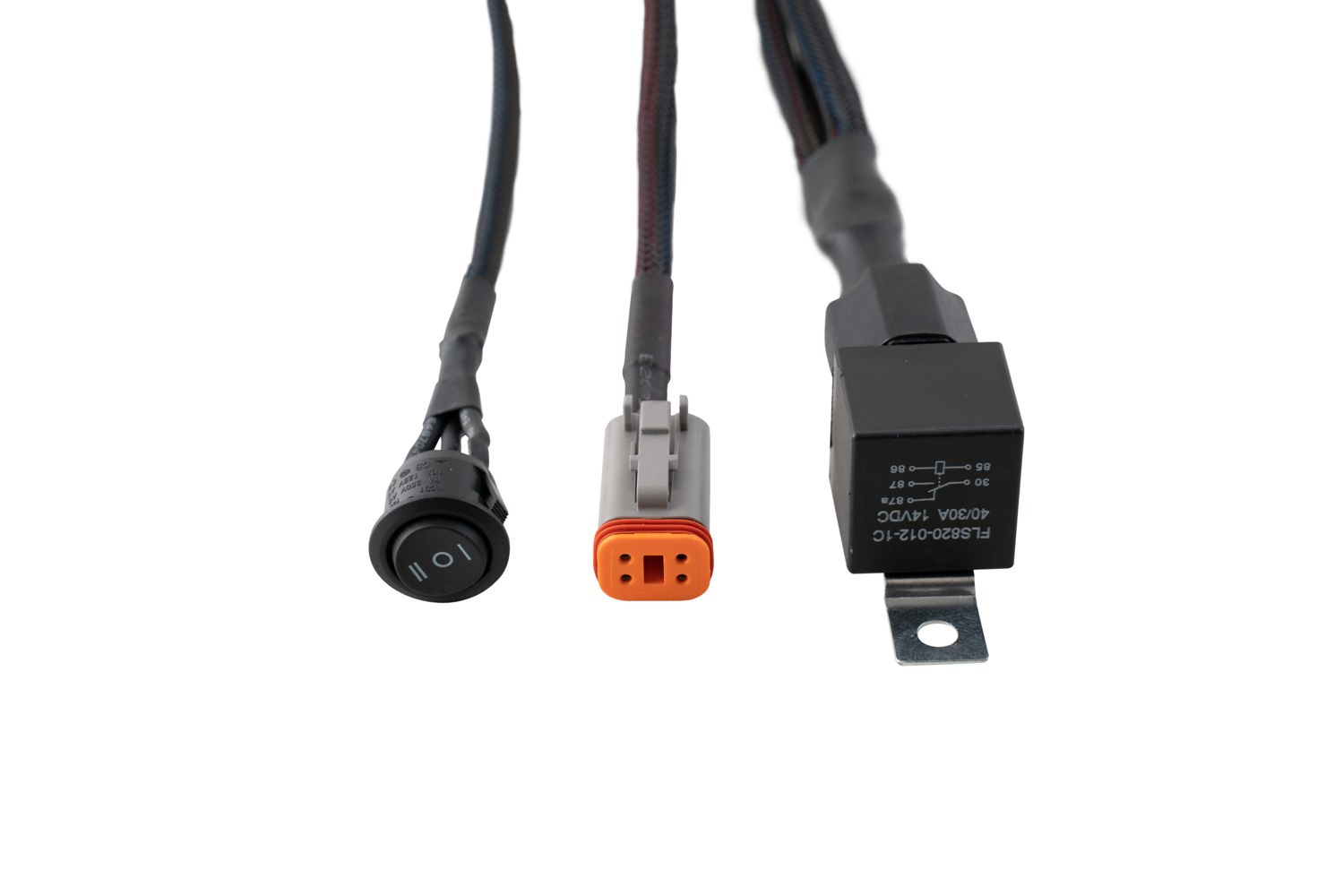

• Single Deutsch DT output connector.
• 30A waterproof fuse, and 60A 12V relay to safeguard the electrical systems.


3 Year Replacement Limited Warranty

All Diode Dynamics products come with a 3 Year Worry-Free Warranty.

If you experience any defect with a product, we will do some quick troubleshooting, and if necessary, provide a replacement. There is no need to wait for a return and repair process. Click here to learn more.
