Icon Intelligent Control Install Kit Tacoma (2024+)

Product Description

ICON Intelligent Control (IIC) is the computer that monitors, analyzes, and processes data in real-time. Information from the onboard G-force sensor and Gyroscope perform calculations based on algorithms and user-defined settings to predict terrain and wheel position. IIC has the capability to collect information at over 1000 times per second, process the data and make adjustments, then deliver those changes to Compression Damping Electronic Valve (CDEV) in the shock absorbers in under 40 milliseconds. IIC also works as a data driver to connect the user to ICON’s proprietary mobile App interface for monitoring and adjusting shock settings. The IIC is mounted to the2024 Toyota Tacoma using application specific mounting brackets, hardware and wire harnesses, ensuring an easy and clean looking install.

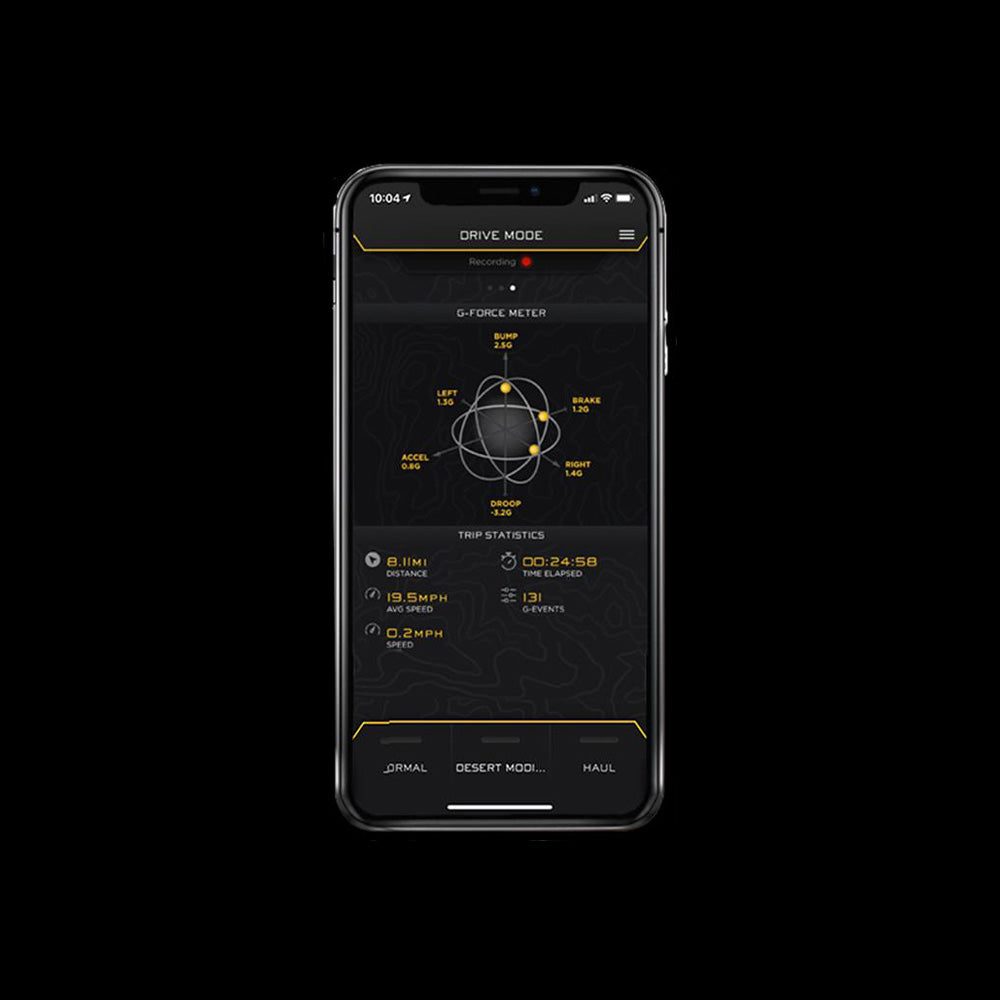

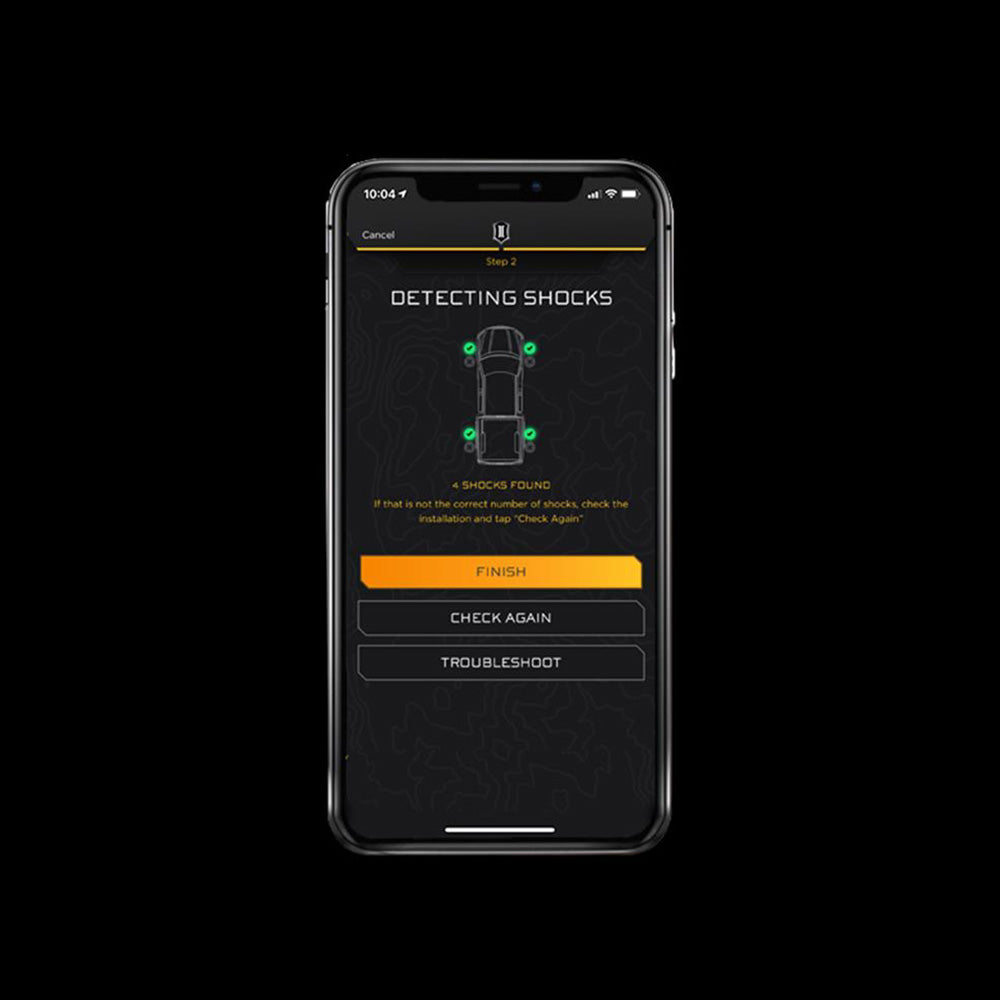

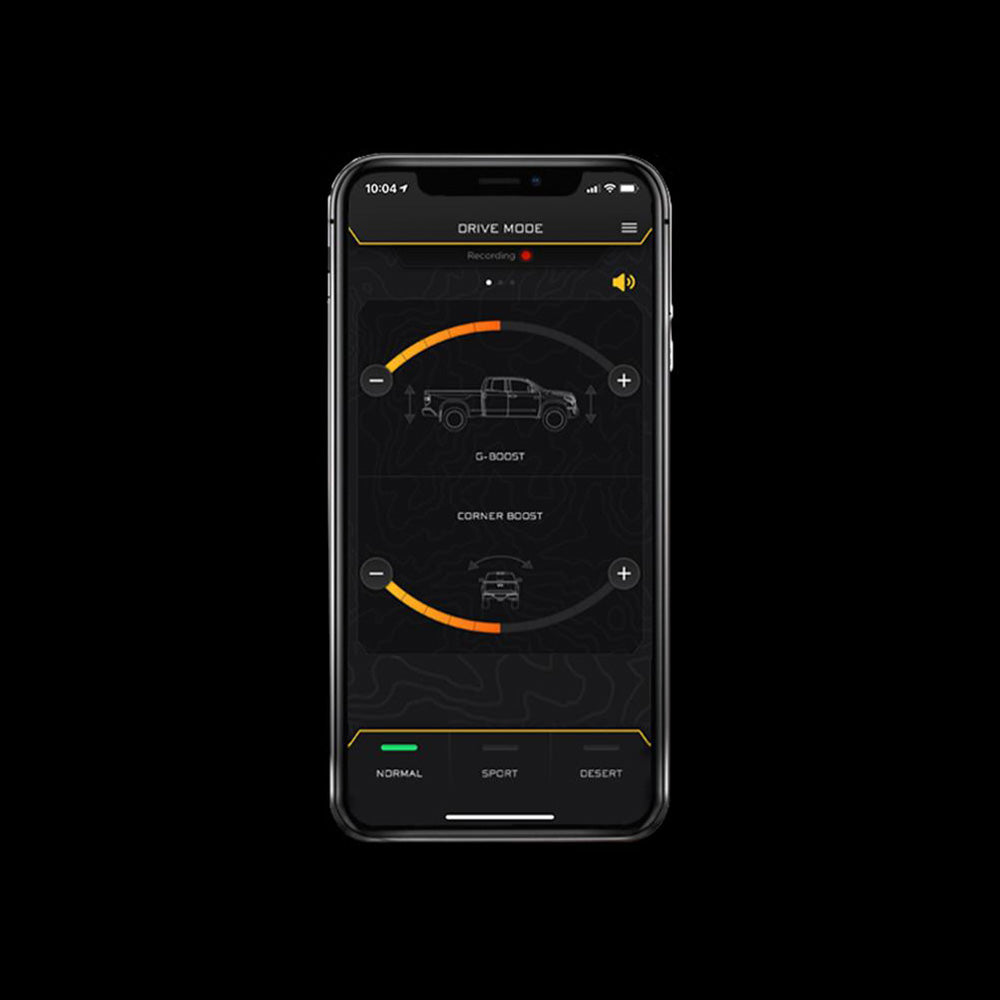

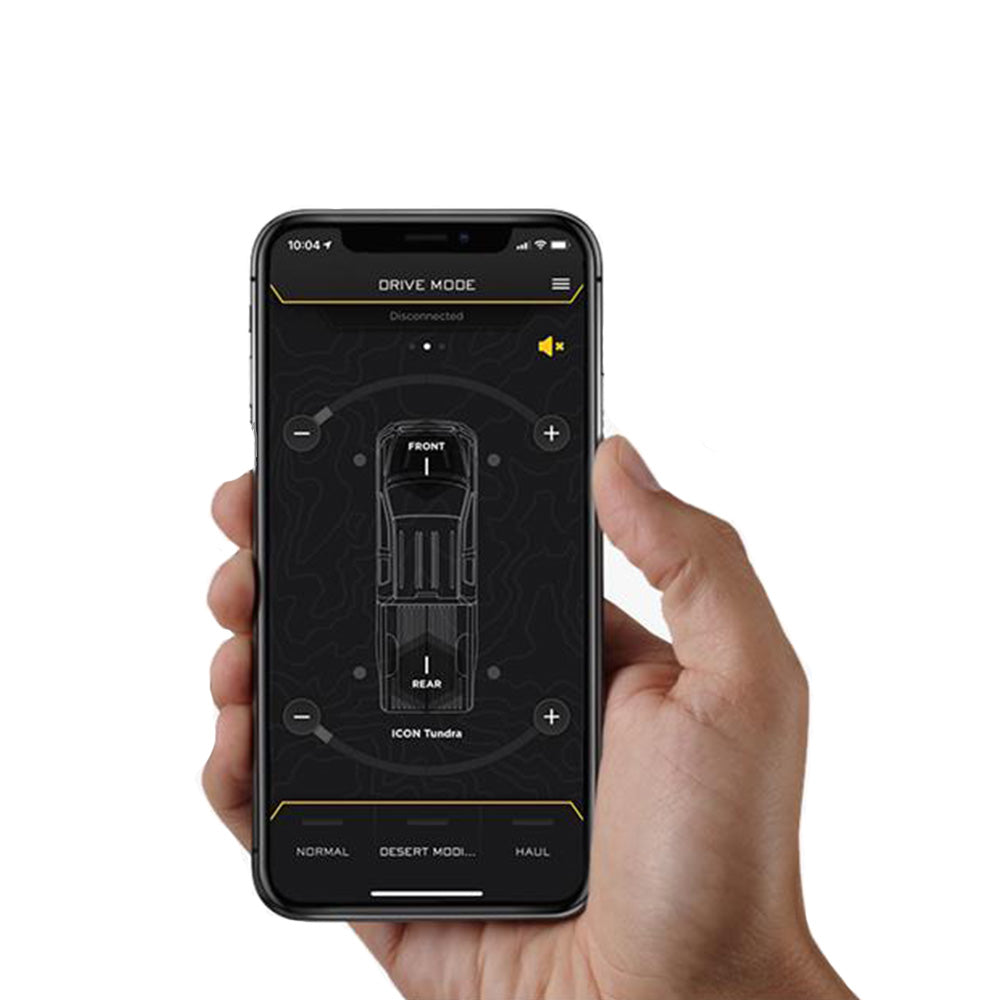

The IIC App brings all of this technology together by offering a user-friendly interface to monitor, record, and adjust the system’s performance via Bluetooth connection. Users can easily alter the shocks’ baseline settings for firmness, as well as adjust the sensitivity of vertical “G-Boost” and lateral “Corner Boost” with a few simple taps from their favorite iOS device. The App includes several preconfigured ‘Drive Modes’ (Normal, Desert, and Haul) but also offers the ability for users to create an unlimited number of unique presets using their own custom settings. To top it all off, you can record data from your trip including time, speed, distance and G-Forces for your very own ICONIC Overview.

Included

• Icon 2024 Toyota Tacoma Icon Intelligent Control Install Kit

Product Features

• Offers selectable active shock damping adjustment as well as manual adjustment of baseline settings without exiting vehicle.
• Onboard sensors monitor G-forces and movement of vehicle chassis.
• Performs calculations based on sensor inputs, custom algorithms, and user defined settings at a rate of over 1000 times per second.
• Sends necessary damping adjustments to CDEV shocks that react in under 40 milliseconds.
• User interface provided by IIC Mobile App via Bluetooth connection to iOS device.
• Mobile app offers preconfigured “Drive Modes” as well as the ability to create custom presets.
• Also functions as a data logger for time, speed, distance, and G-force allowing you to record data from your trips.

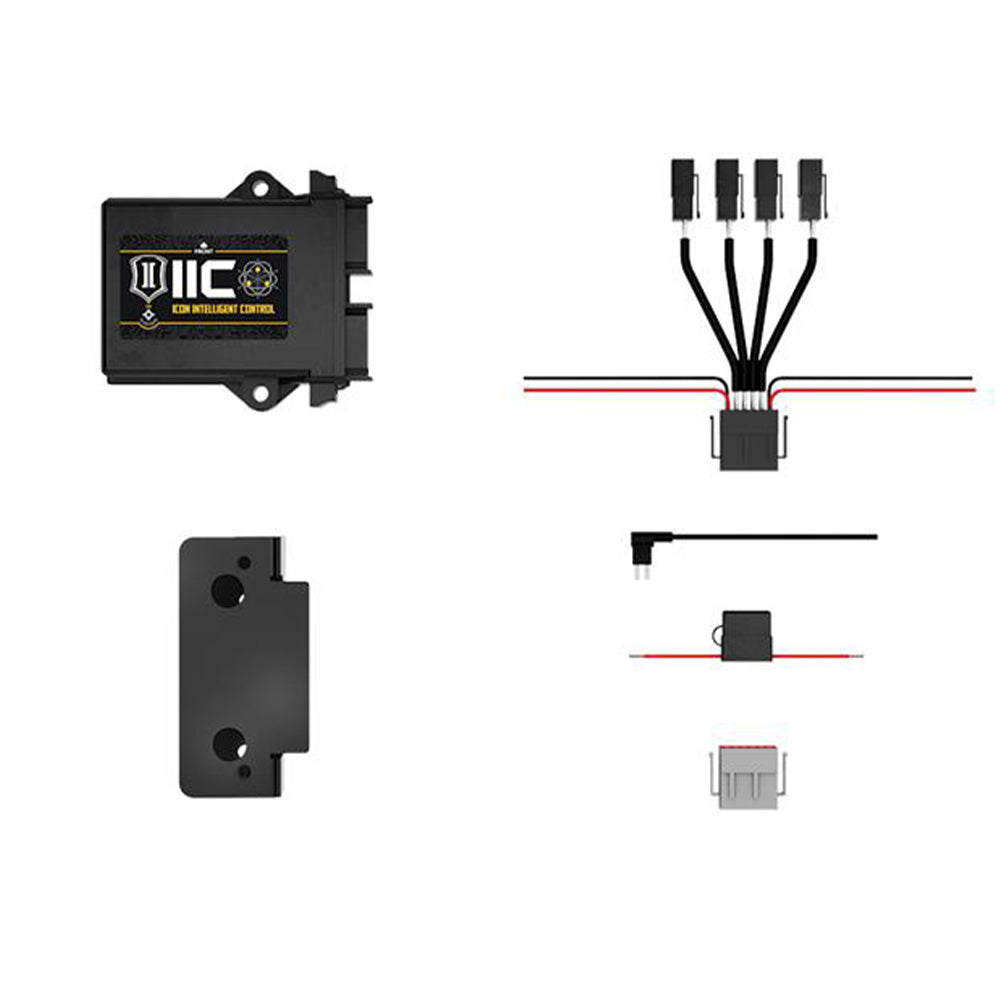

• Application specific mounting brackets, hardware and wire harnesses.

Fitment Notes

• Also requires installation of CDEV front coilovers and CDEV rear shocks.
• An IOS operated device is required to run ICON intelligent control app.
• Will not fit 2024 Toyota Tacoma TRD PreRunner.

ICON Vehicle Dynamics warrants to the original retail purchaser who owns the vehicle on which the product was originally installed.
ICON Vehicle Dynamics does not warrant the product for finish, alterations, modifications and/or installation contrary to ICON Vehicle Dynamics instructions. ICON Vehicle Dynamics products are not designed, nor are they intended to be installed on vehicles used in race applications, for racing purposes or for similar activities. (A “race” is defined as any contest between two or more vehicles, or a contest of one or more vehicles against the clock, whether or not such contest is for a prize). This warranty does not include coverage for police or taxi vehicles, race vehicles, or vehicles used for government or commercial purposes. Also excluded from this warranty are sales outside of the United States of America and Canada.
ICON Vehicle Dynamics’ obligation under this warranty is limited to the repair or replacement, at ICON Vehicle Dynamics’ discretion, of the defective product. Any and all costs of removal, installation or re-installation, freight charges and incidental or consequential damages are expressly excluded from this warranty. Items that are subject to wear are not considered defective when worn and are
not covered.
ICON Vehicle Dynamics components must be installed as a complete kit as shown in our current application guide. Any substitutions or exemptions of required components will immediately void the warranty. Some finish damage may happen to parts during shipping
and is not covered under warranty.
This warranty is expressly in lieu of all other warranties expressed or implied. This warranty shall not apply to any product that has been improperly installed, modified or customized subject to accident, negligence, abuse or misuse.
