LED DRL Kit 4Runner (2021-2024)

Product Description

Direct Replacement Designed specifically for the 5th Gen 21-24 4Runner with BiLED low beam/high beam (all in one under the projector) and dedicated halogen daytime running lights. No more ugly yellow DRLs! This kit is a direct replacement for the dull factory halogen DRL bulbs.

How it Works When a DRL input is detected by the bulb's smart voltage sensing circuitry, the V35 bulb's output is then controlled to a set parameter, resulting in the perfect output for DRL use.

Real-World Testing The DRL output level was crucial. We performed extensive on-road testing to find the perfect lumen figure. It's not too bright during overcast days or dusk and not too dim in direct sunlight. So many products on the market are either too dim, and you lose your high beams, or they are too bright, running at full output, and blind oncoming traffic.

Easy to Install With just a few connections, you'll have this kit installed in no time. Everything you need is included in the kit to get that professionally installed look.

Fitment Notes

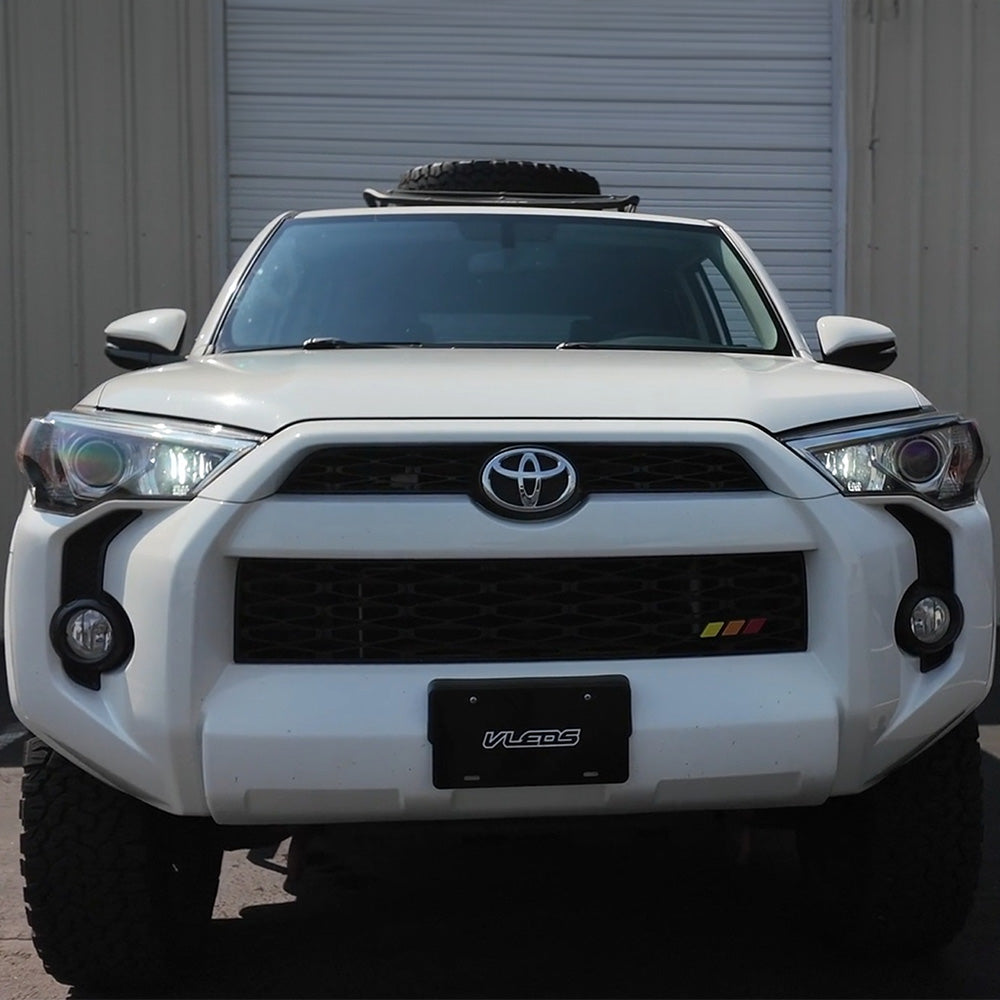

• Fits Toyota 4Runner 2021-2024
• This kit is NOT for use on 2021 US and 22-24 Canadian models with halogen low and high beam headlights.

Included

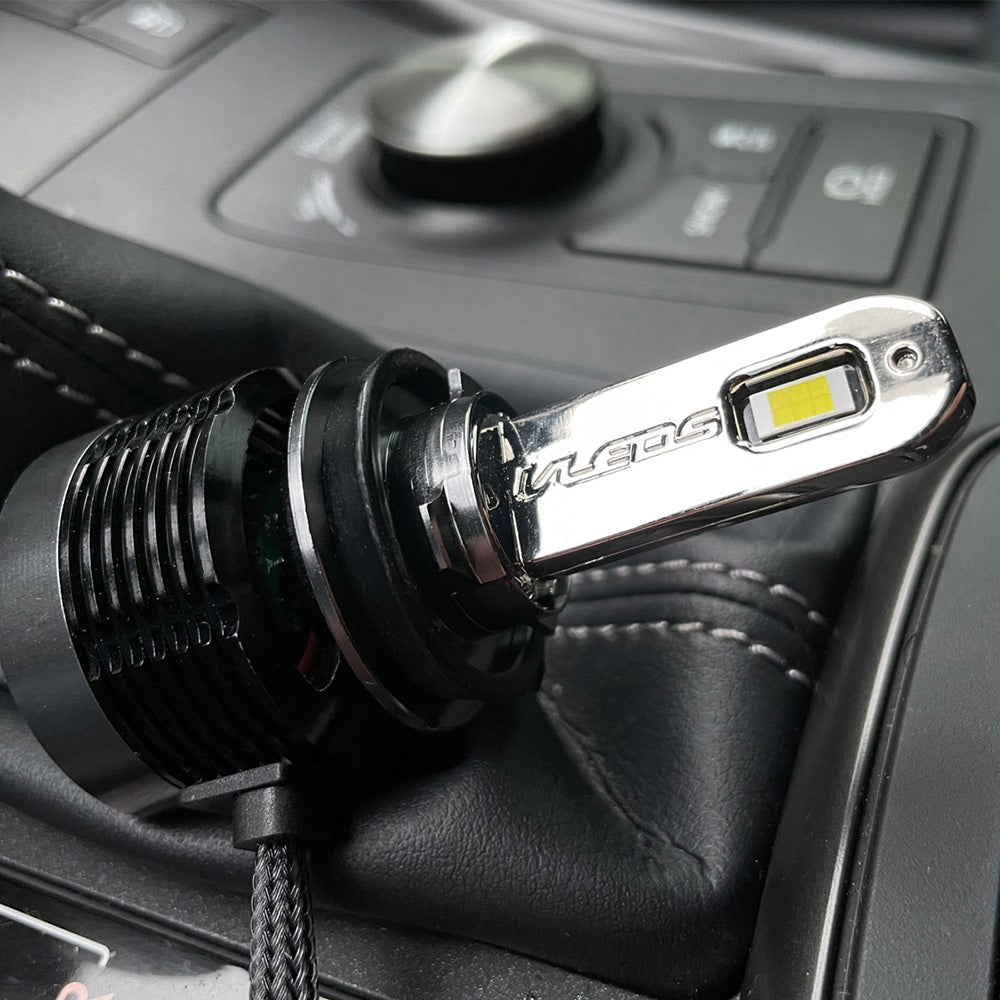

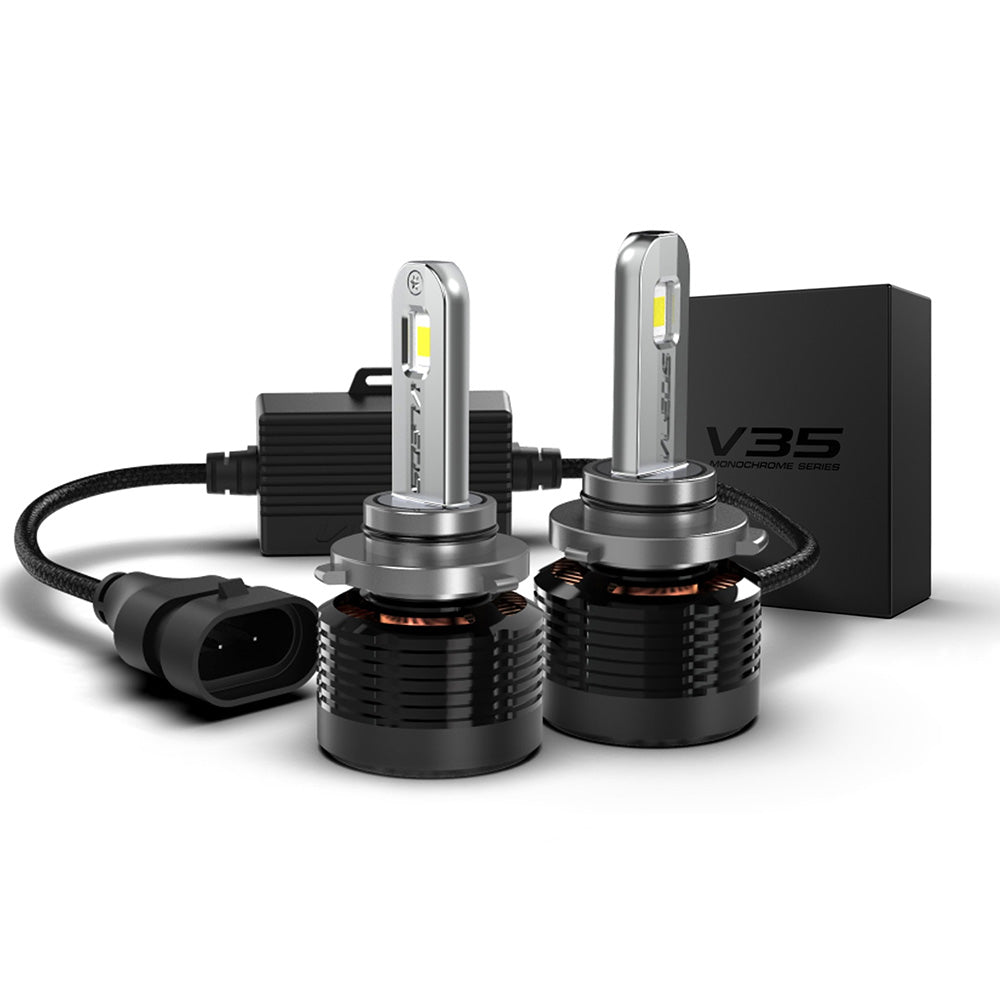

• 2X - V35 Monochrome Series DRL Bulbs
• 2X - VLR_15 Load Resistors

Product Features

• 6K color temp to match factory LED low beam.
• Unoffensive 400LM output.
• No flicker DRL
• Ultra-thin, 1.5mm copper core PCB for optimal light output and a focused, crisp beam pattern.

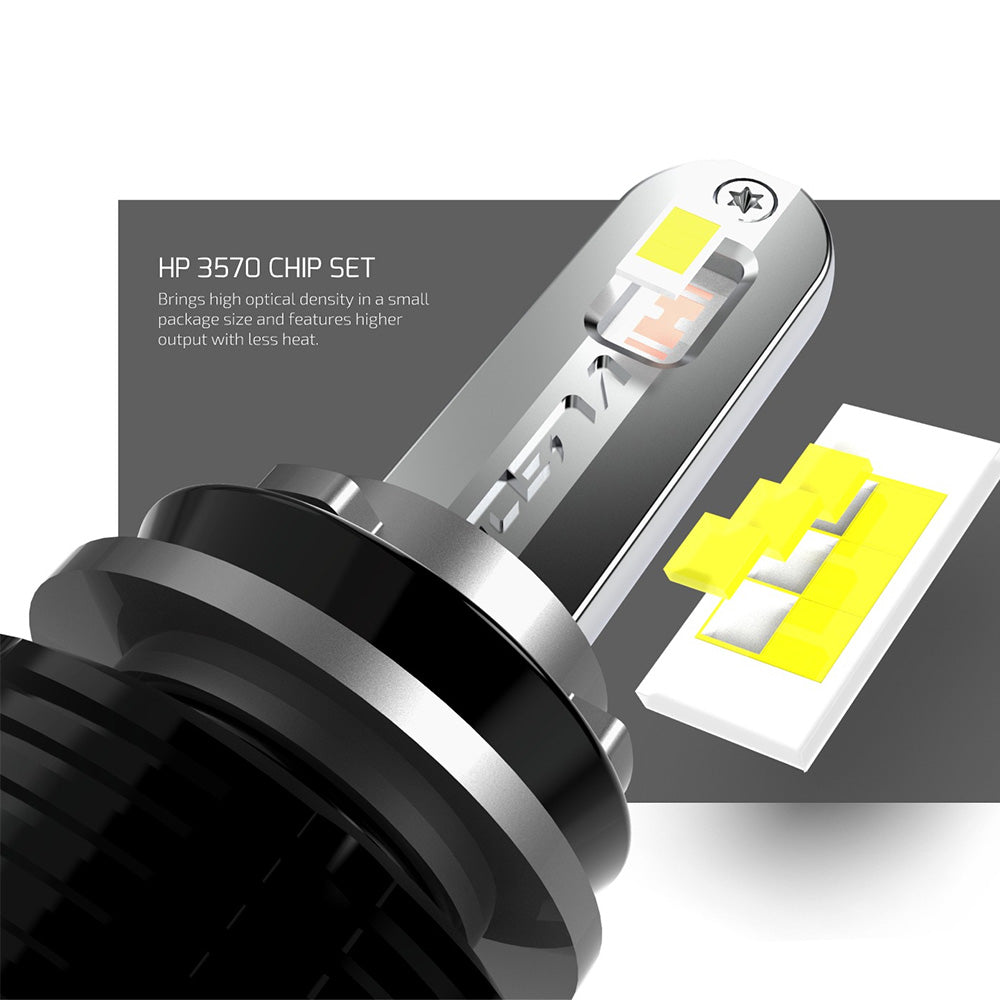

• The HP 3570 chipset with higher output and less heat. Dedicated thermal pad for direct transfer from chip to PCB.

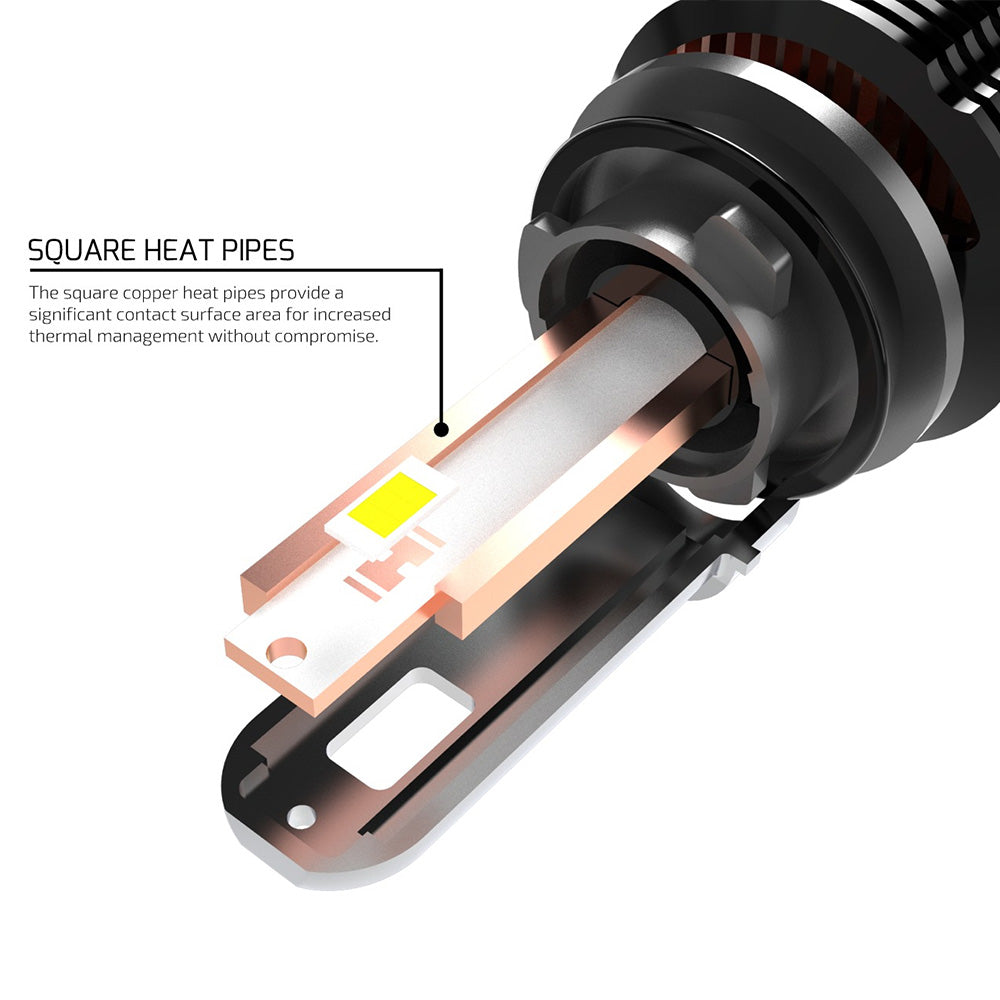

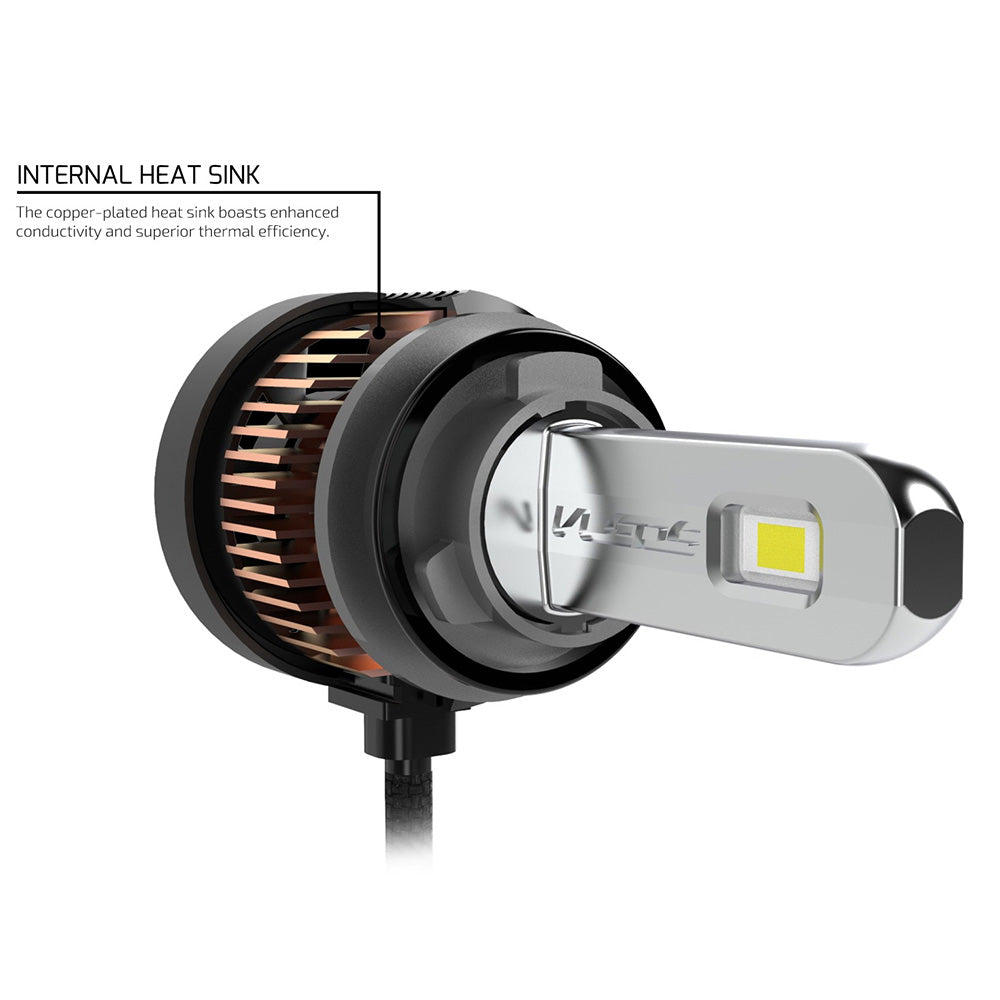

• Dual square copper heat pipes significantly increase contact surface area, enhancing efficiency in thermal management: enhanced conductivity and superior thermal efficiency with a copper-plated internal heat sink.

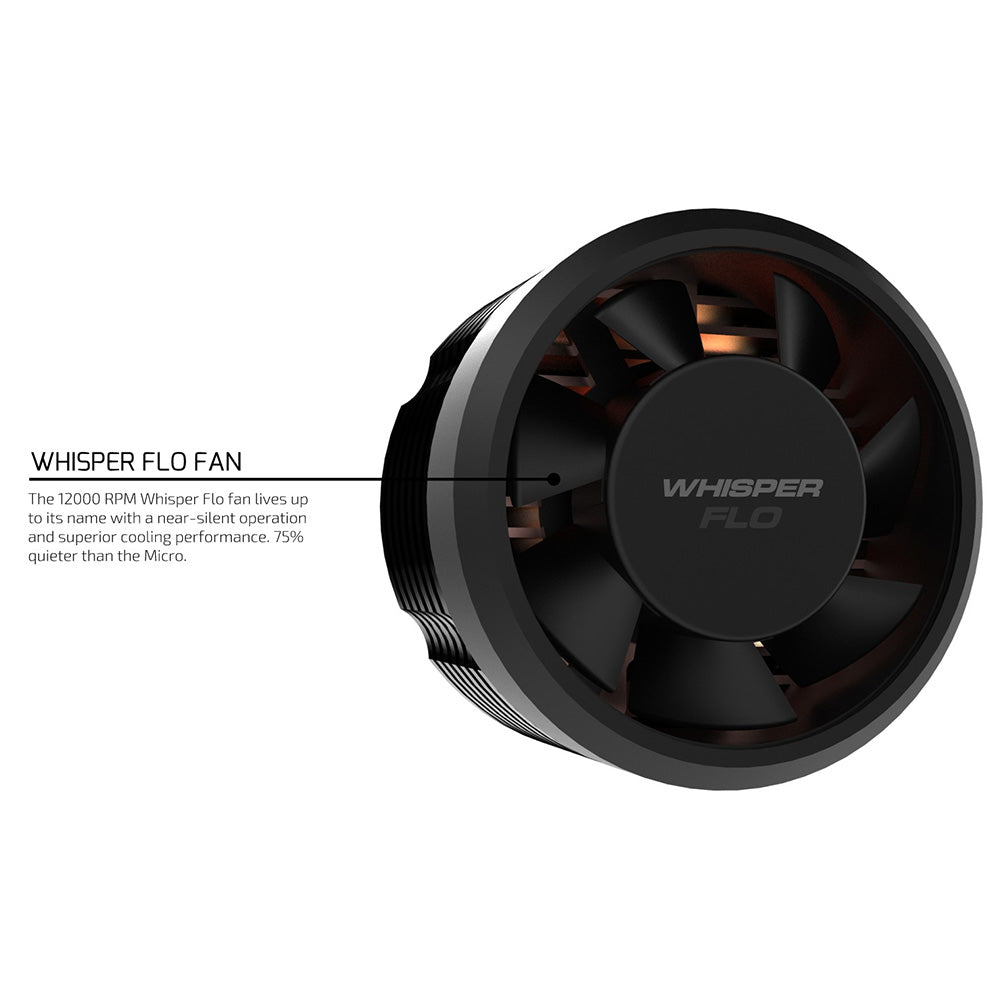

• 12000 RPM Whisper Flo fan with a near-silent 55 dB operation.
• Over-molded wiring effectively isolates electrical components from the elements, leaving no base types or connections overlooked.
• Chrome-plated stem virtually disappears inside the housing, blending perfectly with the factory reflector.

Coverage and duration

VLEDS warrants that it will provide a free replacement for any VLEDS product that fails or proves defective during the warranty period on the vehicle for which it was originally installed. This warranty does not apply to a VLEDS product that has been altered, misused, damaged, installed improperly, or installed on a vehicle for which it was not designed. On commercial/fleet vehicles, all VLEDS products are covered for up to 1/2 of the standard warranty period. Additional conditions may apply to certain part applications; if they do, they are clearly stated on the product page description. This warranty is extended only to the owner of the vehicle on which the VLEDS product was installed, while that person owns the vehicle, and is not transferable.

Remedy and service

Before issuing a warranty replacement, the customer must troubleshoot and diagnose defective components by swapping components from side to side. VLEDS will validate the information provided and the alleged defect.

If the product fails within 30 days of receipt, you can convert your warranty to store credit for the total value of the product. Outside of 30 days, we will only replace products – no refunds are given unless we do not carry replacement parts.

Warranty replacement parts are shipped via USPS First Class Mail at the expense of VLEDS. If you need your replacement quickly, an upcharge payment link for FedEx 2Day will be provided in your warranty email.

International

Customers must pay a portion of the shipping charge for all warranty replacements. The payment link and amount for the charge will be included in your warranty email.
Exclusions

VLEDS makes no warranties of merchantability or fitness for a particular use or purpose and no other warranties, representations, or guarantees, whether written or oral, beyond those contained in this warranty. The replacement of the unit is the sole and exclusive remedy for claims of any type (including personal injury) arising from the failure or defective condition of the VLEDS product, from VLEDS negligence or breach of legal duty, or otherwise. VLEDS will not reimburse the vehicle owner for removing or returning the failed or defective unit, installing the replacement unit, replacing any other parts, or for any other expenses, charges, or damages.

Limitation on liability

To the extent allowed by law, VLEDS will have no obligation to the vehicle owner for any incidental or consequential damages arising from the failure or defective condition of the VLEDS product, from VLEDS negligence or breach of legal duty, or otherwise. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.
