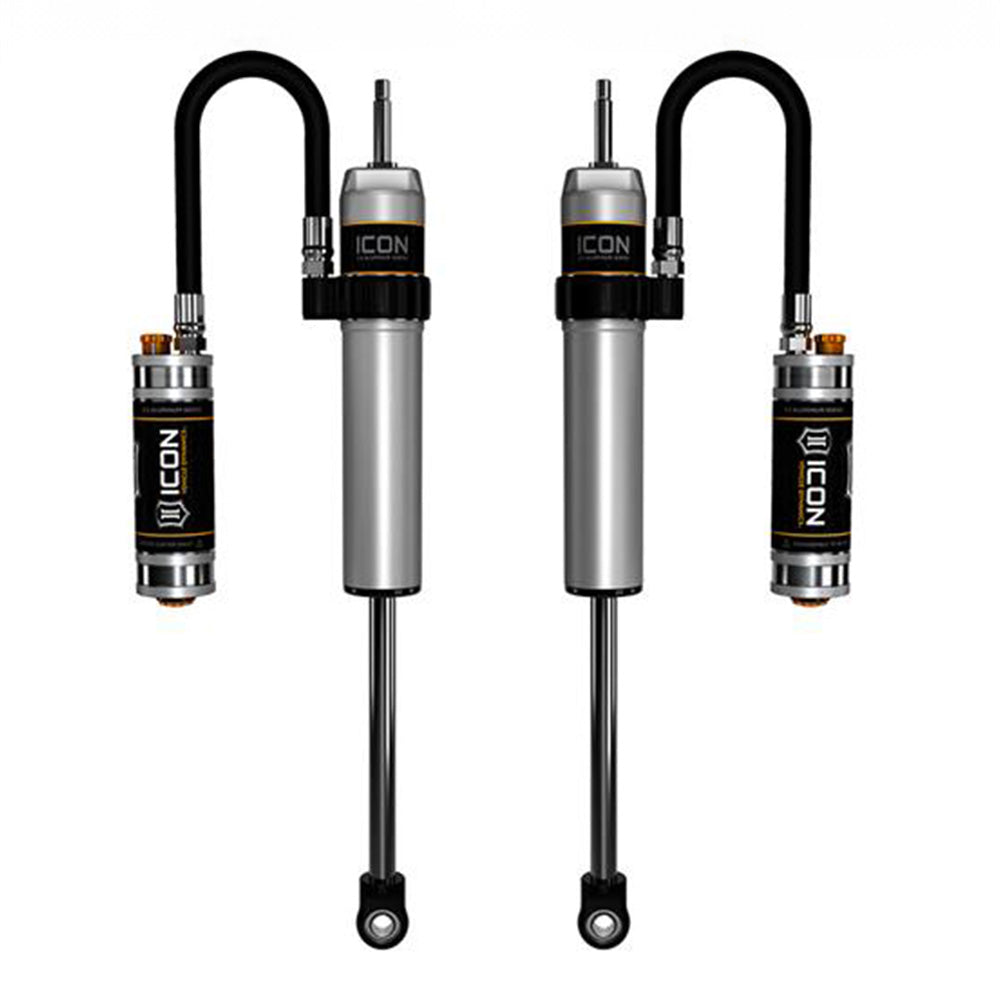

Rear 2.5 Aluminum Series Shocks 4Runner (2010-2024)

Product Description

Designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

Included

• 2 - 0-3" Rear 2.5 CDCV
• 2 - Universal resi MT plate
• 2 - Medium duty stem brushing kit
• Stainless steel hose clamp kit
• Installation hardware

Product Features

• 10 levels of high-resolution compression adjustability with the turn of a knob
• internal "bump zone" increases damping by 20% to provide more control as the shock approaches full compression
• Remote reservoir improves heat dissipation to reduce shock fade during prolonged use.
• Premium 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with piggyback reservoir
• Unsurpassed performance and ride quality on and off-road
• 7/8" diameter induction hardened, chrome plated shock shaft
• Aircraft grade aluminum extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• 100% Rebuildable
• 100% Revalveable

Fitment Notes

• Compatible with 1-3" of rear lift over stock
• Will not fit models with factory rear air suspension. Vehicles equipped with rear air suspension require rear coil conversion, ICON part numper 56110. and rear coil springs, ICON part number 52700 or 52800
• Vehicles equipped with Kinetic Dynamic Suspension System (KDSS) also require ICON track bar part number 54200
