Rear Billet Upper Link Kit Tacoma (2024+)

Product Description

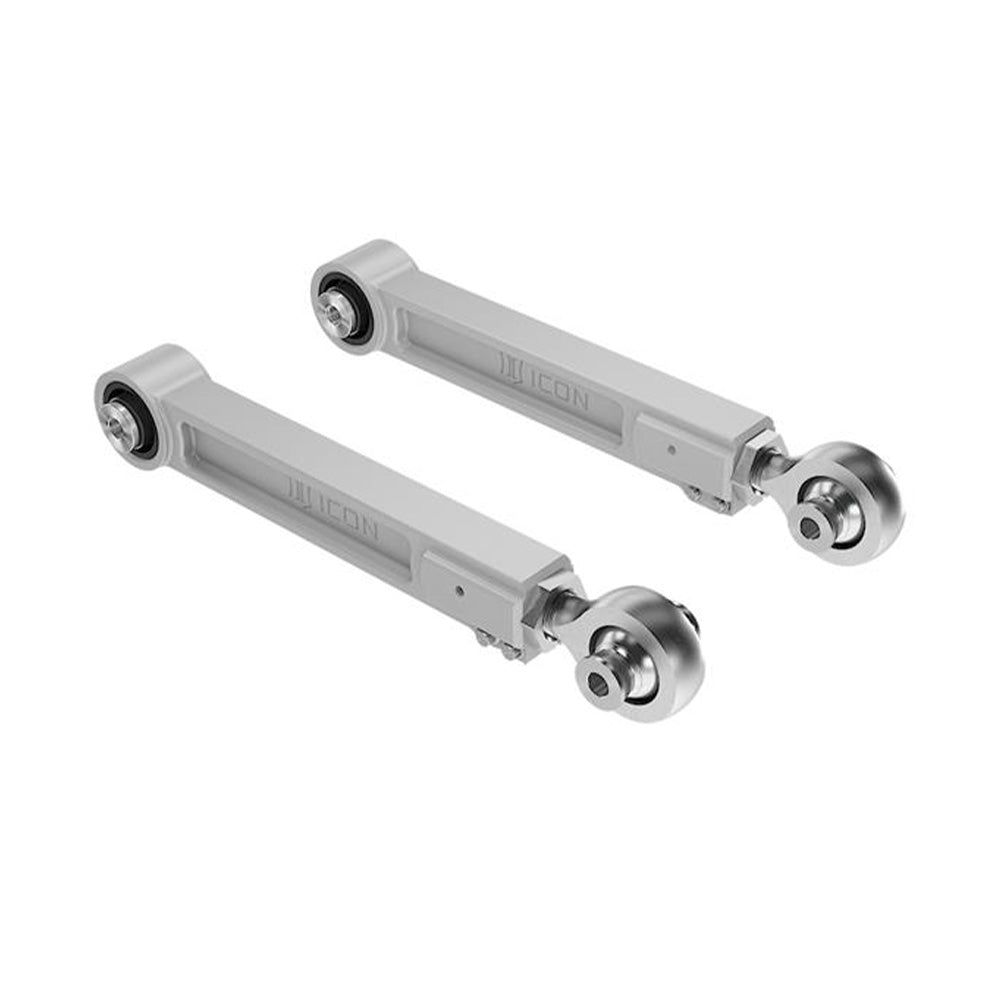

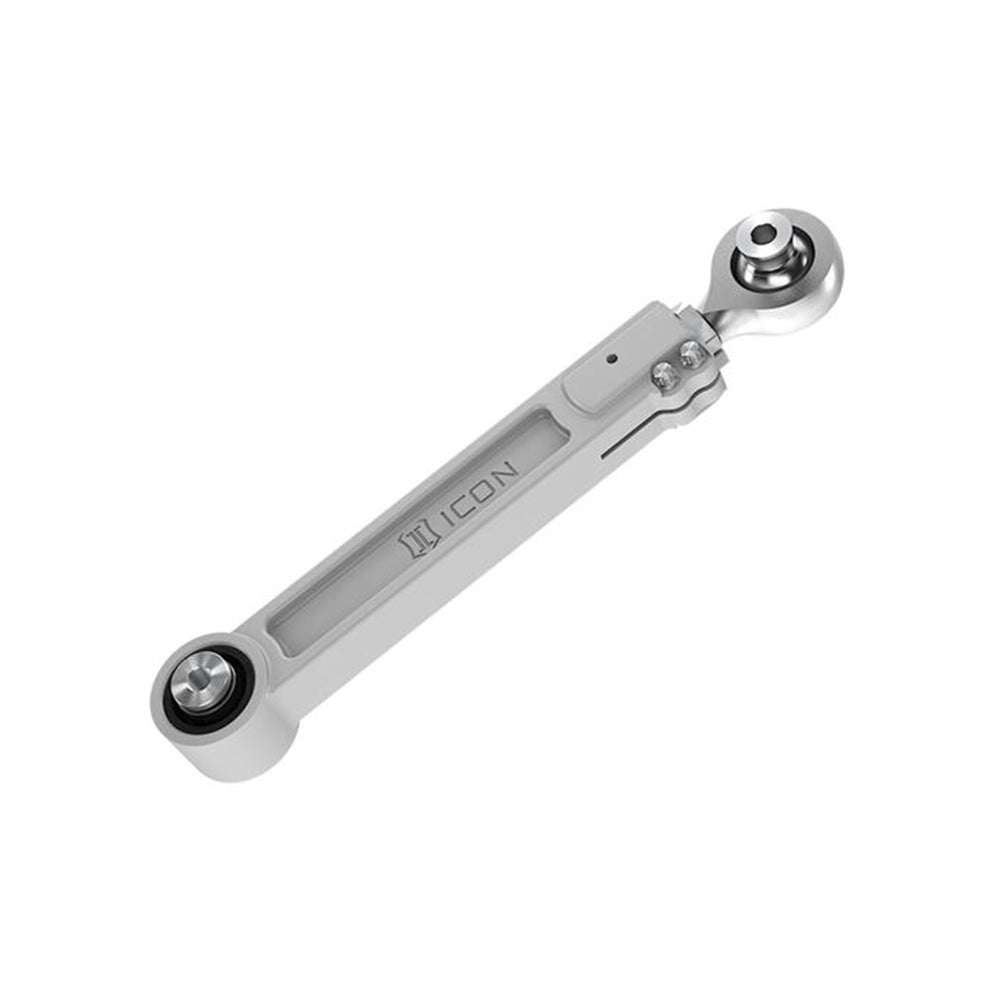

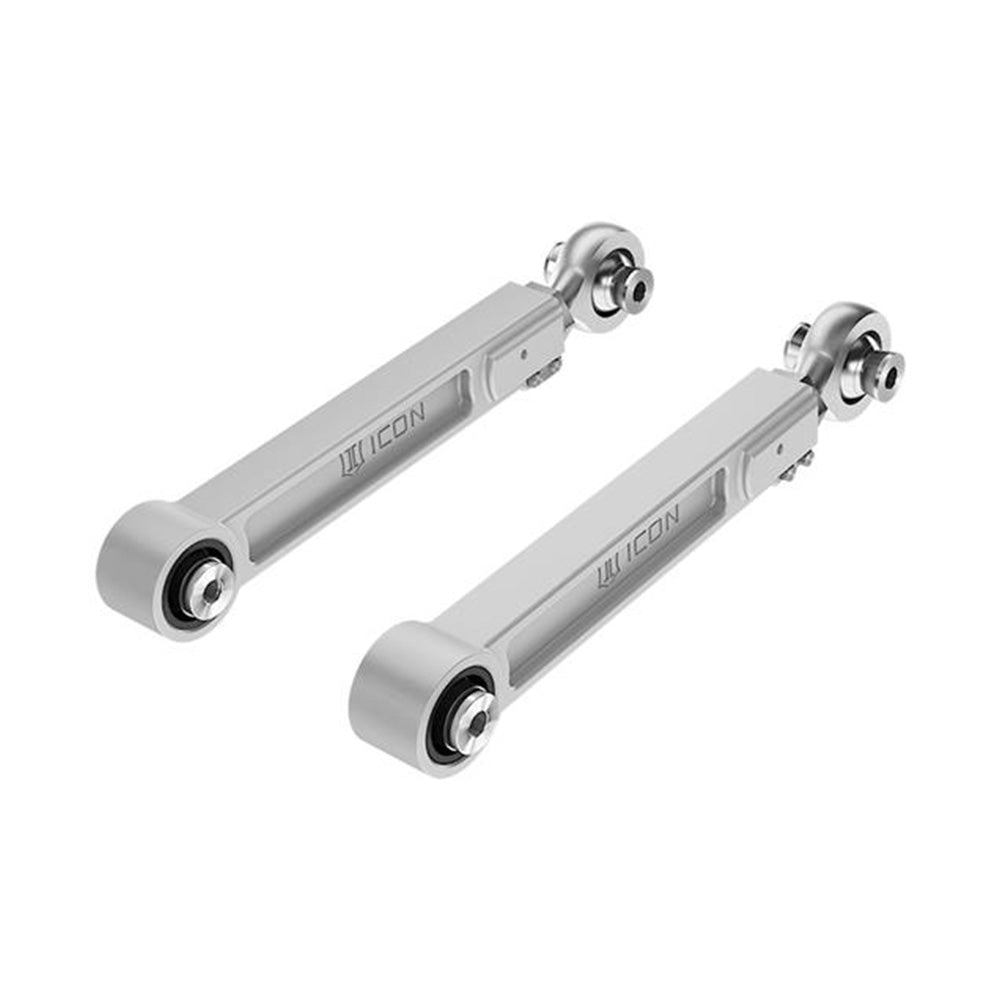

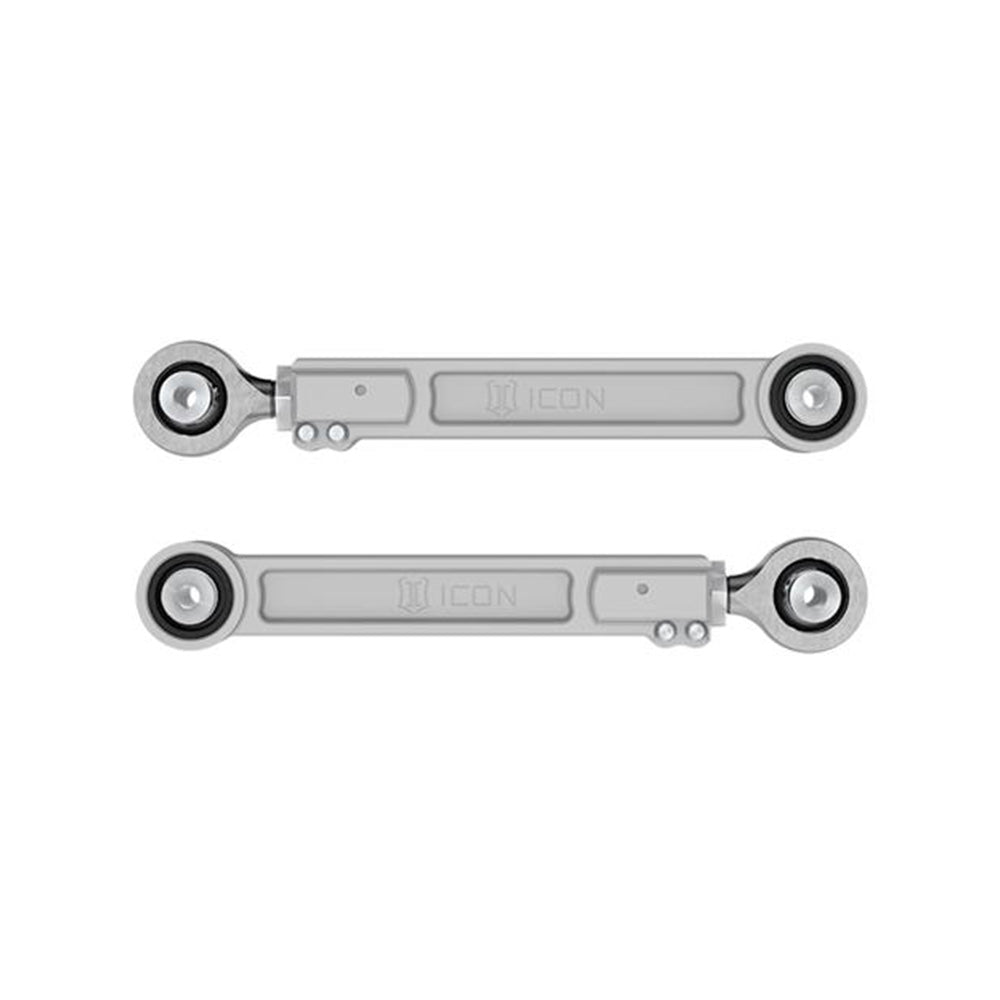

ICON’s billet aluminum rear upper link arms for the 2024 Toyota Tacoma are a significant upgrade over the factory units due to increases in strength, adjustability, and performance. These links are made from CNC machined 6061 aluminum in-house and anodized for corrosion resistance, providing a major improvement over the construction of the stock units. This rear upper link arm kit features PTFE-lined FK rod ends for increased suspension articulation, reduced deflection, and on-vehicle link arm length adjustability using ICON’s double adjuster system. Additionally, multi durometer bushings are installed that allow for noise free operation and maximum angularity without the need for periodic greasing and/or other maintenance. The quality rod ends and bushings featured in these link arms allow the vehicle’s suspension to function as intended, without the bushing bind that limits the vehicle in stock form. After the design phase was completed ICON engineers put these parts through the “ICON1K” real-world test cycle for a final stamp of approval.

Included

• (2) Rear Upper Link
• (2) Serrated Spacer .200
• (2) Serrated Sleeve .200
• (2) Nut Plate
• (2) Hemi Spacer
• (2) Adjuster Sleeve
• (2) RH Rod End
• (2) Greaseless Press In Bushing
• Installation Hardware

Product Features

• Vehicle specific design.
• On vehicle adjustment for different ride heights and pinion angles using ICON's Double Adjuster System.
• CNC machined 6061 aluminum construction.
• Large FK Bearing JMX16T PTFE-lined rod ends.
• Maintenance free, dual durometer bushings for maximum angularity and noise isolation.
• Covered by ICON’s Limited Lifetime Warranty.

Fitment Notes

• Will not fit 2024 Toyota Tacoma TRD PreRunner.

ICON Vehicle Dynamics warrants to the original retail purchaser who owns the vehicle on which the product was originally installed.
ICON Vehicle Dynamics does not warrant the product for finish, alterations, modifications and/or installation contrary to ICON Vehicle Dynamics instructions. ICON Vehicle Dynamics products are not designed, nor are they intended to be installed on vehicles used in race applications, for racing purposes or for similar activities. (A “race” is defined as any contest between two or more vehicles, or a contest of one or more vehicles against the clock, whether or not such contest is for a prize). This warranty does not include coverage for police or taxi vehicles, race vehicles, or vehicles used for government or commercial purposes. Also excluded from this warranty are sales outside of the United States of America and Canada.
ICON Vehicle Dynamics’ obligation under this warranty is limited to the repair or replacement, at ICON Vehicle Dynamics’ discretion, of the defective product. Any and all costs of removal, installation or re-installation, freight charges and incidental or consequential damages are expressly excluded from this warranty. Items that are subject to wear are not considered defective when worn and are
not covered.
ICON Vehicle Dynamics components must be installed as a complete kit as shown in our current application guide. Any substitutions or exemptions of required components will immediately void the warranty. Some finish damage may happen to parts during shipping
and is not covered under warranty.
This warranty is expressly in lieu of all other warranties expressed or implied. This warranty shall not apply to any product that has been improperly installed, modified or customized subject to accident, negligence, abuse or misuse.
