Dobinsons Spring & Suspension

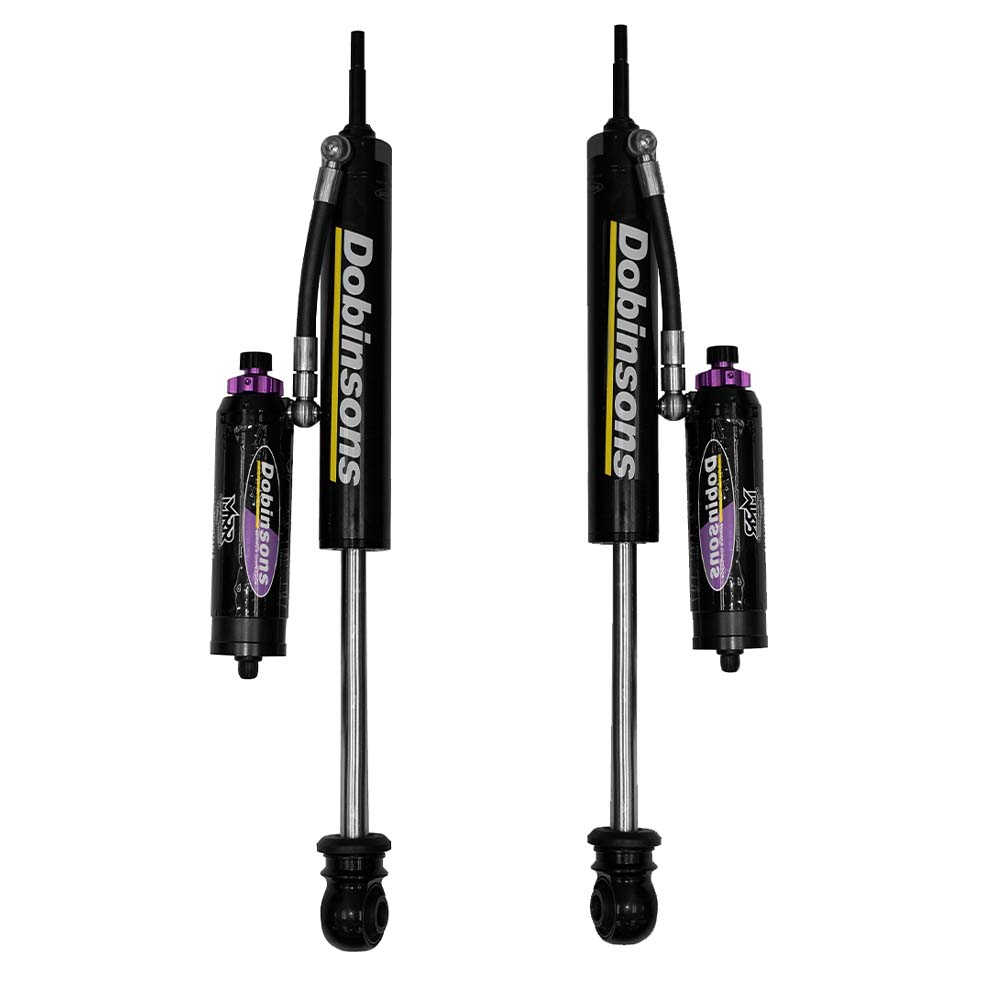

Rear MMR 3 Way Adjustable Shocks Tundra (2022+)
Rear Shock - Lift Height:
Rear Shock - Lift Height
The Dobinsons Rear 3-Way Adjustable MRR Struts, meticulously engineered to enhance the performance and versatility of Toyota Tundra vehicles. These advanced struts offer three-way adjustability, allowing you to fine-tune compression, rebound, and preload settings to suit your driving preferences and terrain conditions.
Crafted with precision engineering and high-quality materials, Dobinsons' Rear MRR Struts provide optimal damping control and improved handling, ensuring a smooth and controlled ride in various driving conditions.
- 3-way adjustable valving adjust high speed, low speed compression and rebound
- Fully Rebuild-able Design and re-valvable
- Corrosion resistant (EDP Surface Protection)
- Heavy duty single piece lower leg
- High oil capacity
- 60mm 6063 Aluminium Remote Reservoir
- Heavy Duty 3 Stage FKM HNBR Sealing System for the ultimate in reliability
- Race inspired hi-flow CNC Billet alloy piston 60mm bore €“ for the ultimate in offroad handling
- 56mm/2.2 Bodied Series
- Parker Braided High Pressure Hoses
- 5140 HV900 Hard Chrome Plated, Heat treated 22mm MicroPolished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
- Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low‘wear performance
- Direct Bolt-On Design
- High Quality O.E.M. Grade Natural Rubber Bushings
- Sold as a pair
- Long Travel option cannot be used on KDSS vehicles
Fitment Notes:
- Long Travel Shocks Require 1.5" bump stop extensions and extended brake lines
- If doing a 2.5" lift or higher in the front, a diff-drop kit or longer TRD CV-axles are REQUIRED, faliure to complete these requirements could cause OE CV-axle faliure. 14mm bump stop extensions are also required
- TRD axle shafts: PT362-3432B and PT362-3431B
