Diode Dynamics
SS30 Stealth Lightbar Kit Tacoma (2016-2023)
Light Color
Light Pattern
Power Level
This Product Qualifies for Free Shipping
Choose options
Light Color
Light Pattern
Power Level
This Product Qualifies for Free Shipping
Light Color
Light Pattern
Power Level
This Product Qualifies for Free Shipping
Product Description

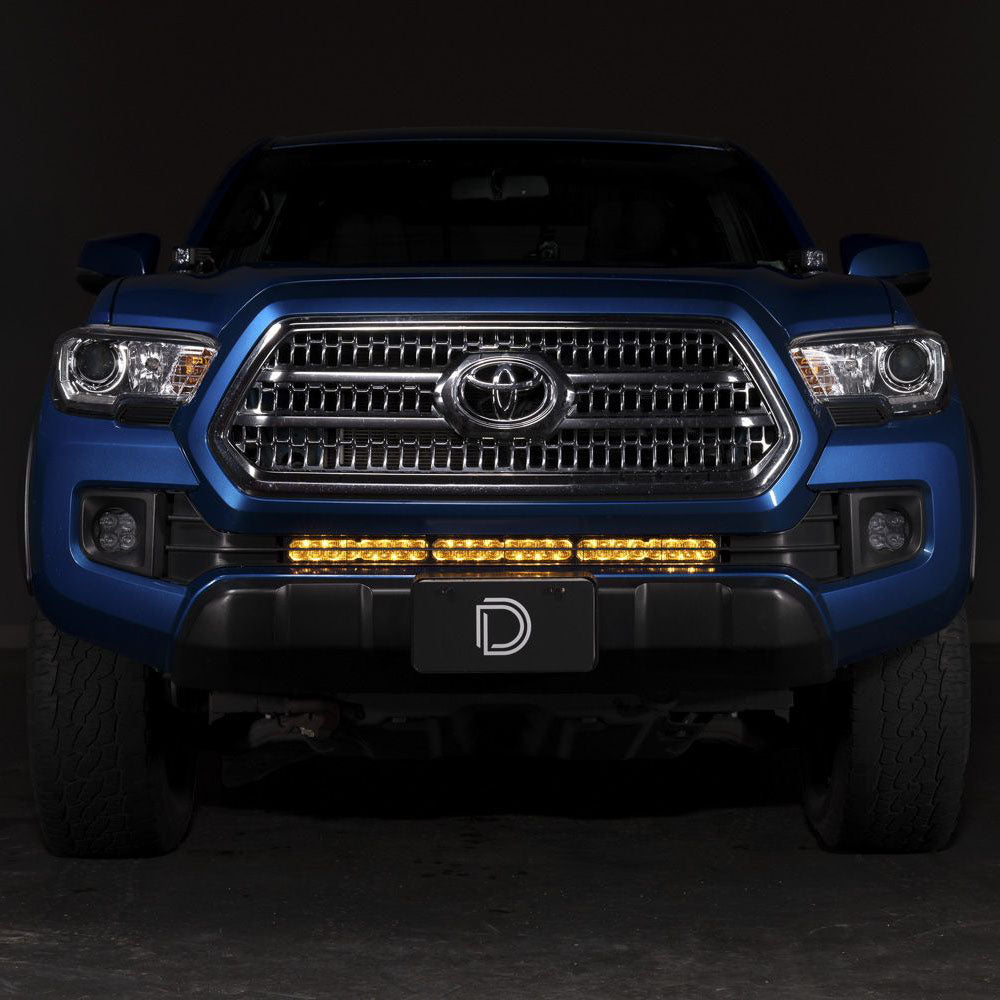

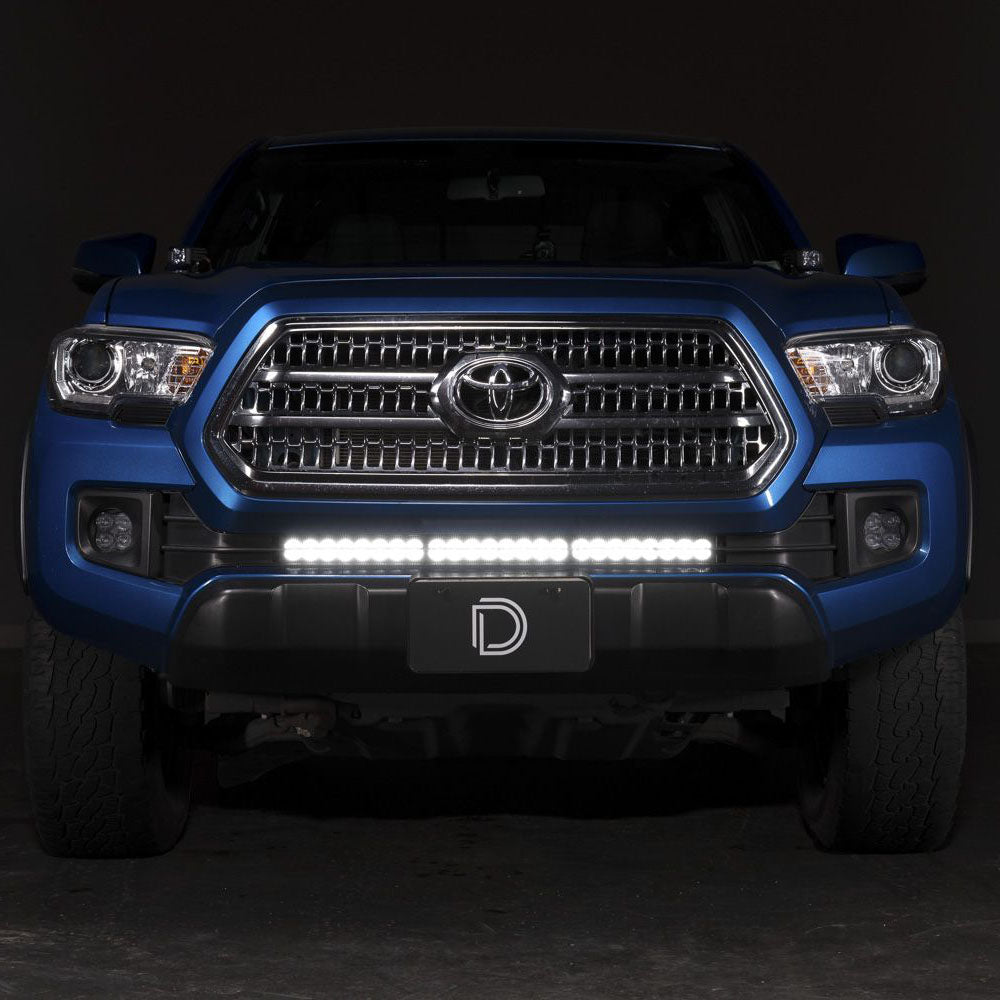

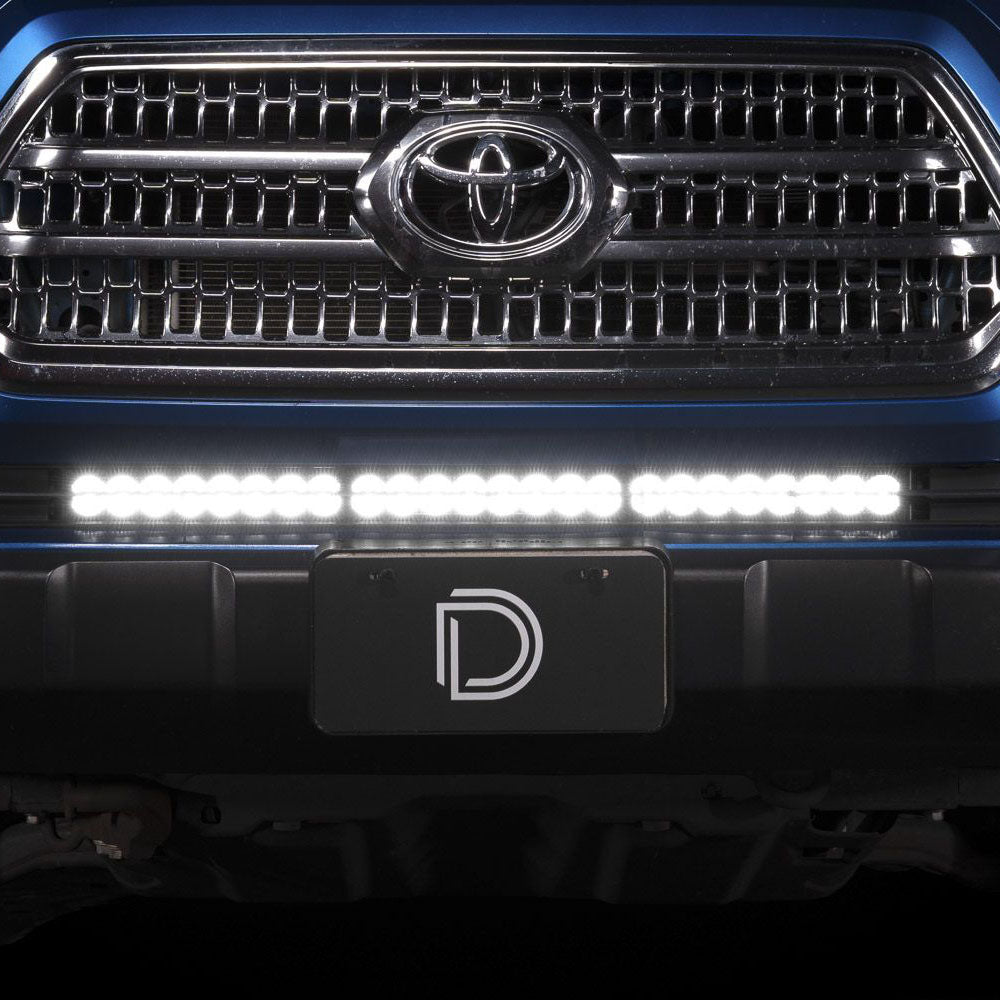

Elevate both style and function at your Tacoma’s front end with the Stealth Bumper Lightbar Kit. This purpose-designed kit integrates a high-performance LED light bar seamlessly into your front bumper, offering serious forward illumination without compromising factory aesthetics. Built for trail, highway, and everything between—this upgrade brings next-level lighting to your Tacoma.
Fitment Notes
- Fits all 2016-2023+ Tacoma's

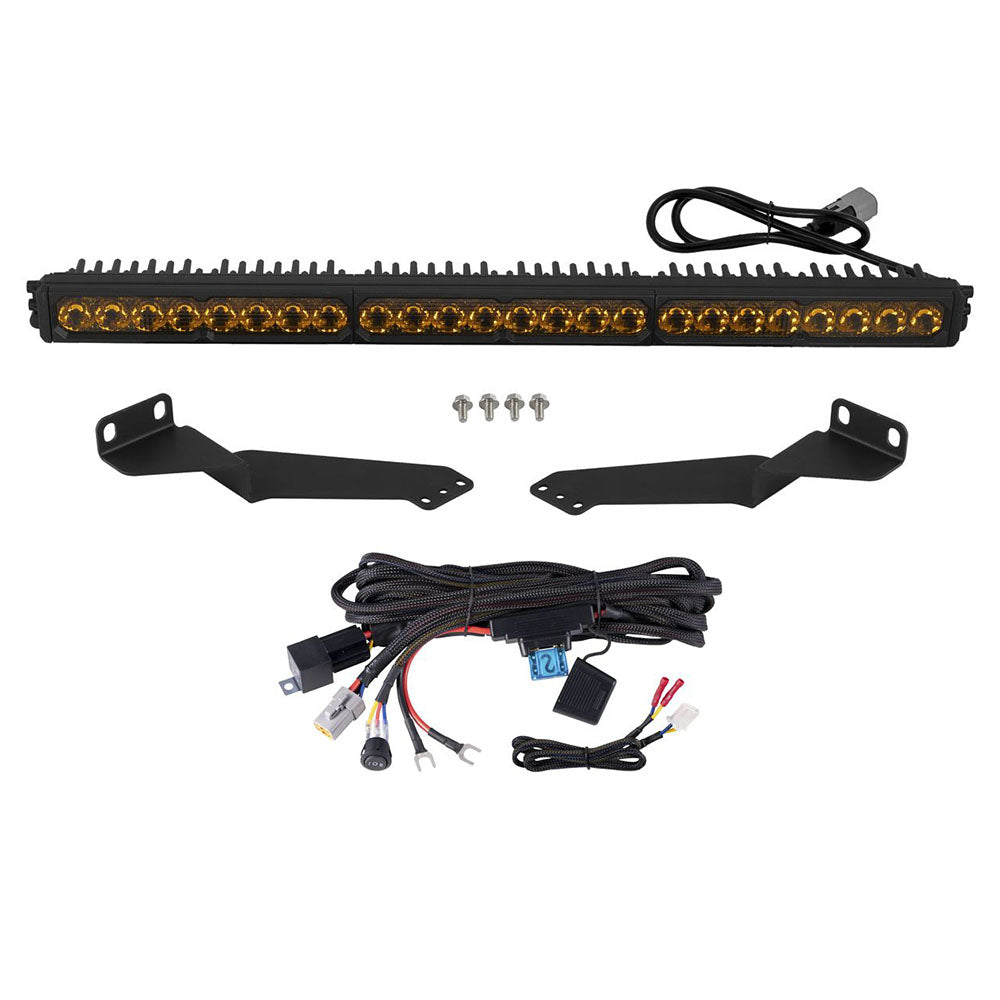

Included
- 1 - Stealth Bracket Kit
- 1 - SS30 LED Light Bar
- 1 - Heavy Duty Lightbar Wiring Harness
- Mounting Hardware
Product Specs
- Color Temp (CCT): 3000K, 6000K
- Beam Angle: Combo (Driving and Flood), Driving, 20°x8°
- Power (watts): Sport: 120, Pro: 165
- Operating Voltage: 9-24V
- Current (amps @ 12.8V): Sport: 9.38, Pro: 12.90
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Luxeon Z ES, Osram Ostar Projection Compact, Lumileds Automotive Grade LED
- Connector(s): Deutsch DT Input
- Materials: Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
- Cooling: Passive, heatsink
- Intrusion Ratings: IP69K Waterproof, High Pressure
Product Features
- Flush-mounted design keeps your Tacoma’s front-end clean while delivering strong lighting output
- Strong beam projection improves visibility during off-road, low-light, and highway situations
- Robust, weather-proof construction handles trail abuse and varied climates
- Designed for streamlined installation using existing mounting points—no major modifications required
- Perfect for overland builds, daily drivers, or any Tacoma that demands premium lighting performance
| Color/Optic/Power Level | Peak Beam Intensity (candela) |
Illuminance (lux @ 10m) |
Raw Output (lumens) |
Output Color |
|---|---|---|---|---|
| SS30 White SAE Driving Sport | 233,000 cd | 2,330 lux | 11,064 lm | 6000K White |
| SS30 White SAE Driving Pro | 288,000 cd | 2,880 lux | 37,632 lm | 6000K White |
| SS30 Yellow SAE Driving Sport | 181,000 cd | 1,810 lux | 11,064 lm | 3000K Yellow |
| SS30 Yellow SAE Driving Pro | 242,000 cd | 2,420 lux | 37,632 lm | 3000K Yellow |
| SS30 White Combo Sport | 120,000 cd | 1,200 lux | 11,064 lm | 6000K White |
| SS30 White Combo Pro | 163,500 cd | 1,635 lux | 37,632 lm | 6000K White |
| SS30 Yellow Combo Sport | 93,000 cd | 930 lux | 11,064 lm | 3000K Yellow |
| SS30 Yellow Combo Pro | 127,000 cd | 1,270 lux | 37,632 lm | 3000K Yellow |
