Product Description

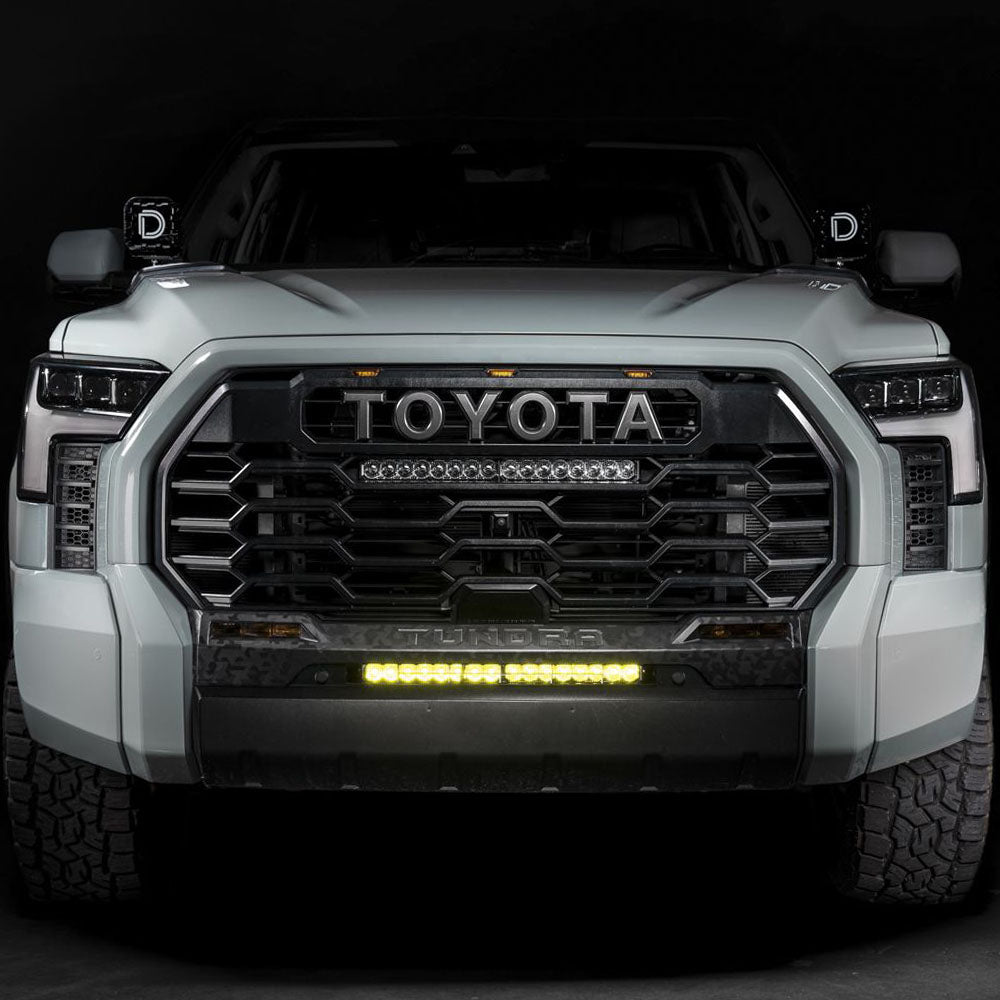

Elevate both style and function at your Tundra’s front end with the Stealth Bumper Lightbar Kit. This purpose-designed kit integrates a high-performance LED light bar seamlessly into your front bumper, offering serious forward illumination without compromising factory aesthetics. Built for trail, highway, and everything between—this upgrade brings next-level lighting to your 2022+ Tundra.
Fitment Notes
- Fits all 2022+ Tundra's
- Fits Hybrid and Non-Hybrid

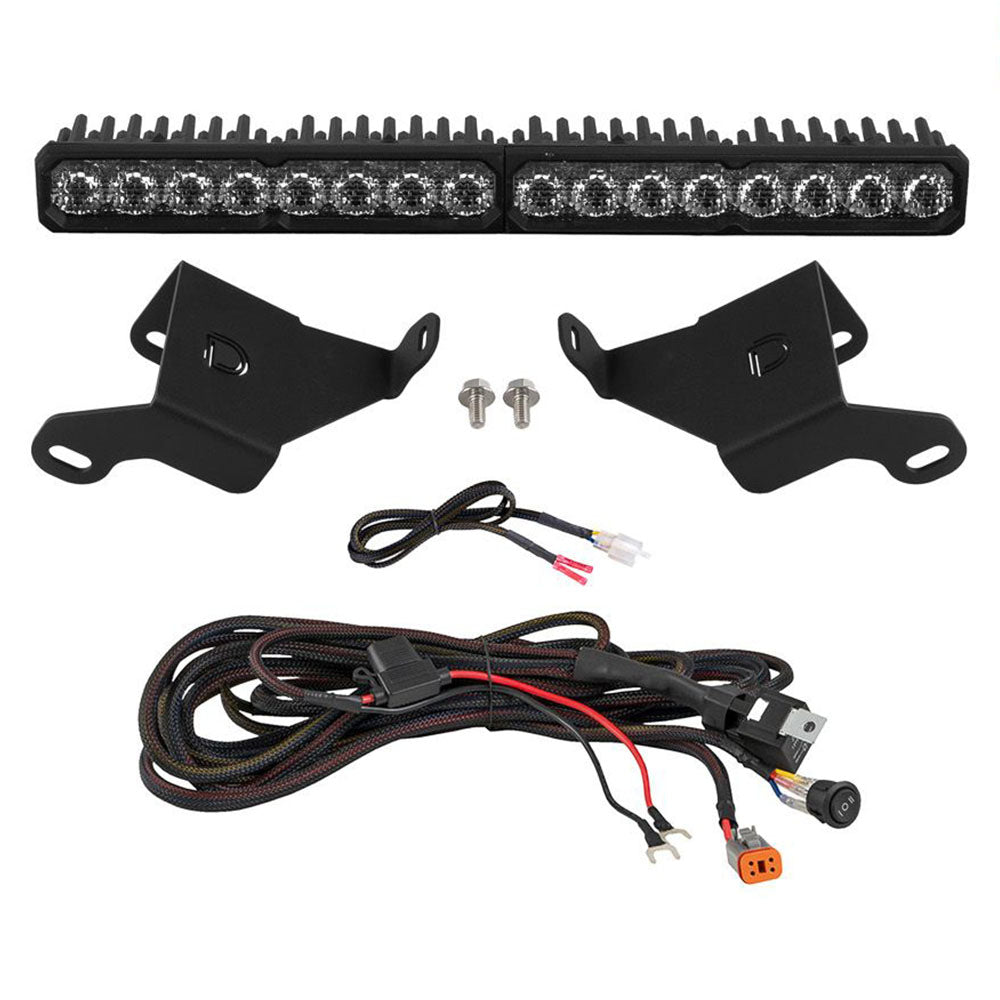

Included
- 1 - Stealth Bracket Kit
- 1 - SS20 LED Light Bar
- 1 - Heavy Duty Lightbar Wiring Harness
- Mounting Hardware
Product Specs
- Color Temp (CCT): 3000K, 6000K

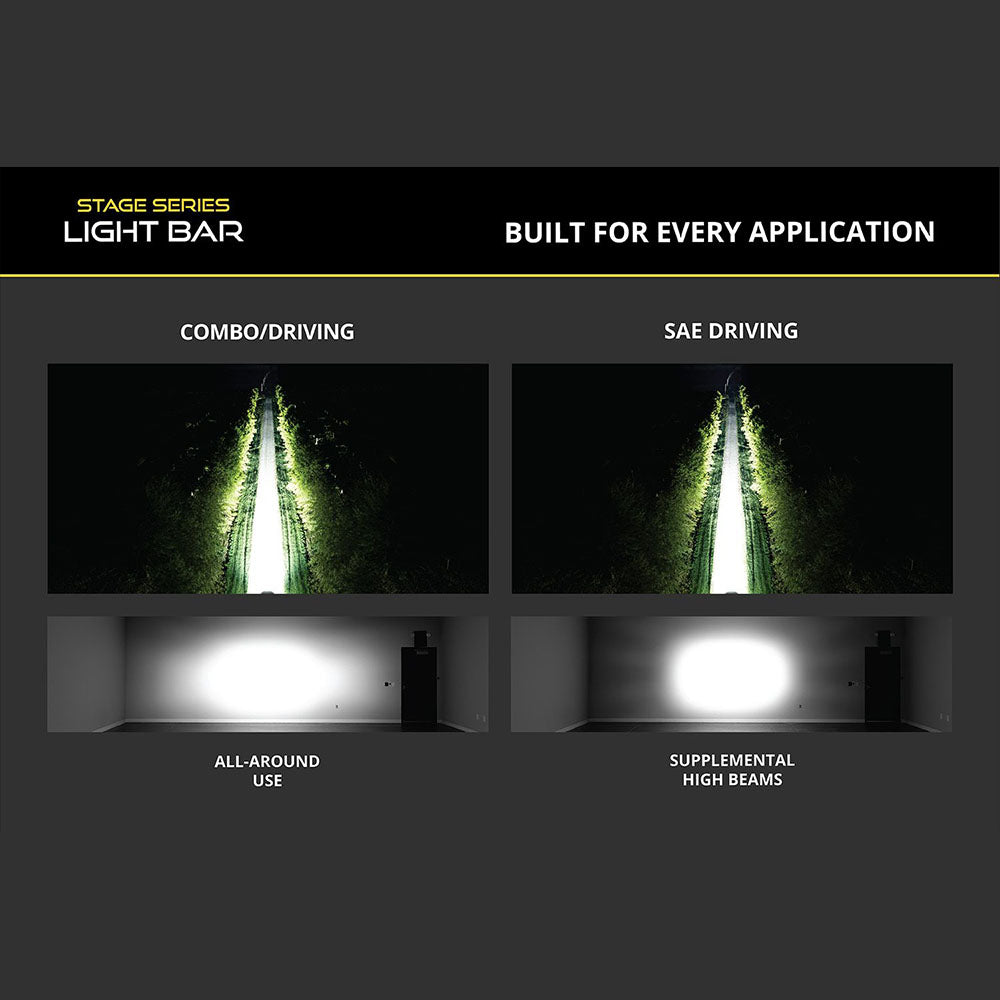

- Beam Angle: Combo (Driving and Flood), Combo/Driving, 60°x30°, Driving, 20°x12°

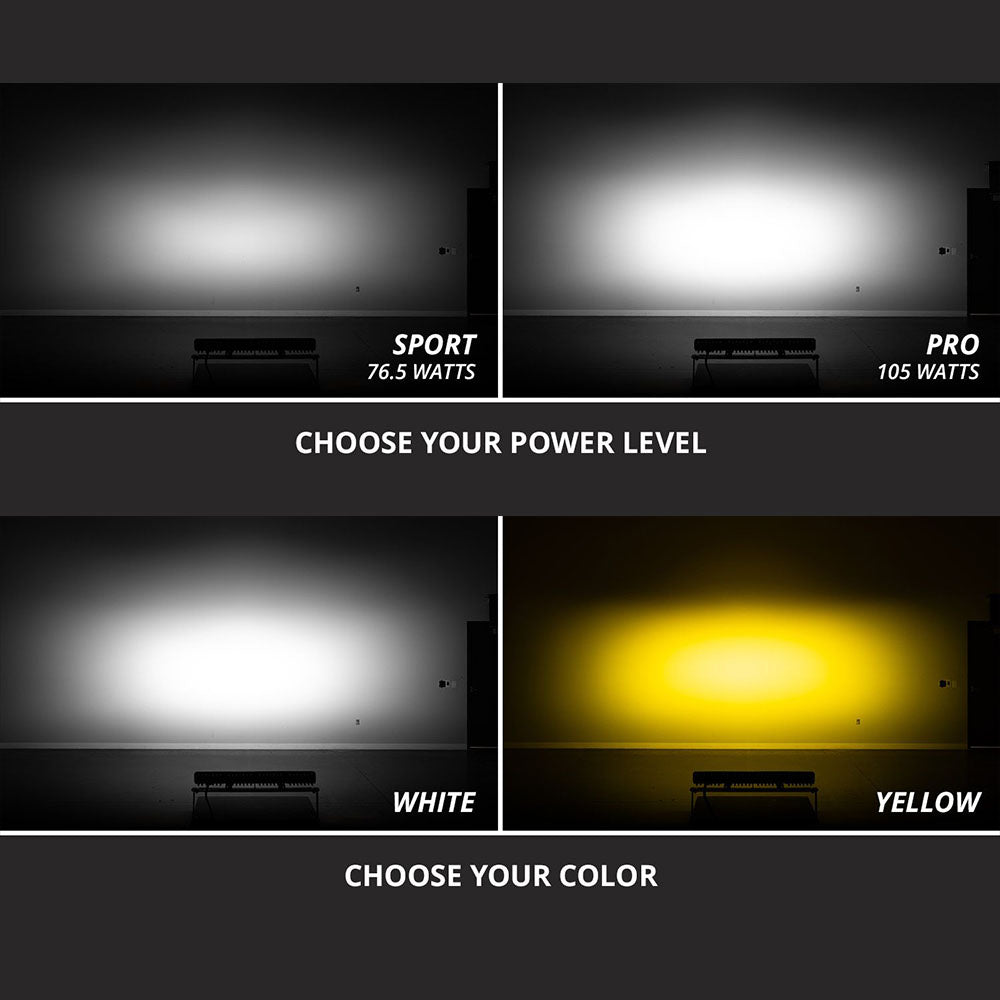

- Power (watts): Sport: 76.5, Pro: 105
- Operating Voltage: 9-30V
- Current (amps @ 12.8V): Sport: 5.98, Pro: 8.20
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Luxeon Z ES, Osram Ostar Projection Compact, Lumileds Automotive Grade LED
- Connector(s): Deutsch DT Input
- Materials: Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
- Cooling: Passive, heatsink
- Intrusion Ratings: IP69K Waterproof, High Pressure
Product Features

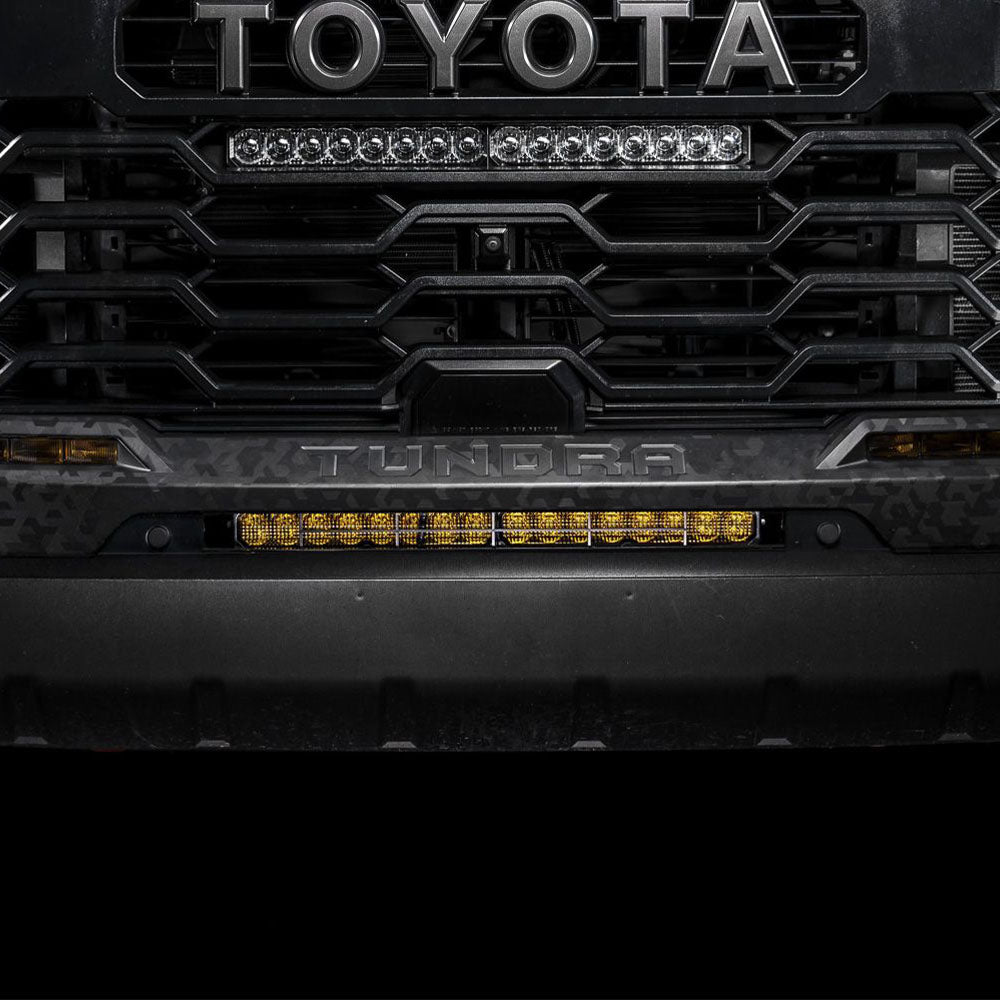

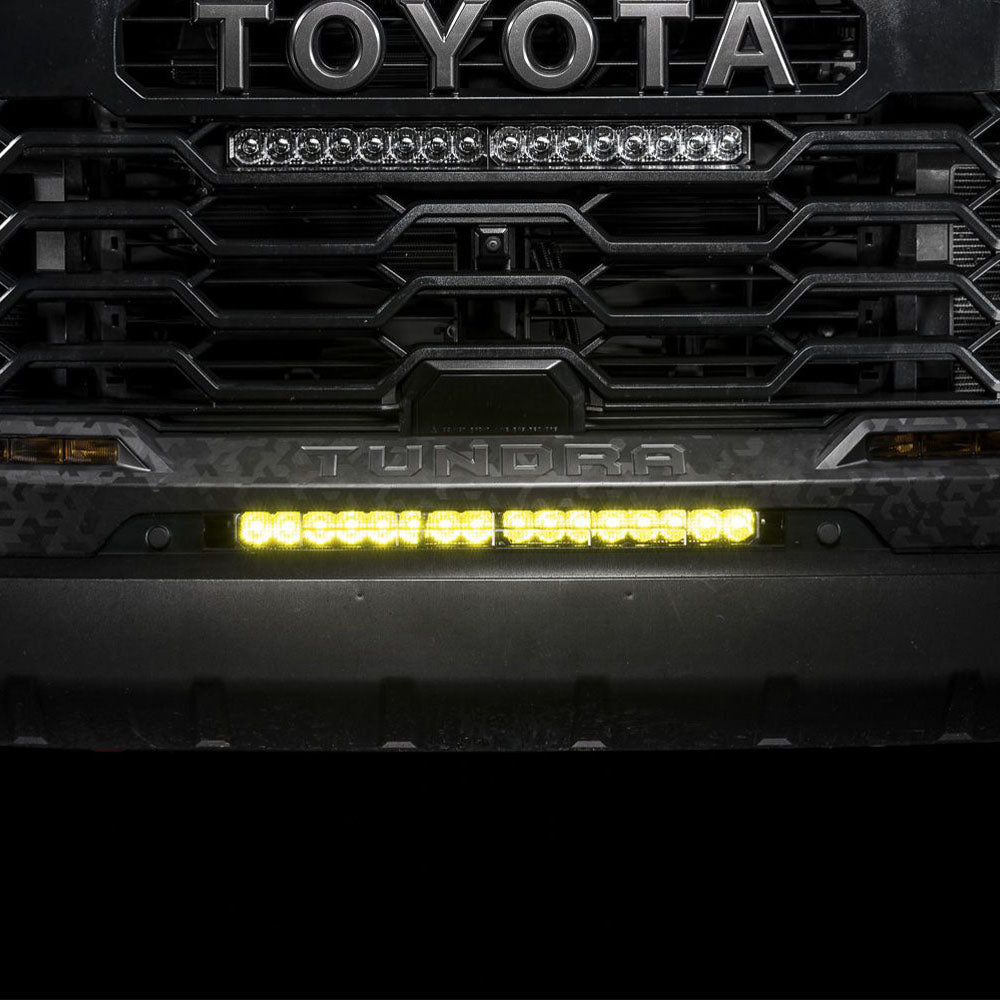

- Flush-mounted design keeps your Tundra’s front-end clean while delivering strong lighting output
- Strong beam projection improves visibility during off-road, low-light, and highway situations
- Robust, weather-proof construction handles trail abuse and varied climates
- Designed for streamlined installation using existing mounting points—no major modifications required
- Perfect for overland builds, daily drivers, or any Tundra that demands premium lighting performance
| Color/Optic/Power Level | Peak Beam Intensity (candela) |
Illuminance (lux @ 10m) |
Raw Output (lumens) |
Output Color |
|---|---|---|---|---|
| Classic SS18 White Combo | 99,500 cd | 315 lux | 6,840 lm | 6000K White |
| SS20 White SAE Driving Sport | 146,500 cd | 1,465 lux | 7,376 lm | 6000K White |
| SS20 White SAE Driving Pro | 193,500 cd | 1,935 lux | 25,088 lm | 6000K White |
| SS20 Yellow SAE Driving Sport | 128,000 cd | 1,280 lux | 7,376 lm | 3000K Yellow |
| SS20 Yellow SAE Driving Pro | 161,500 cd | 1,615 lux | 25,088 lm | 3000K Yellow |
| SS20 White Combo Sport | 41,500 cd | 415 lux | 7,376 lm | 6000K White |
| SS20 White Combo Pro | 69,200 cd | 692 lux | 25,088 lm | 6000K White |
| SS20 Yellow Combo Sport | 36,000 cd | 360 lux | 7,376 lm | 3000K Yellow |
| SS20 Yellow Combo Pro | 56,000 cd | 560 lux | 25,088 lm | 3000K Yellow |
