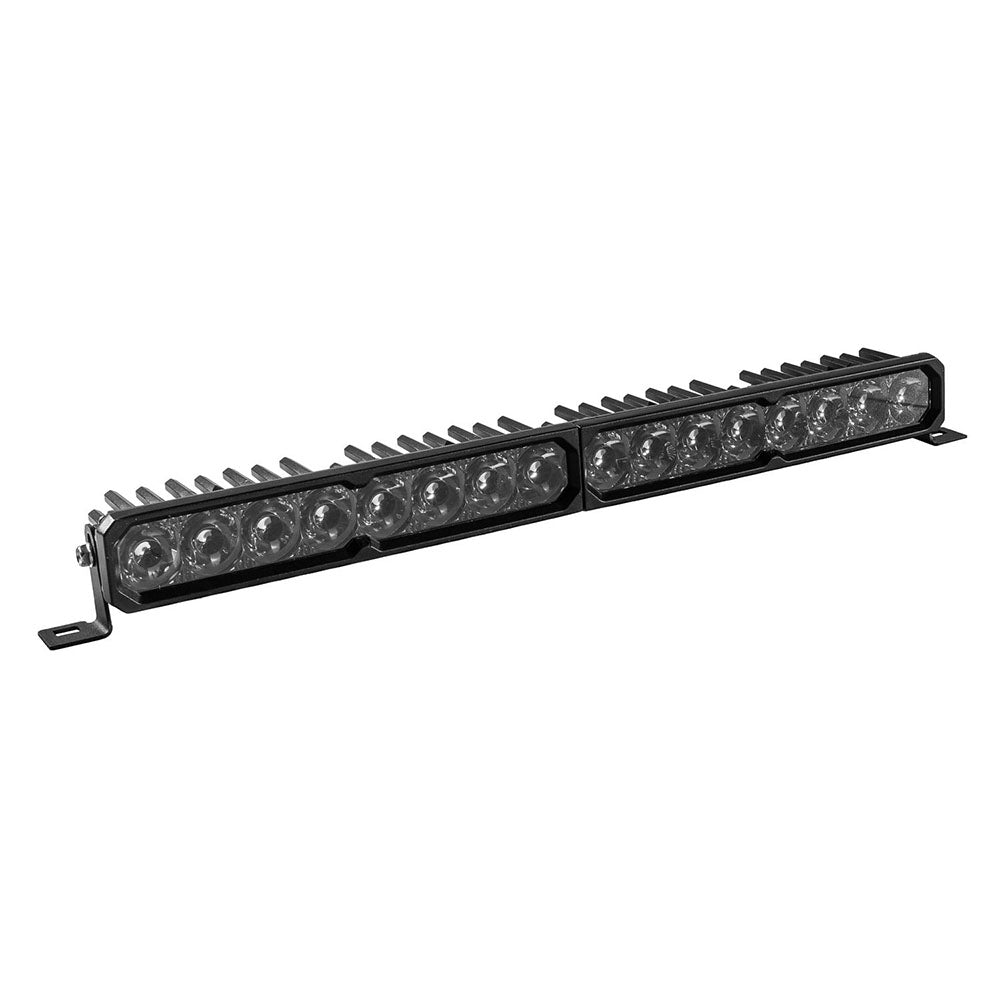

SS20 White LED Light Bar

Product Description

Light up the road ahead with the Diode Dynamics SS20 White LED Light Bar. With a slim, low-profile design and advanced optics, it delivers powerful white illumination in a compact package that fits into tight spaces. Whether you mount it on your bumper, roof rack, or grille, the SS20 gives you usable, legal output that excels in both on-road and off-road settings. Rugged enough for trail abuse, yet refined enough for daily drives.

Included

• One (1) LED light bar
• One (1) wire pigtail
• Universal bracket set

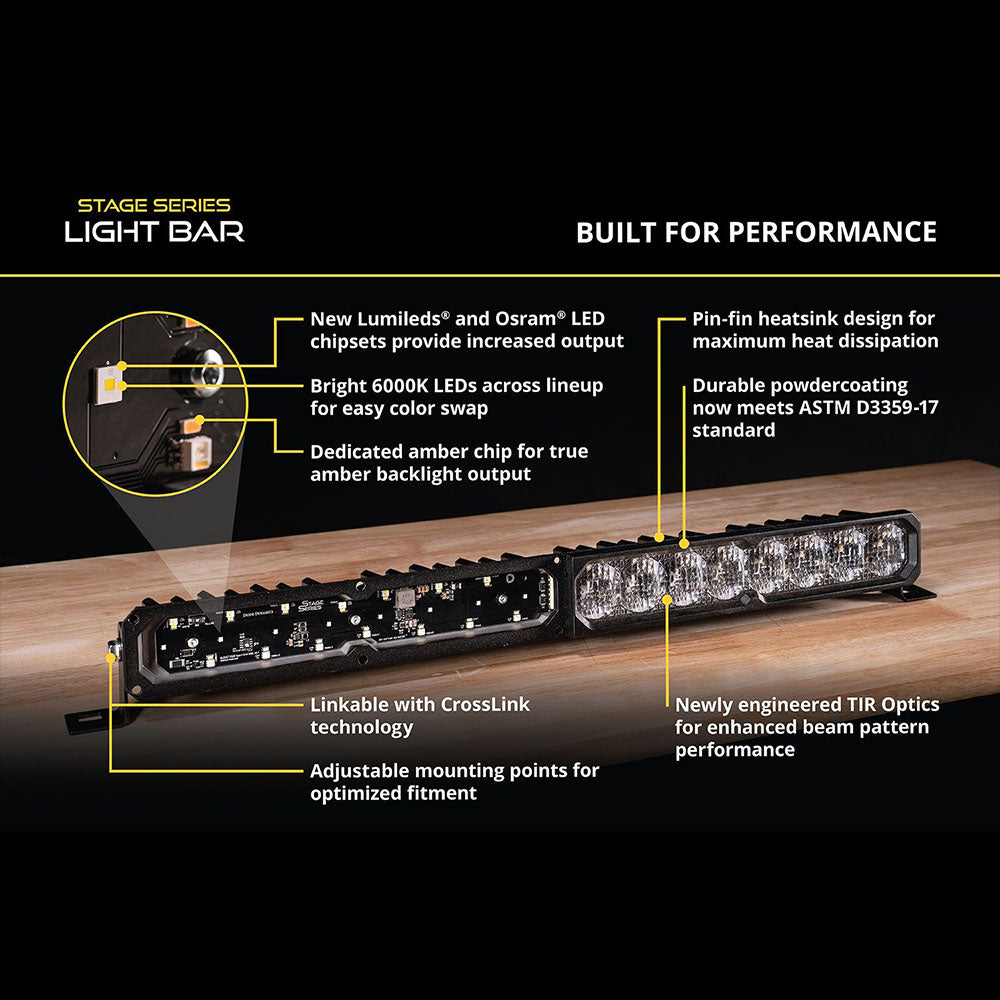

Product Features

• Patented TIR Optics for maximum efficiency and output.
• Upgraded beam patterns engineered for real-world performance.
• Modern welcome sequence and selectable backlight with SmartSelect technology.
• Now available in Sport and Pro power levels.
• Durable aluminum housing with ASTM-standard powdercoat finish.
• Built for the extreme with IP69K waterproof rating.

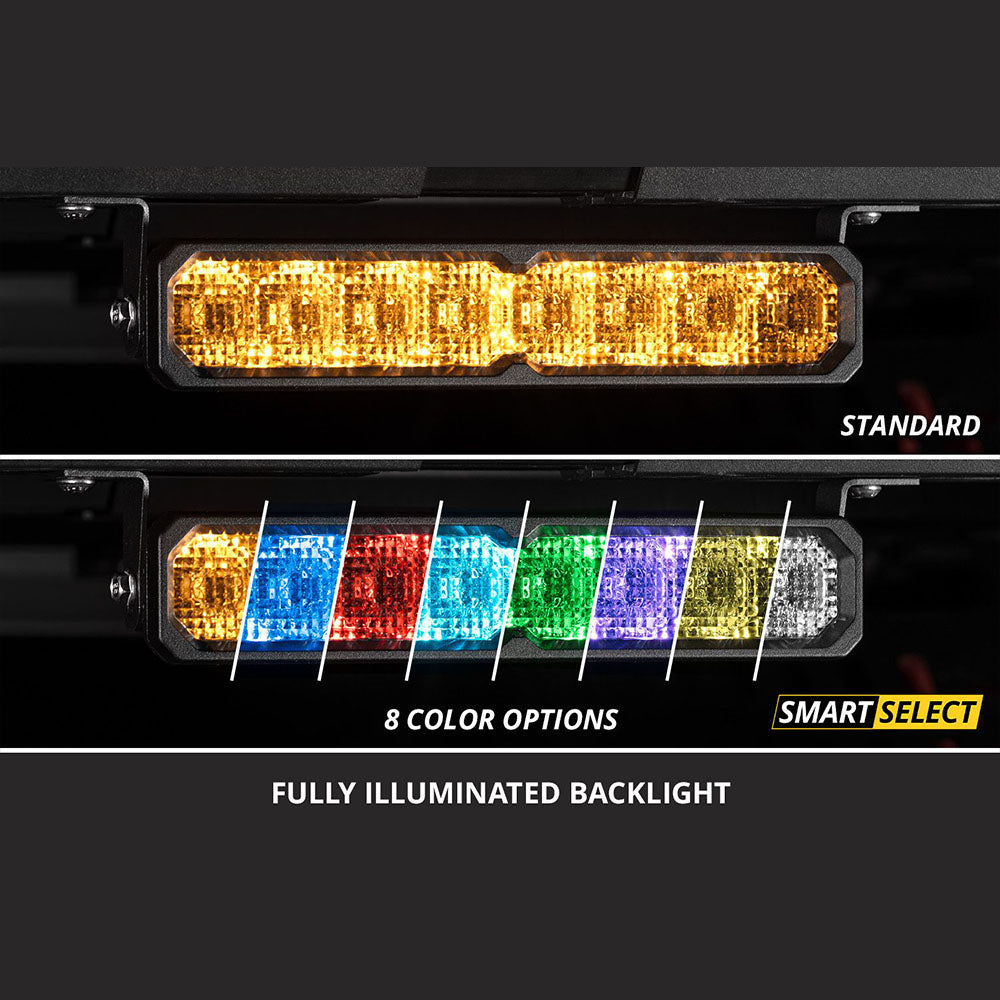

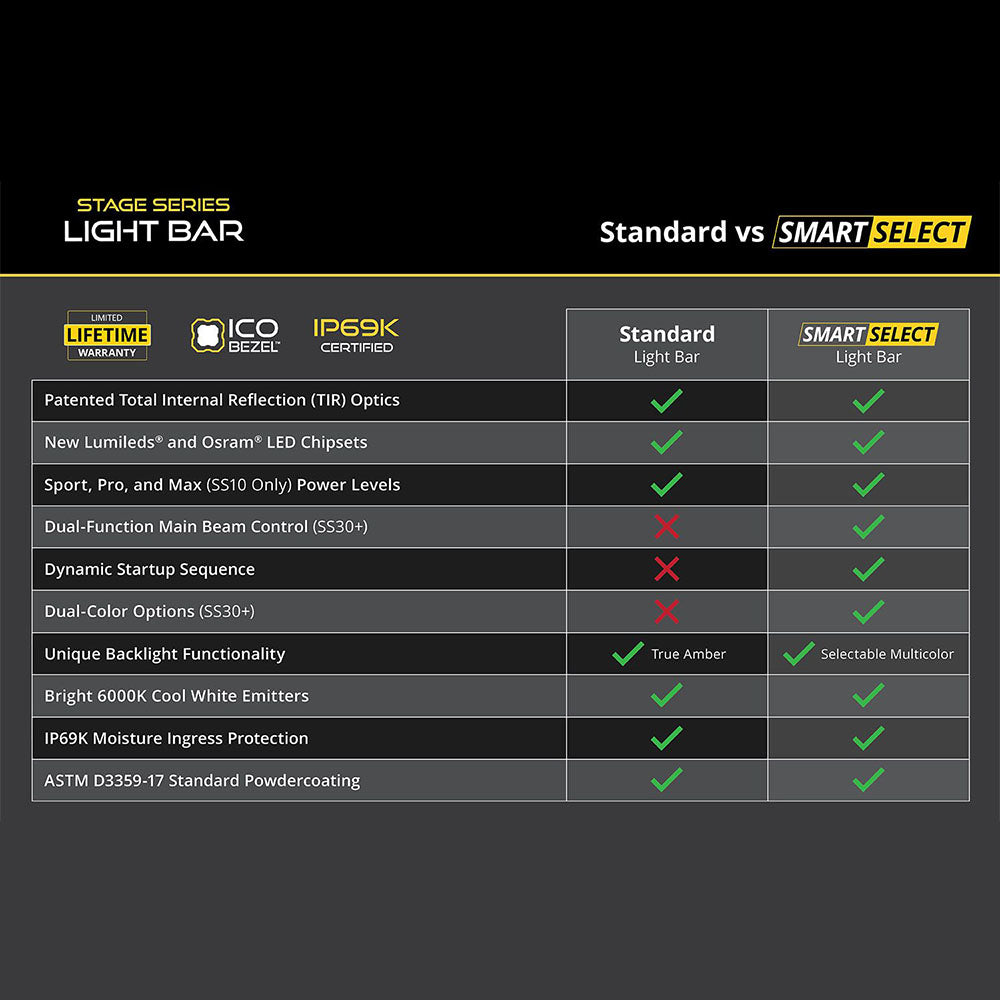

SmartSelect vs Standard

• SmartSelect models feature a selectable multicolor backlight in your choice of eight colors, plus a dynamic startup sequence that activates every time you power it on. The amber backlight color selection has been upgraded to a dedicated amber chip, part of a full RGBWA series of LEDs, which perfectly matches the color of our smaller LED pods. This elevates the appearance far above other RGB or RGBW backlights on the market. Selecting your backlight color is easy - simply alternate the power on and off. There’s no complicated programming with a controller!
• Standard models feature an amber-only backlight with no startup sequence. It provides a unique look and is perfect for forward-facing applications to provide extra visibility to others when stopped on the trail.

Product Specs

• Color Temp (CCT): 6000K

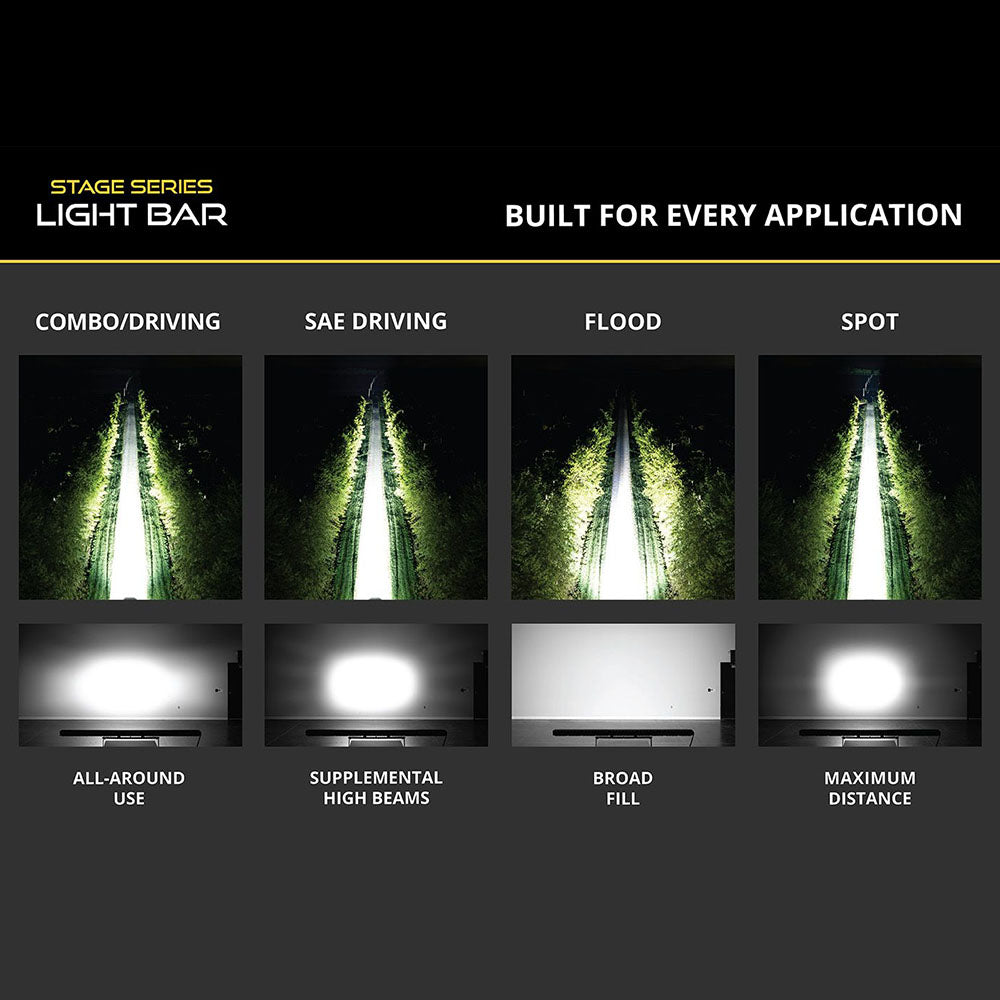

• Beam Angle: Combo/Driving, 60°x30°, SAE Driving, 20°x12°, Flood, 100°x80°, Spot, 8°x8°

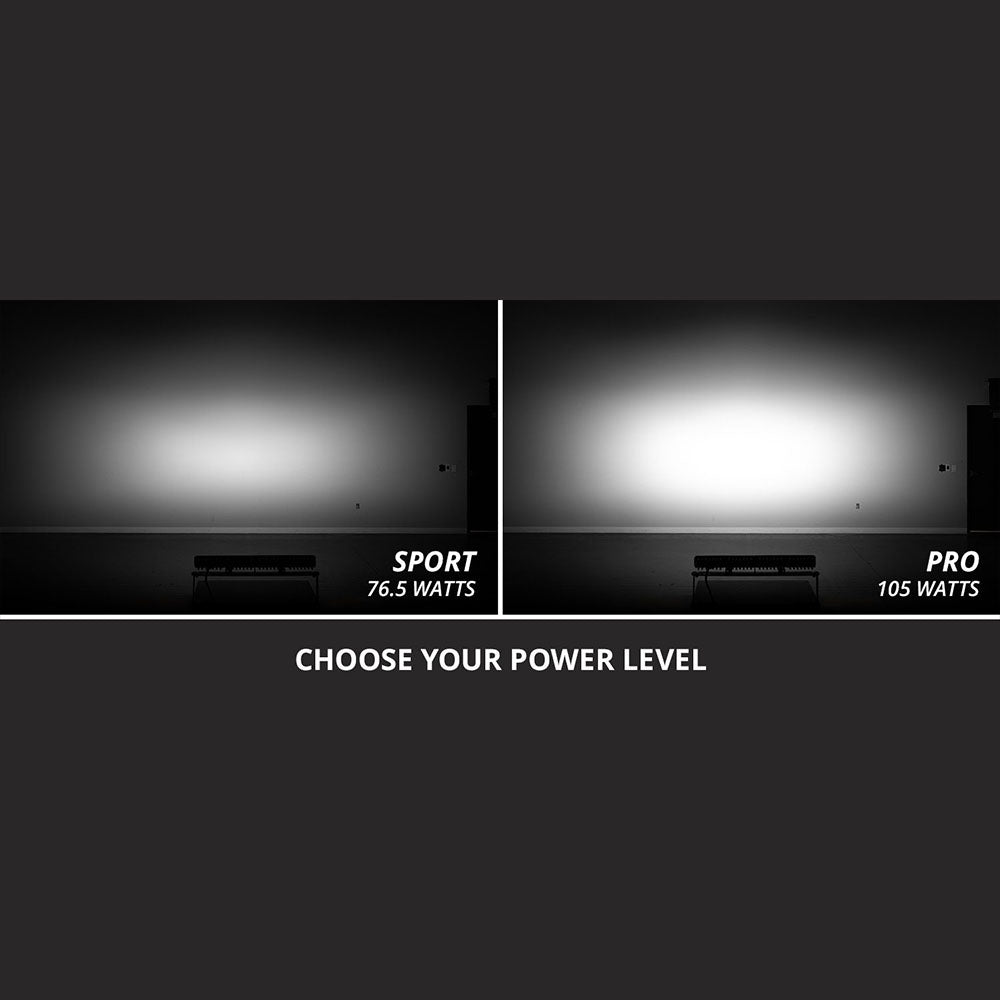

• Power (watts): Sport: 76.5, Pro: 105
• Operating Voltage: 9-30V
• Current (amps @ 12.8V): Sport: 5.98, Pro: 8.20
• Polarity: Polarity Specific
• Operating Temperature: -40C to 85C (-40F to 185F)
• LED Emitter: Osram Ostar Projection Compact, Lumileds Automotive Grade LED
• Connector(s): Deutsch DT Input
• Materials: Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
• Cooling: Passive, heatsink
• Intrusion Ratings: IP69K Waterproof, High Pressure

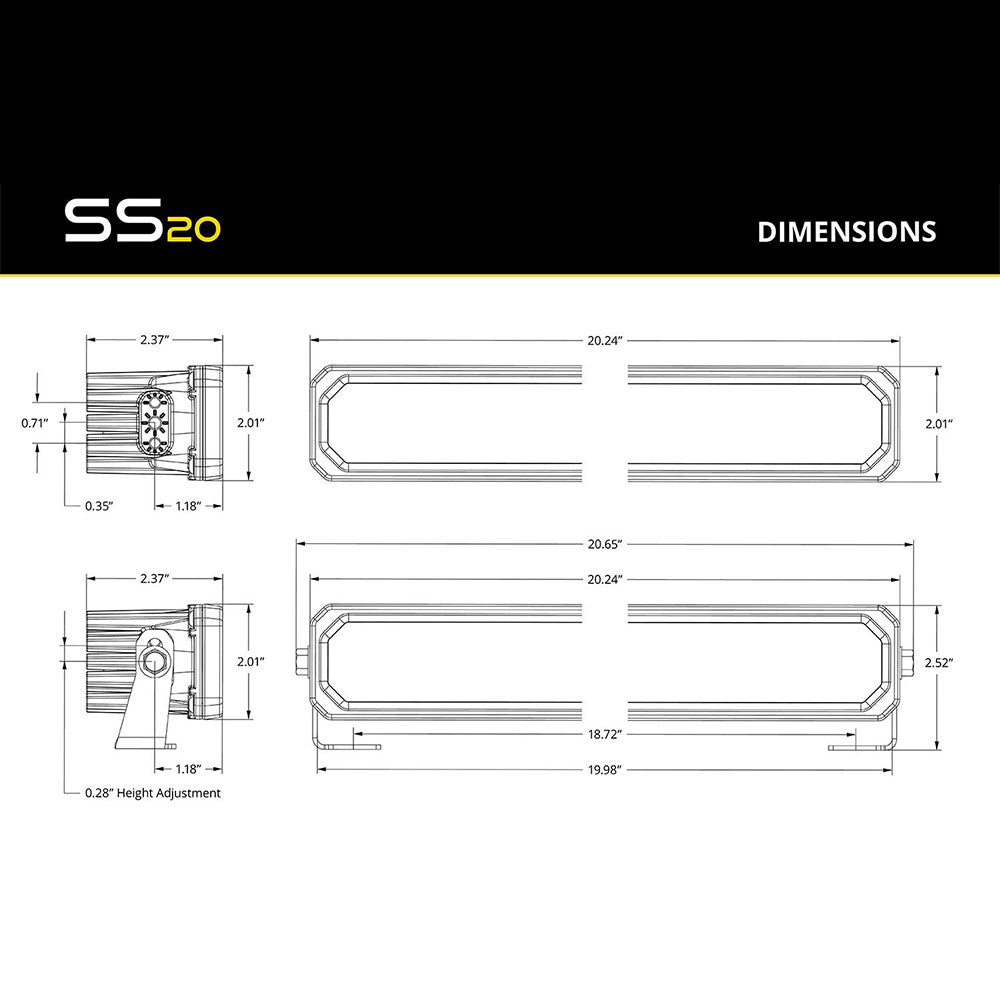

• Product Dimensions (in): 2.01x20.24x2.37
