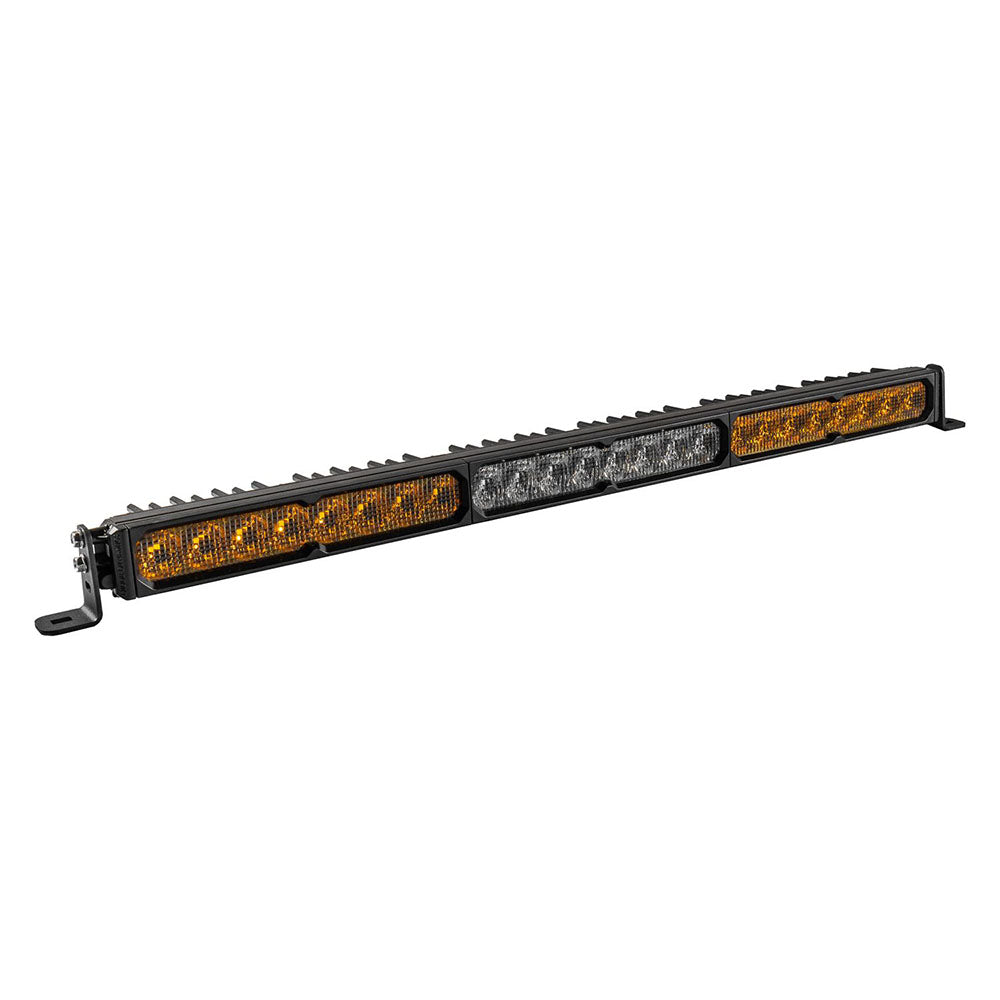

SS30 Dual Color LED Light Bar

Product Description

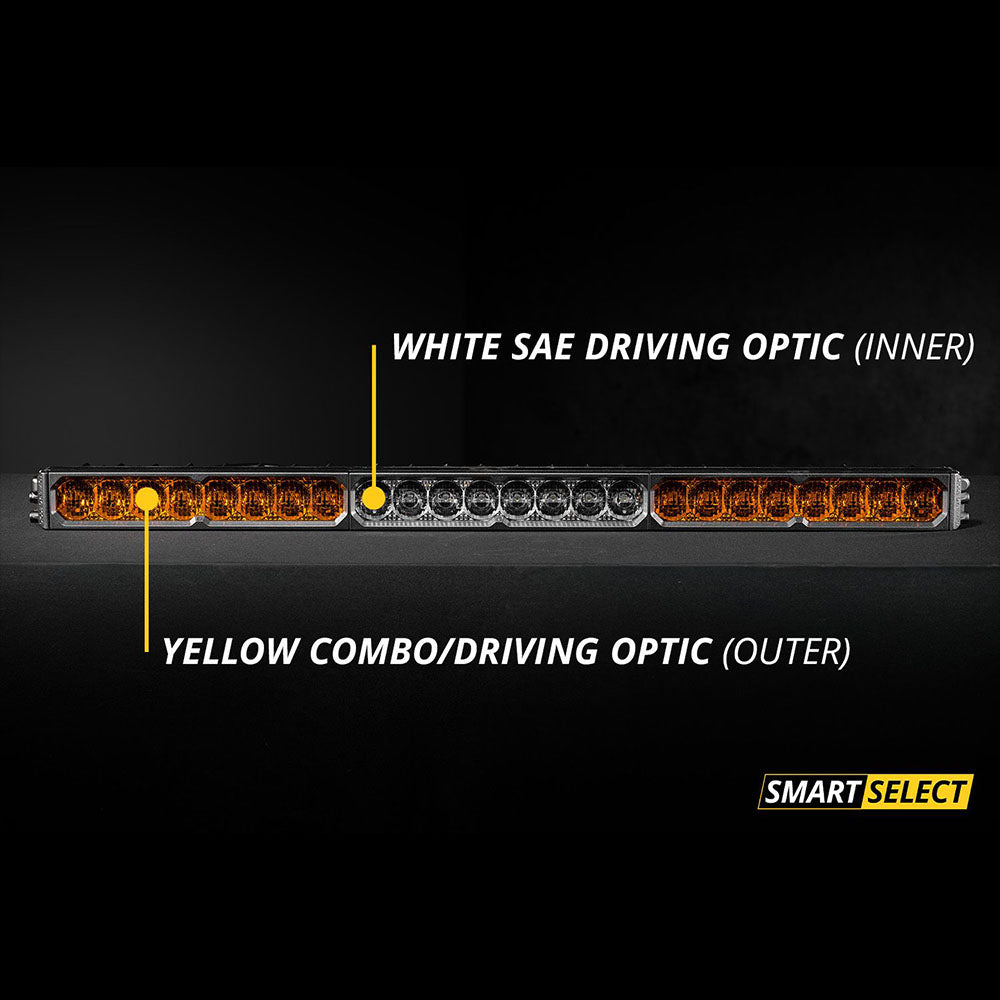

Get the best of both worlds — white and yellow lighting modes — with the Diode Dynamics SS30 Dual-Color LED Light Bar. This versatile bar seamlessly switches between crisp white (≈ 6000 K) for clear visibility and yellow (≈ 3000 K) for cutting through fog, rain, and dust. Built with rugged construction and advanced TIR optics, it’s ideal for grille, bumper, or roof mounting. The slim design lets you fit it into tight spaces while still delivering powerful, usable output. Whether you're driving on highway or trail, this bar adapts to your lighting needs.

Included

• One (1) LED light bar
• One (1) wire pigtail
• Universal bracket set

Product Features

• Patented TIR Optics for maximum efficiency and output.

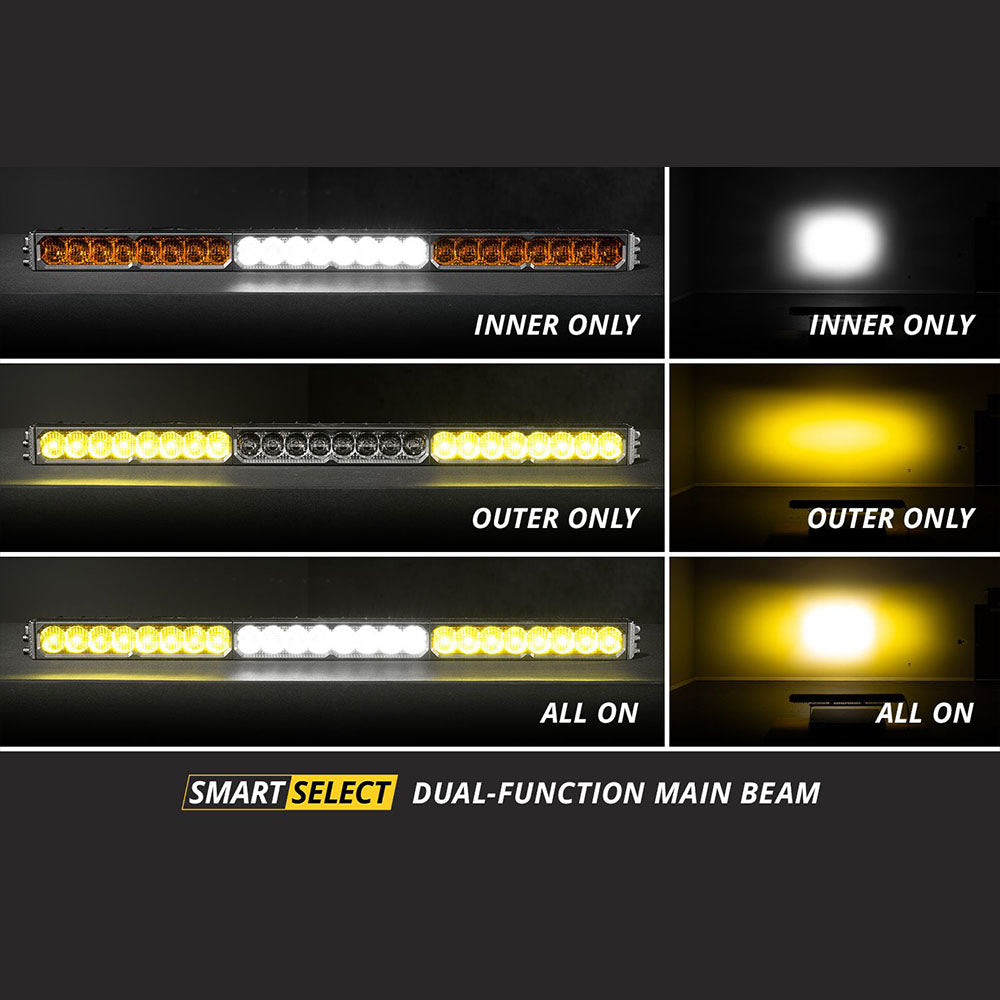

• Dual-function main beam, without the need for extra switches.
• Modern welcome sequence and selectable backlight color with SmartSelect technology.

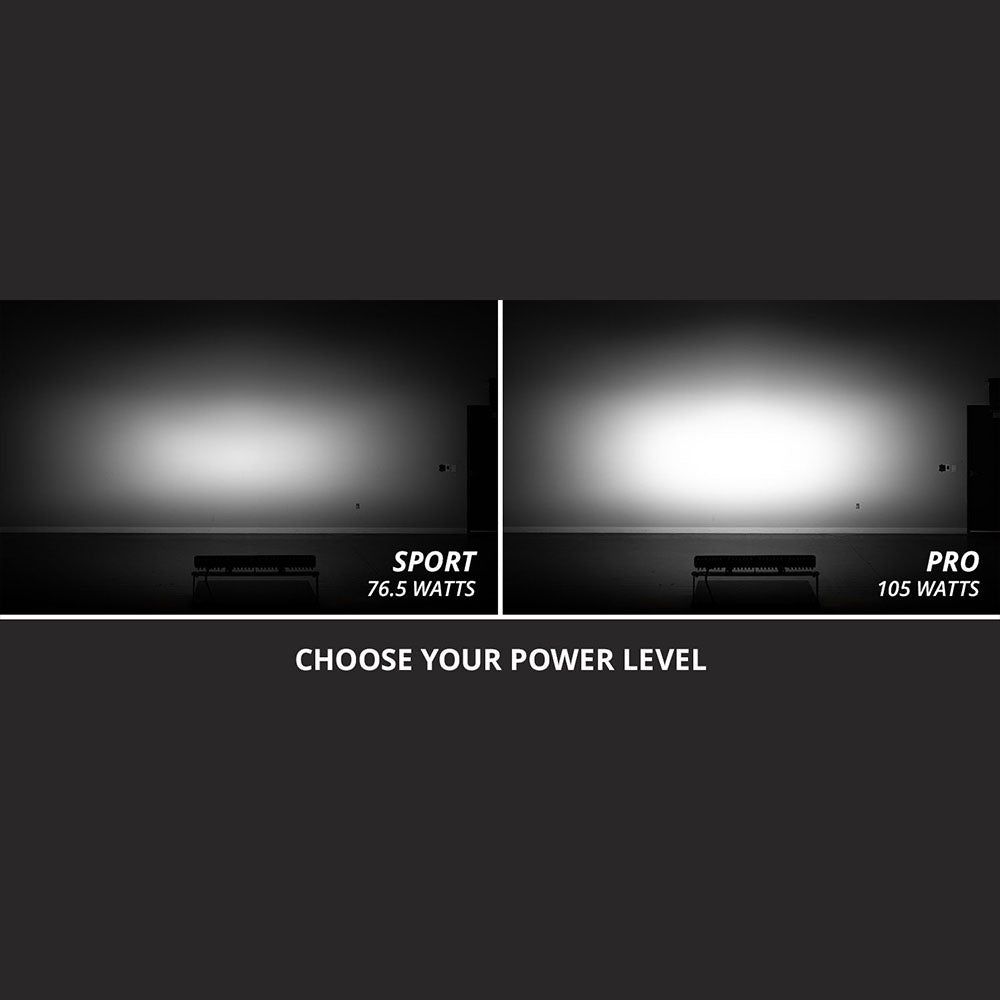

• Available in Sport and Pro power levels.
• Durable aluminum housing with ASTM-standard powdercoat finish.
• Built for the extreme with IP69K waterproof rating.

SmartSelect

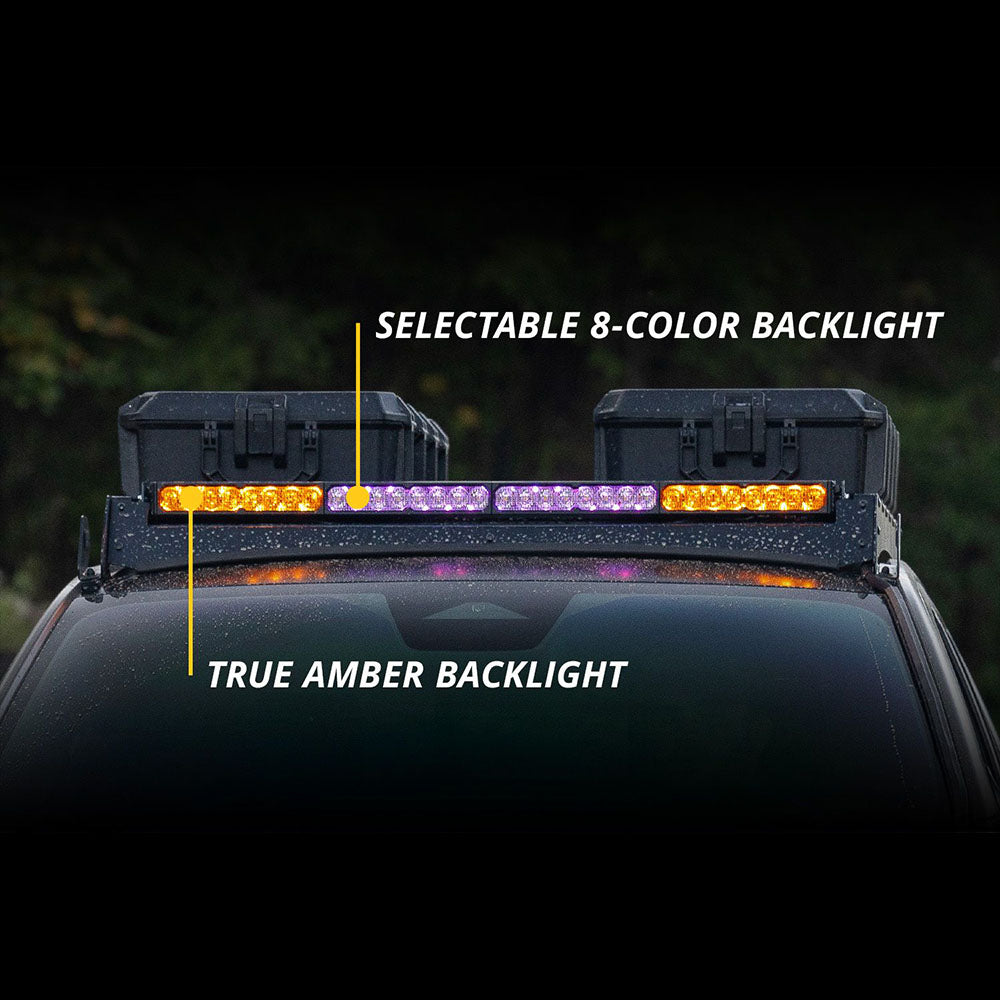

• SmartSelect models feature a selectable multicolor backlight in your choice of eight colors, plus a dynamic startup sequence that activates every time you power it on. The amber backlight color selection has been upgraded to a dedicated amber chip, part of a full RGBWA series of LEDs, which perfectly matches the color of our smaller LED pods. This elevates the appearance far above other RGB or RGBW backlights on the market. Selecting your backlight color is easy - simply alternate the power on and off. There’s no complicated programming with a controller!

Product Specs

• Raw Lumens: Sport: 11,064 lm, Pro: 37,632 lm
• Color Temp (CCT): 3000K, 6000K

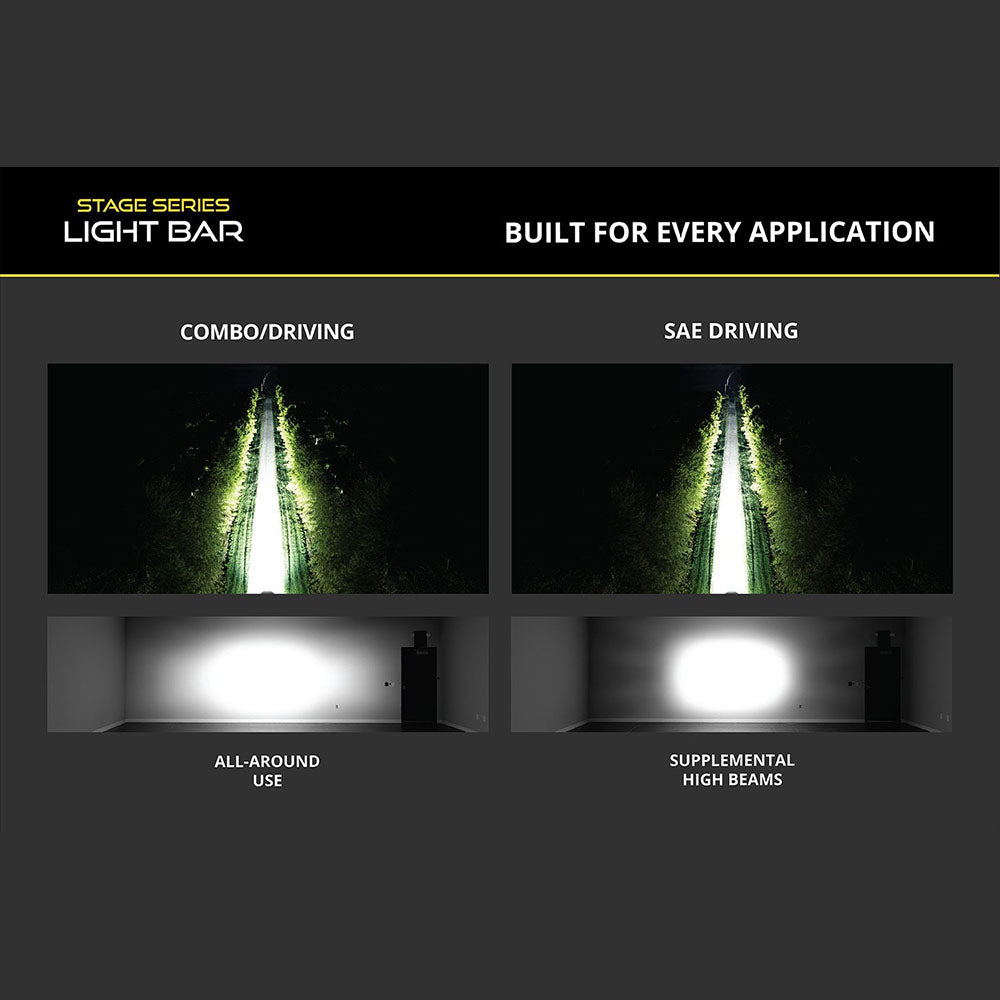

• Beam Angle: Combo/Driving, 60°x30°, SAE Driving, 20°x12°
• Power (watts): Sport: 120, Pro: 165
• Operating Voltage: 9-30V
• Current (amps @ 12.8V): Sport: 9.38, Pro: 12.90
• Polarity: Polarity Specific
• Operating Temperature: -40C to 85C (-40F to 185F)
• LED Emitter: Osram Ostar Projection Compact, Lumileds Automotive Grade LED
• Connector(s): Deutsch DT-P Input
• Materials: Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
• Cooling: Passive, heatsink
• Intrusion Ratings: IP69K Waterproof, High Pressure

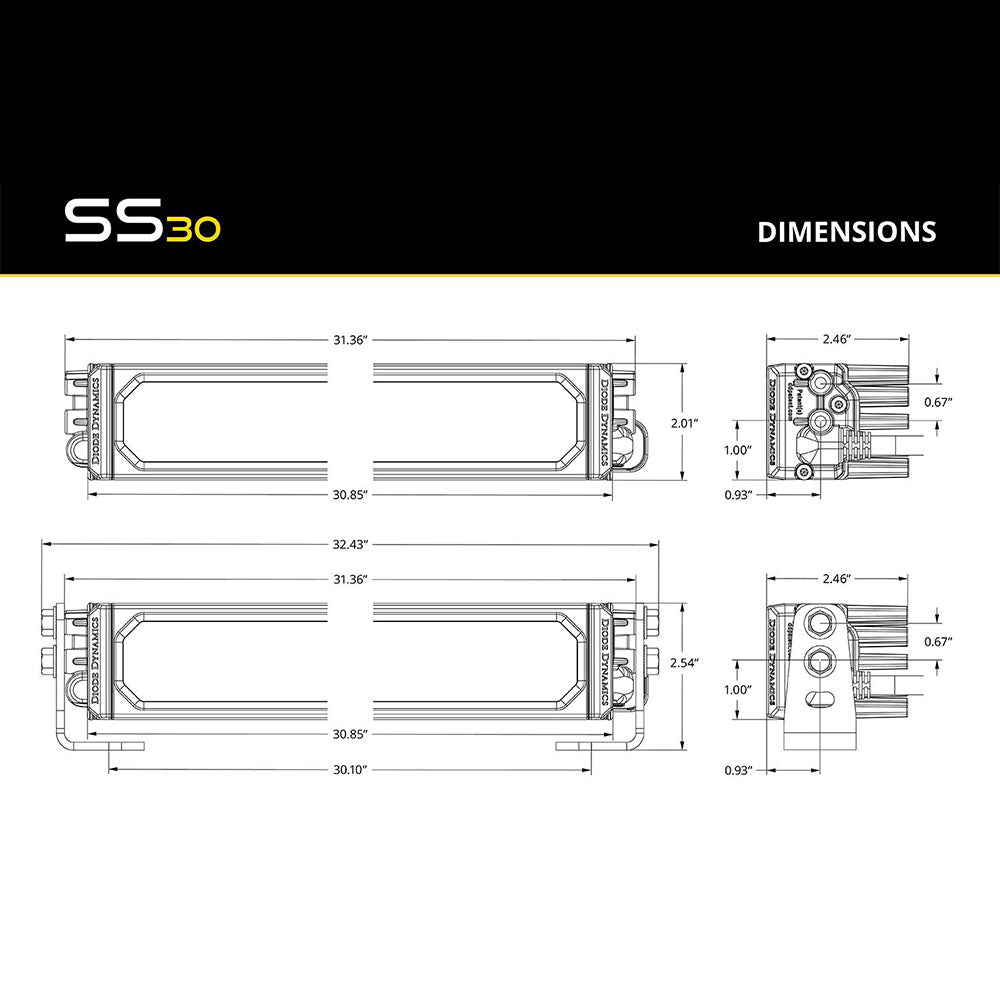

• Product Dimensions (in): 2.01x31.63x2.46
