Diode Dynamics
SS30 Yellow LED Light Bar
Beam Pattern
Power Level
This Product Qualifies for Free Shipping
Choose options
Beam Pattern
Power Level
This Product Qualifies for Free Shipping
Beam Pattern
Power Level
This Product Qualifies for Free Shipping
Product Description

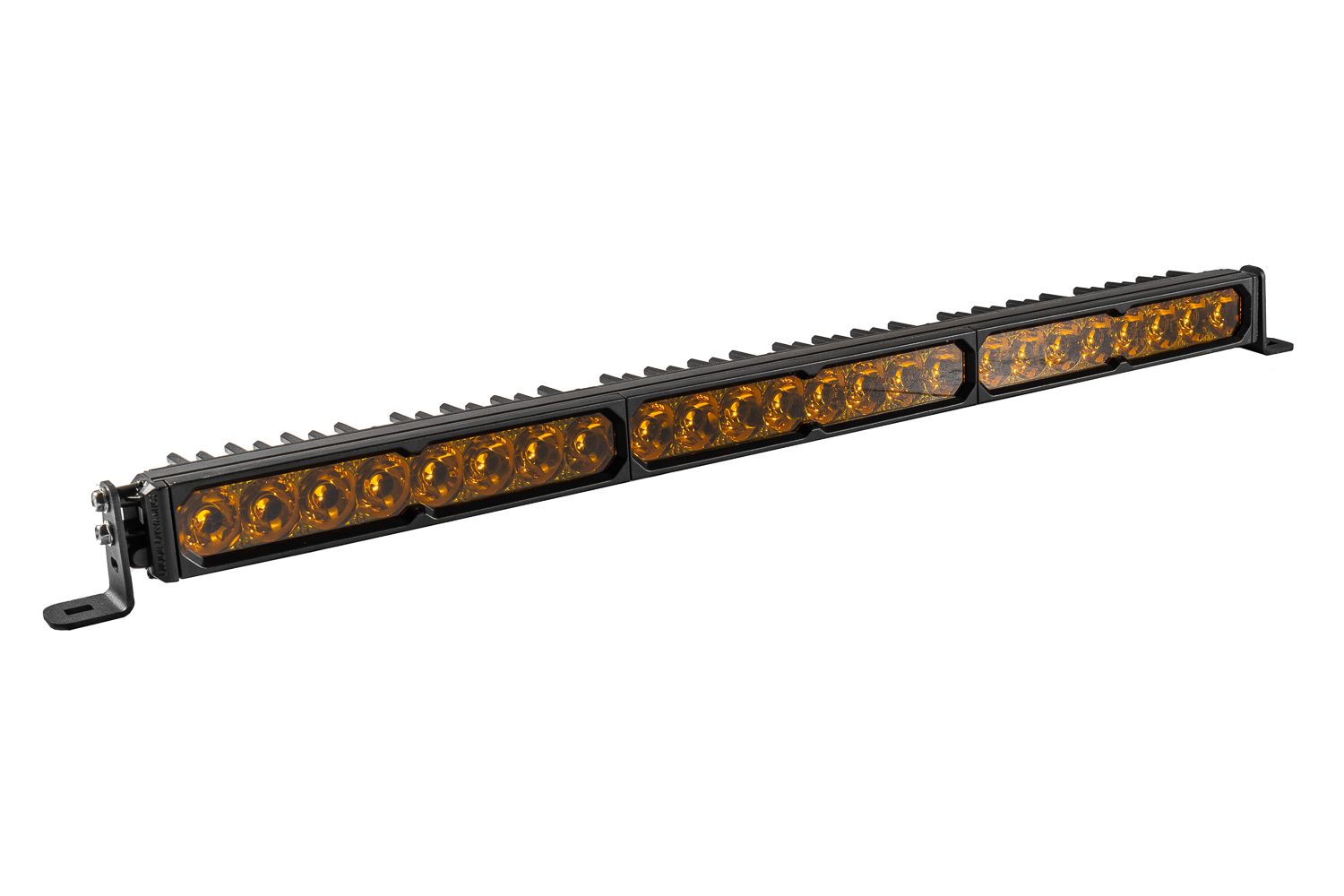

Cut through fog, rain, and snow with the Diode Dynamics SS30 Yellow LED Light Bar. This light bar emits a yellow (≈ 3000 K) beam that enhances contrast and reduces glare in inclement weather, while the slim-profile housing lets you tuck it into tight mounting locations. Built with advanced TIR optics for efficient light projection, it makes a great auxiliary or accent lighting option for grille, bumper, or roof setups. Rugged and weatherproof, it’s made to perform on-road or off.
Included
- One (1) LED light bar
- One (1) wire pigtail
- Universal bracket set

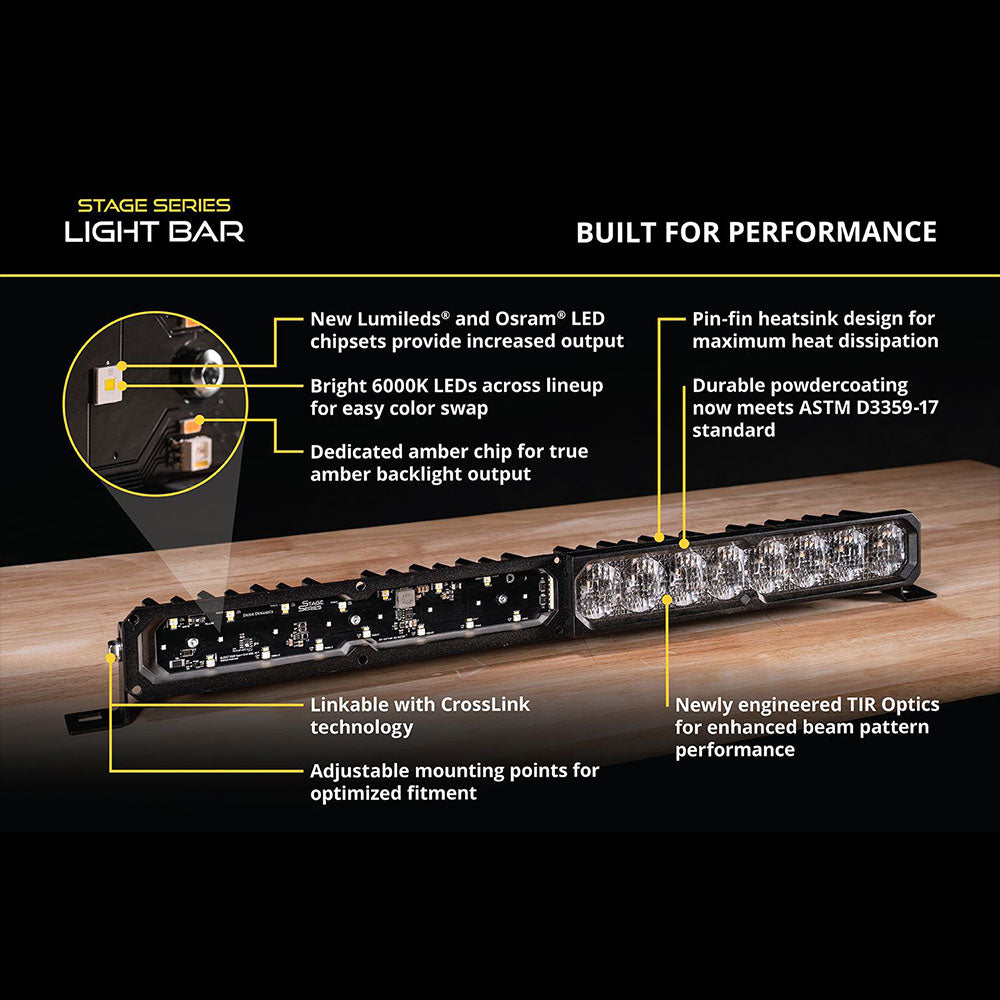

Product Features
- Patented TIR Optics for maximum efficiency and output.
- Upgraded beam patterns engineered for real-world performance.

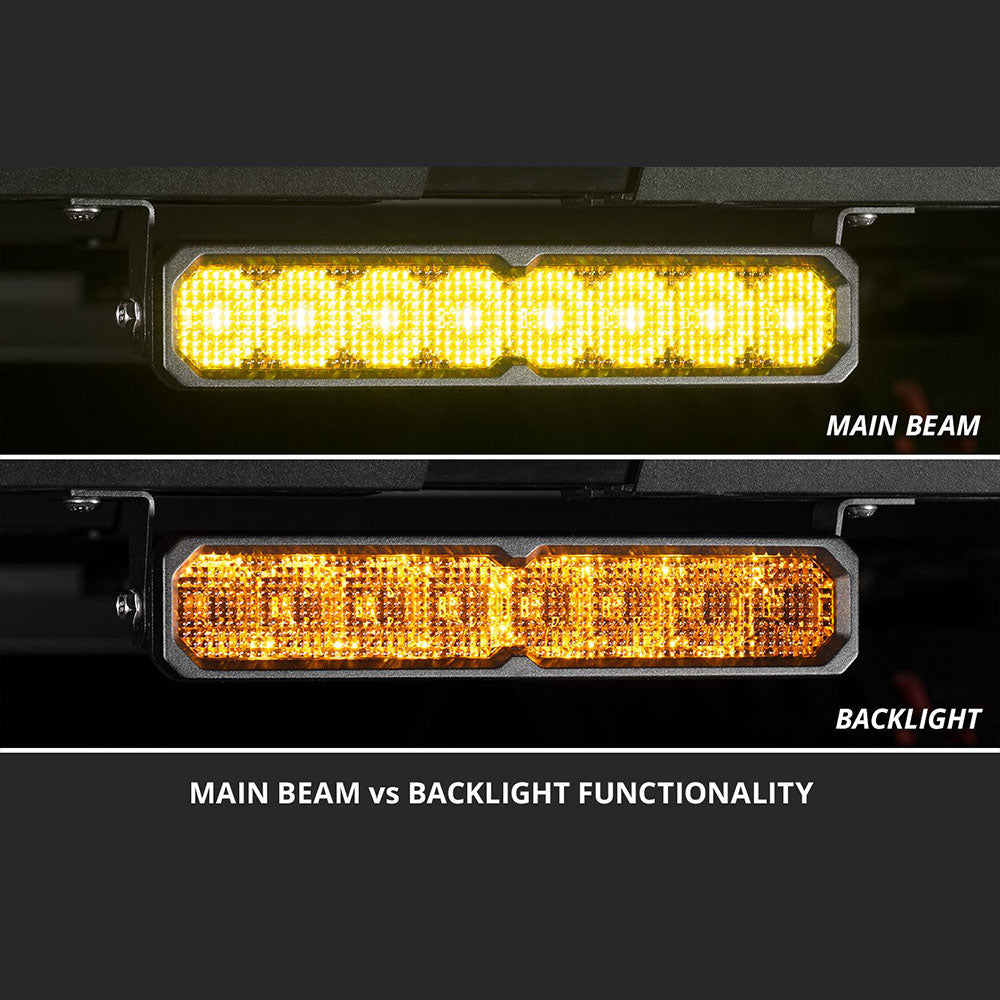

- Modern welcome sequence and selectable backlight color with SmartSelect technology.

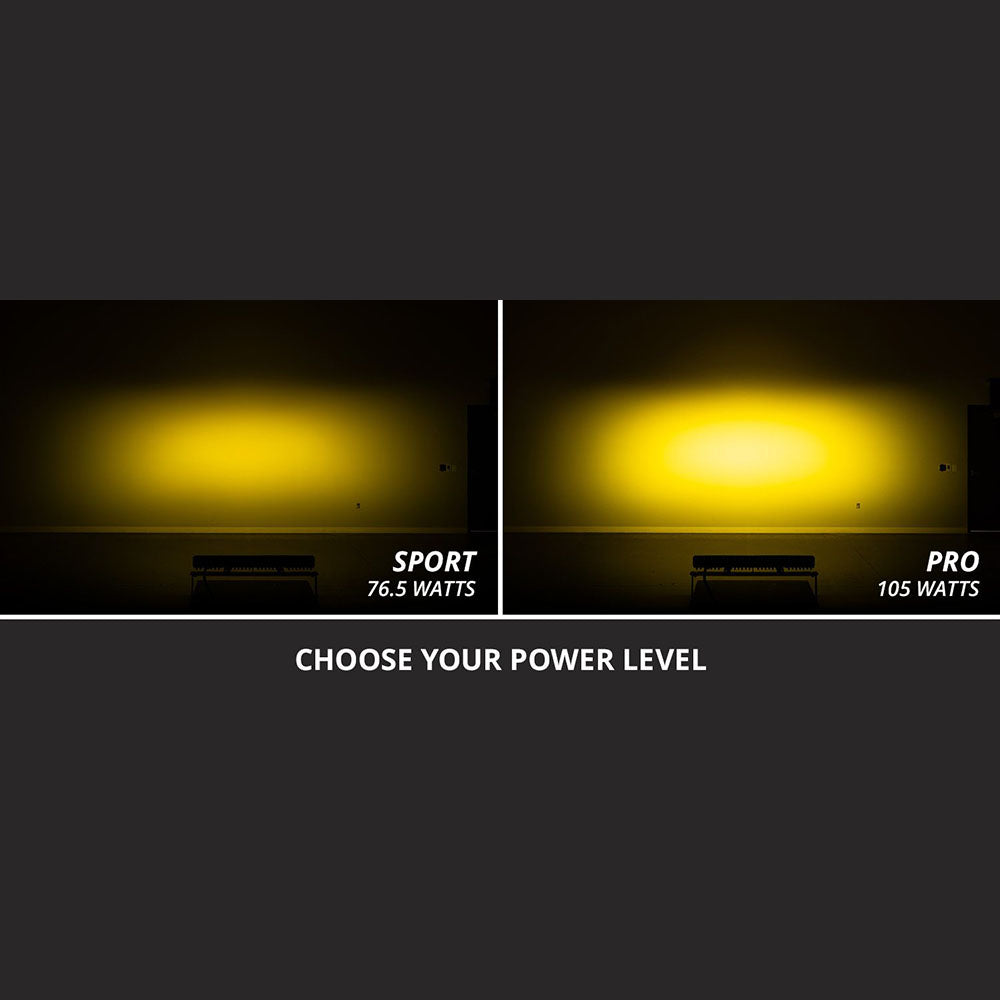

- Now available in Sport and Pro power levels.
- Durable aluminum housing with ASTM-standard powdercoat finish.
- Built for the extreme with IP69K waterproof rating.
Product Specs
- Color Temp (CCT): 3000K

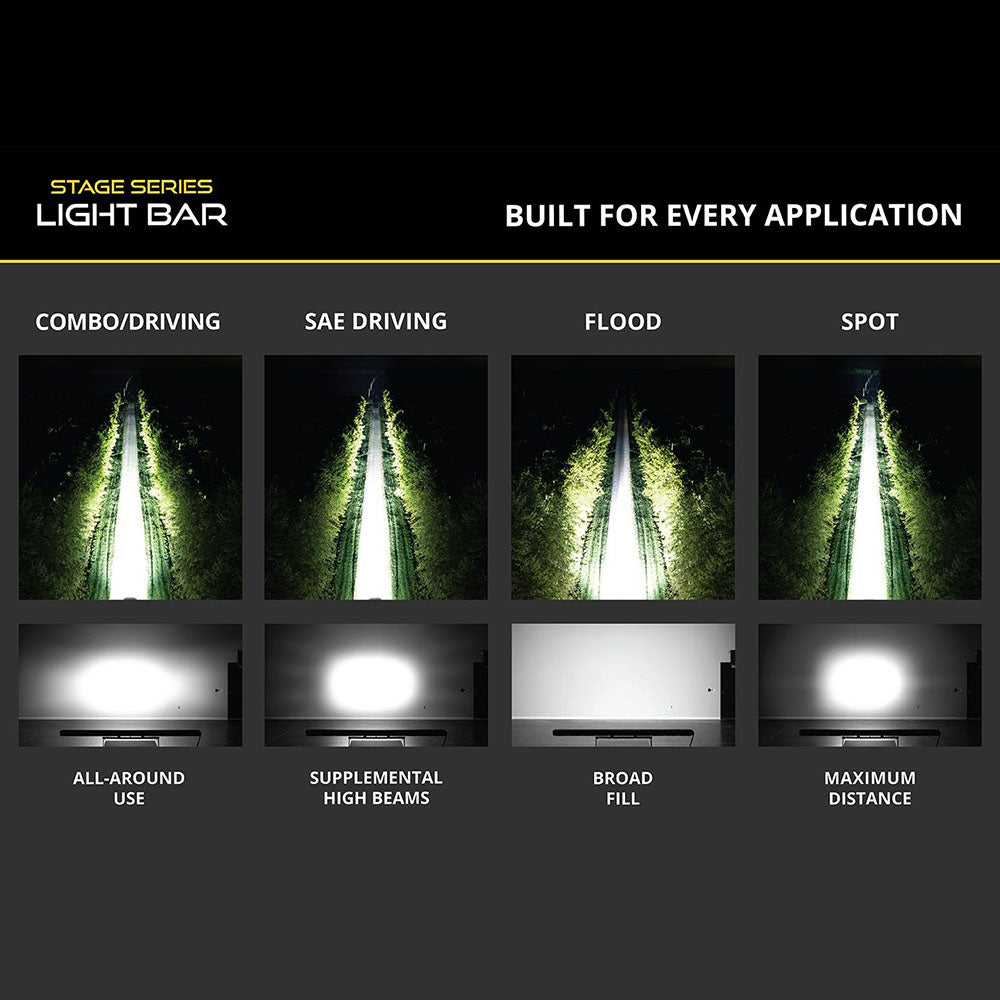

- Beam Angle: Combo/Driving, 60°x30°, SAE Driving, 20°x12°, Flood, 100°x80°, Spot, 8°x8°
- Power (watts): Sport: 120, Pro: 165
- Operating Voltage: 9-30V
- Current (amps @ 12.8V): Sport: 9.38, Pro: 12.90
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Osram Ostar Projection Compact, Lumileds Automotive Grade LED
- Connector(s): Deutsch DT-P Input
- Materials: Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
- Cooling: Passive, heatsink
- Intrusion Ratings: IP69K Waterproof, High Pressure

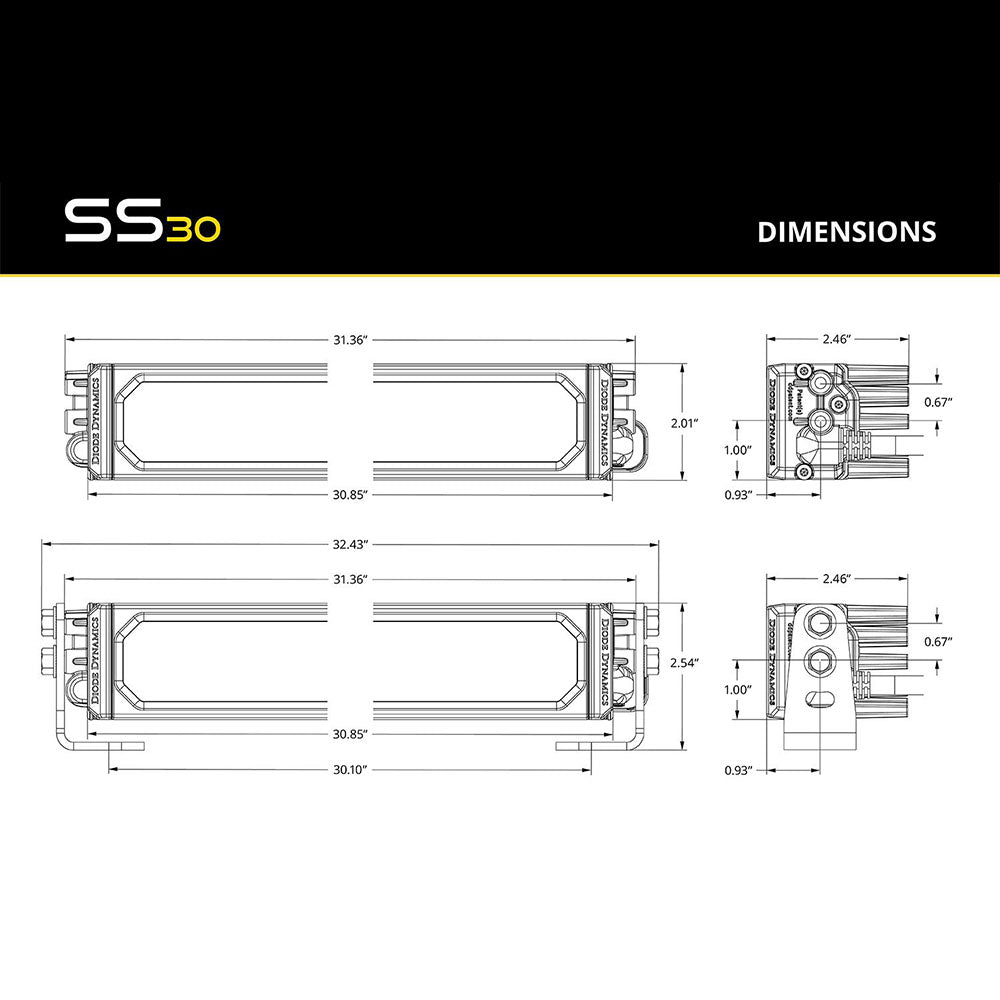

- Product Dimensions (in): 2.01x31.63x2.46
| Optic/Power Level | Peak Beam Intensity (candela) |
Illuminance (lux @ 10m) |
Raw Output (lumens) |
Output Color |
|---|---|---|---|---|
| SAE Driving Sport | 181,000 cd | 1,810 lux | 11,064 lm | 3000K |
| SAE Driving Pro | 242,000 cd | 2,420 lux | 37,632 lm | 3000K |
| Flood Sport | 5,700 cd | 57 lux | 11,064 lm | 3000K |
| Flood Pro | 10,000 cd | 100 lux | 37,632 lm | 3000K |
| Combo Sport | 93,000 cd | 930 lux | 11,064 lm | 3000K |
| Combo Pro | 127,000 cd | 1,270 lux | 37,632 lm | 3000K |
| Spot Sport | 421,000 cd | 4,210 lux | 11,064 lm | 3000K |
| Spot Pro | 471,000 cd | 4,710 lux | 37,632 lm | 3000K |
