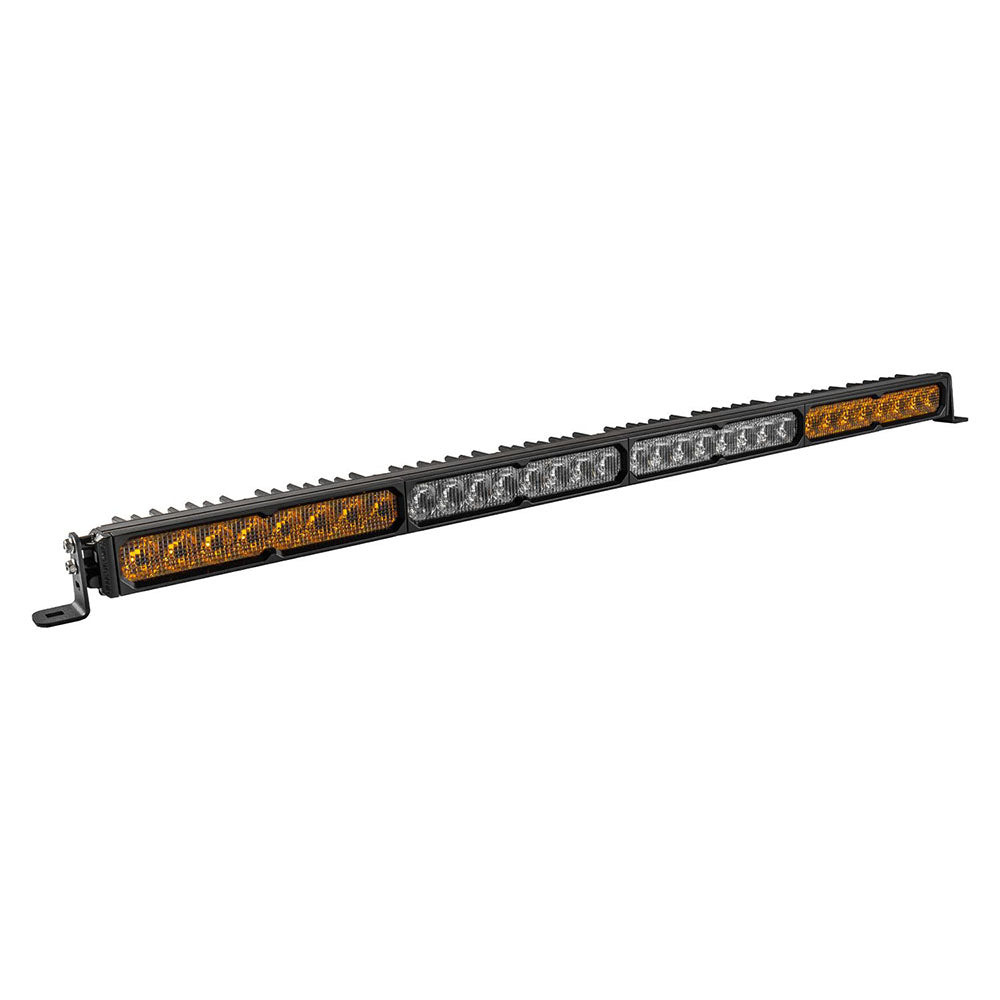

SS40 Dual Color LED Light Bar

Product Description

Get flexibility in every lighting scenario with the Diode Dynamics SS40 Dual-Color LED Light Bar. Switch between crisp white (~ 6000 K) for maximum visibility and yellow (~ 3000 K) to cut through fog, rain, or snow — all in a slim and powerful package. With advanced TIR optics, the SS40 Dual-Color directs light exactly where you need it, reducing glare and boosting usable output. Rugged and weather-sealed, it’s perfect for grille, roof, or bumper mounting on trucks and off-road vehicles. Whether you're driving highways or trails, this bar adapts to your needs.

Included

• One (1) LED light bar
• One (1) wire pigtail
• Universal bracket set

Product Features

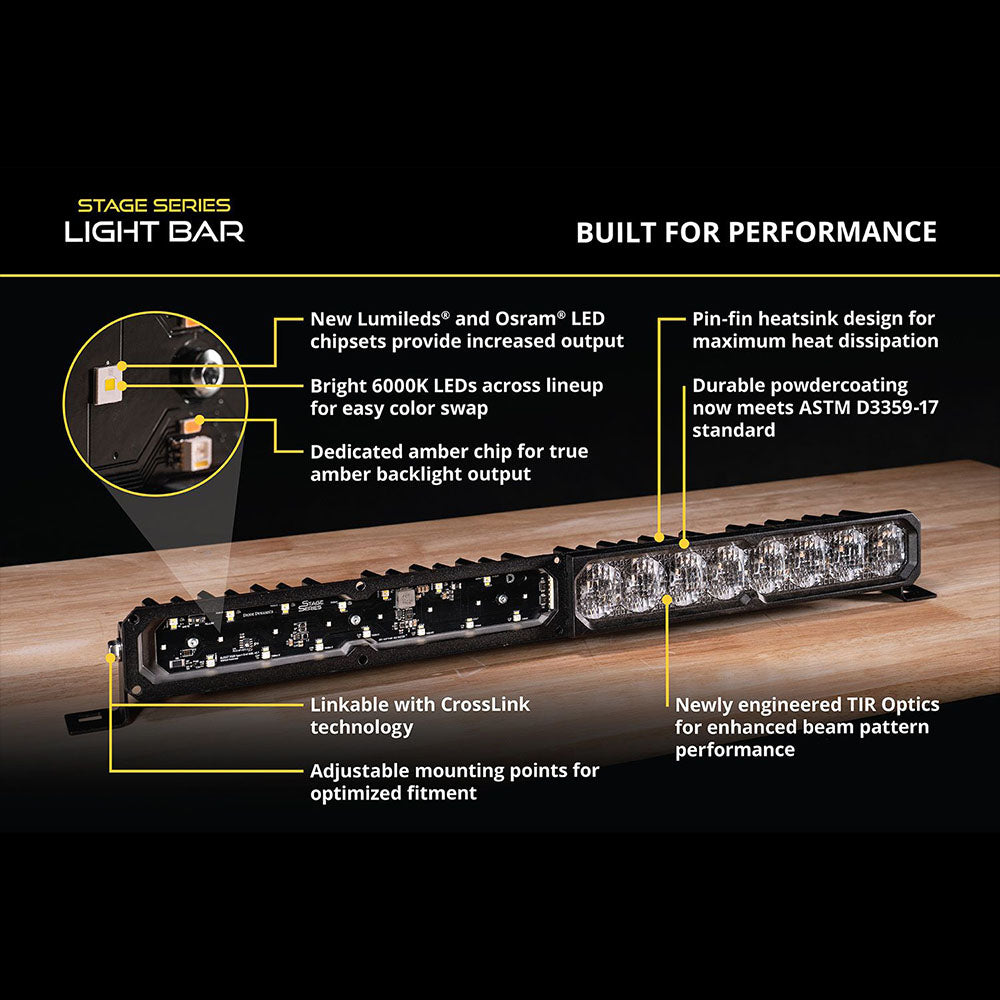

• Patented TIR Optics for maximum efficiency and output.

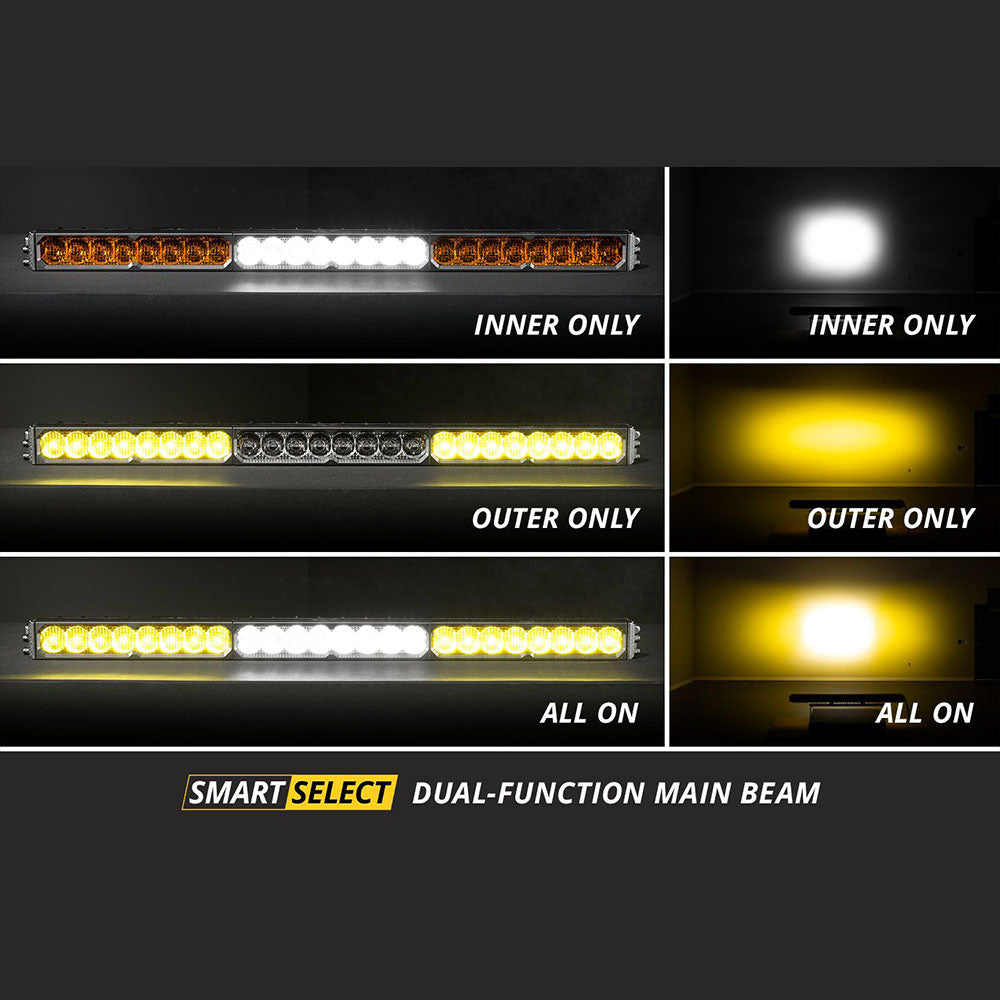

• Dual-function main beam, without the need for extra switches.
• Modern welcome sequence and selectable backlight color with SmartSelect technology.

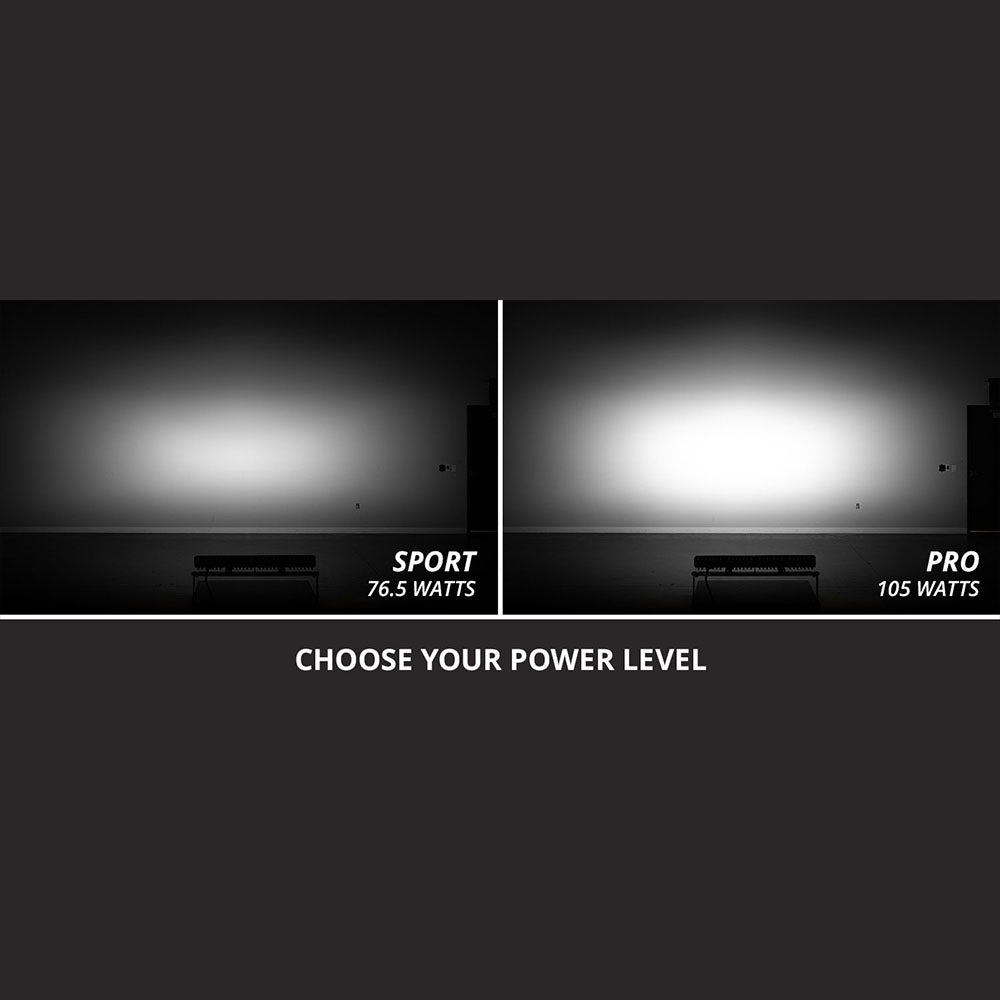

• Available in Sport and Pro power levels.
• Durable aluminum housing with ASTM-standard powdercoat finish.
• Built for the extreme with IP69K waterproof rating.

SmartSelect

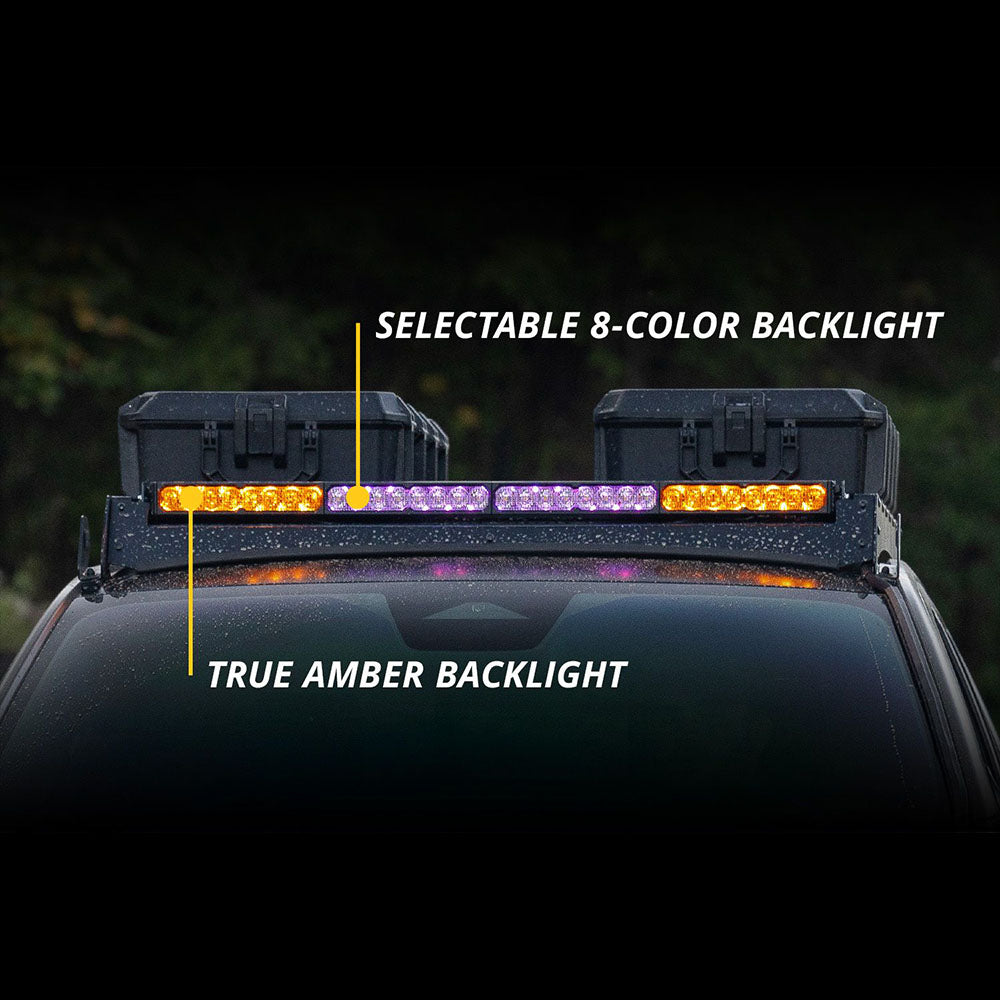

• SmartSelect models feature a selectable multicolor backlight in your choice of eight colors, plus a dynamic startup sequence that activates every time you power it on. The amber backlight color selection has been upgraded to a dedicated amber chip, part of a full RGBWA series of LEDs, which perfectly matches the color of our smaller LED pods. This elevates the appearance far above other RGB or RGBW backlights on the market. Selecting your backlight color is easy - simply alternate the power on and off. There’s no complicated programming with a controller!

Product Specs

• Raw Lumens: Sport: 14,752 lm, Pro: 50,176 lm
• Color Temp (CCT): 3000K, 6000K

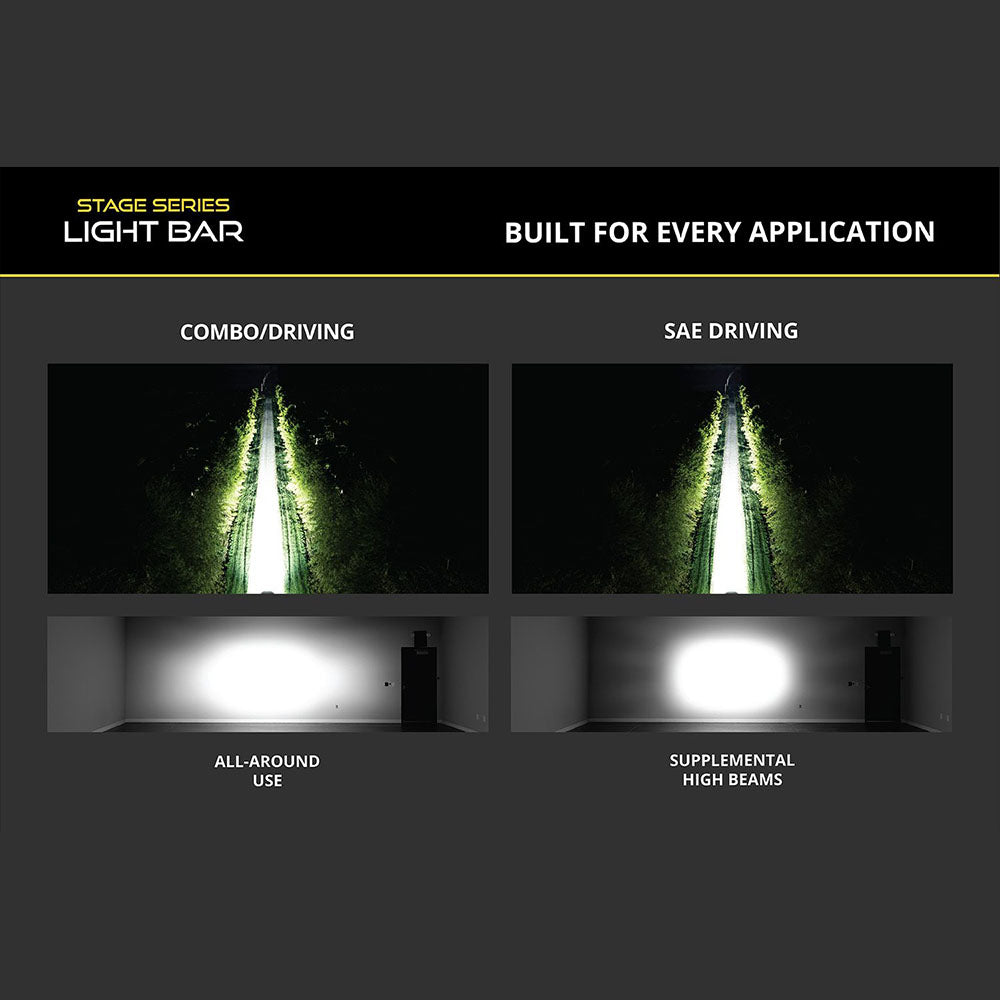

• Beam Angle: Combo/Driving, 60°x30°, SAE Driving, 20°x12°
• Power (watts): Sport: 165, Pro: 225
• Operating Voltage: 9-30V
• Current (amps @ 12.8V): Sport: 12.90, Pro: 17.58
• Polarity: Polarity Specific
• Operating Temperature: -40C to 85C (-40F to 185F)
• LED Emitter: Osram Ostar Projection Compact, Lumileds Automotive Grade LED
• Connector(s): Deutsch DT-P Input
• Materials: Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
• Cooling: Passive, heatsink
• Intrusion Ratings: IP69K Waterproof, High Pressure

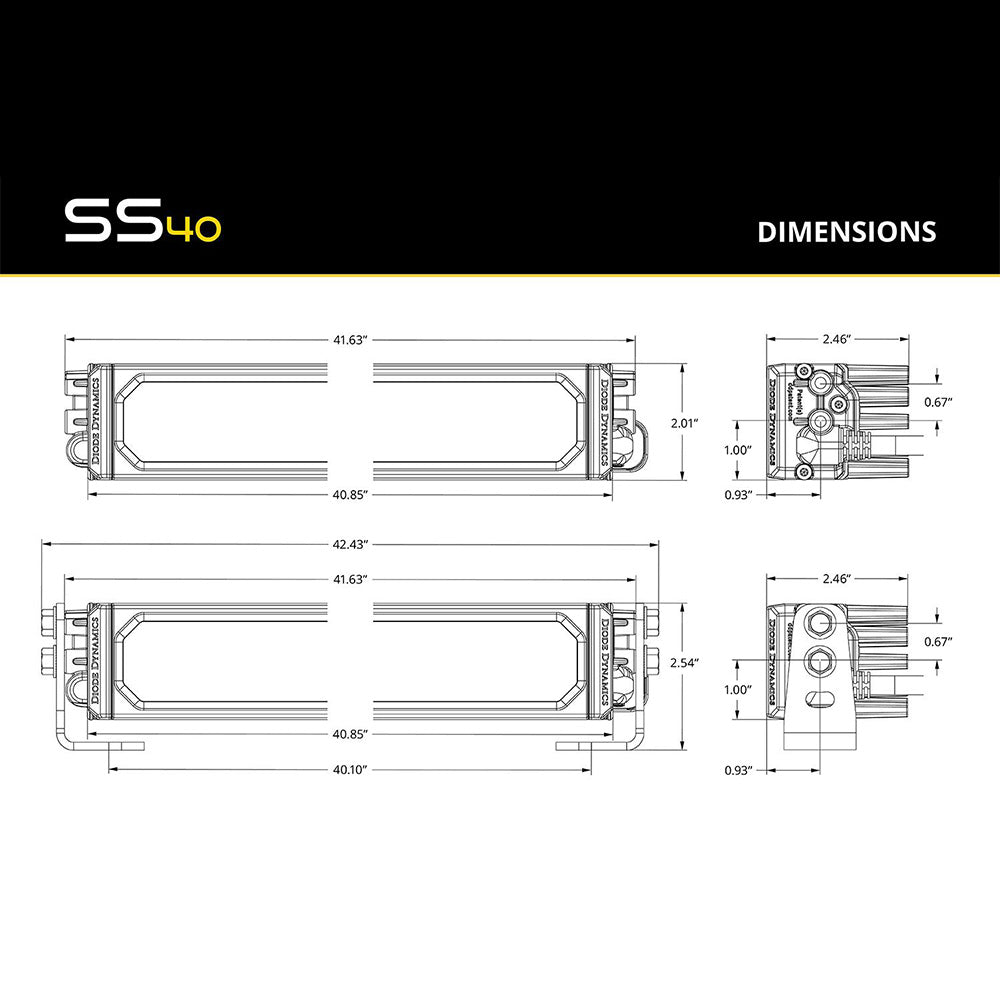

• Product Dimensions (in): 2.01x41.63x2.46
