Diode Dynamics

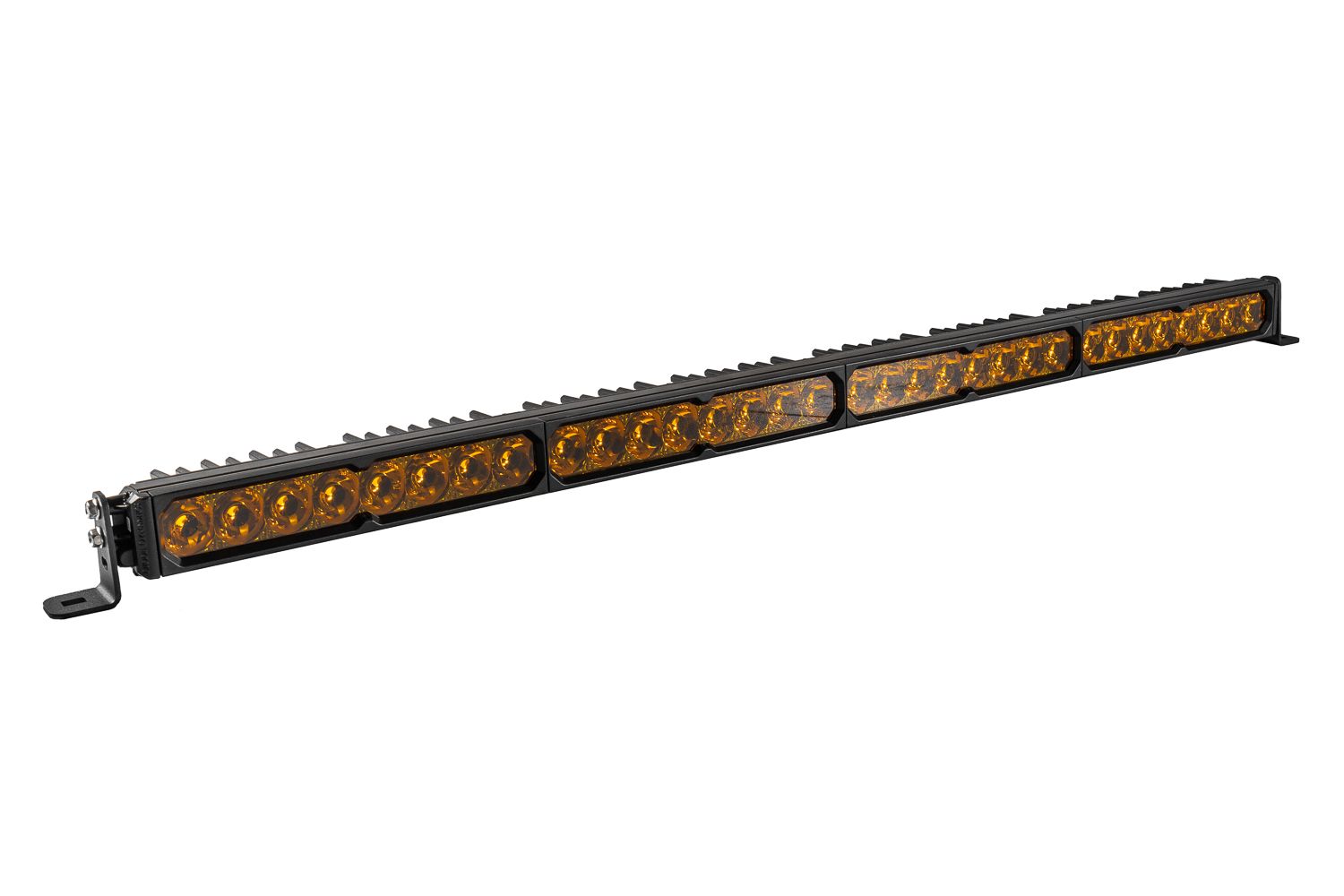

SS40 Yellow LED Light Bar
Beam Pattern
Power Level
This Product Qualifies for Free Shipping
Choose options
Beam Pattern
Power Level
This Product Qualifies for Free Shipping
Beam Pattern
Power Level
This Product Qualifies for Free Shipping
Product Description
Stand out in fog, snow, or off-highway dust with the Diode Dynamics SS40 Yellow LED Light Bar. Emitting yellow (~ 3000 K), this bar enhances contrast and cuts through glare while maintaining a slim, aggressive profile. Built rugged and sealed, it’s designed for grille, bumper, or roof applications where both style and performance matter. Switch the lighting mood depending on conditions — powerful in daylight, precise in poor weather.
Included
- One (1) LED light bar
- One (1) wire pigtail
- Universal bracket set
Product Features

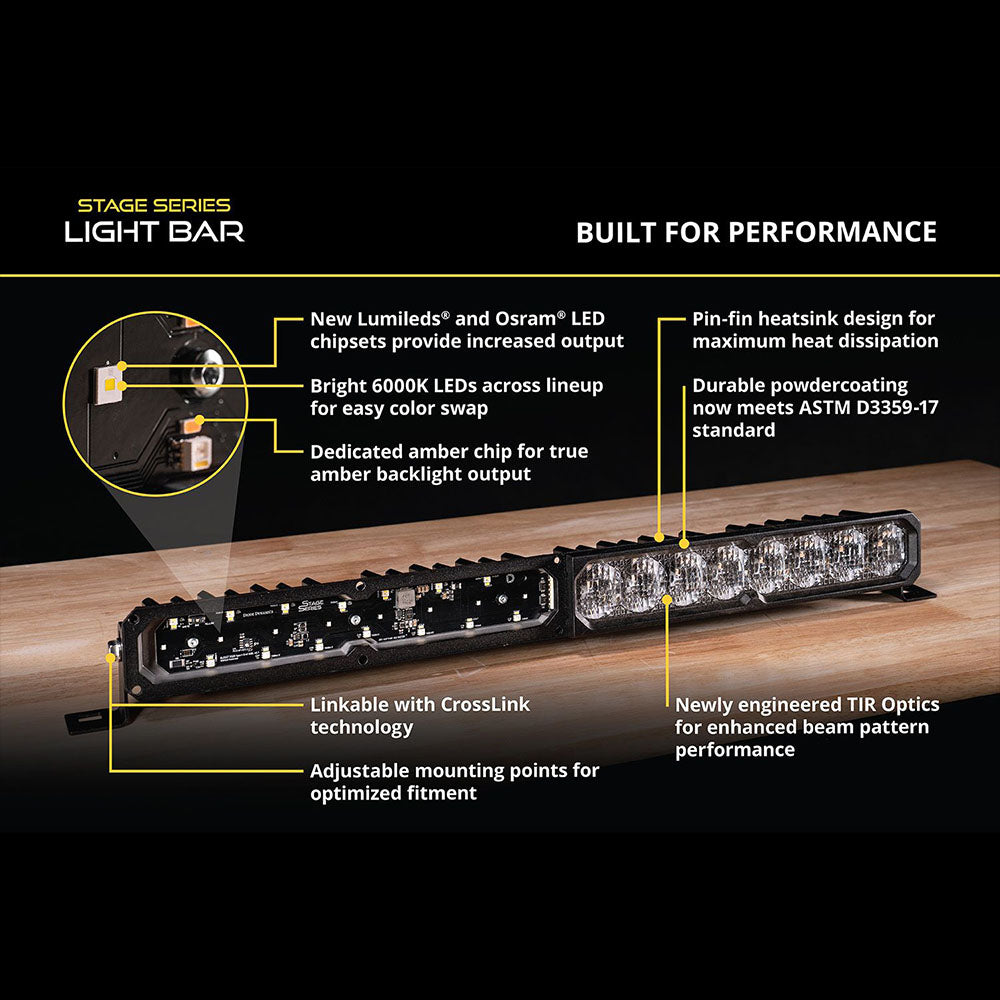

- Patented TIR Optics for maximum efficiency and output.
- Upgraded beam patterns engineered for real-world performance.

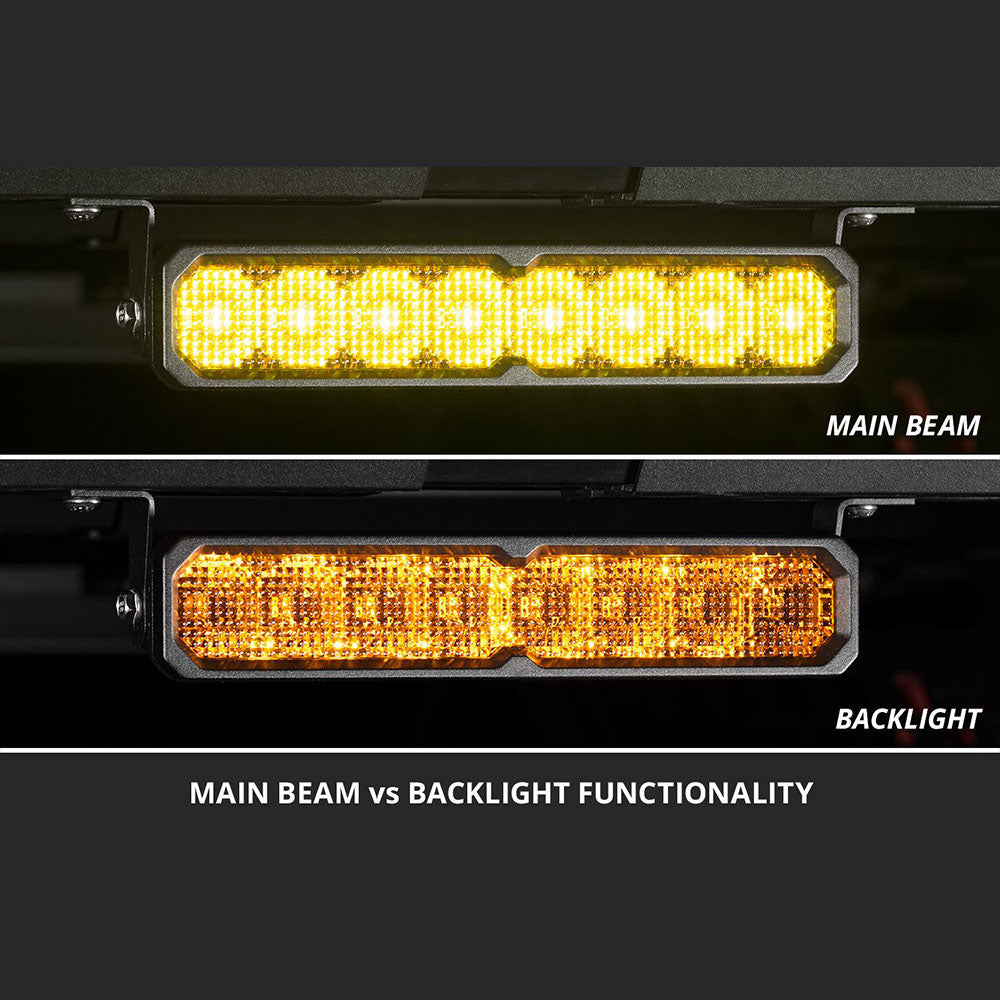

- Modern welcome sequence and selectable backlight color with SmartSelect technology.

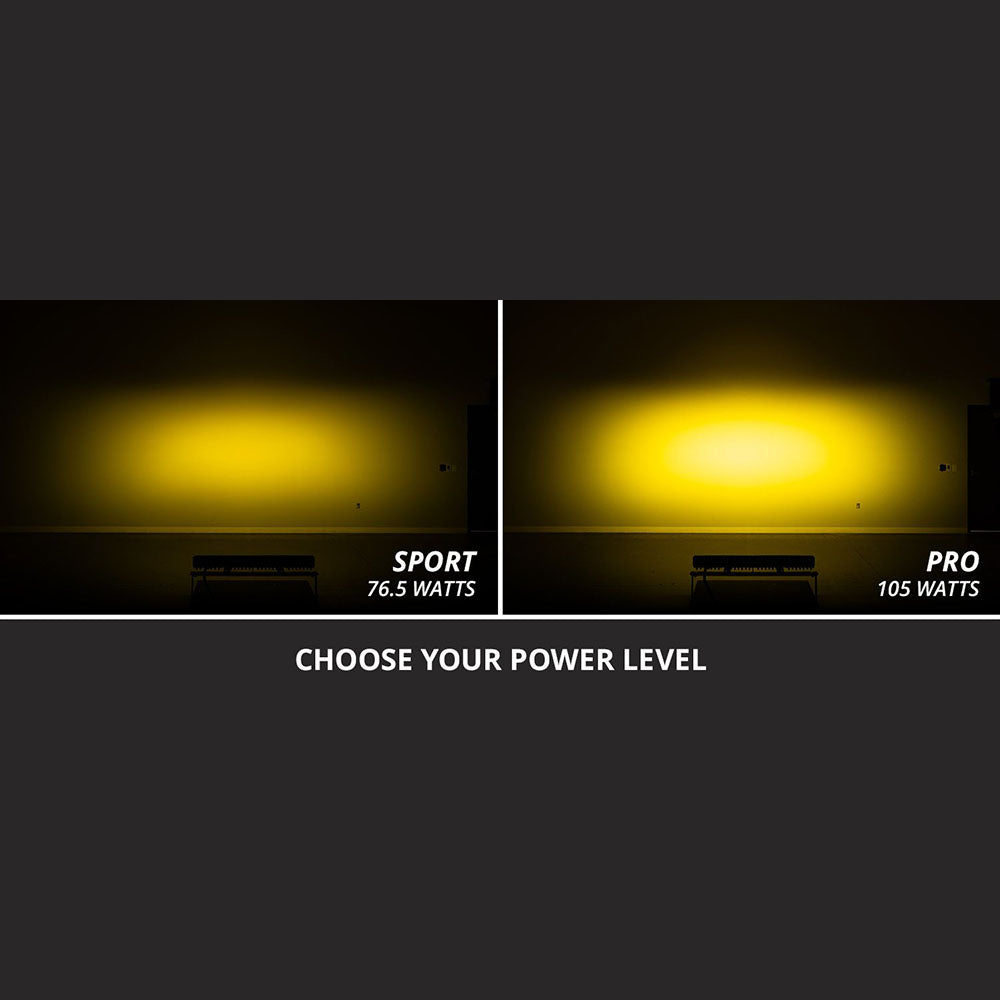

- Now available in Sport and Pro power levels.
- Durable aluminum housing with ASTM-standard powdercoat finish.
- Built for the extreme with IP69K waterproof rating.
Product Specs
- Color Temp (CCT): 3000K

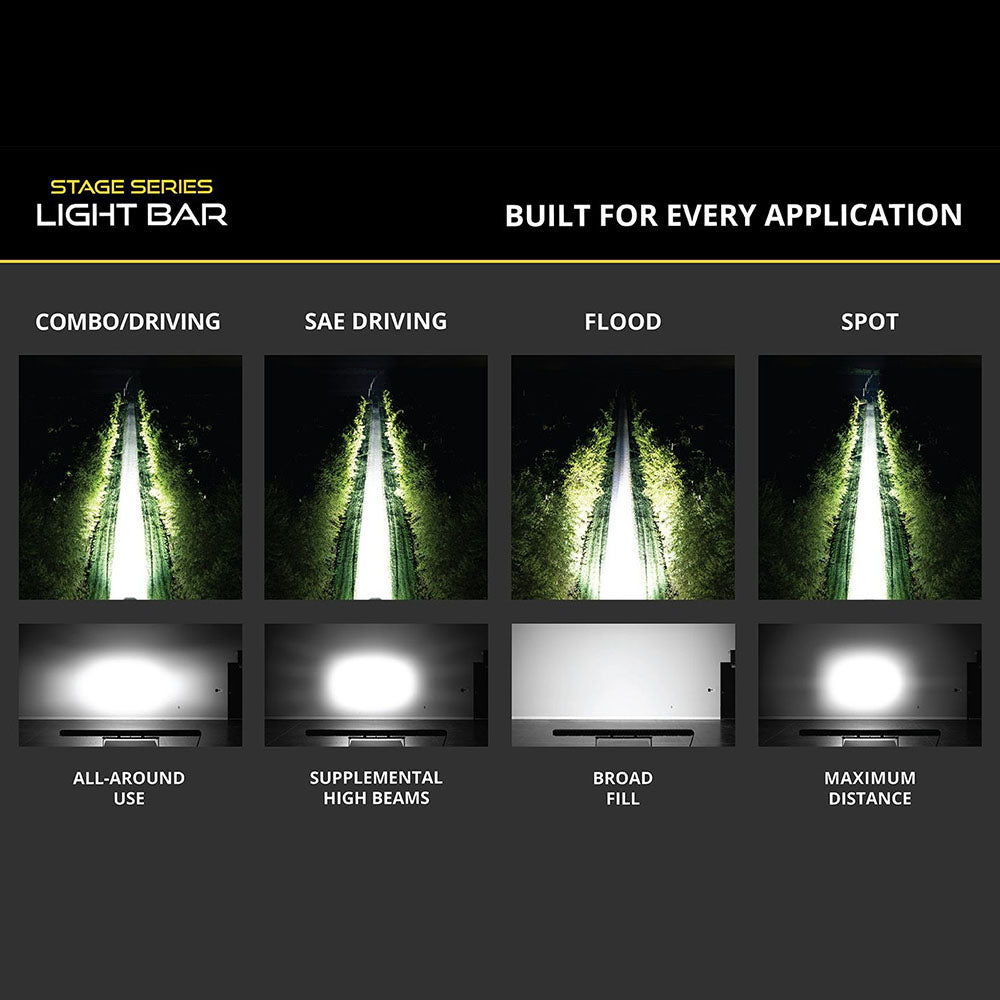

- Beam Angle: Combo/Driving, 60°x30°, SAE Driving, 20°x12°, Flood, 100°x80°, Spot, 8°x8°
- Power (watts): Sport: 165, Pro: 225
- Operating Voltage: 9-30V
- Current (amps @ 12.8V): Sport: 12.90, Pro: 17.58
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Osram Ostar Projection Compact, Lumileds Automotive Grade LED
- Connector(s): Deutsch DT-P Input
- Materials: Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
- Cooling: Passive, heatsink
- Intrusion Ratings: IP69K Waterproof, High Pressure

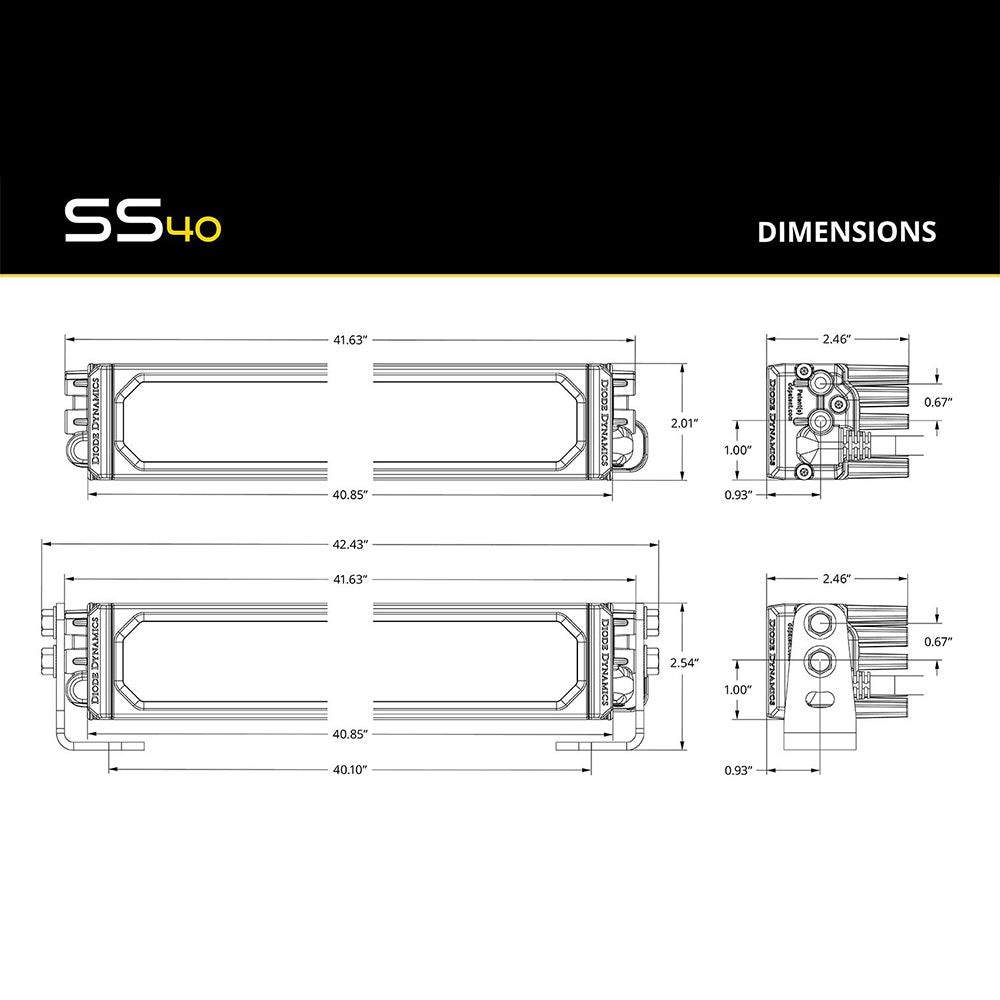

- Product Dimensions (in): 2.01x41.63x2.46
| Optic/Power Level | Peak Beam Intensity (candela) |
Illuminance (lux @ 10m) |
Raw Output (lumens) |
Output Color |
|---|---|---|---|---|
| SAE Driving Sport | 250,500 cd | 2,505 lux | 14,752 lm | 3000K |
| SAE Driving Pro | 331,000 cd | 3,310 lux | 50,176 lm | 3000K |
| Flood Sport | 7,800 cd | 78 lux | 14,752 lm | 3000K |
| Flood Pro | 13,500 cd | 135 lux | 50,176 lm | 3000K |
| Combo Sport | 158,000 cd | 1,580 lux | 14,752 lm | 3000K |
| Combo Pro | 215,000 cd | 2,150 lux | 50,176 lm | 3000K |
| Spot Sport | 608,000 cd | 6,080 lux | 14,752 lm | 3000K |
| Spot Pro | 665,000 cd | 6,650 lux | 50,176 lm | 3000K |
