SS5 CrossLink Light Bar Kit Sherpa/Prinsu Roof Racks
Pod Count
Power Level
Color and Optic
Product Description

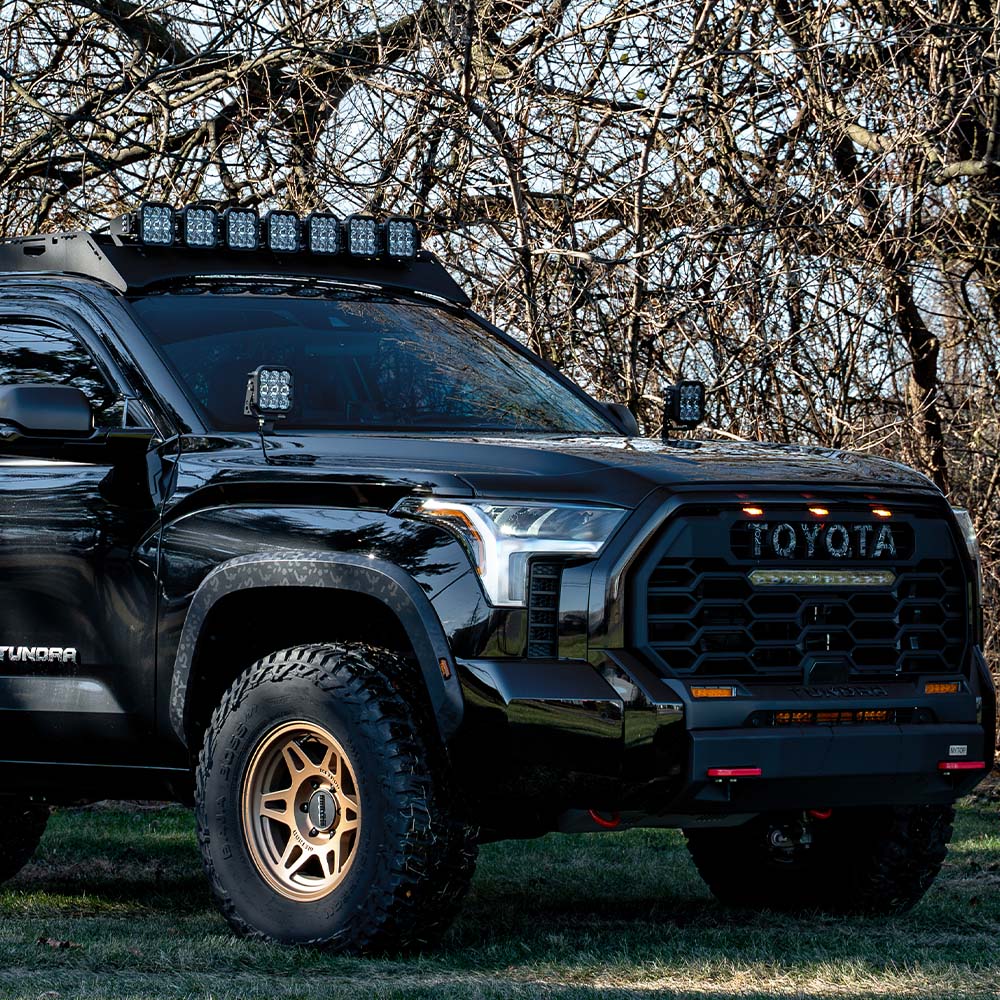

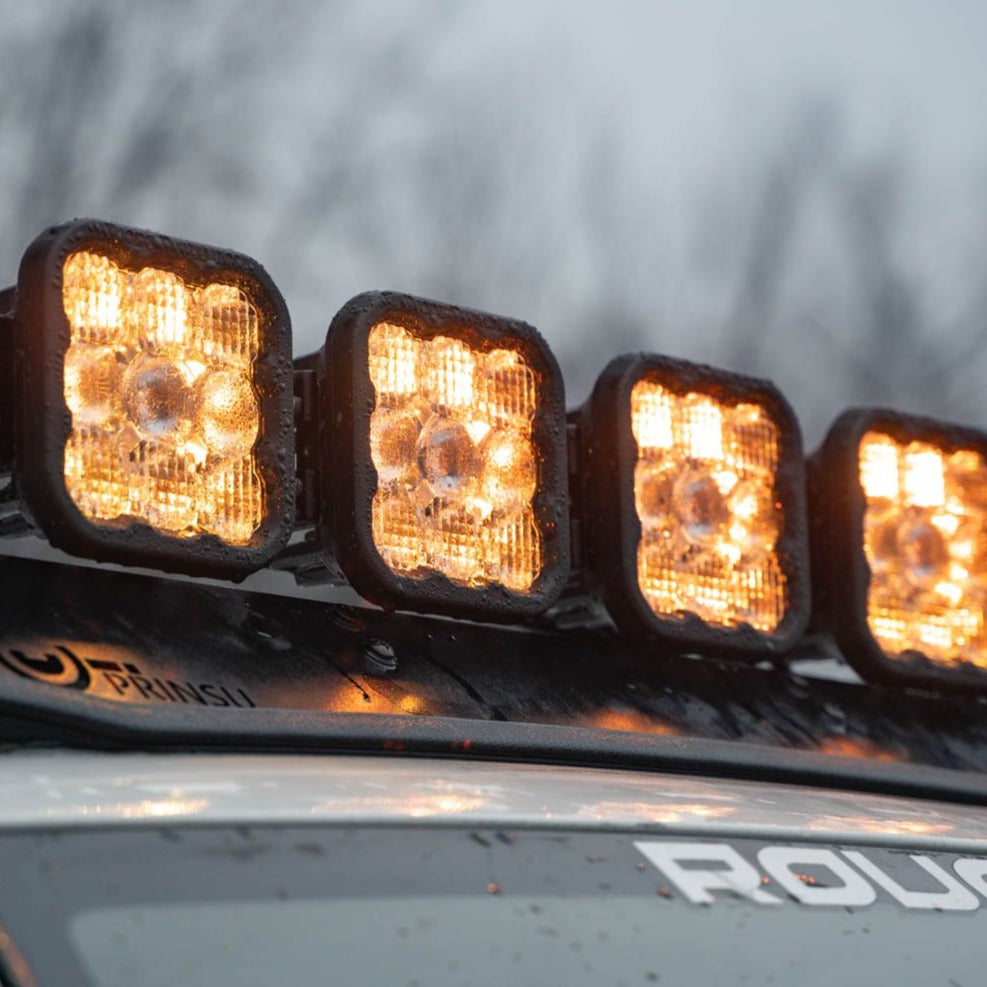

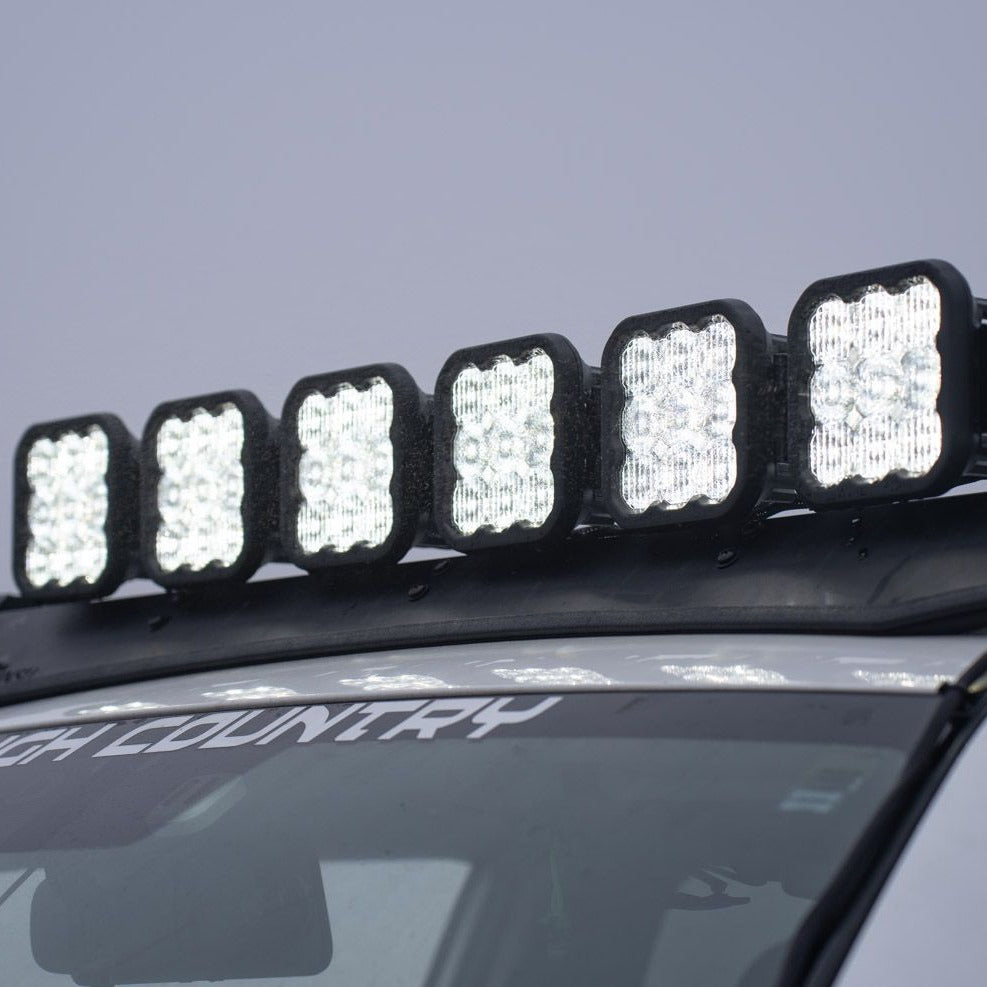

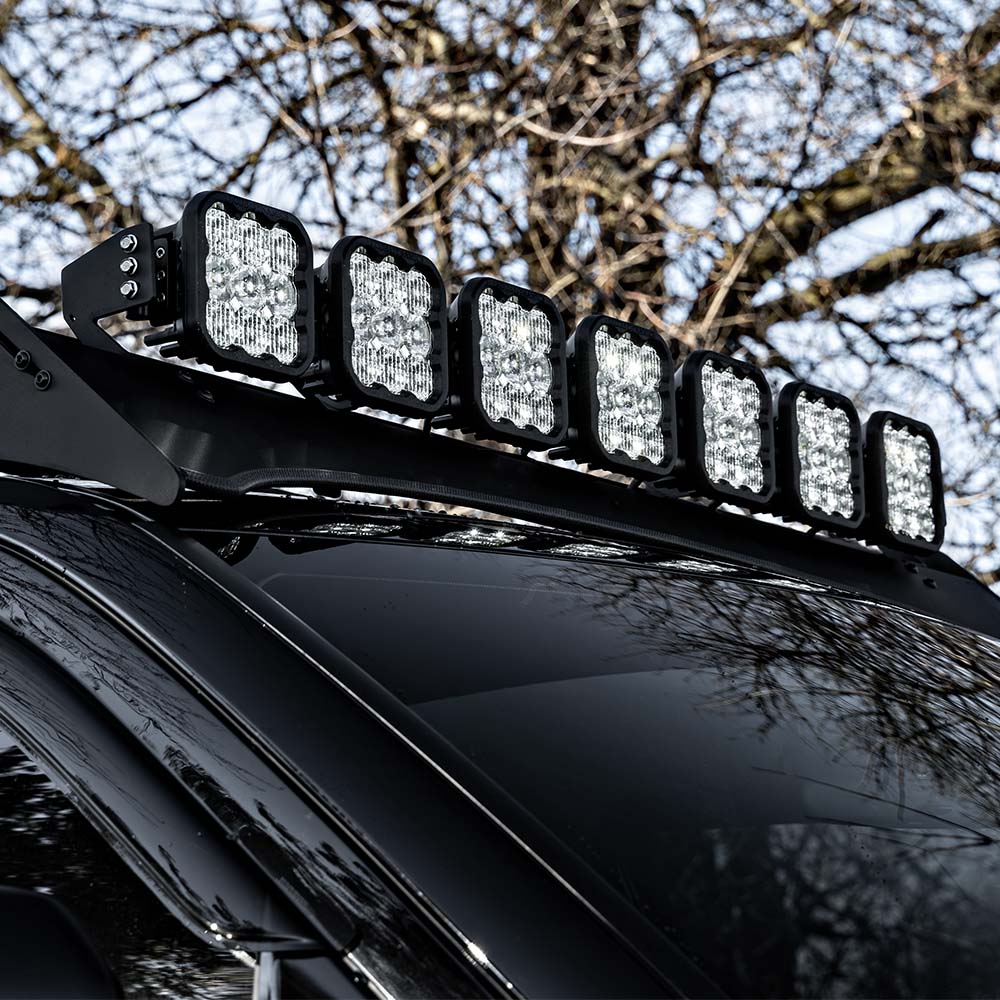

Have you wanted to mount an SS5 CrossLink Lightbar to your roof rack, but didn't want to fabricate custom brackets or remove the wind deflector? If the answer is yes, this new kit is for you - introducing the SS5 CrossLink Lightbar Kit for Prinsu and Sherpa roof racks! This kit allows you to mount a 6-pod or 7-pod SS5 CrossLink lightbar directly to your Prinsu or Sherpa roof rack, without having to remove the wind deflector. Unlike other options on the market, the kit includes support brackets for additional stabilization and load distribution, reducing excessive vibration.
Bolt-On Installation. The application-specific brackets included in this kit were CAD-designed to bolt into existing mounting points. No cutting or drilling required! This kit is compatible with Prinsu roof racks with a cutout for a 40" lightbar and Sherpa roof racks with the half-height wind deflector..
Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS5 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.
From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS5 serves as both the optic and main lens for greater efficiency and light output. Thanks to this patented and innovative technology, when coupled with high-intensity LED chips, the total intensity of the SS5 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

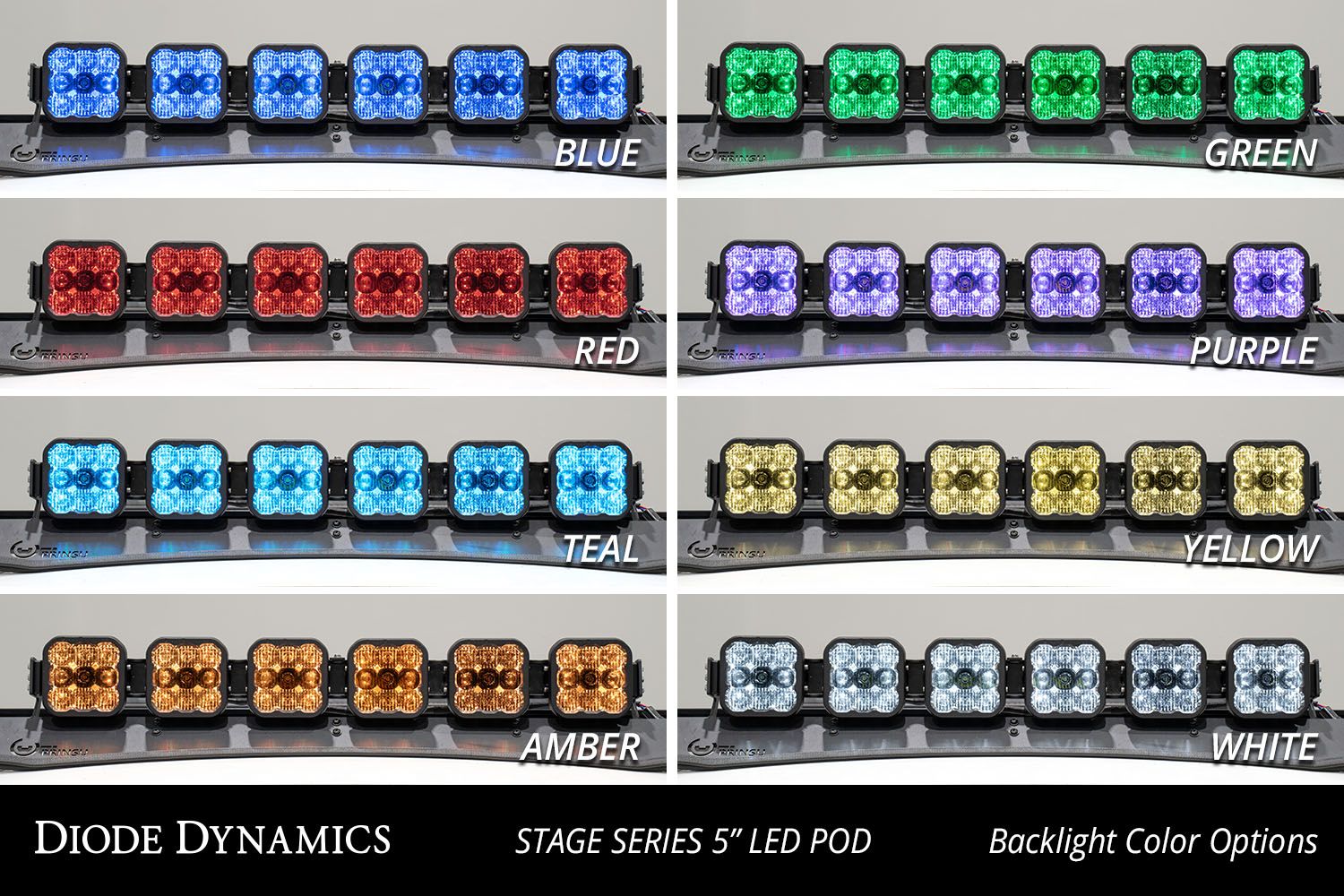

Selectable Backlight. The Stage Series 5" LED Pods included in this kit feature a selectable backlight with eight different color options, perfect for an extra styling accent, or for more visibility when you’re not using the main beam. Selecting your backlight color is easy - simply alternate the power on and off. There’s no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic, providing unique accent lighting that you won't find on other LED pods. NOTE: Due to the yellow lens, the Yellow kit is only available with an Amber backlight color.
Functional Patterns. Stage Series beam pattern options were designed with advanced optical simulation modeling, to shape the output in highly-functional beam patterns with high efficiency. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

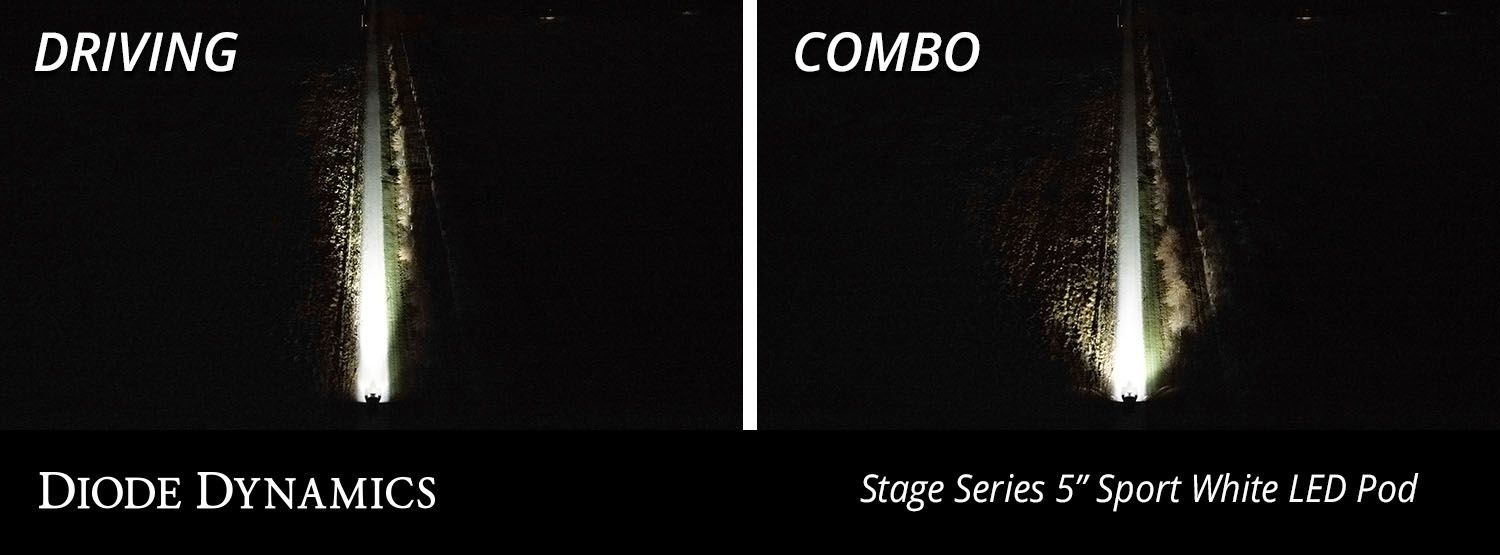

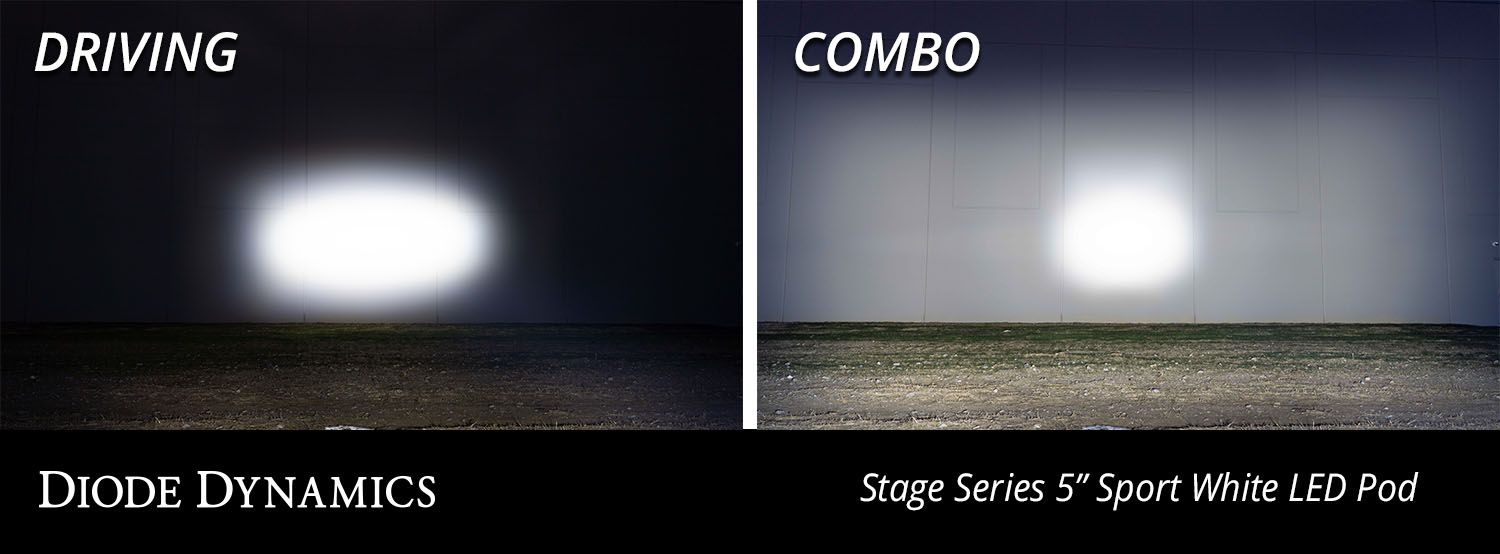

Driving is great for general illumination at speed. Rather than a traditional "spot" pattern, the Stage Series Driving pattern shines in a 30x20 degree spread, providing just enough width to fully illuminate the road ahead at high speeds, but still staying focused to avoid too much foreground light. Although the SS5 Driving is too bright to be considered an SAE Auxiliary High Beam, it is perfect for an extra boost of light at speed.
Combo pattern combines both the Driving and Flood optics, perfect for all-around use. It shines light downrange in a focused 30x20 Driving beam to punch with distance, and fills in the surrounding area to create a full 70x30 degree pattern. With a row of driving optics in the middle, and a flood optic on the top and bottom, this has been designed to provide extra light for every situation.
White or Yellow. This kit is available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road. We also offer replacement lenses that allow you to change the color or optic of your SS5 Pods.
Interchangeable Lens. Need a different beam pattern or color? You can swap it yourself! We offer replacement lenses that allow you to change the color or optic of your Stage Series SS5 Pods.
Sport or Pro. This kit is available at two different power levels. All options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Sport model uses nine high-intensity LEDs for 40W of total power. The Pro model steps things up in a big way, with double the total power at 90W. Click the Specifications tab to see more information.
Snap-on covers. For states that require them, we also offer snap-on covers for your SS5 Pod. These covers are available in a variety of colors and keep your SS5 Pod clean and protected from dirt, dust, or whatever else the road throws your way!
Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.
Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!
Fitment Notes
- This kit is only compatible with Prinsu roof racks equipped with a 40-inch cutout wind deflector, and Sherpa roof racks equipped with a half-height wind deflector.

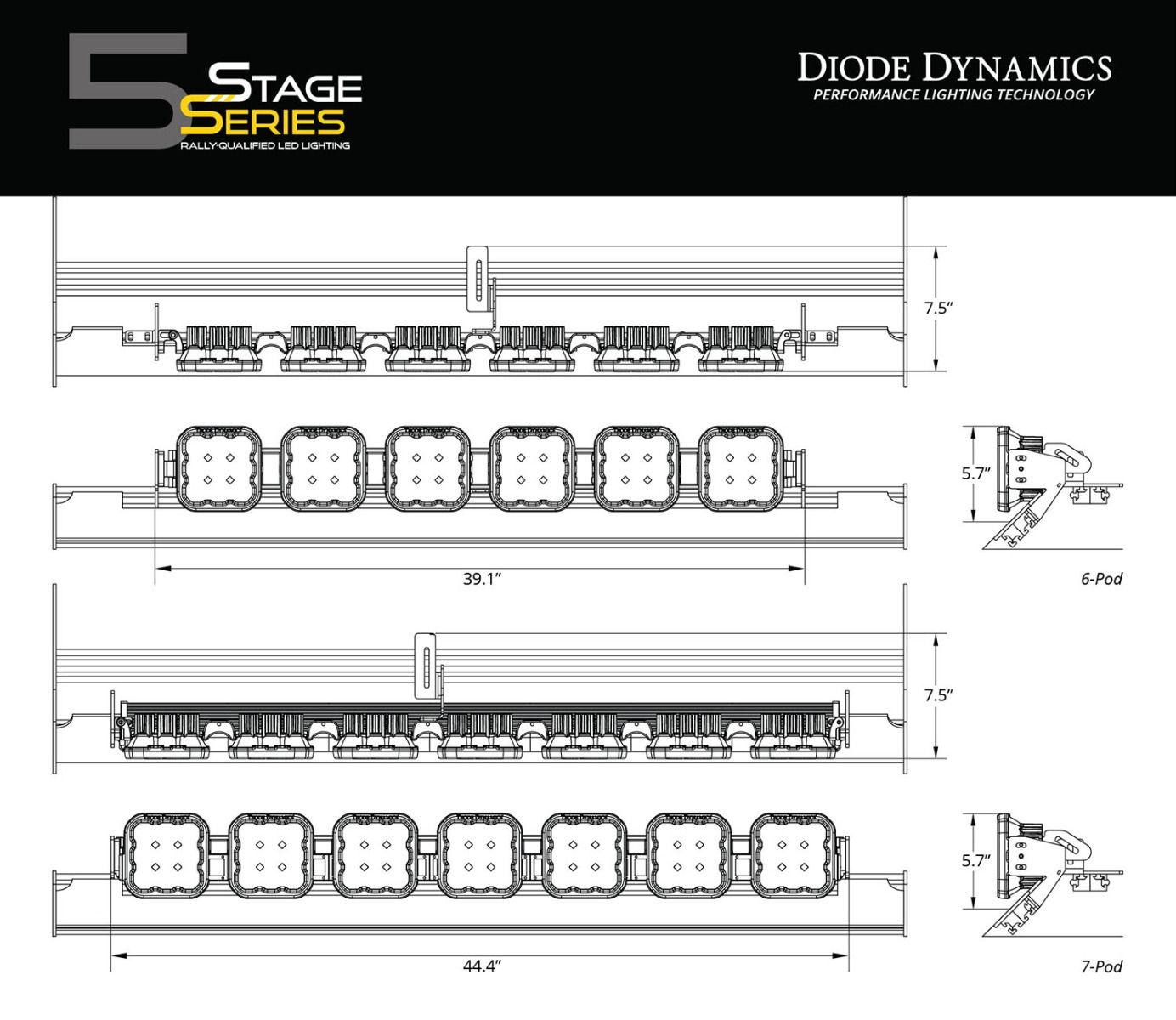

- The 6-pod kit will fit on any rack that is at least 41⅝" wide. The 7-pod kit will fit any rack that is at least 47⅞" wide.

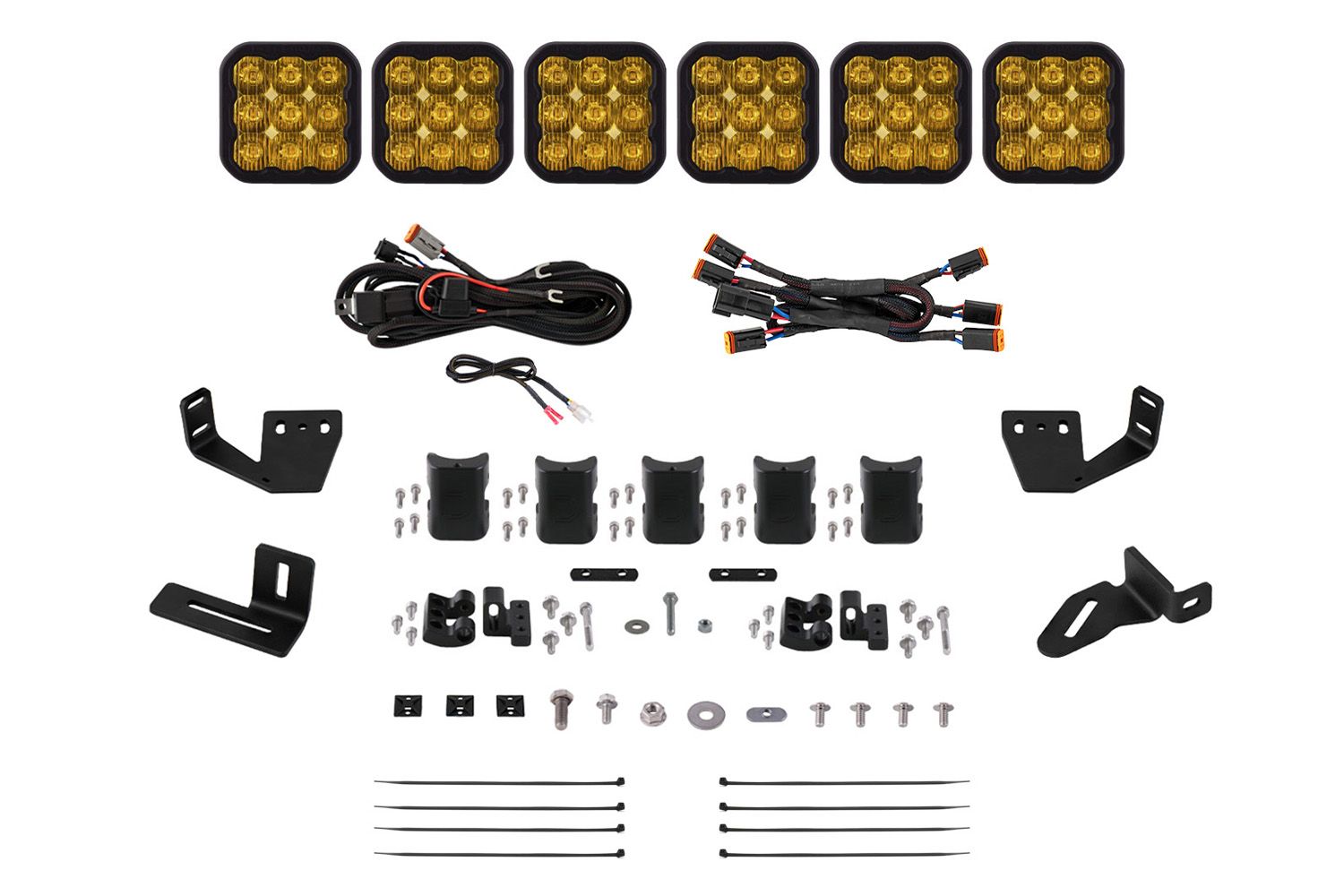

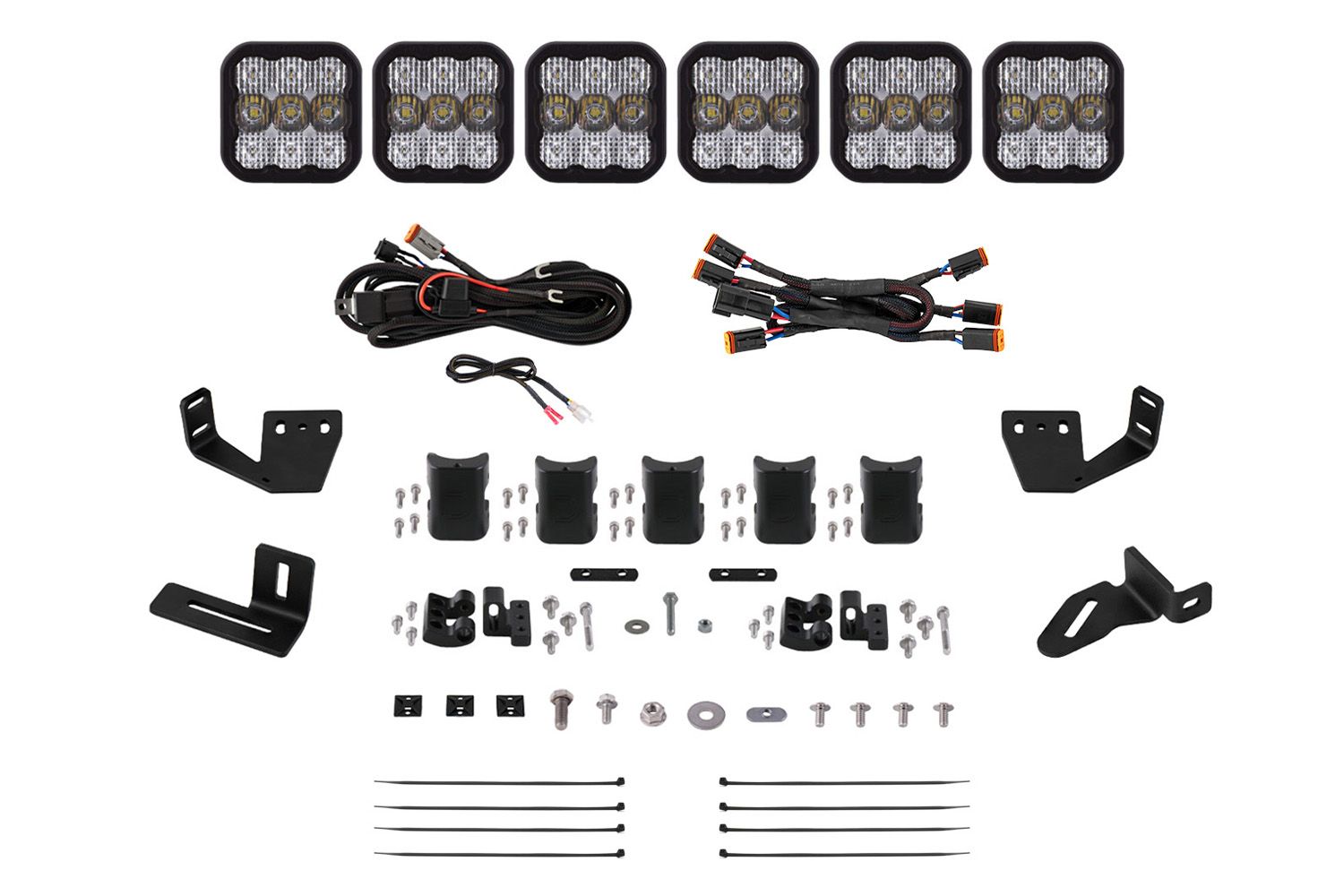

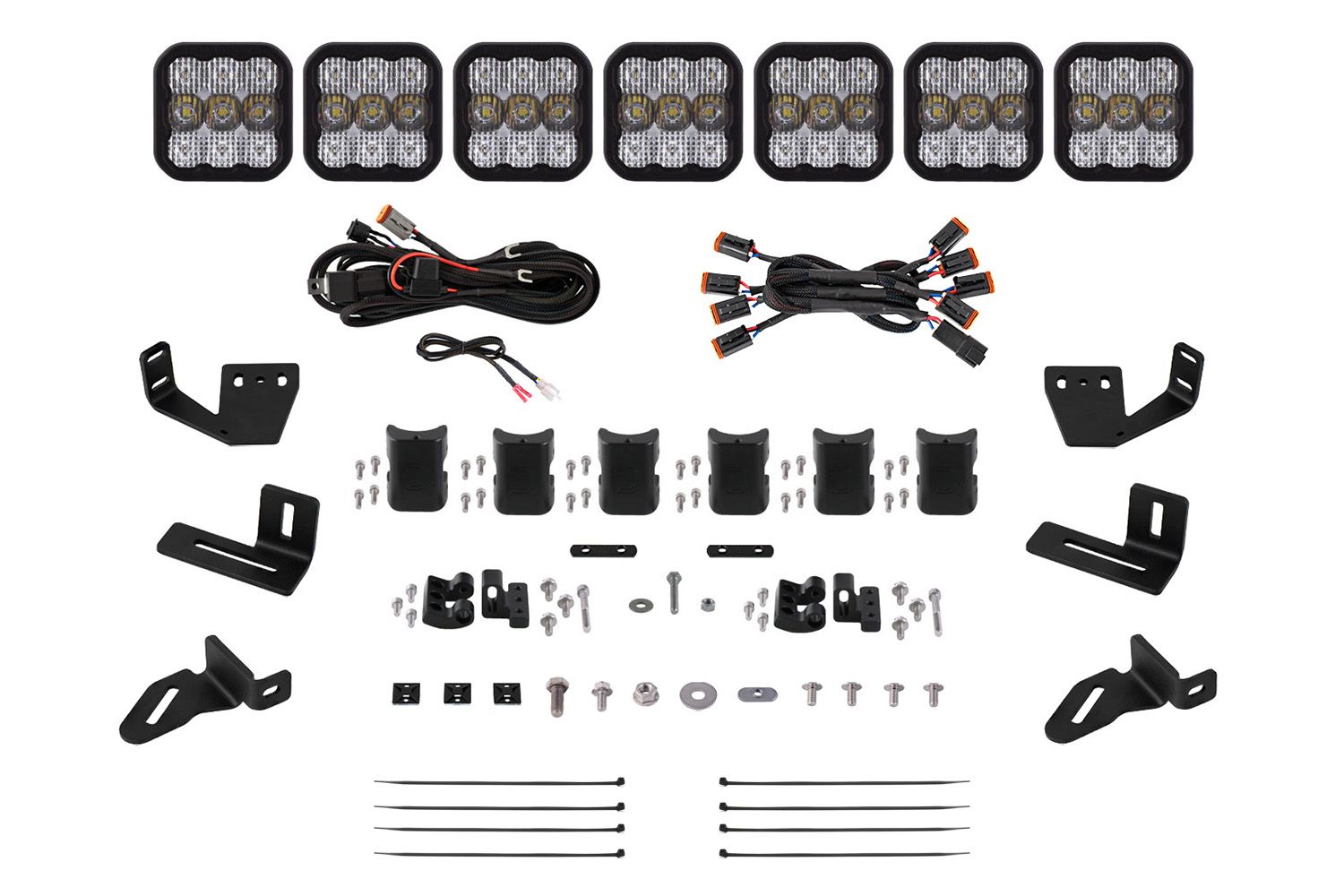

Included
- Six (6) or Seven (7) Stage Series 5-inch LED pods
- One (1) Roof rack mounting kit
- One (1) or Two (2) CrossLink support bracket kits
- Five (5) or Six (6) CrossLinks with hardware
- One (1) CrossLink endmount kit
- One (1) CrossLink splitter harness
- One (1) Heavy-duty single-output wiring harness
Product Features
- Allows you to mount a 6-pod or 7-pod SS5 CrossLink lightbar to Prinsu and Sherpa roof racks.
- Compatible with roof racks that have a 40-inch lightbar cutout.
- Included support brackets provide extra stabilization and load distribution.
- Does not require removal of wind deflector.
- Durable stainless steel construction.
- Simple installation, no modification needed.
Fitment Notes
- This kit is only compatible with Prinsu roof racks equipped with a 40-inch cutout wind deflector, and Sherpa roof racks equipped with a half-height wind deflector.
- The 6-pod kit will fit on any rack that is at least 41⅝" wide. The 7-pod kit will fit any rack that is at least 47⅞" wide.
