Stage 1: 6" Lift Kit Tundra (2022-2024)
Stage 1: 6" Lift Kit Tundra (2022-2024)


Stage 1: 6" Lift Kit Tundra (2022-2024)

Sale price$3,399.55 USD
SKU: ICOK53271
In Stock - 2 available

Product Description

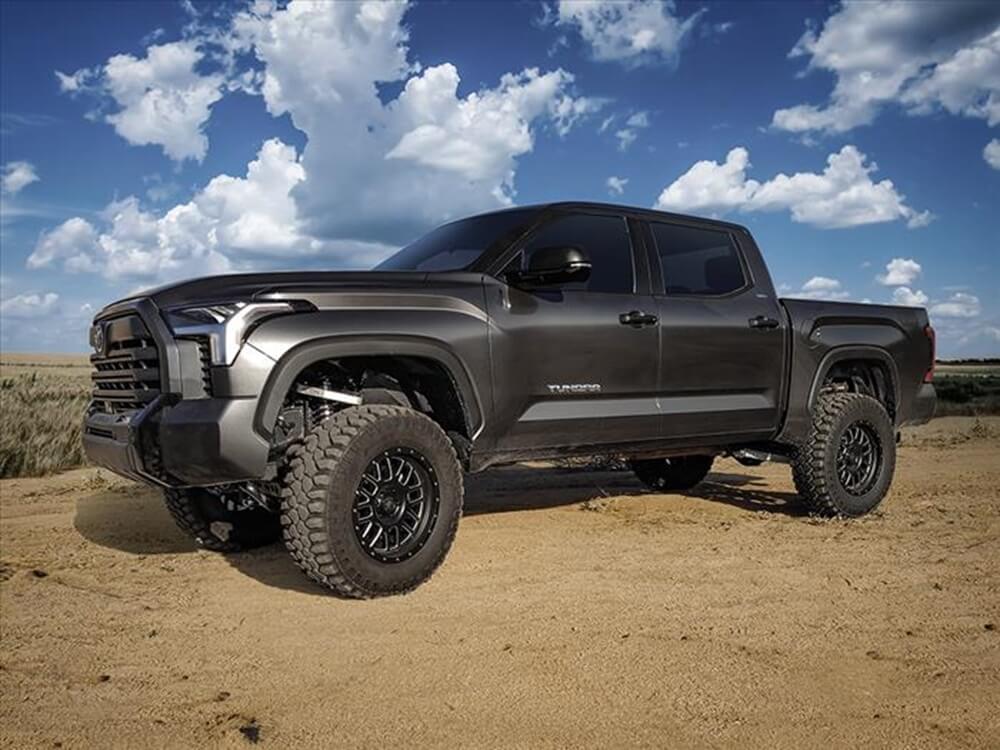

ICON is proud to introduce a range of 6-inch Performance Suspension System "Stage" kits for 2022 and newer Toyota Tundra. All feature ICON's high clearance 4-inch drop front crossmember kit including a differential skid plate and ductile iron steering knuckles.

The crossmember and knuckles drop the front differential 4 inches to preserve CV-joint operating angles, achieving maximum travel while being safe on components and providing great handling characteristics both on- and off-road.

ICON Vehicle Dynamics is a premiere performance suspension manufacturer specializing in aftermarket suspension components for trucks, SUV’s and off road suspension development.

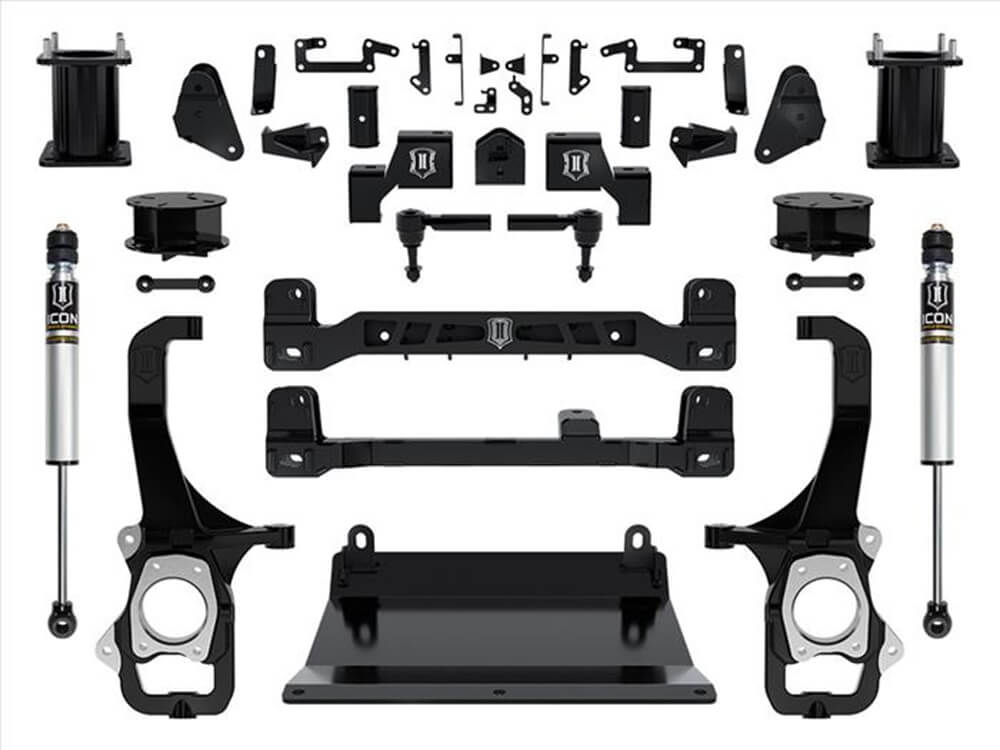

  • (1) Front Lift Kit Box 1
  • (1) Rear Box Kit
  • (1) Front 6" Coilover Spacer Kit
  • (1) Rear Coil Spacer Kit
  • (1) Front Skid Plate
  • (1) Front Box Kit 1
  • (2) Rear 3.5" 2.0 VS IR
  • (1) Front Knuckle Kit

Product Features

  • Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
  • Maintains factory track width
  • Front coilover spacer kit with heavy duty steel construction
  • Provides 6" front suspension lift with only 4" of crossmember drop
  • Single piece high-strength ductile iron steering knuckles with built-in 4" drop
  • Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
  • Included sway bar drop brackets reduce bind in OE sway bar links
  • Front and rear heavy-duty bump stop brackets
  • High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
  • 2.0 Aluminum Series rear shocks to improve rear suspension performance
  • Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
  • Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

Fitment Notes

  • OEM Wheels & Tires Fitment: No
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
  • Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
  • Not Compatible With Tundras Equipped With Load-Leveling Rear Height Control Air Suspension.
  • Not Compatible With Trd Pro
  • Not Compatible With Adaptive Variable Suspension (Avs) Equipped Vehicles
  • Not Compatible With Tundra Sr5 Equipped With Trd Sport Package
  • May Require Recalibration Of Toyota Safety Sense System After Install
  • Requires minimum of 20" diameter wheels
