0-3.5" Lift Kit 4Runner (2014-2023)
Lift Kit Stage - Learn about each stage below
OVERVIEW
This is Icon Suspensions' range of lift kits from their stage 1 to stage 4. Icon Suspension Lift Kits are designed to give your vehicle the best performance possible while off-roading. Not only do they provide a higher ride height, but they also offer improved ride quality and improved articulation. Icon kits are precision-engineered to increase suspension travel and provide additional ground clearance, allowing you to traverse even the most difficult terrain. Icon utilizes components from the best brands in the off-road industry, making sure that your vehicle is always ready for your next adventure. Icon kits are easy to install and provide increased stability and confidence when driving in challenging conditions. With Icon Suspension Lift Kits, you can be sure that your vehicle is always ready for the road ahead.

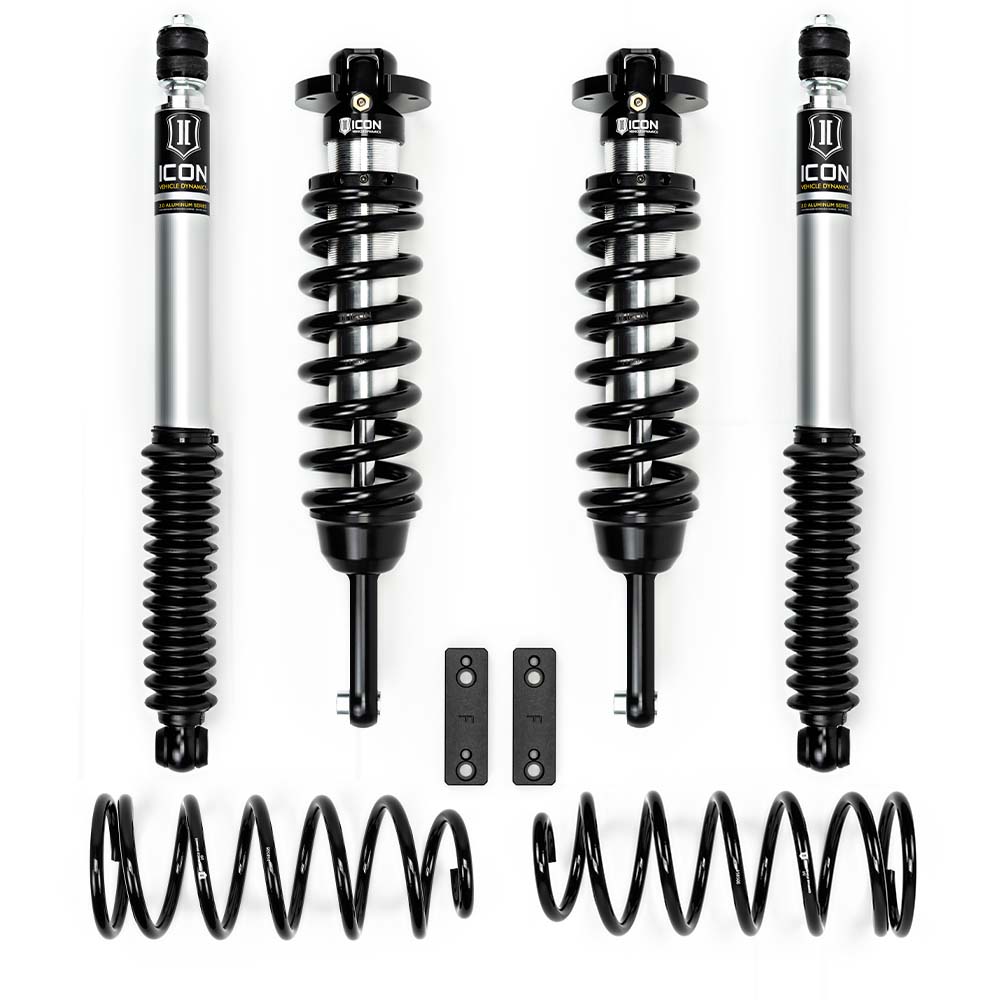

Stage 1 - 0 to 3.5"
- 2.5 Series Front Coilover
- 2in Rear Spring Kit
- 2.0 Series Rear Aluminum Shocks
Stage 1 is their entry-level lift kit that features their Icon 2.5 series front Coilover shocks feature a vehicle-specific tune to give your Toyota 4Runner great ride quality on or off-road, and they are adjustable from 0 to 3.5" of lift. Our rear 2.0 Aluminum Series shocks in this system are tuned to match the front 2.5 Series coilovers in every aspect, providing smooth and consistent damping performance from front to rear.
Stage 2 - 0 to 3.5"
- 2.5 Series Extended Travel Front Coilover
- 2in Rear Spring Kit
- 2.0 Series Rear Aluminum Shocks
- Upper Control Arm with Delta Joint (Tubular or Billet Option)
Stage 2 introduces some new components as well as some nice upgrades versus stage 1. The 2.5 Series Coilover shocks used in this system are the Extended Travel version, offering increased wheel travel that will enhance your on and off-road performance even more so than the standard travel units. Since these shocks do provide more suspension travel, they require the use of an ICON upper control arm. These upper control arms use our Delta Joint which is a heavy-duty high-angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. These upper control arms are available in either a tubular steel or billet aluminum.
Stage 3 - 0 to 3.5"
- 2.5 Series Extended Travel Front Coilover
- 2in Rear Spring Kit
- 2.0 Series Rear Aluminum Shocks
- Upper Control Arm with Delta Joint (Tubular or Billet Option)
- Rear Lower Trailing Arm (Tubular or Billet Option)
Stage 3 includes some of the components found in the Stage 2 system but adds an Icon Rear Lower Link kit available in tubular steel or billet aluminum. Using the same extended travel Icon 2.5 Series Coilover shocks from stage 2, the Icon 2.0 aluminum rear shocks and upper control arms. The biggest advantage of the stage 2 kit is the new rear lower link kit that can be easily adjusted on the truck for optimum pinion angle. This kit is protected by a machined nylon skid strip to help slide over rocks without damage to the link’s structure. On top of it all, these links have been designed to provide correct roll steer geometry for the best possible handling on and off-road.
Stage 4 - 0 to 3.5"
- 2.5 Series Extended Travel Front Coilover
- 2in Rear Spring Kit
- 2.5 Series Rear Remote Reservoir Shocks
- Upper Control Arm with Delta Joint (Tubular or Billet Option)
- Rear Lower Trailing Arm (Tubular or Billet Option)
Stage 4 is a heck of a lift kit that starts to introduce the world of external reservoir shocks. The stage 4 kit provides a significant increase to the on and off-road performance of the vehicle. This system includes the components featured in the Stage 3 setup – extended travel 2.5 Series Coilover shocks, an ICON upper control arm kit, 2” rear coil springs, and a rear lower link arm kit. But sees the addition of 2.5 Aluminum Series Remote Reservoir rear shocks for balanced damping characteristics front to rear. The remote reservoir design allows for increased shock oil volume and enhanced cooling so that the rear of the vehicle can work harder for longer durations without noticeable “fade” occurring. The 2.5 Aluminum Series Remote Reservoir rear shocks also feature ICON’s “Bump Zone” technology which significantly increases damping ability in the last 2” of compression travel, preventing harsh bottom-out sensation and giving the vehicle a much more controlled ride quality over varying terrain.
