Stage 12: 1.25-3.25" 2.5 Lift Kit Tundra (2022-2024)
Arm Material
Product Description
The ICON Vehicle Dynamics Stage 12 complete suspension system for the 2022-2023 Toyota Tundra Is the first stage to include CDEV equipped 2.5 Series coilovers and rear shocks. This system offers improved on- and off-road performance, with active electronic shock damping adjustment, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires.
Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input.

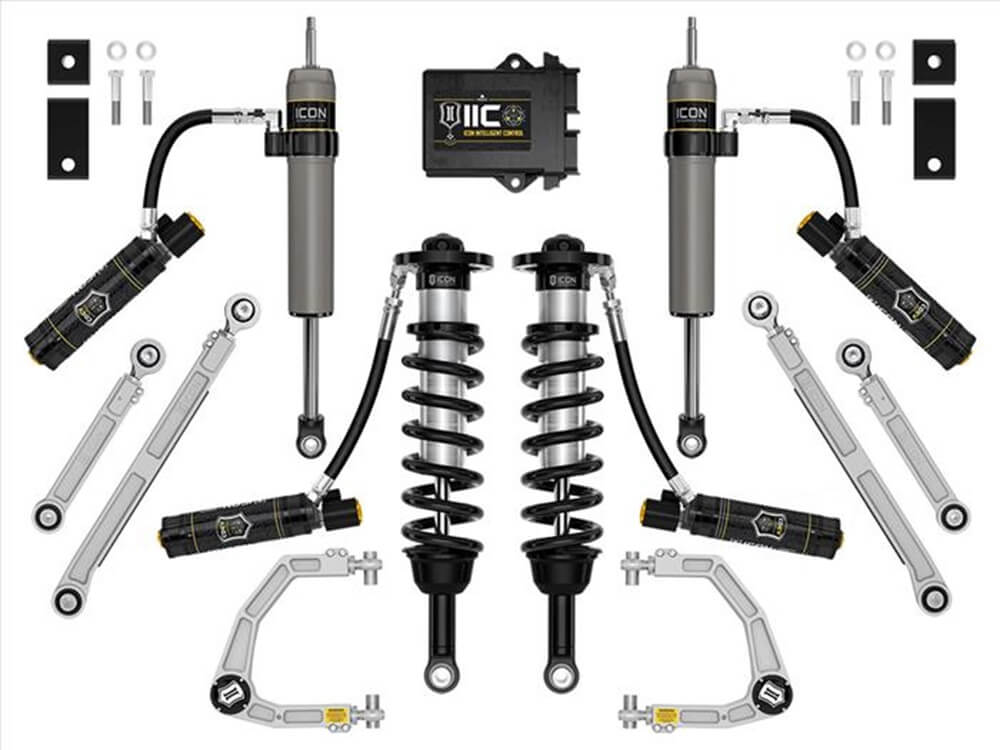

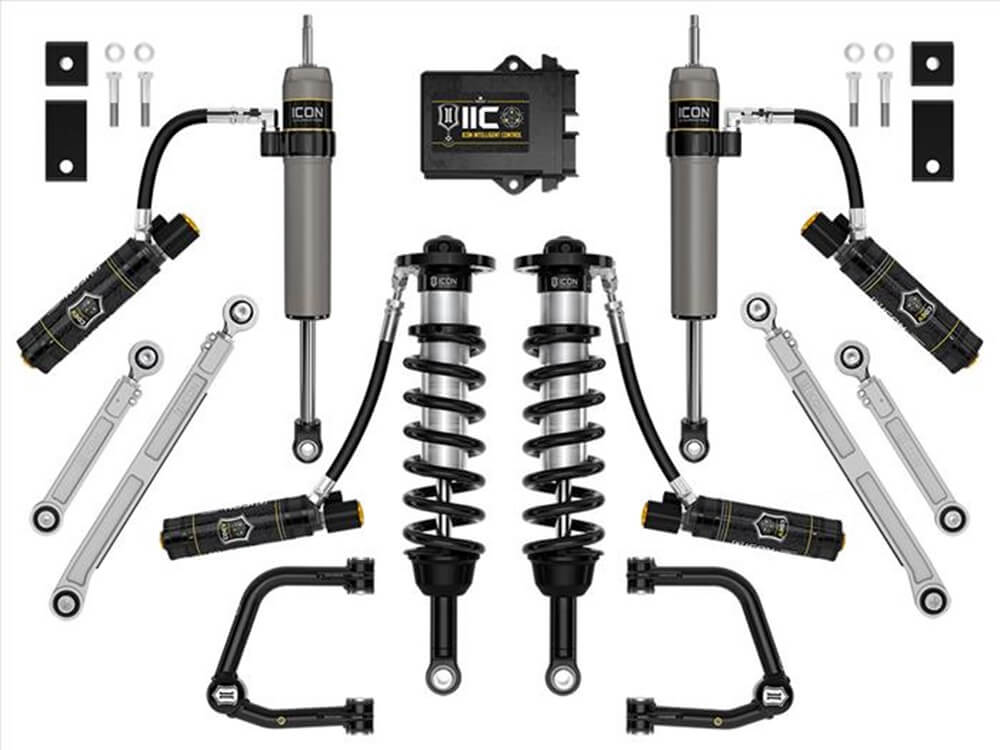

This Stage 12 system features the 2022-2023 Toyota Tundra VS 2.5 Series remote reservoir front coilovers equipped with CDEV. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability over stock when using the ICON front billet aluminum front upper control arms or 2-3.5” of lift height adjustability over stock when using the ICON tubular front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations.
ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.
Rounding out the Stage 12 suspension system are 2.5 Aluminum Series rear remote reservoir shocks with CDEV specially tailored for the 2022-2023 Tundra. The 2.5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.
They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Their pairing with the ICON V.S. 2.5 Series CDEV front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.
Included
- (1) Front Sway Bar Drop Kit
- (1) Front Upper Control Arm Delta Joint Pro Kit (Billet or Tubular)
- (1) Intelligent Control Install Kit
- (1) Front 2.5 Series VS RR CDCV Coilover Kit
- (1) Rear 2.5 Series Shocks VS RR CDEV - Pair
Product Features
- Vehicle specific design for 2022-2023 Toyota Tundra
- 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
- Adjustable front ride heights from 1.25-3.5” of front lift over stock when used with included billet aluminum UCAs or Adjustable front ride heights from 2-3.5” of front lift over stock when used with included tubular UCAs
-
Billet aluminum UCAs or Tubular UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
- 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
- All ICON shock absorbers are fully rebuildable and re-tunable
Fitment Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
- Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
- Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
- Not Compatible With Tundras Equipped With Load-Leveling Rear Height Control Air Suspension.
- Tundra Sr5 Equipped With Trd Sport Package Lift Range Will Be 2.25-4.5" (Billet)
- For 4Wd Models Without Trd Off-Road Package ICON Recommends Using ICON Diff Drop (Part# 55156) Or Using Toyota Trd Axles (Part# 434200C020 Driver / 434100C020 Pass). Failure To Do So Could Result In Front Axle Damage. Not Required For Trd Pro.
- If upgrading a Tundra equipped with Adaptive Variable Suspension (AVS) all other vehicle systems remain functional
- Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 1.25-3.5" over stock (Billet)
- Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of .75-3" over stock (Billet)
- Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 2-3.5" over stock (Tubular)
- Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of 2-3" over stock (Tubular)
- Tundra SR5 equipped with TRD Sport Suspension package will have lift height range of 3-4.5” over stock (Tubular)
- Tundra TRD Pro will have front lift height range of 0-1.75" over stock
- Included rear shocks are compatible with 0-1.5" of rear lift over stock on models equipped with rear coil springs without TRD suspension package. Rear shocks are compatible with 0-1" of rear lift over stock on models equipped with rear coil springs with TRD suspension package and TRD Pro.
