Stage 2: 1.25-3" Suspension System Billet W/ Triple Rate Rear Spring Tacoma (2024+)

Product Description

An excellent choice for drivers looking to enhance the capabilities of their truck on the road as well as in the dirt. This Stage 2 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. Designed to improve overall performance with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind.The rear triple-rate coil design provides a softer droop and ride rates with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. Rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear.

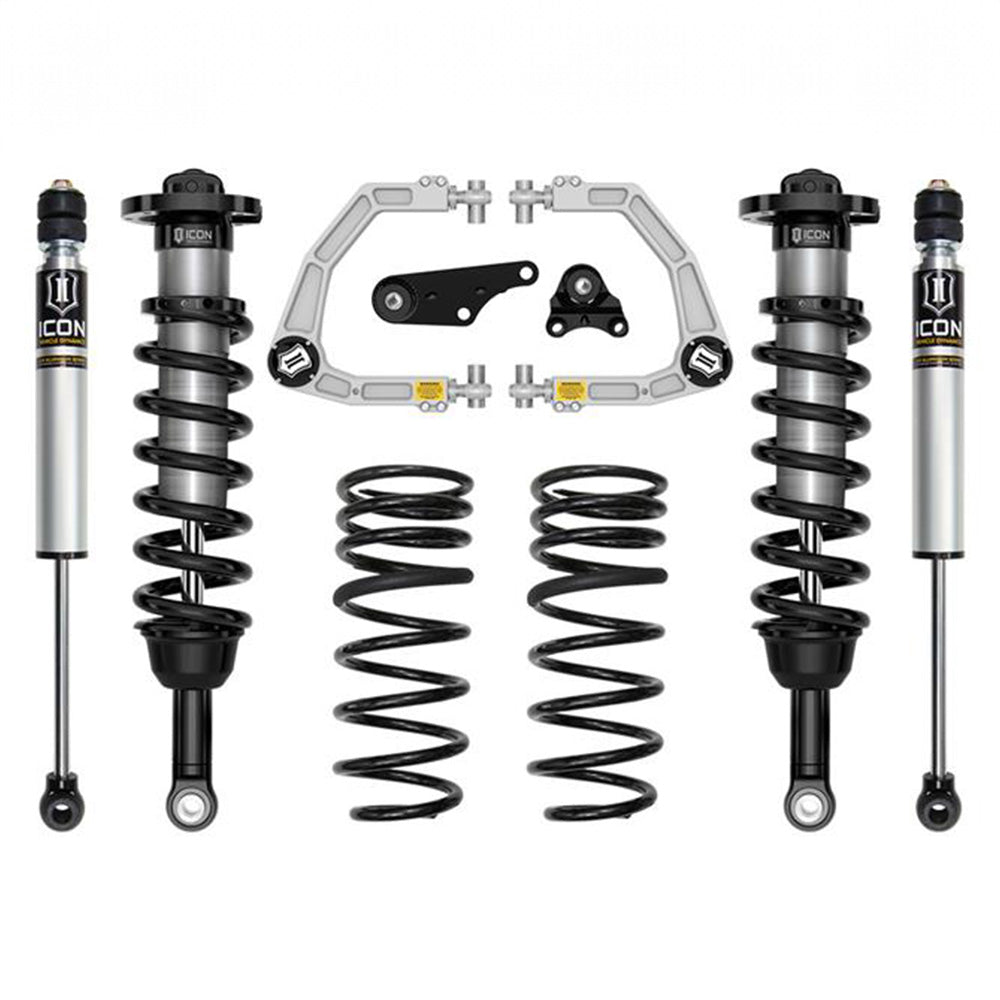

Included

• 1 - 2.5 Coilover kit
• 1 - Billet pro kit
• 1 - Diff drop kit
• 2 - 0-1" Rear VS IR
• 1 - 5" Lift triple rate rear coil spring kit

Product Features

• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts

Fitment Notes

• Recommended aftermarket tires: 33" x 11.50" (larger tires may fit but fender trimming and modifications will be required)
• An adjustable track bar is recommended to realign the axle but not required
• Shocks are fully serviceable. Lift heights indicted are for a stock equipped vehicle
• Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range
• Will not fit Tacoma submodels equipped with rear leaf springs
• Configured for fitment on 4WD models. If installing onto a 2WD 2024 Toyota Tacoma SR5 or TRD Sport, front differential drop kit part is not needed and the other suspension system components can be ordered individually with full system functionality.
