Stage 3: 1.25-3" Lift Tubular Suspension System Tacoma (2024+)

Product Description

ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 3 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. ICON tubular upper control arm kit is designed to improve overall performance with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The rear triple-rate coil design provides a softer droop and ride rates with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. ICON 2.0 Aluminum Series remote reservoir rear shocks provide improved cooling ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear.

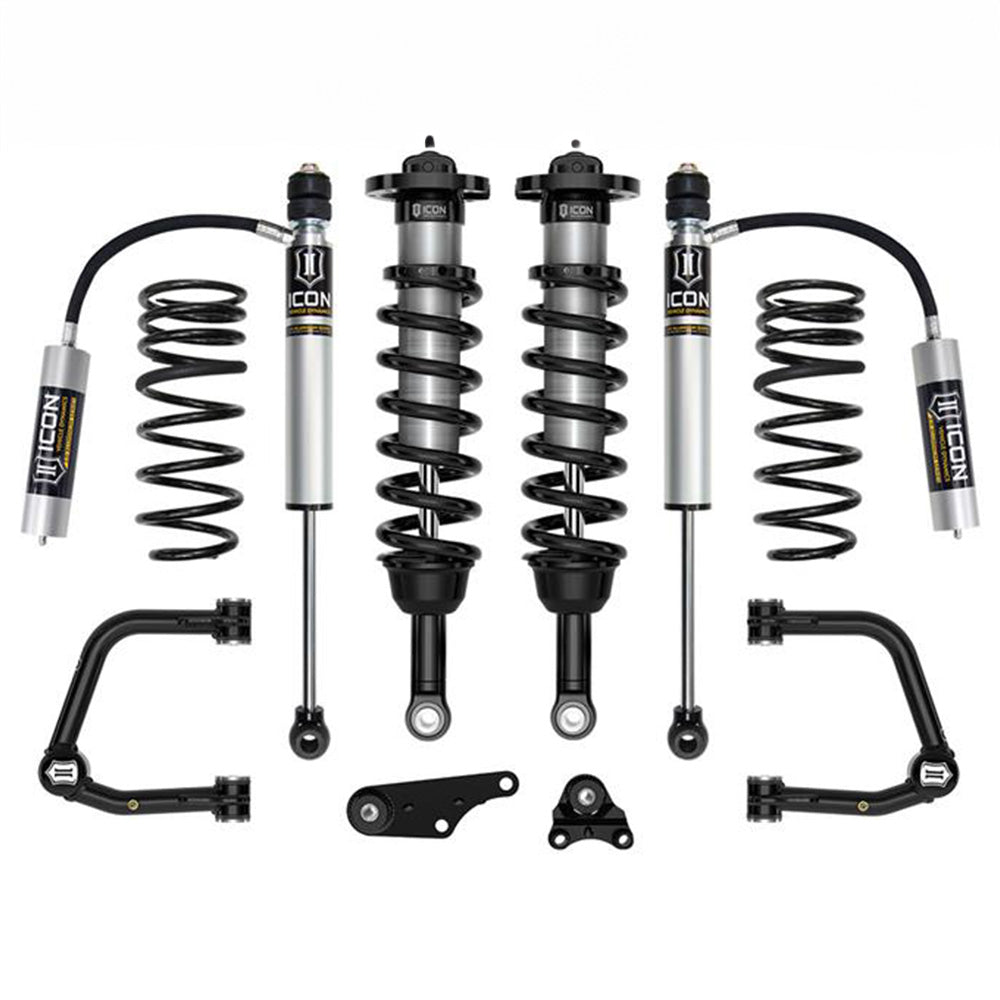

Included

• 1 - VS IR coilover kit
• 1 - Tubular UCA DJ pro kit
• 1 - Diff drop kit
• 2 - 0-1" Rear 2.0 VS RR
• 1 - .5" Lift triple rate rear coil spring kit

Product Features

• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift

Fitment Notes

• Fits OEM wheels and tires
• Recommended aftermarket tires: 33" x 11.50" (larger tires may fit but fender trimming and modifications will be required)
• An adjustable track bar is recommended to realign the axle but not required
• Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle
• Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
• Will not fit Tacoma submodels equipped with rear leaf springs
• This kit is configured for fitment on 4WD models. If installing onto a 2WD 2024 Toyota Tacoma SR5 or TRD Sport, front differential drop kit is not needed and the other suspension system components can be ordered individually with full system functionality
