ICON S2 secondary shock upgrade system mounted on a 2010-2024 Toyota 4Runner

ICON

Stage 3: S2 Secondary Shock Upgrade System 4Runner (2010-2024)

Sale price$2,567.20 USD
SKU: ICOK53123
On Backorder - Signup below to get notified when we get back in stock.
Free shipping on this item
Backed by the ICON manufacturer warranty.

ICON warranty

ICON Vehicle Dynamics offers a limited lifetime warranty on its components, springs and weldments for the original retail purchaser who owns the vehicle they were installed on. Shocks carry a 1 year manufacturer defect warranty, and the Delta Joint carries 5 years.

It does not cover finish, wear items, alterations, modifications, or installation contrary to instructions. It also does not apply to race, police, taxi, government or commercial vehicles, or to sales outside the US and Canada.

Components must be installed as a complete kit. The remedy is repair or replacement only, and removal, installation and freight are excluded.

Does this fit my vehicle?

Product Description

The ICON Vehicle Dynamics S2 Secondary Shock System redefines the off-road capability by allowing the installation of a secondary shock to an existing ICON coil over setup. The addition of secondary 2.5 Aluminum Series remote reservoir Omega bypass shocks means rougher terrain and larger off-road obstacles can be overcome with confidence as the damping ability of the vehicle’s suspension is effectively doubled. The ICON Omena Bypass shocks feature two bypass tubes, creating multiple damping zones within the shocks, and externally adjustable bypass valves that restricts oil flow through the tubes to provide 28 settings of compression and rebound adjustment.

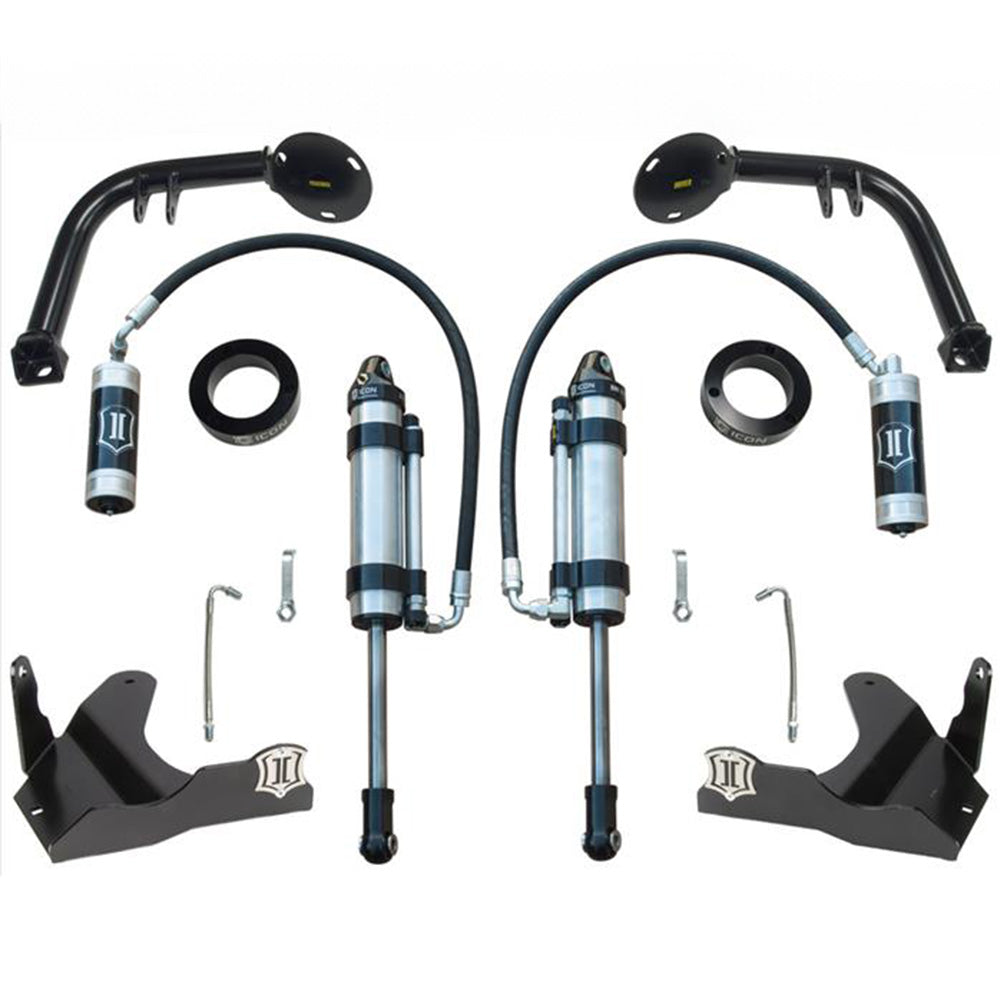

Included

  • LCA skid plate kit
  • S2 Shock hoop kit
  • S2 Front 2.5 Omega Remote Reserve (RR) pair

Product Features

  • Drastically improve vehicle damping ability off-road
  • Increased vehicle stability on-road
  • Utilized factory lower control arm
  • Increased damping and oil volume
  • Allows for compression and rebound damping adjustment
  • Excellent corrosion resistant and consistent finish
  • Fully rebuildable and revalveable
  • Straight forward install

Fitment Notes

  • These are stand alone kits and are not to be used in conjunction with any other aftermarket kits
  • Remote reservoir mounting brackets may interfere with aftermarket bumper mounts / windshield washer bottles
  • Shocks are fully serviceable. Coil over heights indicated are for a stock equipped vehicle
  • Welding required- lower shock tab and steering stop
  • Does not work on KDSS equipped vehicles
  • Does not work with TRD big brake kit
  • Compatible with 0-3.5" of front lift over stock
  • OEM wheel and tire fitment
  • Recommended after market tires: 33" x 11.50" (larger tires may fit but fender trimming and modifications will be required)
