Stage 4: Suspension System 1.25-3" Lift Tubular Tacoma (2024+)

Product Description

ICON Vehicle Dynamics 2024 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 4 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. The included ICON tubular upper control arm kit is designed to improve the overall performance of the new 2024 Toyota Tacoma with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. ICON 2.5 Aluminum Series remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024 Toyota Tacoma Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

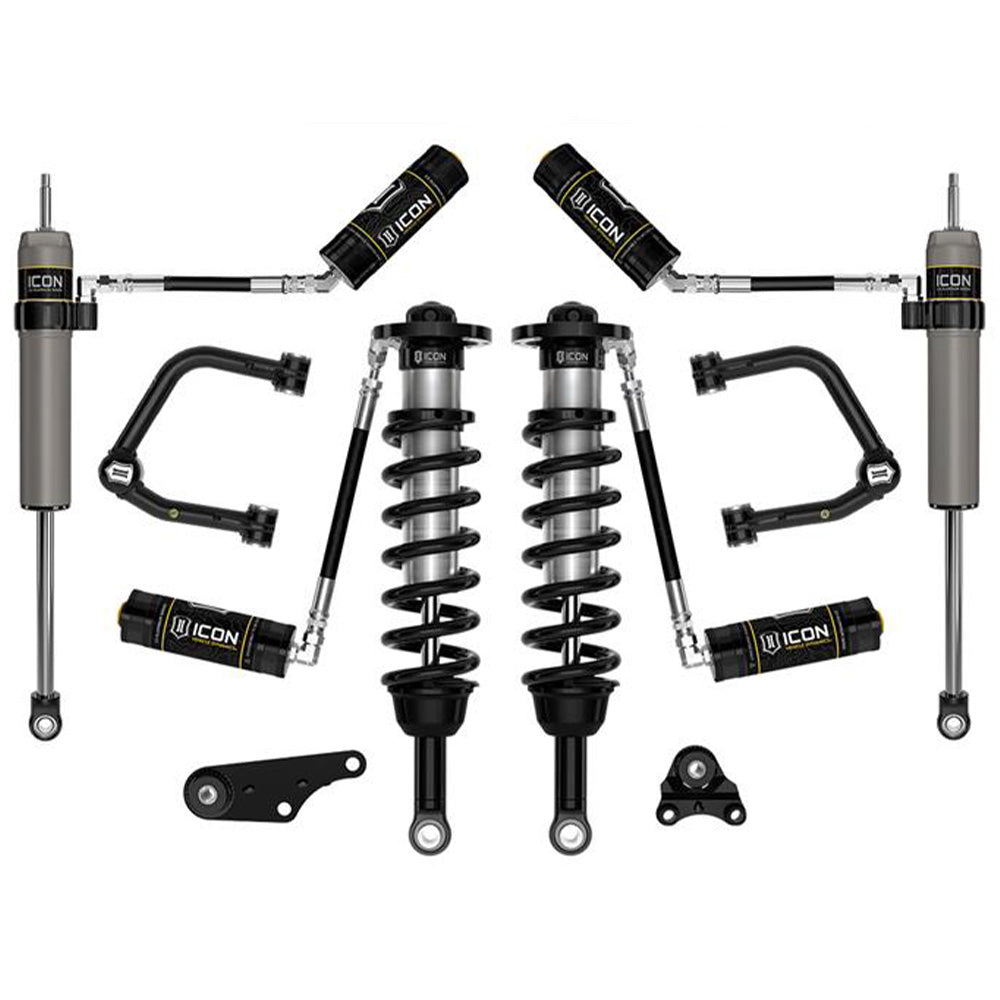

Included

• Diff Drop Kit
• 2.5 In VS RR Coilover Kit
• 0-1In Rear 2.5 Series Shock VS RR Pair
• Upper Control Arms

Product Features

• ICON engineered coil springs.
• FK Rod End bearings for extended longevity and minimal deflection.
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers.
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling.
• Increased wheel travel and improved ride quality over stock.
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models.
• Adjustable coilovers provide 1.25-3" front lift height over stock.
• Tubular UCAs for added strength, durability, and alignment correction for better drivability.
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation.
• 6061 aircraft grade aluminum CNC machined components.
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts.

Fitment Notes

• Will not fit 2024 Toyota Tacoma TRD PreRunner or 2024 Toyota Tacoma Limited AWD.
• 4WD models require front differential drop part # 55160.
• This kit is configured for fitment on 4WD models. If installing onto a 2WD 2024 Toyota Tacoma SR, SR5, or TRD Sport, front differential drop kit part number 55160 is not needed and the other suspension system components can be ordered individually with full system functionality.
