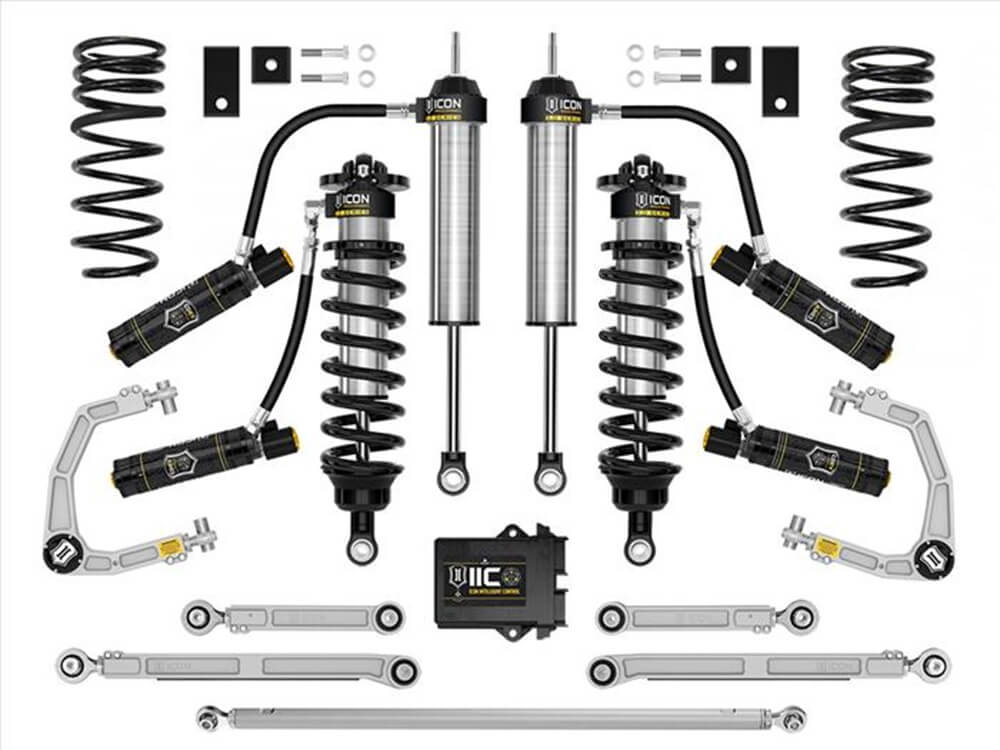

Stage 6: 1.25-3.25" TRD 3.0 Lift Kit Tundra (2022+)

Product Description

The ICON Vehicle Dynamics Stage 6 3.0 complete suspension system for the 2022-2023 Toyota Tundra builds upon the Stage 5 3.0 suspension system with the addition of triple rate rear coil springs and an adjustable rear track bar. To compliment the rear coils and track bar, 3.0 Series CDEV front coilovers are included along with front billet upper control arms or tubular upper control arms, a billet rear upper/lower link combo, a front sway bar drop kit, and 3.0 Series CDEV rear shocks. Improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires.

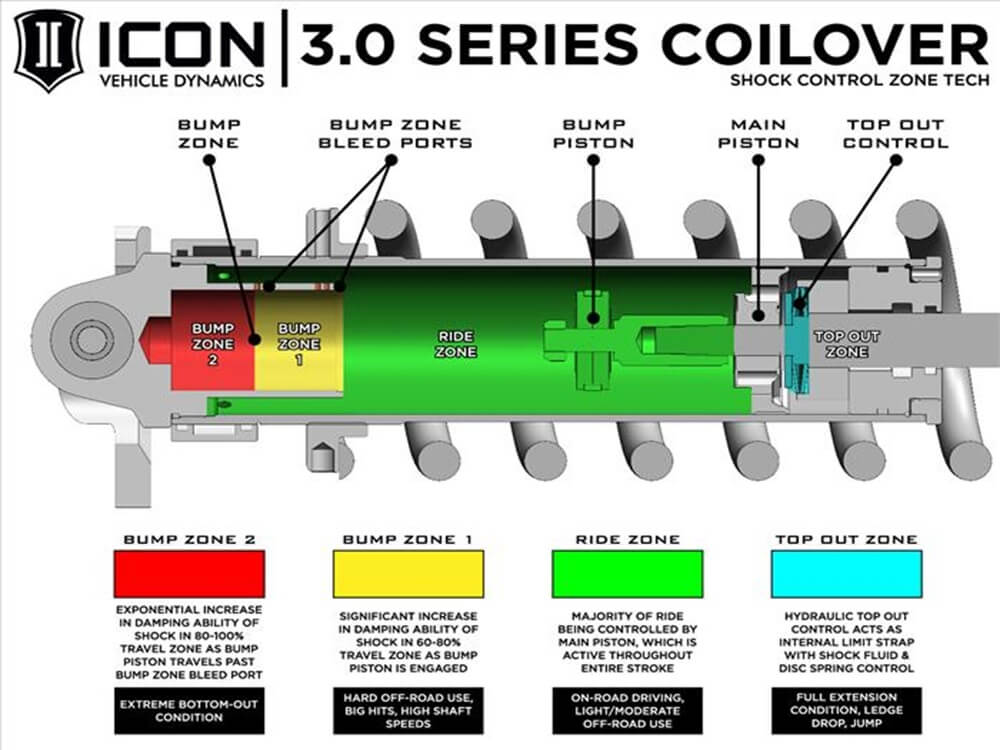

This Stage 6 system features the 2022-2023 Toyota Tundra VS 3.0 Series remote reservoir front coilovers equipped with CDE Valves. These adjustable coilovers allow up to 1.25-3.25” of lift height adjustability over stock when using the ICON billet front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations.

Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input.

The included ICON billet aluminum upper control arm kit or tubular upper control arm kit is designed to improve the overall performance of the new 2022-2023 Toyota Tundra with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance.

Included

• (1) Front Sway Bar Drop Kit
• (1) Rear Billet Lower Link
• (1) Rear Billet Upper Link
• (1) Rear Billet Adjustable Track Bar Kit
• (1) Front Upper Control Arm Delta Joint Pro Kit (Billet or Tubular)
• (1) Intelligent Control Install Kit
• (1) Front 3.0 Series Shocks VS RR CDEV Coilover Kit
• (1) Rear 3.0 Series Shocks VS RR CDEV - Pair
• (1) Rear 1.25" Lift Triple Rate Coil Spring Kit

Product Features

ICON Vehicle Dynamics warrants to the original retail purchaser who owns the vehicle on which the product was originally installed.
ICON Vehicle Dynamics does not warrant the product for finish, alterations, modifications and/or installation contrary to ICON Vehicle Dynamics instructions. ICON Vehicle Dynamics products are not designed, nor are they intended to be installed on vehicles used in race applications, for racing purposes or for similar activities. (A “race” is defined as any contest between two or more vehicles, or a contest of one or more vehicles against the clock, whether or not such contest is for a prize). This warranty does not include coverage for police or taxi vehicles, race vehicles, or vehicles used for government or commercial purposes. Also excluded from this warranty are sales outside of the United States of America and Canada.
ICON Vehicle Dynamics’ obligation under this warranty is limited to the repair or replacement, at ICON Vehicle Dynamics’ discretion, of the defective product. Any and all costs of removal, installation or re-installation, freight charges and incidental or consequential damages are expressly excluded from this warranty. Items that are subject to wear are not considered defective when worn and are
not covered.
ICON Vehicle Dynamics components must be installed as a complete kit as shown in our current application guide. Any substitutions or exemptions of required components will immediately void the warranty. Some finish damage may happen to parts during shipping
and is not covered under warranty.
This warranty is expressly in lieu of all other warranties expressed or implied. This warranty shall not apply to any product that has been improperly installed, modified or customized subject to accident, negligence, abuse or misuse.
