Stage 7: 6" Lift Kit Tundra (2022-2024)
Arm Material:
Arm Material
Product Description
Unlock the full potential of your 2022-2023 Tundra with the 6" ICON Stage 7 Suspension System with Tubular Upper Control Arm Kit option. Designed to provide superior damping and vehicle control, this system is a game-changer for your off-road adventures.
Icon utilizes components from the best brands in the off-road industry, making sure that your vehicle is always ready for your next adventure. Icon kits are easy to install and provide increased stability and confidence when driving in challenging conditions. With Icon Suspension Lift Kits, you can be sure that your vehicle is always ready for the road ahead.

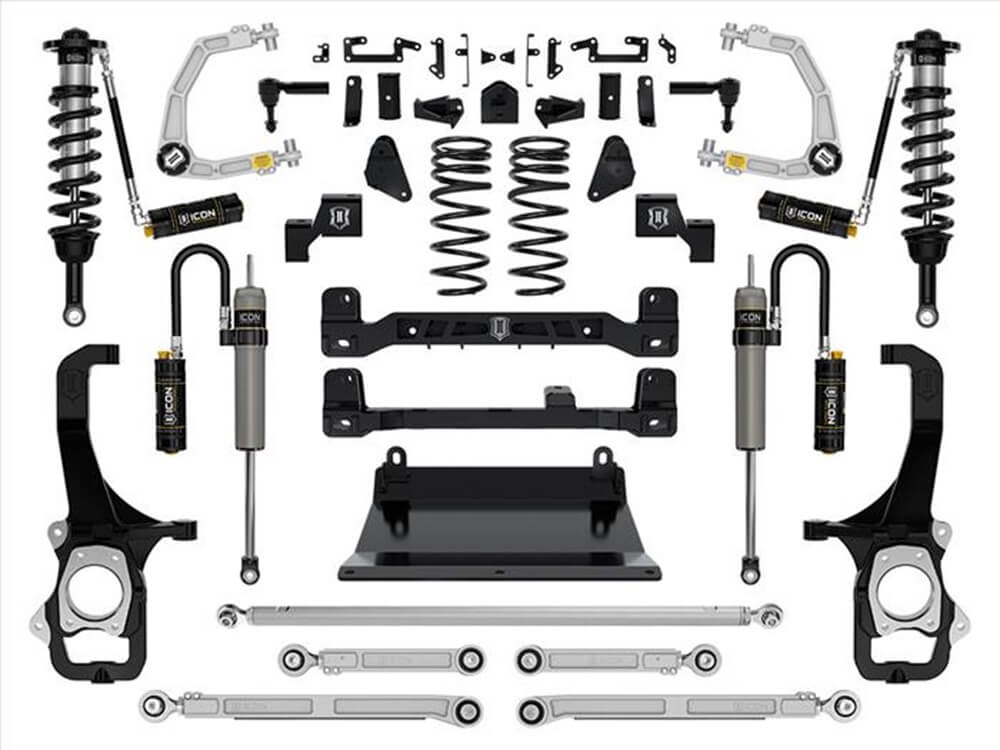

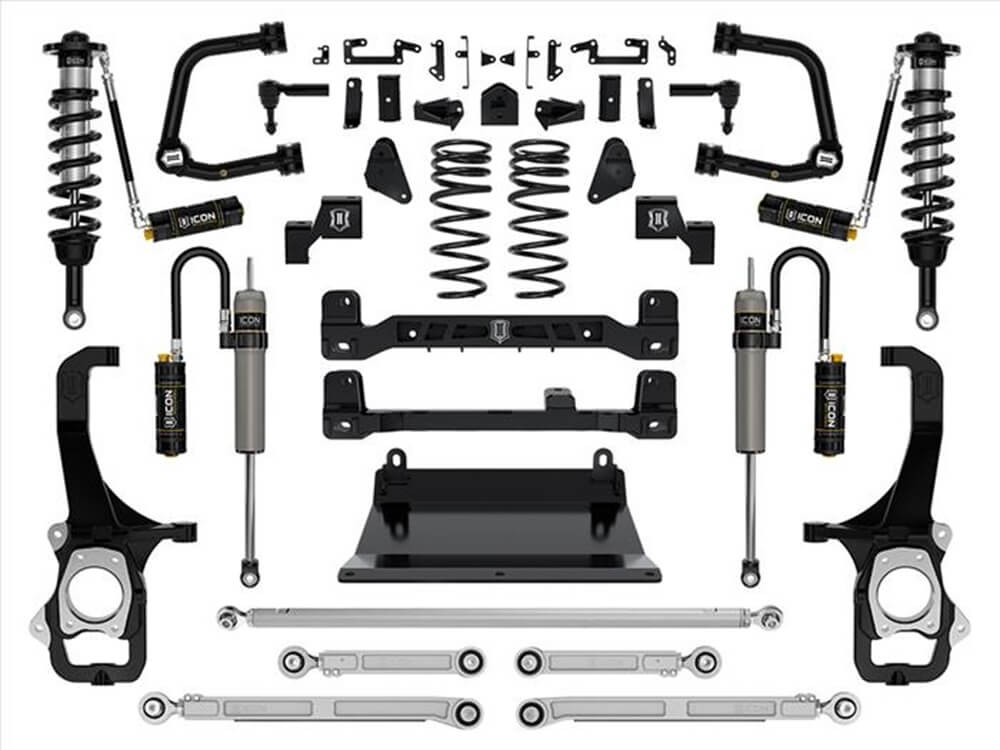

Included
- (1) Front Upper Control Arm Delta Joint Pro Kit (Billet or Tubular)
- (1) Rear Billet Lower Link Kit
- (1) Rear Billet Upper Link Kit
- (1) Rear Billet Adjustable Track Bar Kit
- (1) Front Lift Kit Box 1
- (1) Rear Box Kit
- (1) Front Skid Plate
- (1) Front Box Kit 1
- (1) Rear 3.5" 2.5 VS CDCV RR - Pair
- (1) Front 2.5 VS RR CDCV 6" Coilover Kit
- (1) Rear 3.5 Coil Spring Kit
- (1) Front Knuckle Kit
Product Features
- 2.5 Series front coilovers and rear shocks with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
- System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
- Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
- Maintains factory track width
- Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
- Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
- Billet aluminum UCAs or Tubular UCSs with Delta Joint Pro for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
- Single piece high-strength ductile iron steering knuckles with built-in 4" drop
- Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
- Included sway bar drop brackets reduce bind in OE sway bar links
- Front and rear heavy-duty bump stop brackets
- High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
- ICON engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving
- Billet rear upper and high clearance lower links improve rear end articulation and allow on-vehicle adjustment for different ride heights and pinion angles using ICON's double adjuster system
- Billet rear lower links have replaceable nylon rock sliders to protect the links from trail damage
- On-vehicle adjustable billet rear track bar properly centers rear axle while also improve rear suspension performance
- Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
Fitment Notes
- OEM Wheels & Tires Fitment: No
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
- Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
- Not Compatible With Tundras Equipped With Load-Leveling Rear Height Control Air Suspension.
- Not Compatible With Adaptive Variable Suspension (Avs) Equipped Vehicles
- May Require Recalibration Of Toyota Safety Sense System After Install
- Requires minimum of 20" diameter wheels
- Models equipped with automatic leveling headlights also require part number 55153
- Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 5-6" over stock.
- Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of 4.5-5.5" over stock.
- Tundra SR5 with TRD Sport package will have front lift height range of 6-7" over stock.
- Tundra TRD Pro will have front lift height range of 3.25-4.25" over stock.
- Provides 3" of rear lift on a Tundra equipped with TRD Off-Road or TRD Sport suspension packages and TRD Pro. A Tundra without TRD Off-Road or TRD Sport suspension packages will net 3.5" of rear lift.
